Step-by-Step Hyundai Car Audio Wiring Guide and Color Codes
Begin by locating the factory harness behind the dashboard–the OEM connector typically matches the color-coding of Hyundai’s radio integration schema. For most 2010–2023 models, the yellow wire delivers constant 12V power, while the red wire requires ignition activation. Ground connections via the black wire must terminate directly to chassis metal, avoiding shared grounds with other components to prevent interference. Verify compatibility with the vehicle’s fuse rating: aftermarket units often demand a 15A or 20A fuse, while stock setups may use 10A.
Identify the speaker outputs–front left/right (white/green) and rear left/right (grey/violet)–using a multimeter to confirm +12V pulses before finalizing connections. Hyundai’s newer models (Tucson, Elantra 2017+) include an amp turn-on lead (blue/white), which must sync with the amplifier’s remote input to avoid power drain. For vehicles equipped with external amplifiers (e.g., Sonata Limited), bypass the built-in amp by rerouting speaker wires directly to the head unit’s outputs.
Use heat-shrink tubing or soldered joints for all splices; twist-and-tape methods degrade within months due to vibration. Hyundai’s CAN bus systems (2015+) require data wires (orange/white) to retain steering wheel controls–interrupting this circuit triggers dash error codes. If retrofitting a non-OEM system, procure a Harness Adapter (Metra 70-1004 or equivalent) to preserve factory plugins without cutting existing cables. Test continuity with the engine off first, then under normal operation to detect parasitic draws or shorts.
For navigation-enabled models, retain the GPS antenna lead (pink) and route it through the dashboard pillar to avoid signal obstruction. Hyundai’s 2019+ Genesis G70/G80 use a fiber-optic MOST bus–consult a wiring schematic specific to these variants, as standard connectors won’t suffice. Always disconnect the battery’s negative terminal before beginning work; Hyundai’s ECUs may reset if powered during installation, necessitating a dealer reflash.
How to Connect Your Vehicle’s Audio System: A Detailed Guide
Start by locating the color-coded harness behind the factory receiver. Hyundai’s 12-pin connector typically includes these key wires: yellow (constant +12V), red (ignition-switched +12V), black (ground), blue/white (power antenna or amplifier trigger), and orange (illumination dimmer). Verify each pin’s function with a multimeter before splicing–factory schematics often label pinouts in Korean or English on the harness itself, but errors occur in aftermarket manuals.
For amplifier integration, route the blue/white wire directly to your external amp’s remote turn-on terminal. Avoid connecting it to accessory power leads, as this can drain the battery or cause premature amp failure. If your model lacks a dedicated amp wire (e.g., base trims), tap into the fuse box using a mini fuse adapter at the IGN or ACC fuse slot–use a 10A fuse to prevent overloads.
Ground connections demand a clean, bare-metal surface. Scrape paint, rust, or insulation from the mounting point, then secure the black wire with a ring terminal and a stainless steel screw. Poor grounding causes radio static, speaker hum, or intermittent power loss. For vehicles with aluminum bodies, locate a nearby bolt connected to the chassis–factory ground points near the trunk or kick panels are ideal.
Speaker wires follow a consistent color scheme: gray (+) and gray/black (-) for front right, white (+) and white/black (-) for front left, purple (+) and purple/black (-) for rear right, and green (+) and green/black (-) for rear left. Match these to your new head unit’s harness using a wire crimper or soldering iron–twist-and-tape methods fail under vibration. For premium systems with tweeters, the light blue wire may carry subwoofer or center-channel signals; consult the manufacturer’s pinout for compatibility.
Steering wheel controls require an adapter like Metra ASWC-1 or PAC RP4-HY11. These modules translate resistor-based button signals into CAN bus data. Diagram the existing control harness–Hyundai often uses a 6-pin connector with red (power), black (ground), pink (data), and blue (common) wires. Reverse-engineer the resistance values of each button press if adapting generic interfaces, as factory resistance ranges vary by year and trim.
Final checks include disconnecting the battery before making connections to prevent short circuits. Reconnect after 5 minutes, then test each function: power, sources, volume, and EQ settings. If the display flickers, recheck the orange dimmer wire; if rear speakers don’t work, verify the purple/green pairs for mixed polarity. Keep a fuse puller and spare 15A fuses on hand–factory radios often use them for memory retention circuits.
Understanding Car Audio Interface Adapters: Pin Configurations and Compatibility

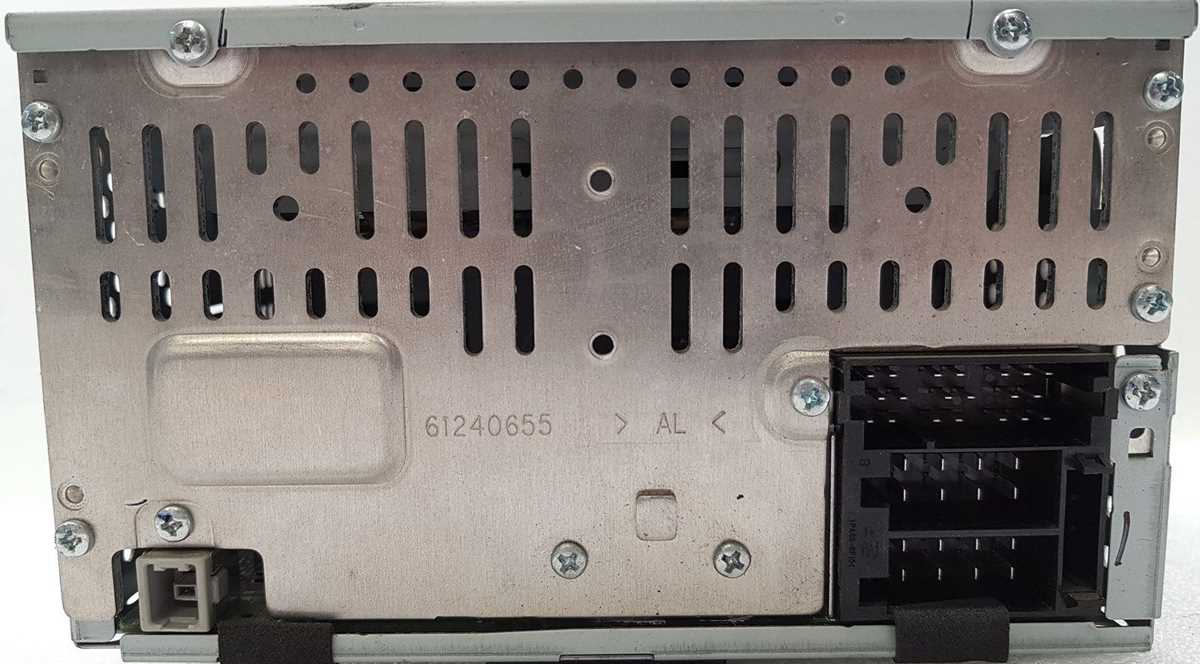

Locate the vehicle’s factory radio harness by checking the back of the head unit or consulting the owner’s manual for color-coded wires. Hyundai aftermarket receivers typically use a 16-pin ISO connector or proprietary plugs with distinct pin assignments. Verify the exact model year and trim, as variations exist even within the same generation–Santa Fe (2013-2018) uses a different layout than Elantra (2017-2020). If the connector doesn’t match standard ISO, an adapter harness will be necessary for seamless integration without cutting original cables.
Harness adapters break down into specific categories: power supply, speaker outputs, antenna control, and multimedia signals. The 12V constant power (yellow) and accessory-switched (red) cables must align with the vehicle’s fuse box ratings–usually 10A for Hyundai models. Ground connections (black) require direct chassis attachment with proper gauge wire (minimum 18 AWG). Speaker wires follow a universal color scheme: front left (+) gray, (-) gray/black; front right (+) white, (-) white/black; rear left (+) green, (-) green/black; rear right (+) purple, (-) purple/black.
Key Pinouts for Common Hyundai Radio Interfaces
| Pin Number | Function | Color Code (Typical) | Voltage/Note |
|---|---|---|---|
| 1 | Battery (Constant +12V) | Yellow | 12V, max 10A fuse |
| 2 | Ignition (Switched +12V) | Red | 12V when key in ACC/RUN |
| 3 | Ground | Black | Direct chassis connection |
| 4 | Illumination | Orange/White | PWM, 0-12V dimming |
| 5 | Antenna Trigger | Blue/White | 12V output for power antenna |
| 6 | Front Right Speaker (+) | White | 4Ω impedance |
| 7 | Front Right Speaker (-) | White/Black | 4Ω impedance |
| 8 | Rear Right Speaker (+) | Purple | 4Ω impedance |
| 9 | Rear Right Speaker (-) | Purple/Black | 4Ω impedance |
Some models include additional data lines for hands-free calling or steering wheel controls, often labeled as “CAN bus” or “AUX” wires (green or brown). These require specific interface modules–Metra ASWC-1 or iDatalink Maestro RR–to retain factory functionality. If the vehicle has a built-in amp, separate amplifier turn-on (blue) and remote power (purple) wires must connect to avoid signal loss. Always confirm impedance matching between speakers and the new unit to prevent damage; Hyundai factory speakers are typically 2-8Ω.
For vehicles with navigation or premium audio systems, retain the OEM amplifier by splicing into the original connectors. Locate the amp under seats or behind the dashboard, then trace cables back to confirm pin functions using a multimeter. If upgrading, choose a receiver with built-in crossovers (HPF/LPF) to compensate for Hyundai’s lack of external filters in base trims. Test all connections with the key in ACC position before final installation to ensure no shorts or voltage drops exist.
Troubleshooting Common Connectivity Issues
If the head unit powers on but produces no sound, verify the ground connection and check for blown fuses (located in the fuse box, labeled “Audio” or “Radio”). For distorted audio, ensure speaker polarity is correct and no bare wires are touching. Static or interference often stems from poor ground–secure connections with crimp connectors or solder, then cover with heat-shrink tubing. If steering wheel controls stop working, replace the interface module and reprogram using the vehicle’s VIN code. Finally, consult Hyundai’s technical service bulletins (TSBs) for known electrical issues, such as faulty illumination circuits in 2015-2019 Tucson models.
Step-by-Step Guide to Locating the Factory Connection Bundle

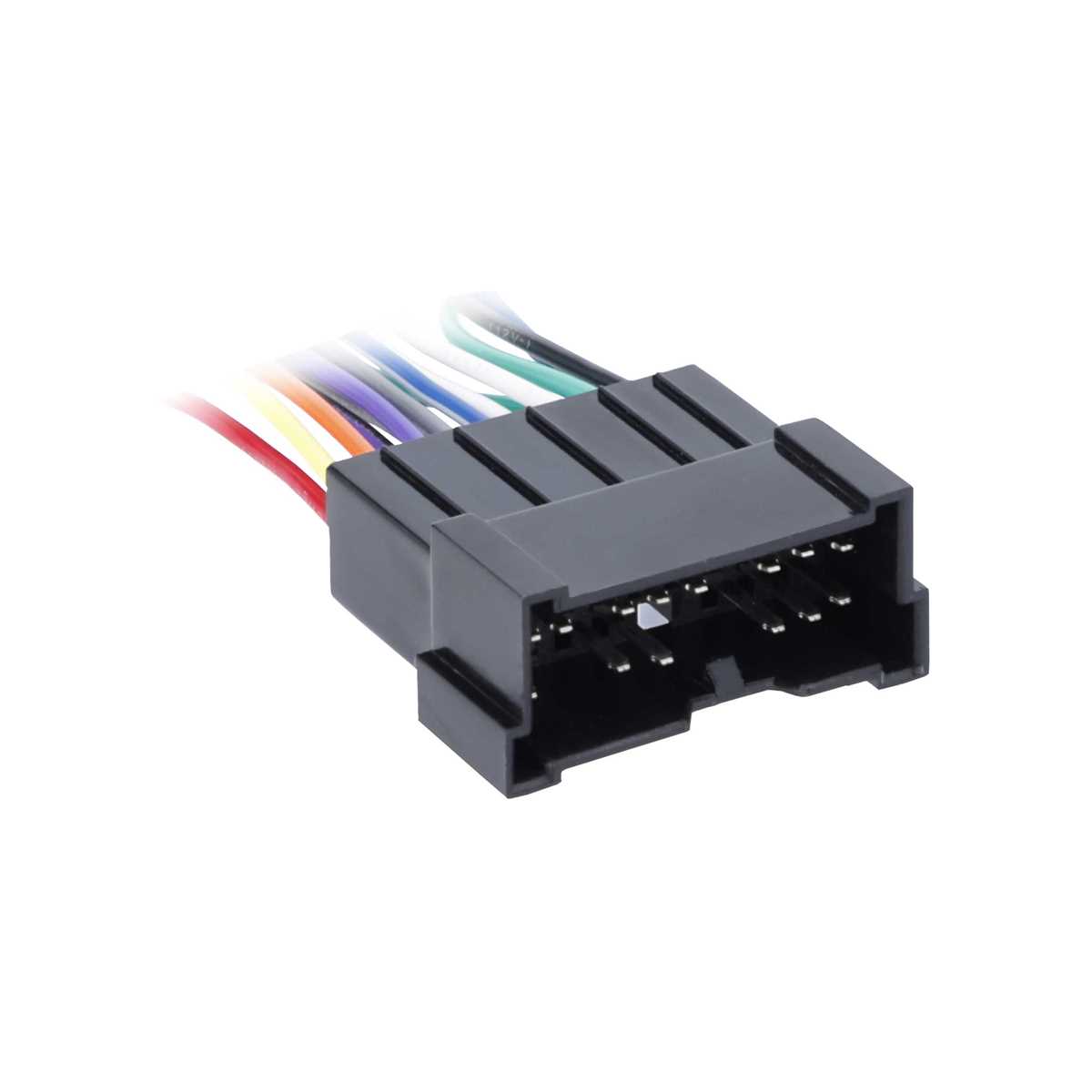

Begin by removing the trim panel beneath the dashboard on the driver’s side–use a plastic pry tool to avoid scratching surfaces. Hyundai models from 2010 onward typically house the harness behind a rectangular cover secured by two screws; unscrew them and set aside. For older variants (pre-2010), check the knee bolster area, where a loose bundle of color-coded cables exits the main fuse box. Identify the 12-pin or 16-pin plug–white for base systems, gray for premium audio–matching the aftermarket unit’s compatibility list.
Verifying Pin Configuration Before Disconnection
Cross-reference the factory plug’s pin layout with your replacement manual: ground (black), 12V constant (yellow), ignition-switched (red), speaker outputs (violet, green, gray, white). Use a multimeter to confirm voltage–yellow should read 12V regardless of ignition state, red only when the key is turned. Mark each wire with masking tape to prevent misalignment during reconnection. Avoid cutting wires; instead, use a harness adapter if lengths differ.
