Step-by-Step Intercom Wiring Diagram Guide for Home Installation
Begin by mapping terminal allocations on your access device–modern panels typically use four-core cables, though six or eight conductors may be required for advanced models with video or keypad functions. Identify color-coding conventions early: red and green usually handle power, while yellow and white carry audio signals. Verify manufacturer specifications before cutting wires; deviations in pin assignments often occur between brands.
Strip insulation precisely–expose 8–10 mm of copper to ensure secure contact without risking short circuits. Twist strands gently before inserting into clamps; solder connections only if dealing with high-resistance environments like outdoor gates or humid corridors. Secure terminals with torque-controlled screwdrivers to prevent loose contacts, a primary failure point in entry systems.
Route cables along structural edges, keeping them at least 30 cm from power lines to minimize interference. Use shielded twisted pairs (STP) for runs exceeding 50 meters or when crossing fluorescent lighting circuits. Ground the shield at one end–typically the panel–to avoid ground loops that introduce hum into audio channels.
Test continuity with a multimeter before sealing connections: measure 12–24V DC between power terminals, ~0.5V AC across audio lines when speaking, and verify impedance matches (600–1000 ohms for most residential units). Label each wire at both ends using heat-shrink tubing–relying on color alone risks errors during future repairs.
For multi-apartment units, daisy-chain configurations reduce cable usage but increase voltage drop. Calculate resistance loss: 0.03 ohms per meter for 0.5 mm² copper wire. If voltage at the farthest station drops below 9V, introduce a localized power supply or upsize conductors. Avoid star topologies unless troubleshooting individual lines is prioritized over cost.

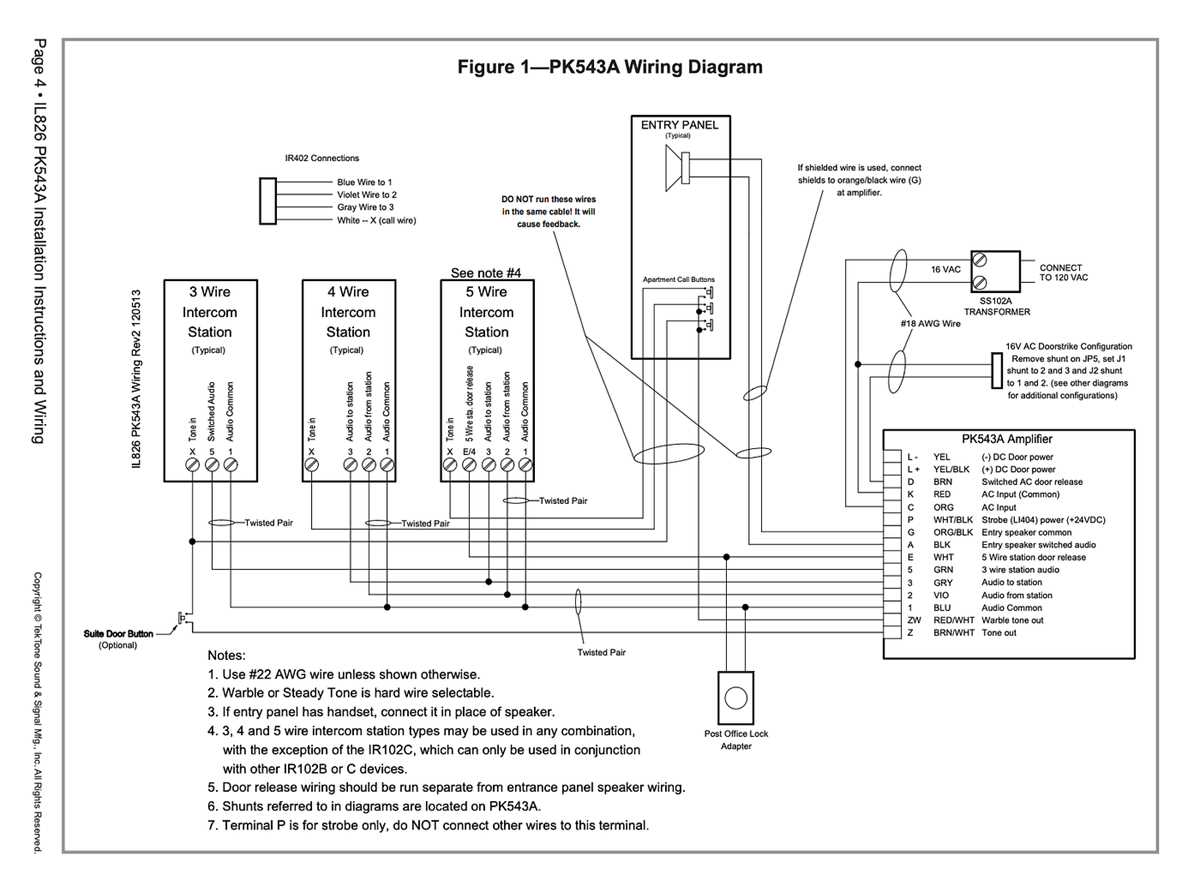

Schematic Layout for Door Entry Systems
Start by identifying the core components: outdoor station, indoor handset, power supply, and cabling paths. Use a minimum of 0.75mm² twisted pair for analog setups to reduce interference over distances up to 100 meters. For digital models, Cat5e or Cat6 cables support PoE and ensure stable data transmission. Label each conductor at both ends with alphanumeric tags (e.g., A1, B2) to avoid misconnections during installation.
Connect the outdoor station to the indoor unit via four primary conductors: power (+12V or +24V), ground, audio, and video/signal. For multi-apartment systems, add a data bus (common in digital setups) or a parallel ring circuit (typical in analog installations). Ensure the power supply matches the system’s voltage requirements–most residential units operate at 12V DC, while commercial systems often require 24V AC/DC.
Ground all metallic components, including mounting brackets and cable shields, to a central earthing point. Use ferrite beads on audio lines if nearby electrical noise is detected (e.g., elevators, fluorescent lighting). For video-enabled systems, separate the coaxial or UTP video cable from power lines by at least 30cm to prevent signal degradation.
Troubleshooting Connection Errors
If the handset fails to ring, verify the call button circuit at the outdoor station–check for continuity with a multimeter (expected resistance: 0-2 ohms). For no audio, inspect the transmit/receive lines for polarity reversals or short circuits. Digital systems often display error codes (e.g., E01, E04)–consult the manufacturer’s manual for specific fixes, such as resetting the central controller or reflashing firmware.
Test cable integrity using a tone generator and probe–look for weak or intermittent signals, especially at splices or termination points. Replace any cables with visible damage (e.g., cracked insulation, oxidation). For PoE-based setups, confirm the switch or injector delivers 15.4W (802.3af) or 30W (802.3at) per port. If issues persist, isolate sections of the circuit to narrow down the faulty component.
Core Elements and Circuit Linkages in Door Entry Setups
Begin by identifying the three primary modules: the master station, substation, and power supply unit. Connect the master station’s positive terminal directly to the power supply’s voltage output–most residential units operate at 12V DC or 24V AC. Substations should branch off the same power line, ensuring uniform voltage distribution.
The audio channel demands shielded twisted pair cables to prevent signal degradation. Route one conductor from the master station’s speaker output to the substation’s microphone input, and vice versa for bidirectional communication. Avoid parallel runs near power cables exceeding 2A to minimize interference.

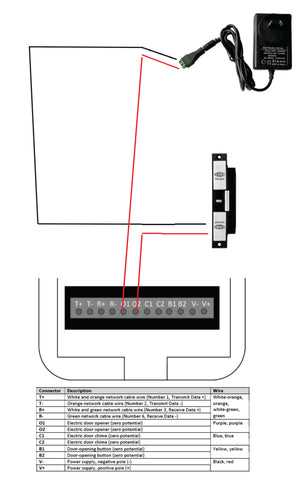

For door release integration, use a separate 2-core cable from the substation’s relay output to the electric strike. Verify the strike’s voltage rating matches the substation’s relay output (typically 12V or 24V DC). If deploying multiple strikes, parallel connections risk voltage drop–consider a dedicated power feed for each.
Video signal transmission relies on coaxial cable or CAT5e/6 with baluns. RG59 coaxial maintains signal integrity up to 300 meters, while twisted pair with baluns supports runs exceeding 500 meters. Terminate video connections with BNC connectors at both endpoints, ensuring the master station’s monitor input aligns with the substation’s camera output polarity.
- Power supply: Fuse the output line (e.g., 1A for 12V systems) to prevent overcurrent damage.
- Master station: Ground the chassis to the building’s earth line to reduce hum.
- Substations: Isolate audio and video circuits with ferrite beads if noise persists.
Voltage regulation is critical in multi-tenant setups. For systems exceeding five substations, supplement the main power supply with a stabilized 12V regulator at the farthest device. Calculate cable gauge based on total current draw: 0.5A per substation requires at least 18AWG for runs under 50 meters.
Remote management interfaces, such as SIP modules, require Ethernet-grade cabling (CAT5e minimum). Pair the substation’s IP module with the master station’s network port using a crossover cable unless auto-MDI/MDIX is supported. Configure static IP addresses within the same subnet to avoid DHCP conflicts.
Prioritize modular design for scalability. Reserve at least 20% extra conductors in conduit for future expansions. Label each cable termination at both ends with device IDs and wire functions–miswiring audio lines to power terminals risks irreversible damage to internal amplifiers.

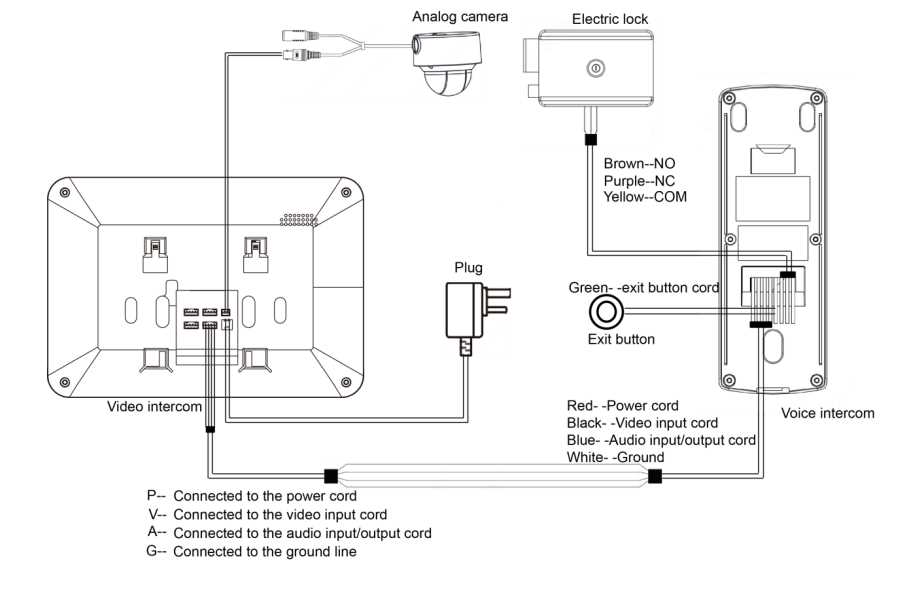

Connecting a Door Panel to Your Internal Display: Detailed Guide
Start by confirming the terminal labels on both devices–common markings include +12V, GND, AUDIO, VIDEO, and DATA. Check the manufacturer’s specifications for deviations, as some models use RS485 instead of standard analog signals. Identify the correct cable type: shielded twisted pair (STP) is mandatory for signal integrity over distances exceeding 15 meters, while unshielded varieties may suffice for shorter runs.
Strip the cable ends carefully, exposing no more than 8mm of conductor to prevent short circuits. Use a multimeter to verify voltage between the power terminals–most indoor monitors require 12V DC, but door stations often include built-in regulators. If voltage mismatches, install an inline DC converter to avoid overheating. Crimp connectors only after double-checking polarity; reversing power leads will damage sensitive circuitry permanently.
Signal Flow Verification
Connect the AUDIO line first, testing with a short burst of sound (e.g., a doorbell chime). If static occurs, swap the pair’s polarity or check for interference from nearby power cables. Next, attach the VIDEO lead–BNC connectors are standard, but some systems use RCA; confirm compatibility before soldering. For digital interfaces, ensure the DATA line complies with the protocol (commonly TCP/IP or proprietary), as incorrect configuration will prevent handshake between devices.
Ground the shield separately at one end to eliminate hum; looping it at both points creates a ground loop. If the system includes a handset, wire its dedicated lines last, ensuring they bypass any relays or surge protectors. Test unlock functionality by simulating a button press–if unresponsive, inspect the relay’s coil resistance (typically 400-600 ohms). For PoE-powered setups, confirm the switch delivers IEEE 802.3af/at compliance.
Final Checks Before Sealing Connections
Secure all terminals with heat-shrink tubing or electrical tape, avoiding exposed copper. Route cables through conduits if passing near high-voltage sources. Power on the system and monitor for flickering screens or distorted audio–these indicate poor contact or incorrect impedance matching. If troubleshooting fails, disconnect all peripherals and retest base connectivity. Document each step for future repairs.
Signal Path Integrity: Color Standards and Conductor Sizing
Use solid copper conductors with a minimum gauge of 22 AWG for voice circuits; thinner strands degrade audio clarity under 50 meters of run length. For power feeds, 18 AWG handles up to 7 A at 24 VDC without measurable voltage drop.
Standardize conductor colors per EIA/TIA-606-B: blue for audio in, white-blue for audio out, red for power positive, black for return, green with yellow stripe for shield drains. Cross-room deviations cause installation errors, costing 3x rework labor.
Shielded twisted pairs reduce hum pickup by 40 dB compared to unshielded; foil shields outperform braided by 12 dB but require drain wires bonded at both ends to ground.
Ambient Noise Rejection Ratios
| Cable Configuration | Ambient Noise (dB SPL) | SNR (dB) |
|---|---|---|
| UTP Cat5e | 58 | 62 |
| Foil shielded pair | 18 | 87 |
| Dual foil + braid | 12 | 92 |
Ground loops form when shield drains terminate at disparate potential points; solve by bonding all chassis grounds to a single 6 AWG copper bus.
For runs exceeding 80 meters, increase gauge to 20 AWG or introduce active line drivers every 60 meters; passive systems exhibit 0.3 dB loss per meter at 3 kHz.
Temperature-Derated Current Limits
| Gauge (AWG) | 75°C (A) | 90°C (A) |
|---|---|---|
| 24 | 0.57 | 0.62 |
| 22 | 0.92 | 1.0 |
| 20 | 1.5 | 1.6 |
| 18 | 2.3 | 2.5 |
| 16 | 3.7 | 4.0 |
Twist pitch affects crosstalk: 12 mm pitch reduces interference by 23 dB versus untwisted; maintain consistent twist throughout installations.
Terminate shielded cables with 360° concentric crimps on copper-plated zinc alloy connectors; solder joints cold-solder at 5% failure rate within 18 months.
