Step-by-Step Pit Bike Wiring Diagram Guide for Beginners and Mechanics

Begin by identifying the ignition switch terminals: BAT (battery), IGN (ignition), and GRD (ground). Connect the BAT terminal directly to the positive battery terminal using 10-gauge copper wire, ensuring a crimp-on terminal with heat shrink tubing for corrosion resistance. The IGN terminal should route to the CDI unit–pin 1 on most Chinese-manufactured units–with 14-gauge wire, fused at 10 amps within 6 inches of the power source.

Ground all components to a single point on the chassis using 12-gauge wire, preferably near the rear shock mount for stability. Avoid daisy-chaining grounds; each device (CDI, stator, regulator-rectifier) requires its own dedicated path to minimize voltage drop. The stator’s three-phase output–the yellow wires–must connect to the regulator-rectifier’s corresponding terminals (AC input). Verify correct polarity; reversed connections will destroy the regulator within seconds.

Install a 30-amp fuse between the battery and the main harness. Use a waterproof fuse holder mounted near the steering stem to protect the entire system. For lighting circuits, split the headlight and taillight wires from the IGN terminal, adding a relay if the current exceeds 5 amps. LED upgrades require dropping the resistance in the circuit–replace the stock resistors with 330-ohm, 1/4-watt units to prevent flickering.

Test the charging system with a multimeter: engine idle should yield 13.8–14.5 volts at the battery terminals. If readings deviate, inspect the stator’s resistance–each phase should measure 0.5–1.5 ohms. High resistance indicates a failing stator; low resistance suggests shorted coils. Replace immediately if outside specifications.

For ignition timing adjustments, locate the trigger wire (typically black with a yellow stripe) from the CDI to the stator. Use a timing light with inductive pickup clamped to this wire. Set static timing at 10° BTDC by rotating the stator plate; mark the flywheel position with a white paint pen for future reference. Avoid moving the stator more than 3 degrees in either direction–over-advancing causes pre-ignition, retarding leads to power loss.

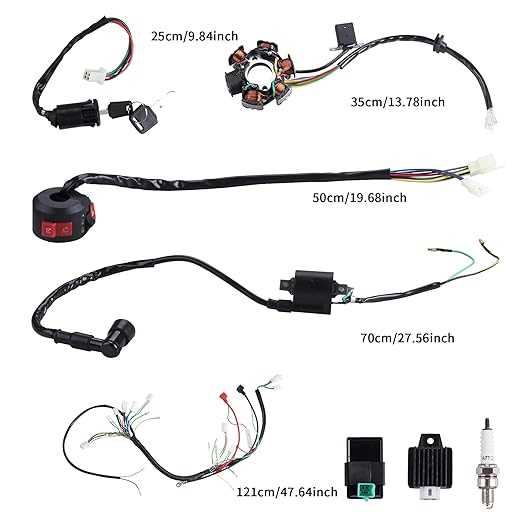

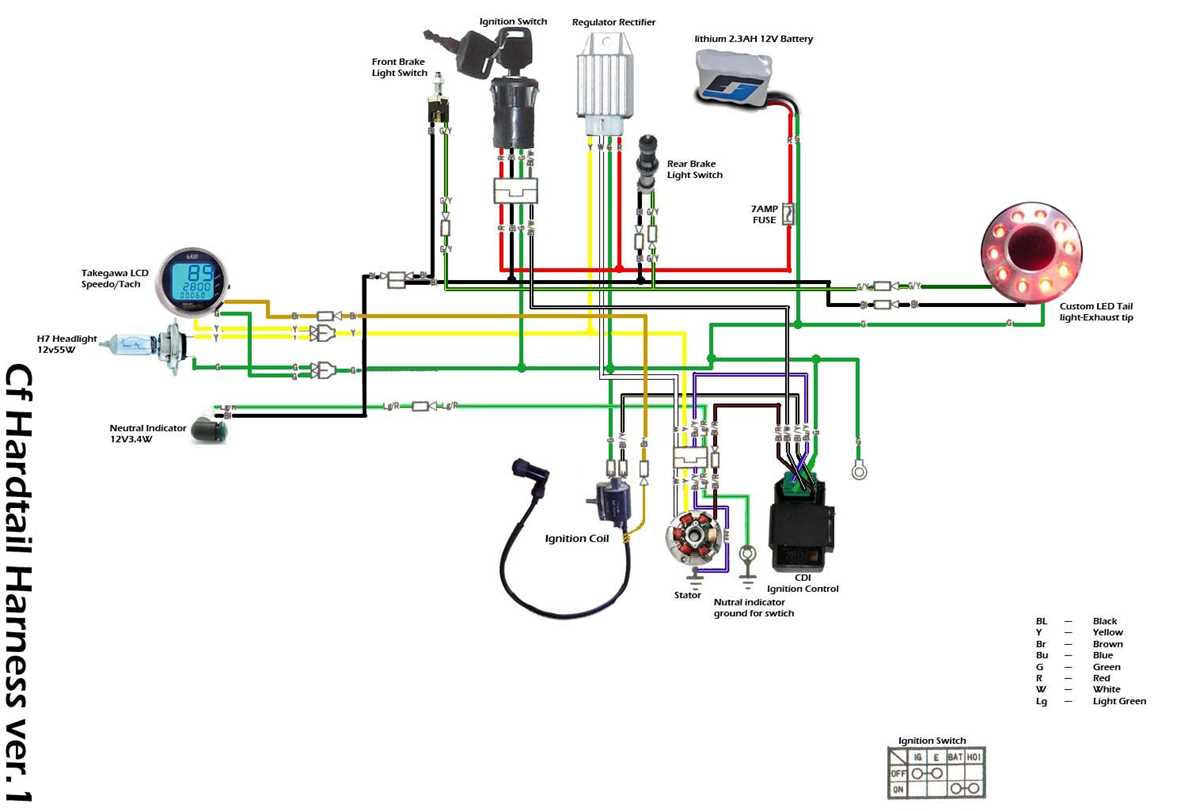

Electrical Schematic for Off-Road Mini Motorcycles

Begin with the ignition system: connect the stator’s AC output to the CDI unit’s white/red wire using 18-gauge silicone-coated cable. Ensure the ground–typically a green or black/green–is secured to the engine case with a 10mm bolt and star washer to prevent voltage drop. Test resistance between the stator coils (normal range: 0.1–1.0 ohms) before attaching the regulator-rectifier; deviations indicate coil degradation.

Integrate the lighting circuit next. Route 12V power from the battery’s positive terminal via a 10A fuse directly to the headlight switch. Use relays for high-draw components like the fan or electric starter–trigger the coil with a yellow/red wire from the ignition switch. For turn signals, wire the flasher unit’s blue/white in series with the blinker bulbs, verifying each bulb’s wattage matches the flasher’s rating (usually 10W–23W).

For the charging system, link the regulator-rectifier’s yellow wires (3x AC input) to the stator, then connect its red wire to the battery positive via a 15A fuse. Ground the black wire to the frame with a dedicated 6mm eyelet–avoid daisy-chaining grounds to prevent intermittent failures. Measure voltage at the battery terminals with the engine running: 13.5–14.8V DC confirms proper regulation.

Label every connection with heat-shrink tubing or colored markers matching the OEM color codes. Use Deutsch connectors for exposed junctions; solder and seal with adhesive-lined tubing to resist moisture. For aftermarket alarms or GPS trackers, tap into the ignition switch’s black/white wire (switched 12V) rather than the battery–this prevents parasitic drain during storage.

Auditing the entire harness annually prevents failures. Check for frayed insulation, corroded terminals, or melted wire jackets–common around exhaust manifolds. Replace any wire showing discoloration or stiffness; use tinned copper wire for high-vibration areas like the steering stem. For carbureted models, ensure the kill switch’s black/yellow wire bypasses the CDI ground circuit to shut off the engine instantly.

Document modifications in a table listing wire colors, gauge, and connection points. Include photos of each splice for troubleshooting. Store spare parts–a pre-matched stator, regulator-rectifier, and 5-pack of 15A fuses–with the bike’s toolkit. For electric-start models, verify the starter solenoid’s 30 and 87 terminals continuity with a multimeter; resistance below 1 ohm confirms integrity.

Locating Critical Parts in Off-Road Miniature Electrical Systems

Begin by tracing the main power feed from the battery–typically a thick, red cable terminating at the ignition switch or starter relay. Verify voltage at 12.5V+ when the key is off; anything below 12.2V indicates either a failing battery or parasitic drain. For models with electric start, the relay coil draws 3-5 amps–exceeding this suggests a faulty solenoid or shorted motor winding. Label each connector with its function before disconnecting: CDI unit (black box with 4-6 pins), regulator/rectifier (metal fins, two or three yellow AC inputs), and kill switch (single red or black lead).

• AC generator coils (stator) – three thin yellow wires exiting the engine casing; resistance between each pair should measure 0.1-1.0Ω at 20°C
• CDI trigger coil – single blue or white/blue wire; resistance to ground 50-200Ω
• Ground bus – bare copper or green wires bundled to the frame; ensure
• Fuse holder – inline blade-type, commonly 10-15A; check for oxidation on blades

For lighting circuits, separate high-beam (white) from low-beam (yellow) filaments–each filament draws 2-4 amps at 13.5V; dimming under 13.2V signals failing regulator outputs. On carbureted units, the engine stop wire (black with white stripe) grounds through the kill button; if the engine dies when releasing the button, inspect for chafed insulation near the steering stem. Always probe connectors with the harness still connected using a back-probe needle through the wire seal–avoid piercing insulation which creates future corrosion sites.

How to Interpret Electrical Schematics for Off-Road Motorcycles

Begin by identifying the battery terminals–usually marked with “+” and “–” symbols–on the layout. Trace the thickest cables first, as these carry primary current to the ignition switch and main fuse. Most off-road machine schematics use color-coded lines: red for positive, black or brown for ground, and yellow or green for signal circuits. Locate the fuse block early; it’s typically near the battery or under the seat and serves as a central hub for power distribution.

Decoding Symbols and Components

Search for a legend if one exists–common symbols include a circle with a “C” for coils, a zigzag for resistors, and a rectangle with diagonals for capacitors. The CDI unit (capacitor discharge ignition) often appears as a clustered box connected to the stator, pickup coil, and spark plug. Note the stator’s output wires: alternating current (AC) leads to the rectifier/regulator, while thinner leads link to lighting or charging circuits. Verify ground connections; some models use a shared chassis return, while others require dedicated wires to the negative terminal.

Test continuity with a multimeter before reconnecting any circuits–set it to ohms (Ω) and probe each connector pin against its mating harness. If the reading exceeds 5Ω, inspect for corrosion, fraying, or loose crimps. Reassemble harness sections in reverse order of disassembly, securing each segment with zip ties or loom tape to prevent vibration damage. Avoid routing wires near sharp edges or moving parts–use existing chassis channels or spiral wrap for protection.

Typical Electrical Errors in Mini Off-Road Machines and Fixes

Reverse polarity on the battery terminals melts connectors within seconds–always verify cable orientation before connecting. A multimeter set to DC voltage confirms correct alignment: red probe on the positive terminal, black on negative. If the reading shows a negative value, swap leads immediately. Corrosion on terminals mimics loose connections, causing intermittent power loss; scrub with a wire brush and apply dielectric grease to prevent recurrence.

Bypassing fuses because “they keep blowing” invites fire hazards. Identify the short circuit first–disconnect components one by one until the fuse stays intact. Use a test light: probe the live side of the fuse holder with the key on; if it illuminates, the short remains downstream. Always match fuse amperage to the manufacturer’s spec; never substitute with higher-rated alternatives.

Ignition switches fail silently–jam a screwdriver across the input and output terminals to bypass it temporarily while diagnosing. If the engine cranks, replace the switch. Loose ground connections create voltage drops that trigger random stalls; tighten all chassis grounds with star washers to ensure solid contact. Check continuity between the negative battery terminal and engine block–a reading over 0.3 ohms indicates corrosion or loose hardware.

LED lights flicker when wired in parallel with inductive loads like relays or solenoids. Add a flyback diode across relay coils or install a capacitor (1000 µF, 25V) across LED strip power wires to absorb voltage spikes. For blinkers, ensure the flasher unit matches LED load; mechanical flashers overheat and fail when paired with low-draw LEDs–switch to an electronic flasher rated for 2-10W bulbs.

Stator output wires fray from vibration; inspect near the flywheel for broken strands. Use heat-shrink tubing over soldered joints–electrical tape degrades over time. Measure AC voltage at the rectifier with the engine at 3000 RPM: readings below 15V per phase indicate a failing stator. Regulator/rectifiers fail from heat; test with a multimeter in diode mode–readings should show low resistance in one direction and infinite in reverse. Replace if readings are identical both ways.

Throttle position sensors drift, causing erratic idle–adjust the screw until voltage at the idle position reads 0.5V. Fuel pump relays click but fail to energize; swap with a known-good relay (e.g., horn relay) to confirm. Kill switch wires short when pinched under the tank; reroute with split loom tubing. Always disconnect the battery negative terminal when probing circuits to avoid accidental shorts that destroy ECUs or wiring harnesses.
