Step-by-Step Pool Pump Electrical Wiring Guide for Home Installations
Install a dedicated 20-amp circuit breaker for standard residential pool motors rated up to 1.5 HP. Use 12-gauge THHN copper conductors for runs under 50 feet; switch to 10-gauge for longer distances to prevent voltage drop exceeding 3%. Ensure the circuit includes a ground fault circuit interrupter (GFCI) rated for outdoor use, positioned no farther than 6 feet from the motor housing.

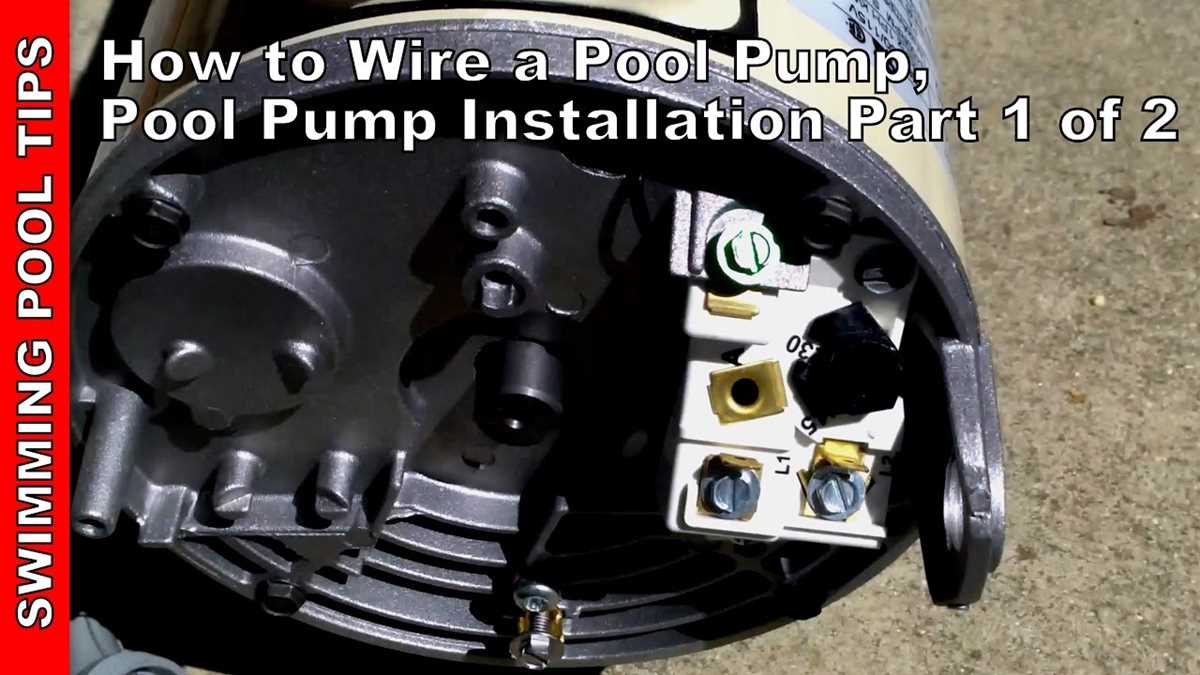

Connect the black (hot) wire to the motor’s L1 terminal, the white (neutral) to L2, and the green or bare copper ground to the GND screw. Verify tightness of terminal screws–torque to 12 in-lbs for #12 wire, 18 in-lbs for #10. Seal all conduit entries with watertight gland fittings and apply silicone dielectric grease to terminal connections to block moisture ingress.
Label the disconnect switch with the motor’s full load amperage (FLA)–typically 7.5–10 amps for 1 HP models–and confirm the switch’s rating exceeds this value by at least 25%. Mount the disconnect within 5 feet of the motor, accessible without climbing, per NEC Article 680. Test GFCI functionality monthly by pressing the TEST button; replace if trip time exceeds 30 milliseconds.
For variable-speed units, wire the PWM control cable (usually 3–4 conductors) directly to the drive board, matching polarity as indicated in the manufacturer’s schematic. Avoid sharing neutrals between multiple motors on the same circuit; each requires its own dedicated neutral to prevent nuisance tripping. Cap unused conductors with UL-listed wire nuts and wrap with heat-shrink tubing rated for outdoor exposure.
Electrical Connections for Swimming Motor Circuits
Before connecting any motor to a power source, verify the voltage requirements on the device’s nameplate–most residential units operate on 120V or 240V, while commercial setups may demand 480V. Match the circuit breaker amperage to the motor’s full-load current (FLC) rating, typically found in the manufacturer’s specifications; undersized breakers risk tripping, while oversized ones fail to protect against overloads. For a 240V, 1.5 HP motor drawing approximately 10A, install a double-pole 15A breaker. Use 12 AWG copper conductors for runs under 100 feet; increase to 10 AWG if the distance exceeds this limit to prevent voltage drop.
Connect the motor leads following the terminal markings–usually L1, L2 for 240V configurations (T1, T2, T3 for three-phase). Securely fasten each wire with a torque wrench set to the manufacturer’s specified value (commonly 7–9 lb-in for terminal screws) to prevent loosening under vibration. Ground the motor to a dedicated grounding rod or the panel’s grounding bus using 10 AWG bare copper wire, ensuring all bonding connections comply with local electrical codes (NEC Article 680 for aquatic installations). Below is a reference for typical motor lead configurations:
| Motor Voltage | Terminal Configuration | Wire Gauge (Minimum) |
|---|---|---|
| 120V (Single Phase) | L1 (Black), L2 (White), Ground (Green) | 14 AWG |
| 240V (Single Phase) | L1 (Black), L2 (Red), Ground (Green) | 12 AWG |
| 480V (Three Phase) | T1 (Black), T2 (Red), T3 (Blue), Ground (Green) | 10 AWG |
Label the circuit breaker with the motor’s location and purpose (e.g., “Pool Motor – Shed Panel”) to simplify future maintenance. Test the installation with a multimeter before energizing–measure continuity between each hot leg and ground, ensuring no shorts exist. If the motor includes a run capacitor, confirm its microfarad (µF) rating matches the label; mismatched capacitors cause inefficient operation or overheating. For variable-speed motors, program the drive controller per the manufacturer’s guidelines to avoid voltage spikes during startup or shutdown cycles.
Install a surge protector rated for outdoor use at the subpanel feeding the motor to shield against transient voltages, especially in areas prone to lightning. Replace worn or brittle insulation on existing conductors before reconnecting; use heat-shrink tubing or liquid electrical tape on exposed splices to prevent corrosion. After energizing, monitor the motor’s amp draw with a clamp meter during the first hour of operation–deviations beyond 10% of the FLC warrant immediate inspection for miswiring or mechanical obstructions.
Choosing Optimal Cable Thickness for Swimming Circulation System Motors
Use 10 AWG copper conductors for single-phase motors rated up to 1 HP at 120V, extending no farther than 50 feet from the breaker panel. For 240V configurations, downgrade to 12 AWG if the run remains under 75 feet. These specifications prevent voltage drops exceeding 3%, maintaining motor efficiency and preventing premature wear on starting capacitors. Verify local electrical codes–some jurisdictions mandate 8 AWG for outdoor installations regardless of distance.
- 1.5 HP – 2 HP motors: 10 AWG up to 60 feet, 8 AWG beyond
- 3 HP – 5 HP motors: 8 AWG for runs under 100 feet, 6 AWG above
- Variable-speed models: Consult the manufacturer’s data plate; derate gauge by one size for aluminum conductors
For three-phase industrial circulation units, size cables based on 125% of full-load current plus ambient temperature adjustments. A 10 HP motor requiring 28A at 460V demands 6 AWG copper at 75°C for indoor installations, but 4 AWG if ambient exceeds 30°C or conduit contains over four current-carrying conductors. Ground conductors must match the largest live conductor gauge, though 10 AWG suffices for circuits protected by 30A breakers.
Powering Your Swimming Equipment: 110V Versus 220V Alternatives
Opt for 220V installations whenever feasible. Motors rated for dual-voltage operation typically deliver 30-50% higher efficiency at 220V compared to their 110V counterparts. This boost stems from reduced current draw–often halved–resulting in lower resistive losses across internal coils. Fewer amperes also translate to thinner, more cost-effective cables without sacrificing performance. Verify nameplate data; most modern units specify both voltages, but older models may lack flexibility.
Single-phase 110V setups demand specialized conductive paths. Use 10 AWG copper wiring for distances under 25 meters–any longer risks unacceptable voltage drop. For runs exceeding 50 meters, upgrade to 6 AWG despite higher material costs. Grounding must terminate at a dedicated rod separate from any bonding grid, ensuring resistance below 25 ohms. Misrouting conductive strands near metallic pool fixtures invites stray current leakage; maintain minimum 1.5-meter clearance from submerged metals.
220V circuits necessitate distinct safety measures. Install a double-pole breaker rated at 125% of the motor’s full-load amperage; undersizing invites overheating during startup surges. Waterproof junction boxes must comply with NEMA 3R standards, with conduits sealed against moisture ingress. Use conduit bodies rather than pull elbows to simplify future maintenance–accessing splices through waterproof covers saves hours of troubleshooting. Verify local codes; some jurisdictions mandate ground-fault circuit interrupters even for overhead lines.
Amperage demands differ starkly between voltage choices. A 1.5-horsepower model draws approximately 18 amperes at 110V but only 9.5 amperes at 220V. This disparity affects auxiliary component selection: contactors, relays, and capacitors must match the lower current rating. Cold-start capacitors become critical at 110V–expect 300-350 microfarad values versus 150-180 at 220V. Overlook this detail and the motor may fail to reach operational RPM, stressing windings until thermal shutdown.
Voltage drop calculations vary by supply choice. For 110V, target a maximum 3% loss (3.3 volts) over the run; exceeding this threshold forces the breaker to trip during startup. Employ an online voltage drop calculator using insulation type (THWN-2), exact wire gauge, and total circuit length. 220V systems tolerate slightly higher drops–up to 6.6 volts–without noticeable performance degradation, permitting longer conductive paths or narrower strands. Recheck your math after installation; a 5% deviation can halve the motor’s lifespan.
Consider ambient conditions when selecting power sources. 110V motors run hotter–surface temperatures can reach 80°C under continuous load–while 220V variants operate 10-15°C cooler. This thermal margin extends bearing life and reduces lubricant breakdown. In humid climates, opt for epoxy-coated rotors regardless of voltage; untreated copper oxidizes within months, increasing resistance and accelerating wear. For installations near saltwater, upgrade to marine-grade wiring with tinned conductors to prevent corrosion.
Switching between voltage options post-installation complicates maintenance. Converting a 110V system to 220V requires replacing the conductive path, breaker, and often the control panel to accommodate the altered current. Motors originally designed for single-voltage operation lack internal jumper configurations, necessitating a full rewind if forced into a mismatched supply. Plan your power source during initial design; retrofitting costs dwarf the price of proper upfront selection.

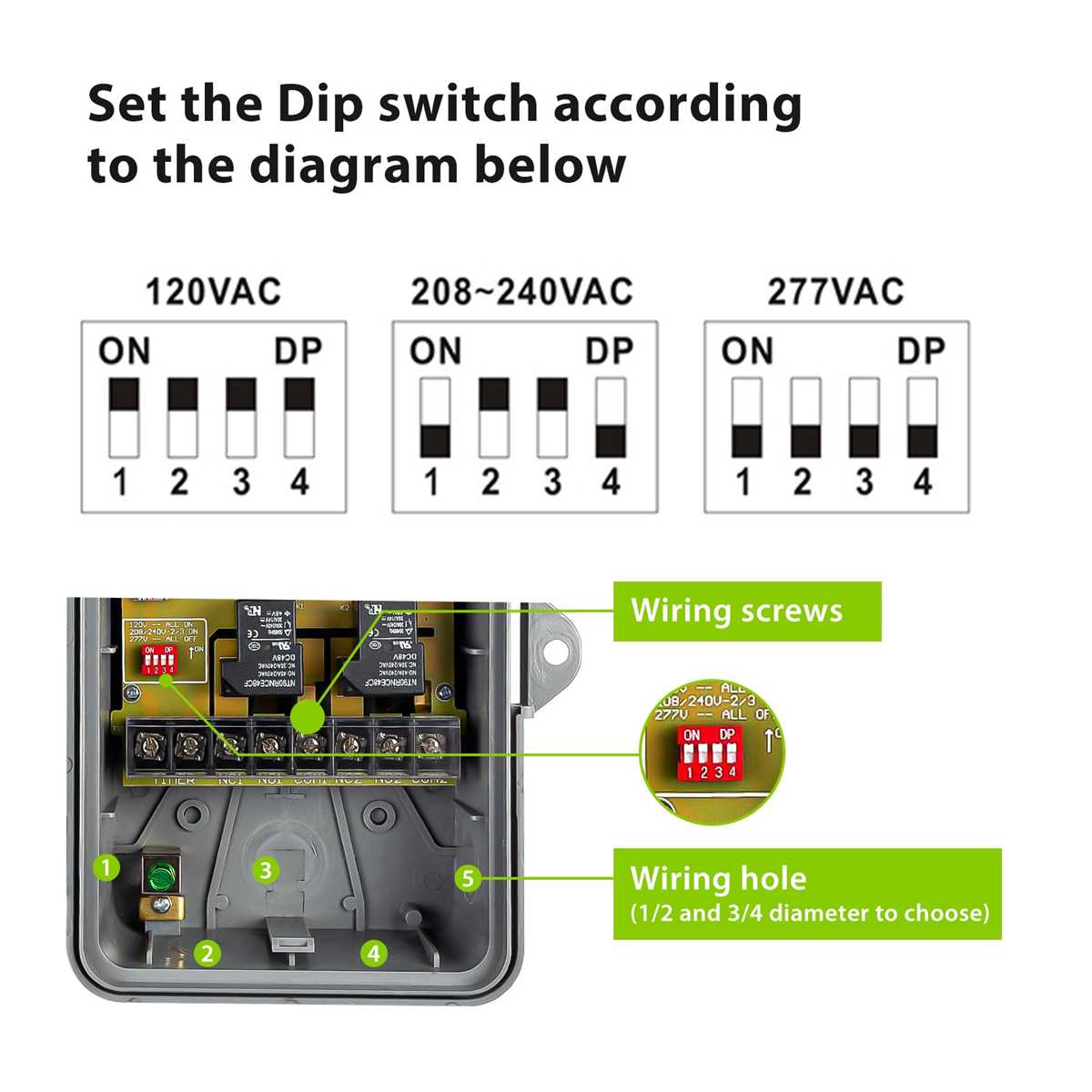

Step-by-Step Installation of a Swimming System Timer
First, locate the power disconnect switch near the equipment pad–it must be in the “OFF” position before proceeding. Verify the circuit breaker amperage matches the motor’s nameplate rating; most residential units require 15–20 amps. Strip ⅜ inch of insulation from the ends of three 10-gauge copper wires (black, white, green) using wire strippers. Connect the black (hot) lead to the timer’s “LINE” terminal, the white (neutral) to the “LOAD” terminal, and the green (ground) to the designated screw on the metal housing. Secure all connections with a screwdriver, ensuring no bare wire is exposed beyond the terminal clamps. Set the dial face to “OFF” before energizing the circuit.
Programming and Safety Validation
After restoring power, test the mechanical timer by rotating the dial clockwise until it engages the on-cycle–listen for a distinct click. Adjust start and stop times by pressing the trippers onto the dial at desired intervals; spacing should not exceed 12 hours between cycles to prevent algae growth. Verify operation by observing the motor’s startup sequence–inspect for unusual vibrations or humming, which indicate improper voltage. If equipped, connect a surge protector rated for outdoor use between the disconnect and timer to shield against voltage spikes during storms.
