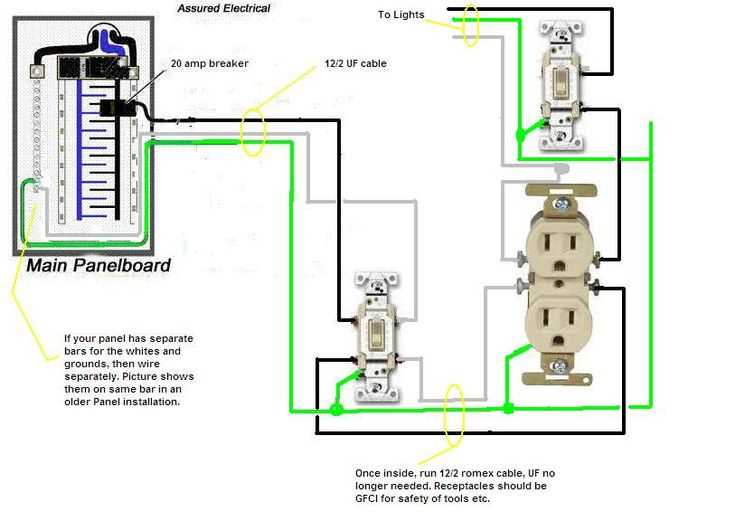

Step-by-Step Guide to Creating Electrical Wiring Diagrams for Your Shed
Start by mapping out power needs before running any cables. Identify all tools, lights, and devices requiring electricity–down to wattage–and mark their exact locations on a grid of your structure. A 20-amp circuit handles most hand tools, but larger equipment like table saws may demand a dedicated 30-amp line. Use 12-gauge copper wire for 20-amp circuits and 10-gauge for 30-amp to prevent overheating. Place outlets every 12 feet along walls and include at least one outdoor-rated GFCI receptacle near entrances for temporary extensions or maintenance.
Install a subpanel if the main service panel is over 50 feet away. Select a disconnect switch with a visible blade for quick power cuts during emergencies. Run conduit–preferably 1-inch Schedule 40 PVC–underground at a minimum depth of 18 inches, sloping slightly away from the building to prevent water pooling. Inside, use metal-clad cable (MC) or non-metallic sheathed cable (NM-B) secured every 4.5 feet to studs, with staples no closer than 12 inches from junction boxes.
Label each breaker clearly in the panel and test all connections with a multimeter set to 250V AC before energizing. For lighting, opt for LED fixtures rated for damp locations, mounting them at least 7 feet above the floor to avoid accidental contact with tools. Include a motion-sensor light at the entrance to deter intruders and provide hands-free access. Ground rods, buried 8 feet deep and bonded to the system with #6 bare copper wire, protect against surges and rodent damage.
Seal all entry points where cables penetrate walls or roofs with fire-rated silicone to block drafts and pests. Use weatherproof in-use covers on exterior outlets, even in covered areas, to shield against moisture during storms. If heating is required, wire a 240V baseboard unit directly to a double-pole breaker, keeping it at least 3 feet from combustible materials. Document the layout with photos and notes–store them near the panel for future reference or repairs.
Electrical Layout Guide for Outdoor Workspaces

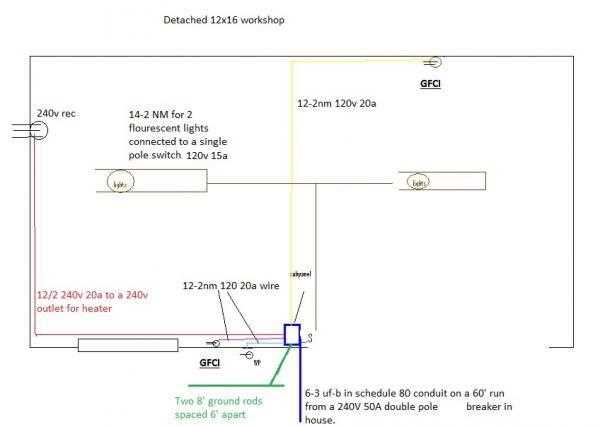

Begin by installing a subpanel rated for at least 60 amps if powering tools, lights, and outlets simultaneously. Use 6 AWG copper wire for the main feed from the primary panel to handle 50-amp loads safely. Bury the conduit 18 inches deep (minimum 12 inches for GFCI-protected circuits) using Schedule 40 PVC for corrosion resistance. Label each circuit at the subpanel with waterproof tags–color-code wires (black/gray for hot, white for neutral, green/bare for ground) to prevent misconnections.
Distribute circuits strategically to avoid overloads. Assign 15-amp circuits for lighting (LED fixtures rated IP65 or higher) and 20-amp circuits for outlets, especially near workbenches. Use weatherproof covers on all exterior outlets and switches, securing them with silicone sealant around the edges. For tools requiring heavy draw (e.g., table saws), dedicate a separate 20-amp circuit with 12 AWG wire and a 20-amp GFCI breaker to prevent nuisance tripping.
Key Circuit Specifications
| Component | Wire Gauge (AWG) | Breaker Amperage | Max Load (Watts) |
|---|---|---|---|
| Basic outlets | 14 | 15 | 1800 |
| High-draw outlets | 12 | 20 | 2400 |
| LED lighting | 16 (fixture wire) | 15 | 900 |
| Subpanel feed | 6 | 50 | 12000 |
Run individual THHN wires through conduit (never Romex in wet locations) and pull them with fish tape to avoid damaging insulation. Install a surge protector at the subpanel to safeguard sensitive equipment. Test all connections with a megohmmeter (set to 500V) to verify insulation resistance exceeds 1 megohm before energizing. For detached structures, bond the grounding rod to the subpanel with #6 bare copper wire, driving the rod 8 feet deep for proper dissipation.
Selecting Optimal Conductors for Exterior Outbuilding Electrical Systems
Use underground feeder (UF) cable for direct burial applications at a minimum depth of 18 inches or 24 inches when crossing vehicle paths. UF-type conductors rated for 600V carry sunlight-resistant insulation and resist moisture ingress, though they cost approximately 30% more than comparable NM-B cable. For above-ground runs exposed to weather, opt for THWN-2 conductors pulled through PVC conduit (Schedule 40 for general use, Schedule 80 for physical protection). THWN-2 tolerates wet locations, withstands ultraviolet degradation when rated sunlight-resistant, and operates at 75°C, permitting higher ampacity than standard THHN.
Key Cable Specifications by Application
- Underground installation: 12 AWG UF cable (20A circuits), buried 18″ deep; use 8 AWG for 40A circuits requiring 24″ burial depth
- Surface-mounted runs: 10 AWG THWN-2 inside 1/2″ PVC conduit for 30A circuits, secured every 5 feet; increase conduit size to 3/4″ for four or more conductors
- Exposed aerial spans: XHHW-2 aluminum conductors supported every 6 feet on galvanized messenger wire, stretched taut enough to limit sag to 12 inches
- Temporary connections: SOOW portable cord rated for outdoor use, 6 AWG handles 50A, resists abrasion and oil penetration
Match conductor size to overcurrent protection devices precisely–never round up wire gauge except where code mandates derating factors: eight current-carrying conductors sharing conduit require one-size-up from ampacity tables. Apply anti-oxidant compound to aluminum terminal connections and torque terminal screws to manufacturer specifications. Verify voltage drop calculations do not exceed 3% for branch circuits using VD = (2 * K * I * L) / CM where K = 12.9 for copper and CM = circular mil area from NEC Chapter 9 Table 8.

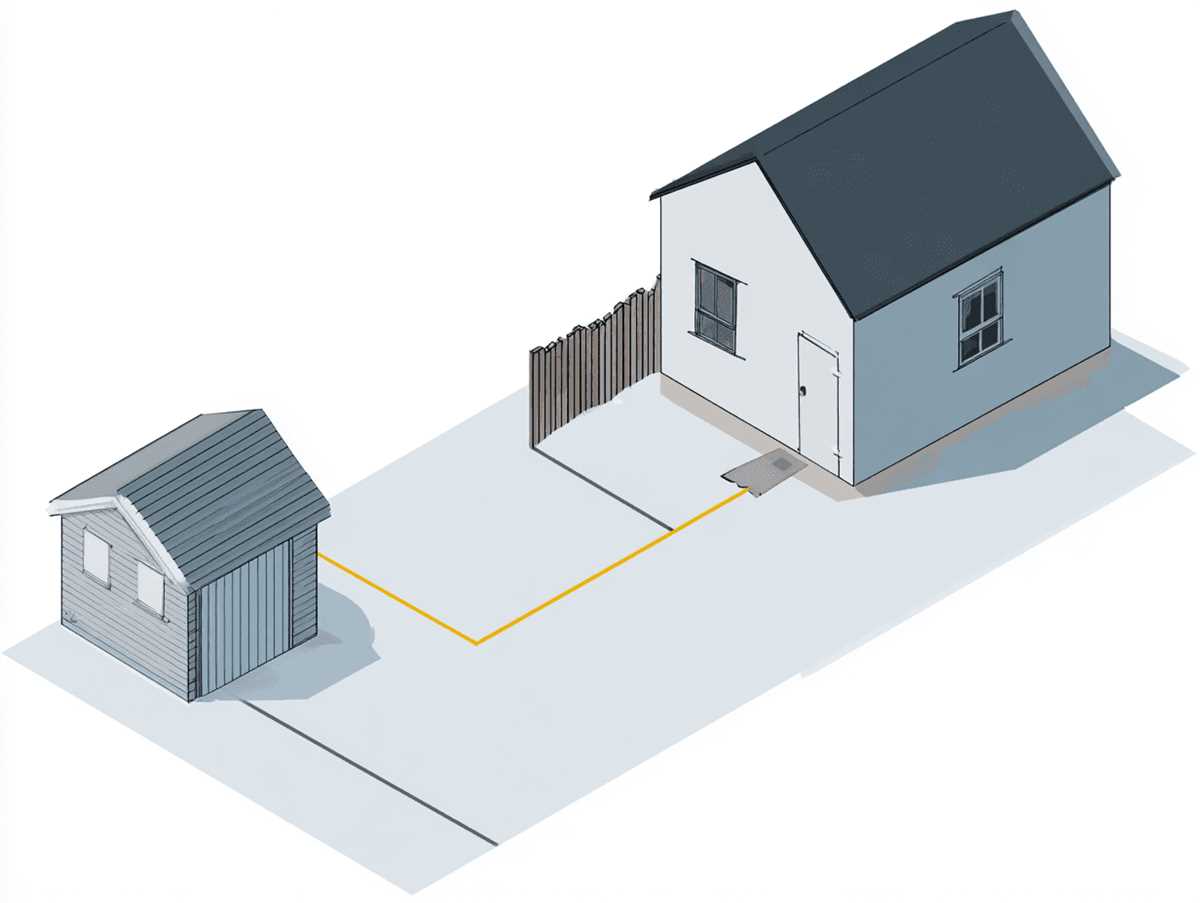

How to Install Underground Power Cables Between Your Home and Outbuilding

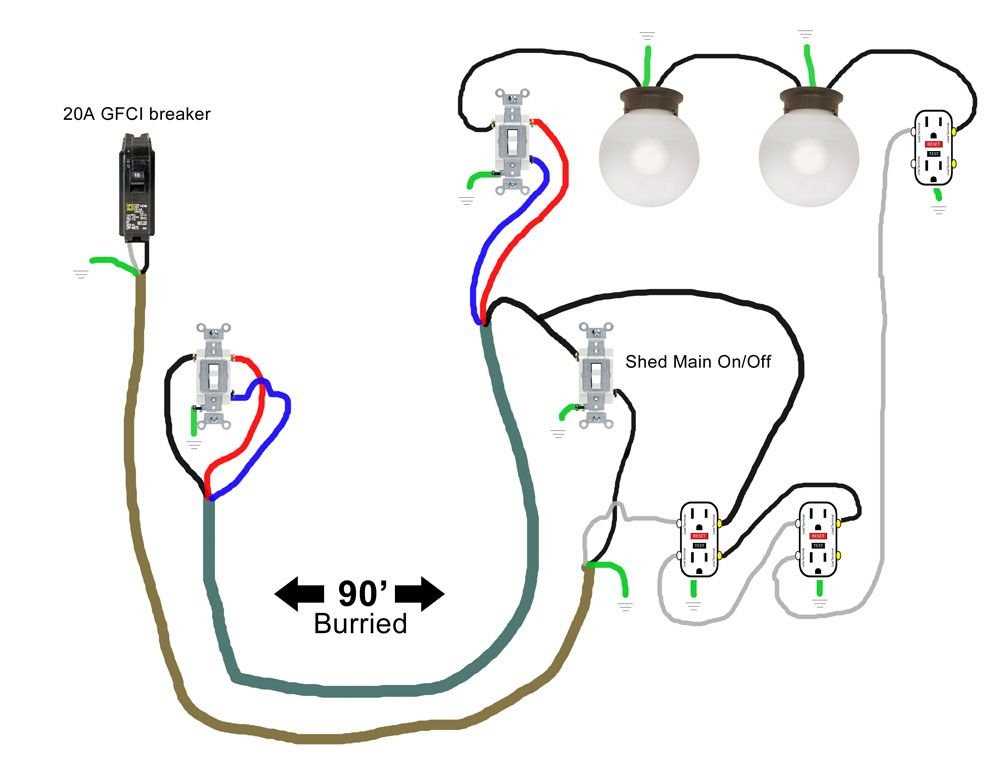

Shut off the main breaker at the service panel before starting. Use a licensed electrician to verify zero voltage with a non-contact tester on all conductors to prevent lethal accidents. Dig a trench at least 18 inches deep–24 inches if running beneath driveways or walkways–using insulated 12 AWG UF-B cable rated for direct burial. Leave an extra 3 feet of slack at both ends to allow for settlement or future repairs without splicing.
Thread PVC conduit (minimum Schedule 40, 1-inch diameter) through the trench where local code requires extra protection, especially near tree roots or high-traffic zones. Secure the conduit every 4 feet with metal straps driven into concrete anchors to prevent shifting. Pull the cable through with fish tape lubricated with silicone compound, avoiding kinks by maintaining a steady, straight tension–never exceed 30 pounds of pull force on 12 AWG wire.
Connect the terminated ends to a 20-amp double-pole breaker in the main panel, matching the wire gauge to the breaker’s rating. Install a weatherproof subpanel in the outbuilding with a 4-space minimum capacity, ensuring a separate grounding rod driven at least 8 feet deep and bonded to the neutral bus with a 6 AWG copper ground wire. Test continuity and polarity with a multimeter before energizing, then bury the trench with warning tape 12 inches below the surface.
Choosing and Setting Up the Right Overcurrent Protection for Outdoor Workspaces
Install a circuit breaker matching the wire gauge and expected load–12 AWG copper requires a 20-amp breaker, while 14 AWG needs 15 amps. Undersized breakers risk overheating; oversized ones won’t trip when needed, defeating their purpose. Verify the breaker’s voltage rating matches the system (120V single-pole or 240V double-pole for heavier equipment). Mark each breaker clearly on the panel to avoid confusion during power interruptions.
Prioritize type CH or BR breakers for outdoor structures–they handle temperature fluctuations better than standard residential models. Outdoor-rated breakers also resist moisture ingress, reducing corrosion risks. Avoid using cheap, unbranded breakers; they often lack consistent tripping mechanisms, which can damage tools or start fires. Opt for models with a UL or CSA certification label for proven reliability.
- Single-pole (120V): 15-20 amps for lights, outlets, small tools.
- Double-pole (240V): 30-50 amps for welders, compressors, HVAC units.
- GFCI breaker: Mandatory for any circuit within 6 feet of a water source.
Mount the breaker in a weatherproof enclosure if the panel isn’t already protected. Use a NEMA 3R-rated box for exposed installations, sealing all knockouts with duct seal compound to block dust and moisture. Keep the panel at least 4 feet off the ground to prevent flooding damage. If the workspace has a subpanel, ensure its main breaker aligns with the feeder wire capacity–#6 copper for 60 amps, #4 for 70 amps.
Test each breaker after installation by running a load at 80% of its rating for 30 minutes. Check for unusual heat or buzzing, which indicates a loose connection or faulty breaker. Reset GFCI breakers monthly using the test button to confirm proper operation; a malfunctioning GFCI won’t protect against ground faults. Label the test date on the panel door for maintenance tracking.
- Turn off the main power before inserting any breaker.
- Snap the breaker into the correct bus bar slot (match amperage to wire).
- Tighten connections to 12-15 lb-ft torque–loose screws cause arcing.
- Route wires neatly, avoiding sharp bends to prevent insulation damage.
- Re-energize and verify voltage at the breaker output with a multimeter.
For dual-voltage setups (e.g., 120V outlets + 240V machinery), separate circuits avoid overloading. Use dedicated 20-amp circuits for high-draw tools like table saws or air compressors; shared circuits can trip unexpectedly. If modifying an existing system, confirm the panel’s bus bar capacity supports additional breakers–many residential panels max out at 100-125 amps total.
