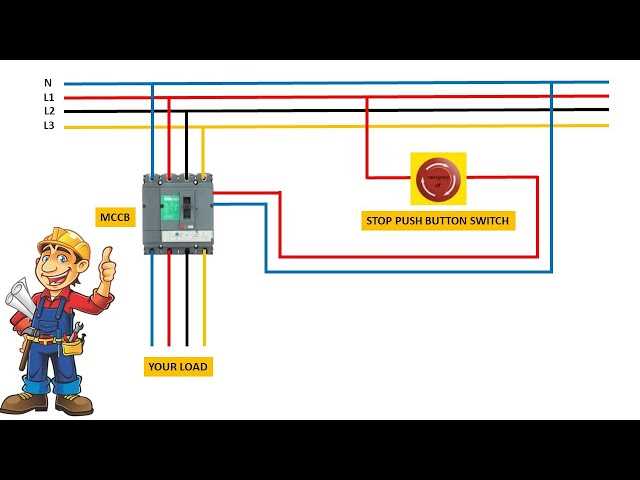

Complete Shunt Trip Breaker Wiring Guide with Step-by-Step Diagram

Install an auxiliary switching module rated for 120VAC or 24VDC to engage the mechanical release coil. Verify the coil’s pull-in voltage matches the control source–common settings include 110VAC, 230VAC, or 24VDC–while ensuring the module is compatible with the interrupter frame size (e.g., Siemens QP, Square D QO).

Route two conductors from the control device directly to the module’s terminals, bypassing load-side connections. Strip insulation to expose 12–14mm of copper, crimp with ring terminals (14–10 AWG), and secure under terminal screws torqued to 1.7 Nm (15 in-lbs). Avoid daisy-chaining through other devices to prevent voltage drop; direct wiring ensures instantaneous disengagement.

Test functionality by energizing the coil and confirming an audible click within 50ms. Use a multimeter to measure continuity across the switching contacts during activation–closed contacts should open under 100ms. If delay exceeds 100ms, inspect for corroded terminals or undersized conductors (minimum 14 AWG for 120VAC).

For 3-pole interrupters, wire the auxiliary module to the same phase supplying the coil to maintain coordination. Label conductors at both ends with heat-shrink tubing marked “SHUNT CONTROL” or “EMERGENCY DISCONNECT” to comply with NEC Article 430.7.

Mount the control device within 3m of the interrupter to limit voltage drop, and use strain relief where conductors enter enclosures. If integrating with a PLC, isolate the coil circuit with a relay rated for 10A inductive load to protect sensitive control outputs.

Connecting Emergency Release Mechanisms: Essential Circuit Layouts

To ensure reliable remote activation, wire the auxiliary solenoid coil in series with a normally open push-to-test switch and a dedicated 24V DC power source. Use 14 AWG stranded copper conductors for all control lines, terminating at the coil’s A1 (positive) and A2 (negative) terminals with crimped ring lugs. Install a flyback diode (1N4007) across the coil in reverse polarity to suppress voltage spikes–failure to include this component risks damaging upstream control relays. Connect the push button’s common terminal to the power supply’s positive terminal, then route the normally open contact to A1, ensuring the circuit remains open until manual activation is required.

Key Safety Considerations

Never combine control circuits with branch conductor paths–dedicate separate conduit for low-voltage lines to prevent interference. Label all terminals at both the disconnecting means and the auxiliary device, using heat-shrink tubing for splices. Test the setup under load by simulating an emergency condition: press the switch while monitoring voltage drop across the coil (expected: <2V). If readings exceed this threshold, verify wire gauge adequacy and exclude any parallel loads. Replace the control switch if its contact resistance surpasses 0.5 ohms.

Key Elements of an Auxiliary Release Circuit

Connect the actuator solenoid to a controlled power supply–typically 24V DC or 120V AC–depending on the protective device’s specifications. Verify the coil voltage rating printed on the solenoid casing before energizing; mismatch risks permanent damage. Use a dedicated power source isolated from main load currents to prevent voltage drops that could trigger false activations.

Install a momentary pushbutton or relay contact upstream of the solenoid to initiate disengagement. The switch must handle the solenoid’s inrush current, often 5 to 10 times the holding current, without welding. Choose silver-alloy contacts rated for inductive loads to avoid pitting over repeated cycles.

Incorporate a diode or varistor across the solenoid terminals if operating on DC. This suppresses voltage spikes exceeding 300V generated during coil de-energization, which can damage control circuits. For AC applications, a snubber circuit with a resistor-capacitor pair (e.g., 100Ω, 0.1µF) serves the same purpose.

Label every conductor in the auxiliary circuit with heat-shrink tubing or adhesive markers. Use contrasting colors: red for live, blue for neutral (AC), black for ground, and yellow for control signals. Mislabeling increases troubleshooting time by 40% in field repairs, according to IEEE Std 1584-2018.

Size the control wiring at least 18 AWG for runs under 10 meters; increase to 16 AWG for longer distances to minimize voltage drop. Strip insulation with precision tools–never a knife–to avoid nicking conductors, which reduces current-carrying capacity by up to 30%. Secure connections with compression lugs or spring terminals, not twist-on wire nuts.

Test the disengagement mechanism before final assembly. Apply the rated voltage to the solenoid for 2 seconds; the disconnecting device should release audibly. If it fails, measure coil resistance–typically 20–200Ω–to confirm continuity. A reading outside this range indicates a faulty coil requiring replacement.

Ground all metal enclosures and control panels using stranded 6 AWG conductors bonded to the main grounding bus. Verify impedance below 0.1Ω between the disconnecting device frame and ground. Ungrounded or high-impedance paths increase touch potential hazards during faults.

Document the circuit configuration with annotated schematics, including wire gauge, voltage ratings, and component models. Store records near the panel in a waterproof sleeve for maintenance teams. Omit this step, and downtime during unplanned trips doubles, per OSHA 1910.333 case studies.

Step-by-Step Guide to Installing an External Control Circuit Interrupter

Disconnect the primary power supply before handling any conductive components. Verify zero voltage using a multimeter at the main busbars–readings above 0.1V indicate residual charge. If present, discharge capacitors or wait 5 minutes before proceeding. Failure to confirm de-energization risks fatal arc flash.

Identify the auxiliary terminals on the reusable mechanical relay–typically labeled “S” and “T” or marked in red. Strip 8mm of insulation from 14 AWG copper wire, ensuring no stray strands remain. Crimp ring terminals to both ends, then attach one to each terminal, tightening torque to 1.2Nm. Loose connections overheat and compromise trip responsiveness.

Route the control wires along the enclosure’s interior, securing them with nylon ties every 150mm. Maintain 50mm clearance from high-voltage conductors to prevent induced currents. Connect the free ends to the remote signaling device–voltage rating must match the relay’s coil requirement (commonly 24VDC or 120VAC). Reverse polarity damages the coil permanently.

Reenergize the system in stages: first the main bus, then control circuits. Test the initiation sequence by activating the external trigger–listen for a distinct metallic *click* within 0.5 seconds. Delayed or absent response indicates miswiring; recheck voltage at the coil terminals. Record trip time with an oscilloscope if precision is critical for coordination.

Seal all access points with IP44-rated grommets to prevent moisture ingress. Label the control wires “SHT_CTRL” and “RET” at both ends. Verify insulation integrity with a 500V megger–values below 1MΩ warrant replacing the entire cable run. Document installation parameters in the facility’s electrical logbook, including model number, trip voltage, and test results.

Connecting an Immediate Disconnect Switch to a Safety Shutdown Control

Start by selecting a 24V DC or 120V AC auxiliary relay compatible with the instantaneous release mechanism of your protective device. Verify the contact rating–most emergency stop buttons supply 5A at 250V AC, while control modules handle 3A at 30V DC. Exceeding these limits will weld contacts or degrade insulation.

Run two wires from the normally open contacts of the safety switch directly to the input terminals of the release coil. Polarity matters only for DC coils; reverse connections on AC won’t energize. Label each conductor with heat-shrink tubing–red for live, black or blue for return–to prevent misidentification during maintenance.

• Strip wire ends 6–8 mm; longer strands increase risk of shorting.
• Crimp ring or spade terminals rated at 60°C minimum to ensure vibration resistance.
• Tighten terminal screws to 1.2 Nm using a calibrated torque screwdriver–over-torque cracks insulation, under-torque causes arcing.

Connect the protective device’s coil output to a dedicated fuse or circuit protector sized at 125% of the coil’s continuous current. A 250 mA fuse for a 200 mA coil prevents false trips while guarding against coil burnout. Route wiring away from inductive loads–motors, relays–to avoid induced voltage spikes that trigger inadvertent disconnections.

Test the setup by pressing the safety switch and observing the device’s lever drop within 50 ms. Use a multimeter in continuity mode across coil terminals: 0 ohms when activated, infinite resistance when off. If response exceeds 80 ms, check for undersized wire gauge–18 AWG suffices for runs under 10 m; 16 AWG for 10–30 m. Replace corroded switches; resistance above 0.5 ohms causes voltage drop and delayed release.

Secure all connections with zip ties every 30 cm to prevent vibration fatigue. Apply silicone dielectric grease to terminals exposed to moisture or corrosive atmospheres. Document the installation with a simple schematic showing fuse ratings, wire colors, and torque specifications–store details on a metal plaque near the panel for on-site reference.
