Step-by-Step Guide to Wiring a Wall Outlet Safely and Correctly

Start by identifying your circuit’s voltage requirements. Standard U.S. household sockets typically operate at 120V for general-use plugs, while dedicated high-power appliances demand 240V connections. Verify the breaker panel labels to confirm the correct amperage–most residential installations use 15A or 20A circuits. Misalignment here risks tripping breakers or damaging devices.

Use 12-gauge copper wire for 20A circuits and 14-gauge for 15A. Copper provides superior conductivity over aluminum alternatives, reducing heat buildup. Strip insulation back 3/8 inch for secure terminal attachment; longer exposures increase short-circuit risks. Terminate the ground wire first–always–following NEC (National Electrical Code) mandates. It’s the sole failsafe against electrical faults.

Split-phase configurations require twisting the neutral and hot wires separately. Connect the black (hot) wire to the brass screw, white (neutral) to the silver terminal, and bare/green (ground) to the green screw. For duplex sockets in shared circuits, use pigtail splices–never daisy-chain wires through device terminals. Loose connections arc, generating temperatures exceeding 2,000°F, a fire hazard.

Test every connection with a non-contact voltage tester before restoring power. Probe the outlet slots: hot/neutral reversal (common in DIY setups) creates shock hazards. Measure continuity between ground and neutral–resistance should read less than 1 ohm. If readings exceed, recheck splices; faulty grounds compromise surge protection.

For GFCI (Ground Fault Circuit Interrupter) receptacles, wire line-side terminals to the supply and load-side only if extending protection downstream. Incorrect wiring disables GFCI functionality, leaving bathrooms and kitchens unprotected. Label all breakers and outlets with marker–traceability saves hours during future modifications.

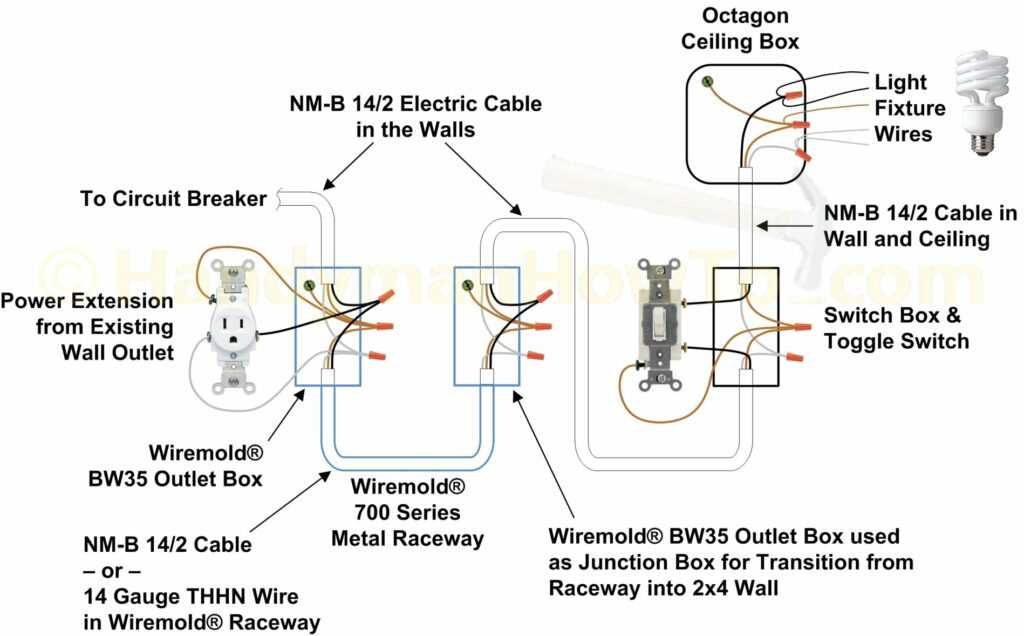

Electrical Connection Schematic for Household Receptacles

Always verify circuit polarity before energizing any installation–ground (bare/green wire) connects to the U-shaped terminal, neutral (white) to the silver screw, and hot (black/red) to the brass screw. Standard 120V residential setups follow this color-coded sequence without exception; deviations indicate wiring faults that risk equipment damage or fire.

For split-circuit duplex sockets, bridge the hot side with a 10-gauge jumper between the two brass terminals to feed both plug points from a single 20A breaker. Use 12 AWG copper conductors exclusively–smaller diameters overheat under sustained loads above 16A. Twist wires ¾-turn clockwise before screwing down terminals to prevent loosening under thermal cycling.

GFCI protection mandates load-side connections: attach downstream receptacles to the “LOAD” terminals only after confirming ground-fault sensitivity (test button must trip breaker). Never combine heavy-duty appliances (microwaves, space heaters) on the same circuit as sensitive electronics–voltage drops exceed 5% tolerance, causing premature failure in induction motors and switching power supplies.

European-style 230V receptacles require reversed polarization: blue (neutral) pairs with the narrow slot, brown (hot) with the wide side, and yellow-green (ground) centers to the rounded pin. Install shock-resistant junction boxes with 15mm clearance behind drywall per NEC 314.20–non-compliant enclosures crack under torque stress from heavy appliances.

Label every circuit at the breaker panel with indelible marker: note receptacle location, wire gauge, and maximum amperage (e.g., “Kitchen Northwest – 12AWG – 20A Max”). Photograph completed connections before securing faceplates for troubleshooting reference; 80% of post-installation faults trace to terminal corrosion or improper torque.

Essential Gear for Electrical Socket Installation

Begin with a non-contact voltage tester rated for at least 120V AC–Fluke’s 1AC-II or Klein Tools NCVT-3 offer audible and visual alerts without physical contact, critical for verifying circuits before touching terminals. Equip yourself with insulated screwdrivers: a #2 Phillips for device terminals and a 3/16″ flathead for grounding screws, both compliant with ASTM F1505 (1000V protection). For cutting and stripping, use 14-12 AWG wire strippers–Irwin VISE-GRIP or Knipex models ensure clean cuts without nicking conductors. A linesman’s pliers (9″ minimum) grips and twists wire pairs securely, while diagonal cutters (side-cutting, 6-7″) trim excess wire flush to the box. Include a knockout punch set (3/8″ to 1″) for metal boxes and a fish tape (25’ fiberglass) to route cables through studs. Use a multimeter (Fluke 17B or similar) with continuity mode to verify ground paths and resistance (>50kΩ indicates faulty connections).

Specialized Supplies for Safe Termination

Secure cables with UL-listed NM-B staples (1/2″ crown, galvanized) spaced every 4.5′ per NEC 334.30, hammered flush to avoid sheath damage. Choose copper conductors: THHN/THWN-2 for conduit (12 AWG for 20A circuits, 14 AWG for 15A), or Romex NM-B for direct runs–ensure jacket markings include “TYPE NM-B 600V” and gauge. Match device plates to box depth; shallow boxes (4-11/16″) require deeper cover plates (e.g., Leviton 80411) to prevent frayed insulation. For GFCI/receptacle connections, use 15A/20A rated devices with side-wire clamps (e.g., Leviton 5252 or Bryant 5362); torque terminals to 12 in-lbs with a preset screwdriver (Klein JISV20). Apply UL-listed wire nuts (red for 3-4 #12 wires, blue for 2 #12) or lever connectors (Wago 221 series) for tool-less splicing–avoid twist-on types in damp locations. Include a torque screwdriver (+/- 3% accuracy) for receptacle screws (NEC 110.14(D)) and anti-oxidant compound (Ideal Noalox) for aluminum-to-copper splices. Store all materials in a Class 2 insulated tool bag (e.g., Klein 55412) to prevent moisture ingress.

Step-by-Step Guide to Safe Power Shutoff and Circuit Testing

Locate the main service panel–typically a gray metal box mounted in basements, garages, or utility closets–and identify the breaker controlling the target installation point. Flip the corresponding switch to the OFF position, then verify shutoff by testing adjacent receptacles with a non-contact voltage tester: hold the probe within 1/2 inch of the terminals; a steady red LED or audible tone confirms live current. Wait at least 60 seconds after cutting power to allow stored energy in capacitors to dissipate fully.

Verifying Circuit Isolation

• Check both hot (brass screw) and neutral (silver screw) terminals with a multimeter set to 200V AC. Probe the hot terminal first; any reading above 5V indicates incomplete shutoff.
• Test ground connections (green screw) simultaneously to detect phantom voltages from back-fed neutrals.
• Re-test after 2 minutes–residual voltage should drop below 3V.

Precautions Before Proceeding

1. Label the deactivated breaker with masking tape to prevent accidental re-energization.
2. Use insulated gloves rated for 600V and wear safety glasses with side shields to guard against arc flash.
3. Place a foam board or rubber mat beneath the work area to create an insulated barrier from conductive flooring.
4. Store a Class C fire extinguisher within 10 feet of the workspace–power surges can ignite dust accumulation inside panels.

Color Coding and Wire Connection Standards: US vs. EU Electrical Norms

In the United States, electrical circuits adhere to the NEC (National Electrical Code), mandating black (hot), white (neutral), and green or bare copper (ground) for residential setups. For 240V installations like ovens or dryers, an additional red or alternate colored conductor serves as the second hot line. Split-phase systems–common in homes–require strict polarity: reversing hot and neutral violates code and creates shock hazards.

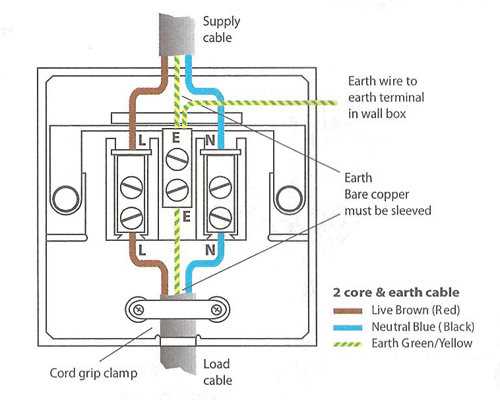

EU countries follow IEC 60446, where brown (live), blue (neutral), and green/yellow striped (protective earth) are universal. Three-phase configurations in industrial or commercial EU settings introduce black (L1), gray (L2), and brown (L3), though residential applications rarely need these. The TN-S grounding system–separate earth and neutral conductors–dominates, unlike the US’s reliance on bonded neutral-ground connections at service panels.

Polarity compliance differs: US sockets (e.g., NEMA 5-15) enforce unidirectional plug insertion, while EU Schuko and French CEE 7/7 outlets are symmetric, relying on mechanical keying or convention to prevent miswiring. Violations in either system void circuit breaker protection–neutral wires exceeding 0.5mm² (EU) or 14 AWG (US) must never carry current under normal conditions.

Critical safety note: US circuits tolerate a 3% voltage drop over 50 feet; EU installations (230V nominal) require tighter regulation, often capping drops at 2% for stability. Copper conductor sizing scales differently: a US 20-amp branch circuit demands 12 AWG (3.31mm²), whereas EU’s 16-amp equivalent permits 1.5mm² (15.7 AWG equivalent).

Regulatory divergence extends to backfeeding: US GFCI/AFCI devices must trip at 5mA leakage, while EU RCDs (residual current devices) activate at 30mA. Terminal screws in both regions reverse direction–US devices typically tighten clockwise; EU counterparts often use counter-clockwise threads to prevent loosening under vibrational stress.

For cross-border projects, never interchange components. A US plugged into a retrofitted EU receptacle without a transformer risks catastrophic failure due to voltage differential (120V vs. 230V). Multimeters with true-RMS capability are non-negotiable for verifying phase alignment; false readings from harmonic distortions can mask hazardous wiring errors.
