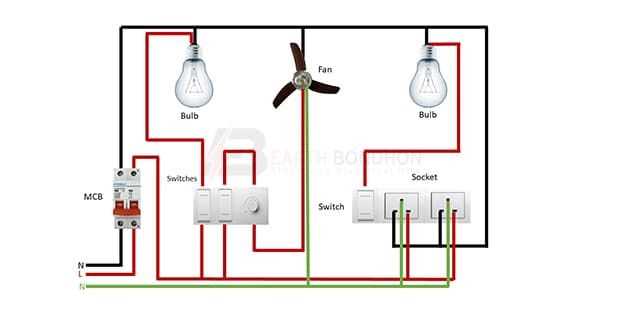

Step-by-Step Electrical Wiring Diagram Guide for Home Installations

Begin by isolating the power source. Verify voltage levels with a multimeter–expect 120V AC for residential outlets, 12V DC for automotive systems, or 5V DC in low-voltage circuits. Mark each conductor with colored tape: black for hot, white for neutral, green for ground. Mislabeling increases risk of short circuits or equipment damage.

Use awg 14-12 gauge wire for 15-20 amp circuits, awg 10 for 30 amp breakers. Overloading thinner wires causes overheating; the National Electrical Code (NEC 310.16) mandates these specifications. Secure connections with crimp connectors or wire nuts, twisting clockwise to ensure tension. Loose terminals lead to arcing–test pull strength after fastening.

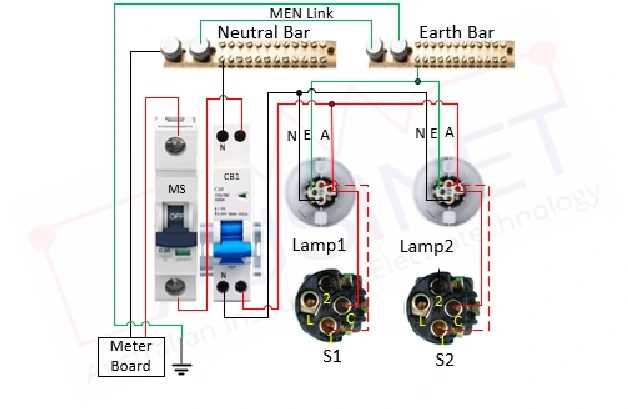

For three-way switches, link the common terminal to the line input. Traveler wires (red/black) must span between switch boxes, while the neutral bypasses the switch entirely–follow NEC 404.2 for compliance. Label each wire at both ends to avoid confusion during troubleshooting.

Ground all metallic enclosures back to the main panel’s bus bar. Use bare copper or green-insulated wire; omit this step and risk lethal shock hazards. For outdoor setups, bury direct burial cable (UF-B) at 24 inches deep or encase in conduit (NEC 300.5). Avoid PVC in freezing climates–expandable foam insulation cracks under thermal stress.

Test continuity with an ohmmeter before energizing. Readings should show 0 ohms across closed contacts, OL (open line) for breaks. Replace any corroded junctions–oxidized copper reduces conductivity by up to 70%. Finally, torque terminal screws to 12-15 lb-in per manufacturer specs–loose screws account for 30% of electrical fires annually.

Electrical Schematics Tailored to Unique Use Cases

For automotive ignition systems, connect the ignition coil’s primary terminal to a 12V switched power source using 14-gauge wire (minimum 25A capacity). Ground the secondary terminal via the engine block, ensuring a torque of 12-15 Nm on the mounting bolt to prevent resistance buildup. Use a 30A fuse between the battery and coil to avoid short-circuit damage. Replace factory wiring with silicone-insulated cables if operating in temperatures exceeding 85°C–standard PVC degrades at 70°C.

When designing a solar panel array, match the charge controller’s voltage and current ratings to the system: a 20A controller suffices for 200W panels, but scale to 40A for 400W+ setups. Wire panels in series to boost voltage (e.g., 3x 12V panels = 36V) only if the controller supports the combined voltage; parallel wiring maintains 12V but increases amperage. Route all connections through a combiner box with branch circuit breakers sized at 125% of the panel’s Isc (short-circuit current).

Critical Connection Specifications

Application	Wire Gauge (AWG)	Max Current (A)	Connector Type
Car Audio (Subwoofer)	8	40	Ring terminal (6-8mm)
LED Strip Lighting	22	2	Solder + heat shrink
Industrial Motor (1HP)	12	20	Crimp lug (fork/spade)
EV Charging (Level 2)	6	50	Anderson SB50

For home automation networks, use Cat6 cable (not Cat5e) when linking smart switches to hubs–latency drops by 18% with PoE (Power over Ethernet) at 48V. Separate low-voltage control circuits (e.g., 24V thermostats) from line voltage (120/230V) by at least 2 inches, or install a Class 2 compliant barrier per NEC Article 725. Terminate all connections with ferrule crimps instead of bare wire twists to reduce oxidation by 70%.

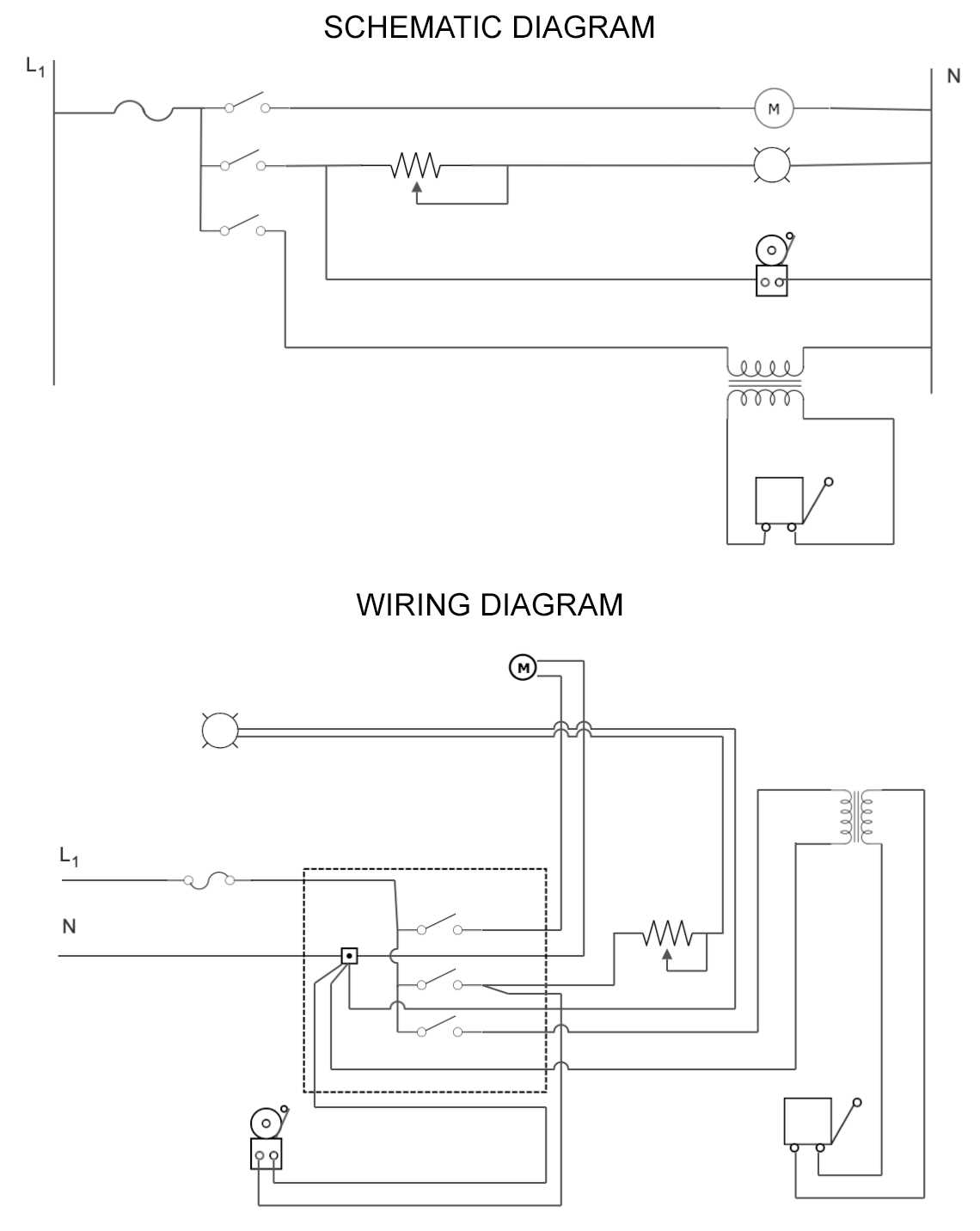

Mastering Electrical Schematic Interpretation: A Structured Approach

Begin by identifying the power source. Locate the battery symbol–typically marked with “+” and “–” terminals or labeled “B+”–to trace the main current flow. Follow the thickest lines first, as these represent primary circuits carrying higher voltage or amperage, distinguishing them from thinner control or signal paths.

Recognize standard symbols immediately. A zigzag line denotes a resistor; parallel lines with a gap at the end signify capacitors. Solid dots at junctions confirm connections, while intersecting lines without dots indicate separate conductors crossing. Refer to a reference sheet if symbols vary across manufacturers.

Label each component with its function. Annotate relays as “RLY1” with their coil and switch contacts, noting normally open (NO) and normally closed (NC) states. For semiconductors like transistors (e.g., TIP31C), mark emitter, base, and collector terminals to avoid miswiring.

Tracing Circuits Systematically

Use colored pencils or digital layers to highlight distinct paths. Assign red to positive leads, black to ground, and blue or green to secondary components like sensors or switches. This visual separation prevents confusion between parallel circuits operating independently, such as a starter motor versus dashboard lighting.

Locate ground points–symbolized by downward triangles or the letter “GND.” Verify all grounds converge at a single chassis point to prevent voltage drops. Measure continuity with a multimeter between the ground symbol and the physical chassis to confirm integrity before powering the circuit.

Test hypothetical scenarios. For a relay-controlled fuel pump, simulate the switch closure by bridging the relay’s trigger contacts with a jumper wire. Observe whether the pump activates, confirming the circuit’s logic without risking full system activation. Document deviations for troubleshooting.

Validating and Documenting Findings

Cross-check your interpretation against physical wiring. Use a tone generator to follow cables from the schematic to their termination points in the harness. Mark each verified connection with adhesive labels or heat-shrink tubing matching the schematic references (e.g., “IGN” for ignition).

Record modifications or variances. If a factory schematic shows a 10A fuse but your system uses 15A, update the reference copy with a handwritten note or digital overlay. Include dates and rationale for future diagnostics.

Create a simplified subset for frequent tasks. For example, extract the ignition circuit alone into a single-page sketch if it’s the most serviced segment. Store both the original and simplified versions in waterproof sleeves alongside the machine’s manual for quick access.

Key Electrical Schematic Symbols and Their Interpretations

Use standardized IEC or ANSI symbols to prevent misinterpretation. A resistor, marked as a zigzag line (IEC) or rectangle (ANSI), must always include its resistance value in ohms. Capacitors appear as parallel lines (non-polarized) or a line with a curved side (polarized); label microfarads (µF) directly. Coils appear as loops–either air-core or iron-core–with inductance noted in henries (H). Switches clarify function: SPST (single pole, single throw) uses a simple break, while DPDT (double pole, double throw) shows crossed connections.

Power sources require precise notation. DC batteries display unequal parallel lines, with polarity (+/-) indicated. AC sources use a sinusoidal wave inside a circle, often paired with voltage and frequency (e.g., 230V, 50Hz). Ground symbols vary: a single line (earth ground), three descending lines (chassis), or a triangle (signal ground). Avoid mixing types without annotation, as incorrect grounding causes shorts or noise.

Semiconductor and Component Shorthand

Transistors use distinct shapes: BJTs show collector, base, and emitter (NPN/PNP arrows), while MOSFETs separate gate, source, and drain with insulating gaps. Diodes appear as triangles pointing toward a line (cathode), and LEDs add two arrows for light emission. Integrated circuits simplify to rectangles with pin numbers–label pins clockwise starting at the top-left. Optocouplers combine LED and phototransistor symbols, separated by a dashed line indicating isolation.

Motor symbols differ by type. DC motors use a circle with “M” and brushes (horizontal lines). AC induction motors add internal rotor bars, while stepper motors include phase coils and commutation markings. Relays depict a coil (loop) activating contacts (break/make symbols). Fuses appear as a thin rectangle with a zigzag line–always specify current rating (e.g., 5A) to match circuit protection needs.

Connectors and terminals demand clarity. Terminal blocks use numbered circles with screw heads. Plugs/sockets show gender (male/female) and pin count. Wires crossing without connection display a small arc; joined wires use a filled dot. For complex layouts, use net labels (e.g., “VCC,” “GND”) instead of drawn lines to reduce clutter–ensure consistency across sheets.

Critical Annotations for Safety and Functionality

Add color codes (e.g., red for live, black for neutral, green/yellow for earth) next to wires–comply with local regulations (NEC, IEC 60446). Specify cable types: solid/stranded, gauge (AWG), and insulation rating (e.g., 14 AWG THHN). Annotate switch positions (e.g., ON/OFF) and relay states (NO/NC). For high-voltage circuits, highlight clearance requirements (e.g., 5mm air gap) and use warning symbols (ISO 7010). Never omit ratings–undersized components create fire hazards.

Essential Gear and Supplies for Schematic Design

Start with a precision drafting tool–opt for lead holders with 0.3mm or 0.5mm graphite cores, as thinner tips (0.2mm) lack durability for extended tracing. Mechanical pencils with adjustable sleeves prevent lead breakage during fine detail work. For erasing mistakes without smudging, use kneaded putty erasers paired with vinyl-free variants; standard rubber erasers leave residue that degrades ink adhesion later.

Stock drafting templates in these critical shapes: circles ranging from 1mm to 20mm, squares from 2mm to 30mm, and triangles (30°, 45°, 60°). Include a protractor with 0.5° gradations–essential for aligning transformers and connectors at exact angles. Transparent rulers marked in both metric (0.5mm increments) and imperial (1/32″) ensure compatibility with global standards. Avoid acrylic rulers–they accumulate static, attracting dust that interferes with ink flow.

Key Physical Tools

• French curves set: Used for smoothing irregular conductors or cable runs without digital distortion.
• Circle compass with beam extension: Required for sizing inductor coils beyond the 50mm range.
• Drafting tape (low-tack): Secures paper without tearing; masking tape residue ruins archival-quality prints.
• Magnifier lamp (5x to 10x): Catches micro-fractures in traces–critical when verifying continuity in high-density layouts.

Ink selection dictates longevity: pigment-based technical pens (e.g., Rotring Isograph, 0.18mm, 0.25mm, 0.35mm) resist fading under UV exposure, unlike dye-based inks. For color coding, use alcohol-based markers–water-based alternatives bleed through most drafting films. Store ink in humidity-controlled conditions (40-50% RH); fluctations above 60% cause clogging in pen nibs. Brush sizes #000 and #1 handle text labels and grounding symbols respectively–avoid synthetic bristles, which shed fibers onto wet ink.

Specialized Consumables

1. Drafting film (polyester/polyethylene): 100gsm minimum thickness for double-sided prints; acetate yellows within 12 months.
2. Conductive ink pens: Silver-bearing formulations for hand-drawn breadboards–test on scrap first, as shelf life varies (6-18 months unopened).
3. Anti-static cloth: Removes dust from templates without leaving lint that bonds to wet ink.
4. Precision knife (surgical steel): Cutting V-grooves in acrylic templates–replace blades every 100 cuts to prevent jagged edges.

Calibration equipment ensures accuracy: a digital caliper (0.01mm resolution) measures trace widths and hole diameters, while a micrometer (0-25mm range, 0.001mm resolution) verifies board thicknesses. For reference, maintain a physical library of component footprints–standardized IC packages (DIP-16, SOIC-14), discrete semiconductors (TO-92, TO-220), and modular connectors (RJ45, DB9) eliminate dimensional guesswork. Oxygen-free copper sheets (0.1mm thick) serve as grounding plane templates for high-frequency schematics, reducing EMI distortion.
