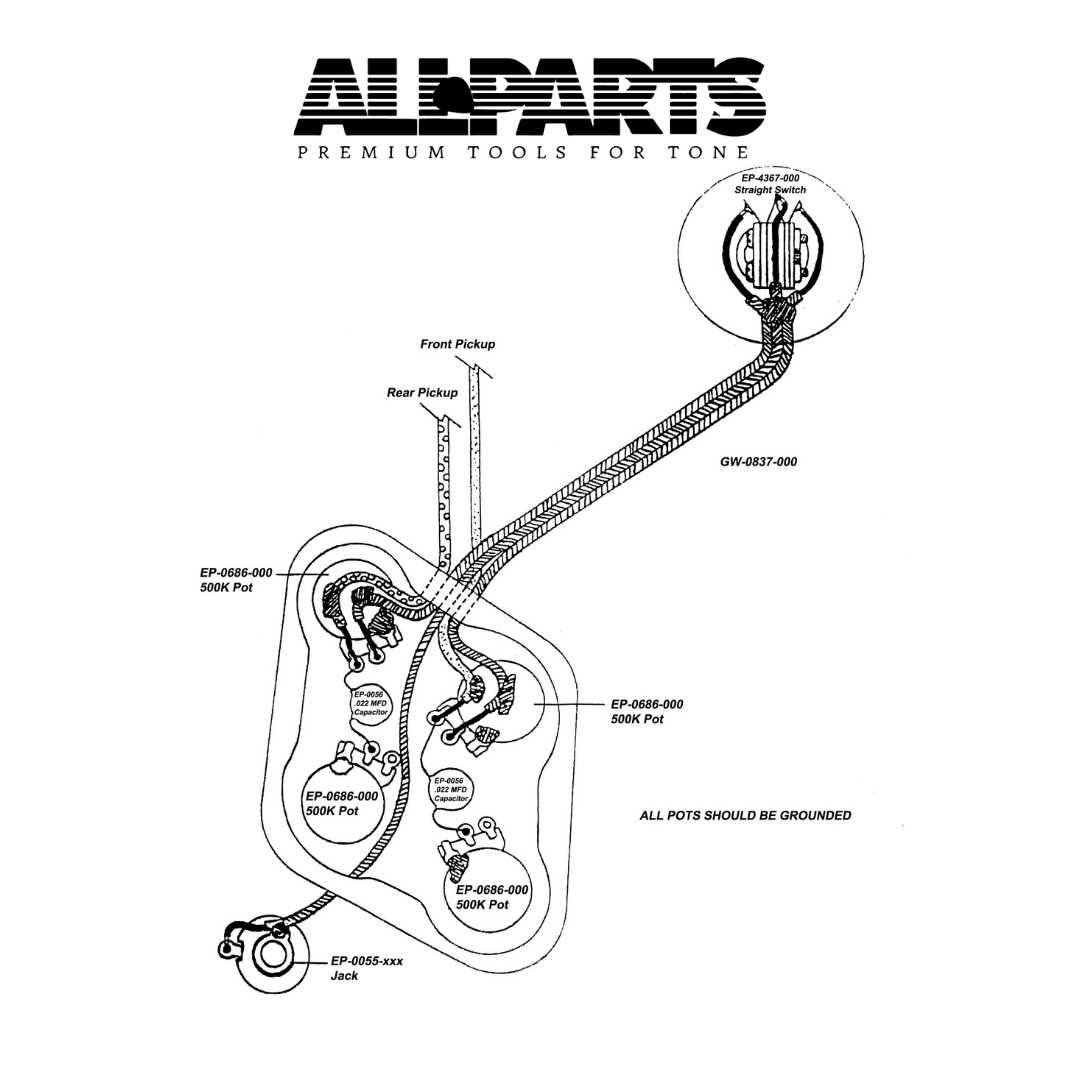

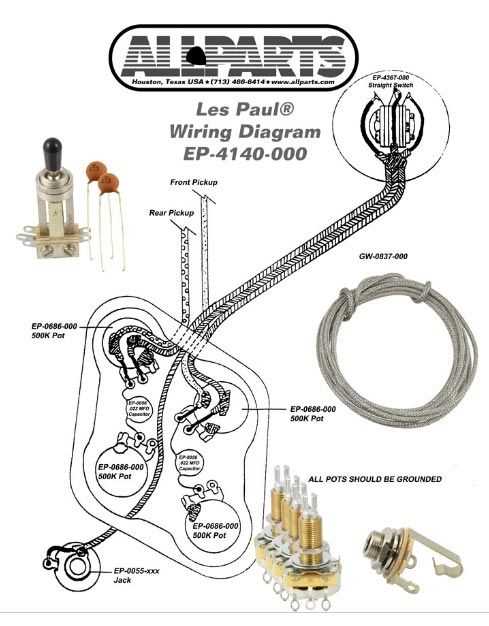

Complete Les Paul Wiring Diagram Guide for Guitar Modifications
Use a 0.047µF capacitor for the bridge pickup to preserve high-frequency clarity while reducing harshness. Swap standard 500K pots for 300K or 250K if your tone feels overly bright–lower resistance smooths the signal without sacrificing output. For push-pull pots, wire the coil-split so the neck pickup engages in single-coil mode when pulled; this prevents phase cancellation when blended with the bridge.
Ground the strings to the tailpiece lug, not the bridge itself, to avoid ground loops. Connect the output jack’s sleeve directly to the pot casing with 18-gauge stranded wire, not the thin shield wire from the pickup leads–this reduces noise by improving conductivity. Use braided shield wire only for signal paths, not ground connections, to minimize interference.
Test continuity between the pickguard and control cavity before final assembly; a broken circuit here causes hum. For series/parallel switching, solder a mini-toggle with a DPDT on-on switch to bypass the volume pots–this retains the original tone while allowing parallel wiring for a cleaner sound. Avoid star grounding inside the cavity; instead, daisy-chain grounds to a single solder lug on the back of a pot to simplify troubleshooting.
Replace the stock 3-way switch with a super switch (5-way) for independent coil selection, but ensure the lugs are properly insulated–exposed metal near the switch causes shorts. For active pickups, wire the battery’s negative lead to the output jack’s sleeve and keep the positive lead as short as possible (under 4 inches) to prevent voltage drop. If using epoxy-filled humbuckers, pre-tin the wires before soldering to prevent lifting the delicate connections inside.
Custom Electrical Layouts for Gibson-Style Instruments
Begin with a 500K audio taper potentiometer for the volume controls–this maintains treble response when rolling back. Bridge the ground connections of both pickups directly to the pot casings, then link them to a shared central star point on the control cavity’s rear wall; avoid daisy-chaining to prevent hum buildup. For push-pull pots, solder the switch lugs with 24-gauge solid-core wire, ensuring each phase tap is color-coded (red for hot, white for start, green for finish) to streamline pickup swaps.
Use a 0.022µF orange drop capacitor for the tone circuit–it preserves mids while cutting harshness above 5kHz more predictably than ceramic alternatives. Route the cap leads through a small grommet drilled adjacent to the tone pot; this reduces microphonics from loose wires vibrating against wood. When installing coil-splits, wire the push-pull switch to disconnect the neck pickup’s north coil and the bridge pickup’s south coil, creating a hum-canceling configuration that retains output punch.
Test continuity between the bridge and input jack sleeve before final assembly–resistance should not exceed 0.3 ohms if grounding is correct. Avoid wrapping wires tightly around pot shafts; instead, leave 2cm slack and secure excess with a small zip tie anchored to the cavity’s edge to prevent stress fractures during string changes.
Critical Parts to Locate Before Modifying Your Solid-Body Electric Guitar
Begin by identifying the potentiometers–both volume and tone controls. Note their resistance values (typically 500k for humbuckers, 250k for single-coils) and whether they’re linear or logarithmic taper. Incorrect pairing disrupts tonal balance. Label each pot with masking tape to avoid confusion during reassembly.
Examine the capacitors in the tone circuit. Standard values range from 0.022µF to 0.047µF; lower capacitance sharpens high-end roll-off. Polyester film or ceramic caps introduce unwanted noise–replace with Orange Drop or Russian PIO types for clarity. Verify capacitance with a multimeter if markings are faded.
Trace the pickup selector switch. Three-way toggles have distinct schemes: blades soldered directly or via short wires to the back. Four-conductor humbuckers require mapping the color codes (shield + 4 wires) to avoid phase cancellation. Test continuity with a probe before disconnecting.
- Bridge humbucker: Green (hot), white/black (coil split), red/bare (ground)
- Neck humbucker: Red (hot), green/white (coil tap), black/bare (ground)
- Single-coils: White (hot), black (ground), shield (ground loop)
Inspect the output jack. Bent or oxidized contacts cause intermittent signal loss. Apply contact cleaner, then resolder with 60/40 rosin-core solder. Avoid acidic flux–it corrodes terminals over time. For locking jacks, ensure the retaining washer is secure to prevent rotation.
Grounding Pathways
Map the grounding topology:
- Pot casings connect to the back via solder lugs.
- Bridge ground wire links to the tailpiece stud hole.
- Strings ground through the tailpiece to the control cavity.
- Output jack sleeve connects to the main ground bus.
Use a 1MΩ resistor across bridge ground and pot casing to eliminate buzz without compromising shielding. Verify with an ohmmeter–resistance should read under 1Ω.
Check the control cavity shielding. Graphite or conductive paint peels over time; sand and reapply with copper foil tape, overlapping seams by 3mm. Seal edges with conductive glue (e.g., MG Chemicals 8331). Poor shielding invites RF interference, especially with high-gain amplifiers.
Document all connections with a digital camera or notebook. Note wire gauge (usually 22 AWG), solder joint quality, and component orientation. Replace frayed wires with Teflon-coated hookup wire–stranded copper oxidizes slower than PVC-insulated types. Store spare parts (pots, caps, switches) in labeled anti-static bags.
Step-by-Step Soldering Connections for Classic Single-Cutaway Electric Assembly
Strip each wire to expose 5mm of copper for clean joints. Tin the soldering iron tip with a thin layer of rosin-core solder before touching any connection points–prevents oxidation and ensures heat transfer. Start with the potentiometers: attach the volume control’s outer lug (usually labeled “1” or “3”) to the pickup’s hot lead (typically the brighter-colored wire) using a 2mm dab of 60/40 solder. Secure the tone control’s middle lug (“2”) to its capacitor (0.022µF for vintage high-end roll-off) with the same method, clamping the capacitor leg in place with needle-nose pliers to avoid heat damage. Ground all components by soldering the back of each pot’s casing to the braided shielding of the coaxial cable–use a 3mm blob of solder and hold for 2 seconds to ensure adhesion without cold joints.
| Connection Point | Component | Solder Specs | Pro Tip |
|---|---|---|---|
| Volume pot lug 1 | Pickup hot lead | 60/40 rosin-core, 2mm | Avoid excess solder–forms conductive bridges |
| Tone pot lug 2 | 0.022µF capacitor | 60/40 rosin-core, 2mm | Twist capacitor leads 180° for strain relief |
| Pot casing | Braided shielding | 60/40 rosin-core, 3mm | Pre-tin braid for faster heat transfer |
| Output jack sleeve | Common ground | 60/40 rosin-core, 2.5mm | Wrap wire clockwise around lug to prevent loosening |
| Switch common lug | Volume pot lug 2 | 60/40 rosin-core, 1.5mm | Use heat-shrink tubing over exposed joints |
Connect the 3-way toggle’s common lug to the volume pot’s middle lug (“2”)–this bridges signal flow. For the output jack, solder the hot lead (usually the shorter lug) to the switch’s remaining lugs (one per pickup), then attach the ground wire (longer lug) to the braided shielding, ensuring a continuous path to the back of the potentiometers. Test continuity with a multimeter set to 200Ω before reassembling–resistance should read ≤2Ω between any ground point and the output jack’s sleeve. If solder joint resistance exceeds 1Ω, reheat and add a 0.5mm solder dot to eliminate dry joints.
Key Circuit Mods for Humbucker and Single-Coil Setups
For dual-humbucker guitars, the 4-conductor wiring allows coil-splitting via a push-pull pot. Connect the hot lead from each pickup to a separate volume pot (500K for warmer tone), then route the split coil output through the pot’s switch lug. Ground the remaining wires (shield, bare) to the bridge or a dedicated star ground on the control plate. This retains hum cancellation while enabling single-coil-like snap by disengaging one coil.
- Use a 0.022µF capacitor between volume/tone pairs to reduce treble loss when dialing back. Ceramic caps suffice for brighter genres; polypropylene lowers noise for jazz/blues.
- Bridge volume first, then master: prevents phase issues when blending pickups. The 1MΩ resistor on the bridge pot’s wiper preserves high-end clarity.
Single-coil Strat-style circuits benefit from a 250K volume pot and 0.047µF tone caps. Push the middle pickup’s output to the selector’s extra pole (5-way super switch) to add a neck+bridge out-of-phase option. Wire the hot lugs in series with a 150KΩ resistor to tame icepick highs when combining neck/middle pickups. Ground the strings via the jack’s sleeve lug, not the tremolo, to avoid interference.
For P-90 configurations, replace the rhythm pickup’s volume pot with a 1MΩ taper and pair it with a 0.01µF cap. This setup preserves low-end growl when rolling off. Add a treble-bleed circuit (330pF cap + 150KΩ resistor) to the lead pickup’s volume pot to maintain high-frequency response at lower settings. Ground the metal pickup covers to the back of their pots using 22-gauge braided wire.
- Telecaster variations: Modify the 3-way toggle for parallel/series switching by adding a mini DPDT switch. Route the bridge pickup’s hot wire to the switch’s common lug, then split it to the original selector and a secondary path for series wiring (combine with the neck pickup).
- Use a 0.01µF cap on the tone pot’s wiper to ground for a smooth bass-cut response. Avoid ceramic caps here–they introduce microphonics.
For active EMGs, bypass the stock 25KΩ pots and install 50KΩ linear-taper models. Wire the battery’s positive lead to a stereo jack’s ring lug, with the ground (negative) to the sleeve. Connect the active pickup’s output directly to the volume pot’s wiper, eliminating the tone circuit entirely for maximum headroom. Add a 10µF electrolytic cap in reverse polarity across the battery terminals to prevent pops when plugging/unplugging.
Replacing stock potentiometers with CTS or Bourns 500KΩ audio-taper models (or 250KΩ for single-coils) reduces signal degradation. For high-impedance pickups (e.g., Bare Knuckle), shield all control cavities with copper foil tape, grounding it to the bridge. Test phase alignment by striking natural harmonics at the 12th fret–pickup combinations should not produce a thin, nasally tone. If present, reverse the magnet polarity of one pickup or swap its hot/ground wires.
