How to Wire an Electrical Outlet Step-by-Step Guide with Diagrams
Begin by verifying the circuit breaker controlling the socket group is switched off. Use a non-contact voltage tester to confirm no current flows to the terminal screws–even residual charge can cause dangerous shorts. For single-phase 120V systems, the black (hot) wire attaches to the brass screw, the white (neutral) to the silver, and the bare/green (ground) to the green grounding screw. For 240V configurations like EV chargers or dryers, a red second hot wire replaces the neutral; torque terminal screws to 12–15 inch-pounds to prevent loose connections.
Match wire gauge to breaker amperage: 14 AWG for 15A circuits, 12 AWG for 20A, and 10 AWG for 30A. Strip ¾ inch of insulation using a wire stripper–damaged strands reduce current capacity. Twist strands clockwise before inserting into terminal clamps to maintain full conductivity. Wrap wires ¾ turn around screws; loops in the wrong direction weaken grip under load. Push excess wire into the box without kinks–sharp bends increase resistance over time.
For GFCI sockets, connect line wires to the “line” terminals first, then load wires only if downstream sockets require protection. Test GFCI function with a plugin tester before closing the wall plate–pressing the “test” button should cut power to all protected outlets. For split-circuit sockets (e.g., half-switched), break the brass tab between the side terminals; failure to remove it creates a dead short when the switch is flipped.
Avoid backstab connections in high-load areas like kitchens–vibration from appliances loosens spring clips over time. Pigtail wires under wire nuts for added reliability; use red for 20A circuits and tan/yellow for 15A. Secure ground wires to metal boxes with a dedicated pigtail if the box isn’t already grounded. Double-check polarity with a multimeter: 120V between hot and neutral, 0V between neutral and ground, and continuity between ground and box.
Installing Electrical Receptacles: Step-by-Step Instructions
Shut off power at the circuit breaker before handling any connections. Use a non-contact voltage tester to confirm wires are dead–probing each terminal individually. For standard 120V setups, connect the black (live) wire to the brass screw, white (neutral) to the silver screw, and bare or green (ground) to the green screw. Twist exposed ends ½ inch, bend into a hook, and secure clockwise under screws for maximum contact. Avoid backstabs; they risk loose connections over time.
Dual Receptacle Setup with Split Circuits

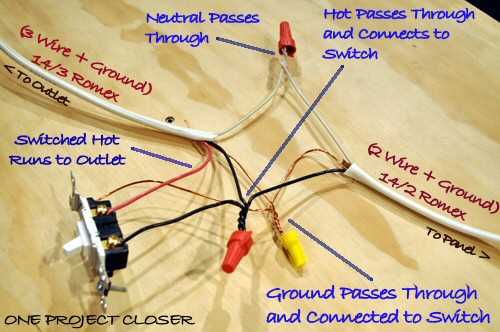

For a split circuit (two devices on separate breakers), remove the brass tab linking hot screws. Run a red wire to the second brass screw for the alternate circuit. Ensure neutrals remain bonded–never break the silver tab. Ground both green screws with a single pigtail for redundancy. Test with a multimeter: 120V between hot and neutral, 0V between neutral and ground, 240V if testing split hots.
Polarity matters–reverse connections can damage appliances or trip GFCIs. For tamper-resistant sockets, fully insert a plug to disengage internal shutters before testing. If using 14-gauge wire, limit breaker size to 15A; 12-gauge allows 20A. Label each breaker at the panel for future maintenance–color-code wires if managing multiple circuits in the same box.
How to Identify Key Components in an Electrical Schematic for Plug Installations
Locate the hot conductor first–it’s typically marked in red or black and connects to brass screws on the device. Verify its path from the circuit breaker to the terminal, ensuring no weak connections or splices degrade current flow. Mistaking the neutral for the hot wire leads to short circuits, so confirm labeling against the breaker panel’s layout.
Check the ground path next, which should be bare copper or green-insulated, terminating at a green screw or metal junction box. In modern setups, it often runs alongside the neutral but must never carry current under normal conditions. If missing, the installation violates safety codes and exposes users to shock hazards.
Common Symbols and Their Meanings
- Slanted line with arrow: Indicates a snap switch (e.g., wall toggle).
- Rectangle with parallel lines: Represents a duplex receptacle–note internal tabs for split circuits.
- Dashed circle: Denotes a junction box where conductors intersect.
- Solid zigzag: Marks a fuse or breaker; always trace back to power source.
Examine neutral paths separately–colored white or gray, these link to silver screws and return current to the panel. In split circuits, neutral tabs may be removed to isolate loads, but polarity must remain consistent. Test each segment with a multimeter: live parts should show 120V to ground, neutrals 0V.
Step-by-Step Process for Installing a Household Power Connection
Turn off the circuit breaker controlling the existing junction box. Use a non-contact voltage tester to confirm no current flows to the wires. Failure to verify power is off risks severe injury or fatal shock.

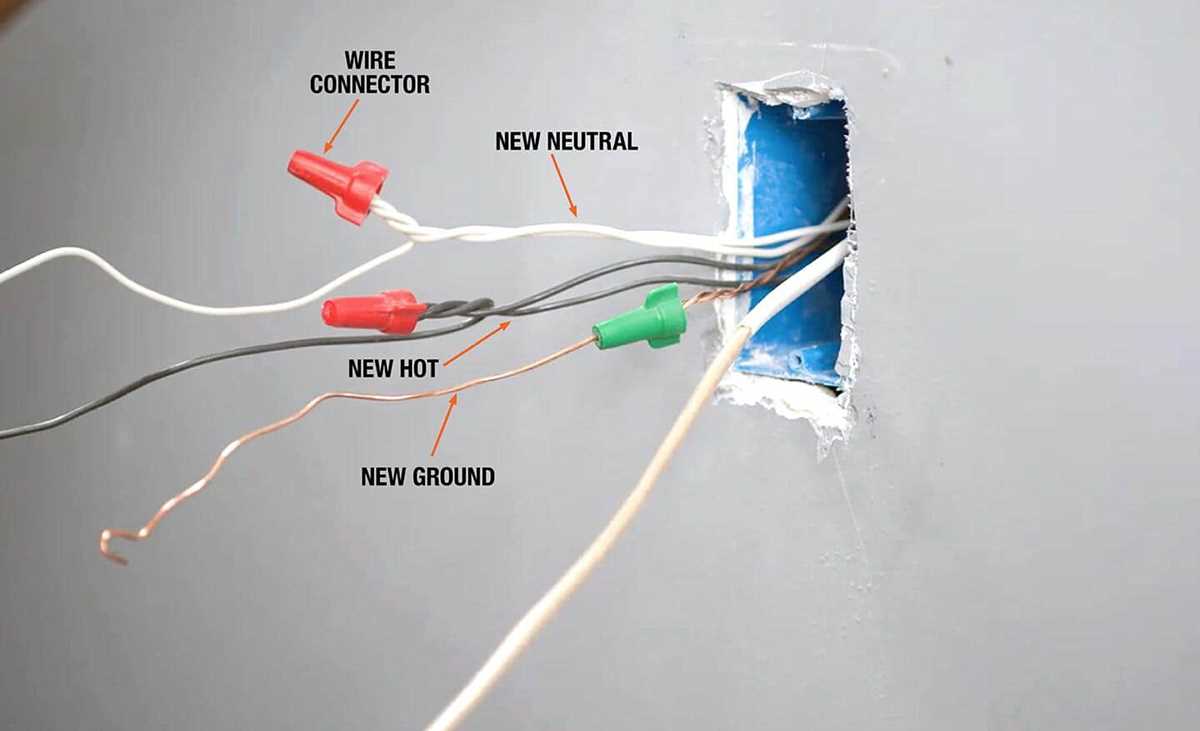

Remove the cover plate and unscrew the existing receptacle from the electrical box. Gently pull the device forward to expose the connected conductors, but avoid straining them–if brittle or cracked, trim 1/4 inch from the ends and strip 5/8 inch of insulation with wire strippers.
| Conductor Color | Terminal Screw Color | Function |
|---|---|---|
| Black/Hot | Brass | Carries current from source |
| White/Neutral | Silver | Returns current to panel |
| Green/Bare Copper | Green | Ground path, safety return |
Loop each conductor clockwise around its corresponding terminal screw–180-degree wrap maximizes contact surface. Tighten screws to 12–14 inch-pounds torque; overtightening fractures copper strands, under-tightening causes arcing. For back-wired push-in connections, insert straight-trimmed ends fully until they click, then tug to confirm retention.
Fold conductors neatly back into the box, ensuring no insulation is pinched beneath mounting tabs. Position the receptacle flush against the wall, align mounting slots with box screws, and secure with 1/8-inch drive screwdriver–avoid over-torquing drywall anchors. Ground screw must contact metal box if present, or ground wire must connect to green pigtail.
Snap the new cover plate onto the receptacle; misaligned plates indicate bent mounting tabs–loosen screws, reposition, and retighten. Restore power at the breaker, then test with a plug-in circuit analyzer. If neon lights indicate reverse polarity or open ground, immediately cut power and recheck terminal connections.
Label the circuit breaker with the room location and note wire gauge–12 AWG for 20-amp circuits, 14 AWG for 15-amp. Store box screws and spare wire nuts inside the electrical box cover for future maintenance.
Critical Errors to Sidestep When Interpreting Electrical Connection Charts
Ignoring color-coded standard deviations leads to reversed polarity or faulty ground connections. In North America, NEMA 5-15 plugs mandate green for ground, white for neutral, and black for hot–deviations from this invite shorts. European IEC 60320 specs differ: blue for neutral, brown for live, green/yellow striped for earth. Verify regional codes before touching terminals; misalignment risks equipment damage or fire.
Overlooking amperage ratings on the schematic triggers overloaded circuits. A 15-amp circuit breaker paired with 20-amp receptacles guarantees tripped protection or melted insulation. Check wire gauge against load requirements–14 AWG suffices for 15A, while 12 AWG handles 20A. Install incompatible components, and conductors heat beyond safe limits.
Misreading Terminal Labels
Confusing “L” (line) with “N” (neutral) on terminal blocks causes immediate malfunction. GFCI devices label “LINE” and “LOAD” explicitly; swapping them disables protection. Always trace connections back to the source conductor. Reversed feeds bypass safety mechanisms, leaving exposed metal energized.
Disregarding split-circuit configurations introduces unexpected power interruptions. Multi-wire branch circuits (MWBC) share a neutral but require handle-tied breakers for safety. Separate phases without proper bonding overloads the neutral conductor. Test continuity with a multimeter before energizing.
Assuming all sockets are interchangeable voids UL compliance. Tamper-resistant (TR) receptacles include internal shutters blocking single-prong insertion–standard units lack this feature. Hospital-grade sockets incorporate tighter tension for medical equipment reliability. Match socket type to application requirements precisely.
Failing to Account for Voltage Drop
Distant connections suffer from voltage drop, degrading performance. A 5% loss over 100 feet of 12 AWG wire at 20A exceeds allowable limits. Calculate drop using VD = 2 * I * R * L; adjust wire size or install subpanels closer to loads. Undersized conductors waste energy and overheat under sustained usage.
Skipping insulation resistance tests invites latent hazards. Megohmmeter readings below 1 MΩ between hot and ground signal compromised dielectric strength. Replace damaged cables immediately; moisture ingress accelerates leakage currents, escalating shock risks or arcing faults.
Installing a GFCI Receptacle with a Visual Guide
Shut off the power at the circuit breaker before handling any electrical connections to prevent accidental shocks–identify the correct breaker by testing the live receptacle with a non-contact voltage detector or multimeter.
Remove the faceplate and existing socket from the electrical box using a flathead screwdriver, then disconnect the wires by loosening the terminal screws–label each wire with masking tape (e.g., “LINE,” “LOAD,” “NEUTRAL”) if the colors match multiple connections in the box.
Examine the GFCI device’s back: the brass-colored screws marked “LINE” accept the incoming hot and neutral wires, while those labeled “LOAD” protect downstream receptacles–consult the manufacturer’s schematic if the labels differ, as some models separate load terminals on opposite sides.
Strip ⅝ inch of insulation from each wire end using wire strippers, then twist the copper strands clockwise to prevent fraying–insert the bare wire under the appropriate terminal, ensuring no insulation is pinched beneath the screw before tightening securely with a screwdriver.
For split-circuit setups, attach the white neutral wire to the silver “LINE” terminal and the black hot wire to the gold-colored screw–if extending protection to additional sockets, connect their wires to the “LOAD” terminals, taking care to match polarity (neutral to neutral, hot to hot).
Fold the wires neatly into the box, then secure the GFCI device with the mounting screws–press the reset button before restoring power to ensure proper function, and test the device by plugging in a lamp and pressing the “TEST” button–it should trip immediately with an audible click.
Replace the faceplate, then verify all connections with a plug-in circuit tester–if the GFCI fails to reset or trips erratically, recheck wire termination under terminal screws, ensuring no loose strands or crossed connections exist.
