Step-by-Step Potentiometer Wiring Diagram Guide for Circuit Control
Start with a 10 kΩ linear taper variable resistor if the circuit requires smooth, predictable resistance changes–ideal for volume controls or precision tuning. For audio applications, a logarithmic (audio-taper) unit better matches human hearing sensitivity, preventing abrupt jumps at low settings. Verify the component’s pinout: the outer terminals connect to the full resistance range, while the center wiper adjusts the output. Incorrect attachment risks shorting the adjustment path or limiting the range.
For low-power DC circuits, pair the resistor with a 0.1 µF ceramic capacitor across the wiper and one outer terminal to suppress noise, especially in sensitive instrumentation. In high-current scenarios (e.g., motor speed controls), add a flyback diode and ensure the resistor’s power rating exceeds expected dissipation by at least 20%. A 1 W resistor suffices for 12 V systems drawing under 50 mA, but upgrade to 5 W for heavier loads.
When integrating with microcontrollers, connect the wiper to an analog input and the outer terminals to VCC and GND. Use a voltage divider if the input range doesn’t match the controller’s reference voltage–e.g., a 3.3 V ADC requires scaling for 5 V signals. For digital interface compatibility, opt for I2C/SPI digital potentiometers (e.g., MCP41xxx series), avoiding mechanical wear and drift.
Test continuity with a multimeter before powering the circuit: the wiper-to-terminal resistance should vary smoothly from 0 Ω to the rated value. Sudden jumps indicate a faulty unit or poor solder joints. Ground unused pins in prototyping to prevent floating inputs, which can introduce erratic behavior in high-impedance layouts.
For high-frequency applications (above 10 kHz), use low-inductance carbon or cermet resistors; wirewound types introduce phase shifts. In RF circuits, position the resistor close to the load and minimize trace length to reduce parasitic capacitance. Always isolate adjustment points from high-noise sources like switching regulators to prevent interference.

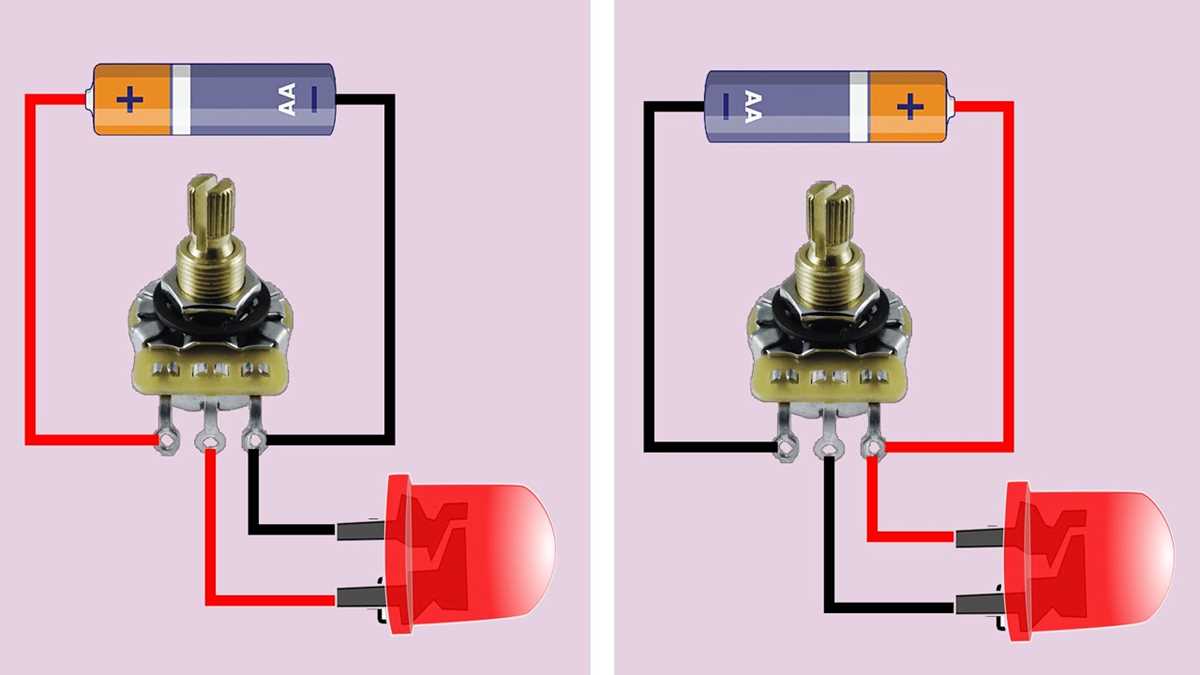

Connecting a Variable Resistor: Practical Schematics
Start by identifying the three terminals on your rotary or slide control element. The outer pins handle the full resistance range–typically 10kΩ for general use, though values between 1kΩ and 100kΩ suit different loads. Connect one outer terminal to the input voltage (Vin), usually 5V for microcontrollers or 12V for bench supplies. The opposite outer terminal links to ground. The center wiper delivers the adjusted voltage, but never exceed the component’s rated power (P = V²/R) or it will fail prematurely.
For volume control circuits, wire the wiper directly to the signal chain–in audio amplifiers, this often follows a 10kΩ logarithmic taper to match human hearing response. Linear tapers work for linear adjustments like dimming LEDs or setting reference voltages. Avoid daisy-chaining controls: each should have its own direct path to voltage and ground to prevent crosstalk. When integrating with microcontrollers, add a 1kΩ resistor between the wiper and the analog input pin to protect against floating voltages if the connection opens.
Below are common pitfalls and their fixes:
| Issue | Cause | Solution |
|---|---|---|
| Erratic readings | Dirty or worn track | Clean with contact cleaner or replace |
| No adjustment | Open wiper connection | Check solder joints; apply light pressure to verify |
| Signal jumps at extremes | Poor quality component | Use multi-turn precision types for critical applications |
| Overheating | Current exceeds rating | Add series resistor or use higher wattage variant |
Advanced Configurations
Dual-gang controls combine two variable resistors on a single shaft–ideal for stereo applications where matched resistance is critical. Wire each section identically but isolate their ground returns to prevent noise. For motorized variants, a small DC motor drives the shaft via gearing; ensure the motor’s stall current doesn’t exceed the driver’s specs, typically 200mA for hobbyist models. In instrumentation setups, bypass the center tap with a 100nF capacitor to ground to filter high-frequency noise.

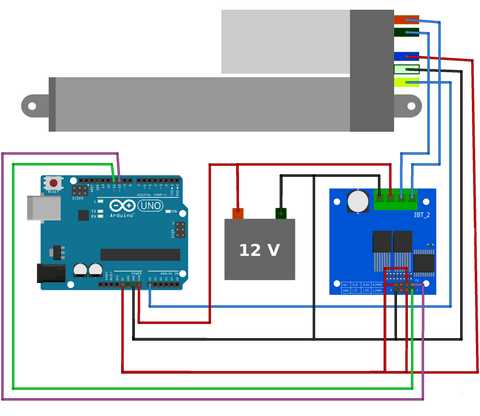

When designing for high-power loads (e.g., 3W rheostats), heatsink the body or mount it away from sensitive components. For pulse-width modulation control, pair with a microcontroller’s PWM pin and an N-channel MOSFET–match the control’s maximum voltage to the gate threshold. Test arrays with an ohmmeter before final assembly: resistance should sweep smoothly from near zero to the rated maximum without dead zones.
How to Identify Terminals on a Standard Variable Resistor
Examine the physical layout of the component–most rotary adjustable resistors have three terminals arranged in a row or triangular pattern. The outer leads correspond to the fixed ends of the resistive track, while the central terminal connects to the wiper. Check the datasheet for pin numbering if the device has a non-standard configuration.
Measure resistance between terminals using a multimeter in continuity or ohms mode. The two outer pins will show the full rated resistance (e.g., 10kΩ), while the center pin to either outer terminal will vary as you turn the shaft. If resistance readings don’t change, the component may be a non-adjustable resistor or damaged.

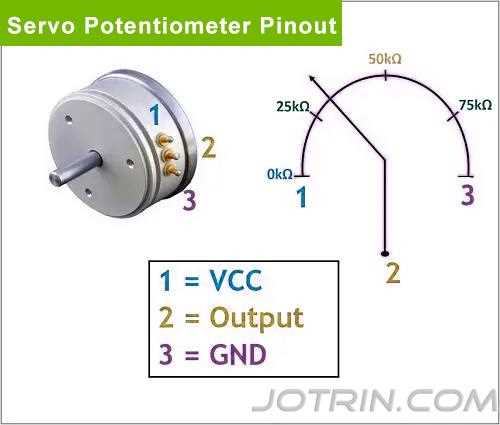

- Single-turn types: Terminals 1 and 3 are fixed, terminal 2 is the wiper.
- Multi-turn variants: Same pinout but often include a housing ground (4th terminal).
- Slider models: One fixed end, one sliding contact, and the wiper moving along the track.
Look for markings on the casing–some manufacturers label terminals “A,” “B,” and “W” (wiper) or “1,” “2,” and “3.” Smaller trimmers often omit labels, so rely on the position: the wiper is typically centered. For surface-mount devices, confirm pinout against the footprint drawing–some reverse the wiper position.
Use a continuity tester to trace connections if the component is already soldered. Touch one probe to the shaft (if metal) or the wiper’s expected position, then check which terminal produces a tone when adjusted. This method works even if the resistive element has failed, as long as mechanical contact remains.
For linear taper types, the wiper-to-fixed-end resistance changes smoothly in direct proportion to shaft rotation. Logarithmic (audio) taper devices show a steeper change at the start or end of rotation–identify the steeper side to determine the “start” terminal. Verify by turning the shaft fully counterclockwise and checking resistance against the datasheet’s taper curve.
Replace guesswork with the component’s official documentation if available. Common deviations include:
- Some Asian manufacturers swap terminals 1 and 3.
- Dual-gang adjustable resistors stack two tracks with aligned wipers.
- Motorized types add two terminals for a drive circuit.
- Multi-turn trimmers may use a helix pattern with the wiper on a flexing arm.

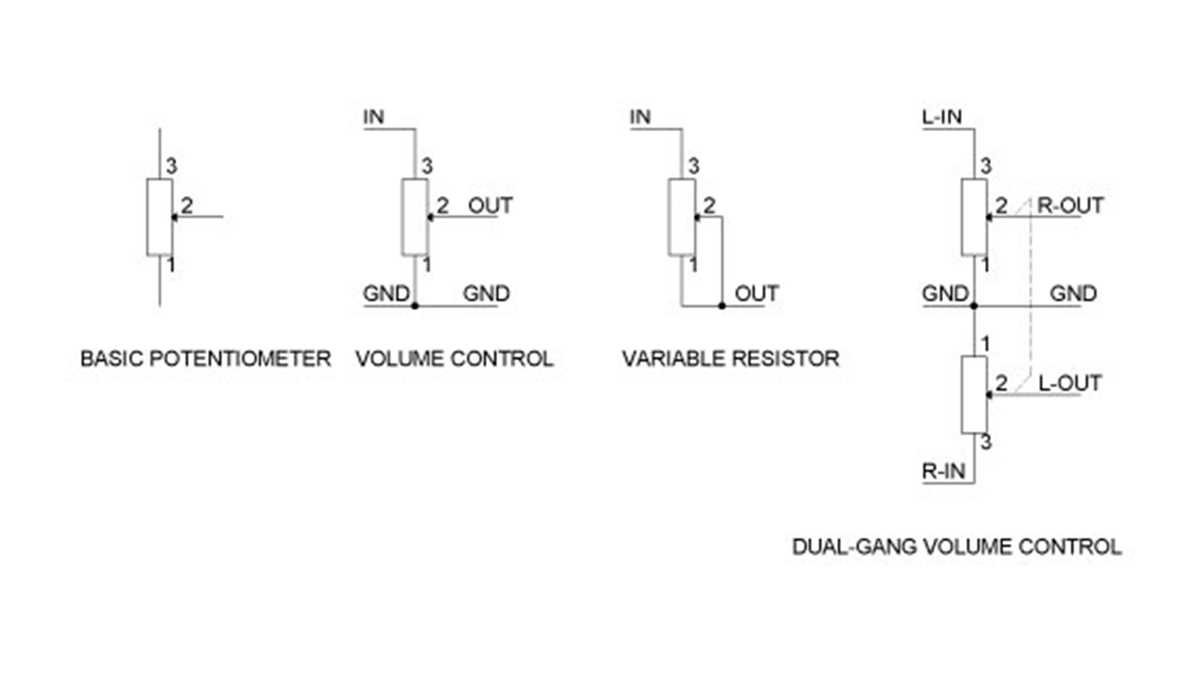

Building a Custom Volume Adjustment Circuit: Practical Connection Guide
Select a rotary variable resistor with a logarithmic taper if handling audio signals–linear tapers suit voltage division for non-auditory applications. Verify the component’s track resistance matches your load requirements; 10KΩ to 100KΩ covers most use cases. Confirm the shaft rotation aligns with desired clockwise loudness increase to prevent reverse behavior.
Connect the outer terminals to the signal source and ground–do not reverse their positions. The center terminal carries the adjusted output to the amplifier or buffer stage. Bypass capacitors (0.1µF ceramic) between ground and each outer terminal reduce noise from supply ripple or RF interference.

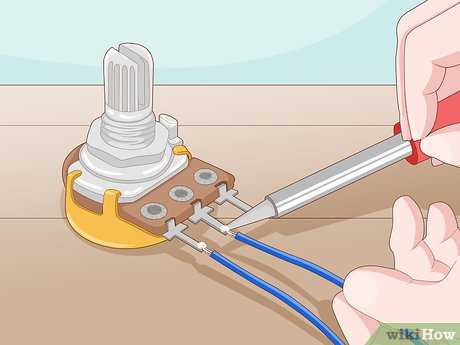

Use shielded cable for all audio connections to minimize induced hum from nearby power lines or transformers. Keep trace lengths under 10 cm if using a PCB; longer runs risk signal degradation. Twist the ground and signal wires if soldering directly to terminals, ensuring a tight, uniform twist per 3 cm.
Add a fixed series resistor (1KΩ) between the source and the variable resistor’s input terminal to limit current and prevent distortion when set near minimum resistance. Skip this if driving high-impedance loads (≥50KΩ). Test the adjusted signal with an oscilloscope before final assembly–clipping at extremes indicates incorrect taper or overdriven input.
For stereo applications, duplicate the setup on a separate track, maintaining matched resistance values to preserve channel balance. Ground both tracks’ outer terminals at a single point to avoid ground loops. Use a dual-gang component if space permits; mismatched mono components introduce phase shifts.
Mount the adjustment mechanism away from heat sources and vibrating surfaces. Secure the shaft with a lock washer if using a knob to prevent accidental rotation. Apply conformal coating to exposed solder joints in high-humidity environments, but avoid coating the resistive track itself.
Calibrate the adjustment range by measuring output voltage at 25%, 50%, and 75% rotation. Typical audio circuits target a 30dB range; deviations beyond ±2dB suggest faulty components or incorrect connections. Replace the unit if scratching persists after cleaning the track with isopropyl alcohol.
Using a Rotary Control as an Adjustable Resistance Element
Connect the outer terminals of the rotary control directly across the power supply to form a fixed resistance path. Leave one outer terminal unconnected if you need a purely variable resistance. This method reduces unnecessary power dissipation and simplifies board layout. Measure the track resistance before implementation–the component’s value should match your circuit’s current requirements within 10-15% tolerance.
For precision applications, solder a 1% tolerance metal-film resistor in series with the active terminal. This stabilizes performance when adjusting near minimum or maximum resistance. Example: pair a 5kΩ rotary control with a 1kΩ series resistor to prevent zero-resistance states in sensitive analog stages. Avoid carbon-film components in high-current designs–power ratings drop significantly under 50mA.
Handling Load and Power Dissipation
Verify the rotary control’s power rating against your circuit’s voltage and current. A standard 0.25W component rated for 10kΩ will overheat at 12V if the load exceeds 1mA. For higher currents, select a wirewound adjustable element with ratings above 2W. Distribute heat via PCB copper pours or external heatsinks–thermal runaway degrades lifespan exponentially.
Bypass the active terminal with a small capacitor (0.1µF–1µF) to suppress transient noise when adjusting. This is critical in audio circuits or ADC front-ends where audible pops or measurement errors occur. Place the capacitor within 5mm of the adjustable element’s terminals for optimal filtering.
Test the assembly with a multimeter set to continuity mode–confirm the active terminal sweeps smoothly from near-zero to full resistance without abrupt jumps. Replace any component showing sudden value changes; irregular tracks cause signal distortion. For digital tuning, pair the setup with a microcontroller monitoring voltage drops via ADC–12-bit resolution typically suffices for most applications.
