Step-by-Step Guide to Installing a Single Light Switch Wiring Diagram

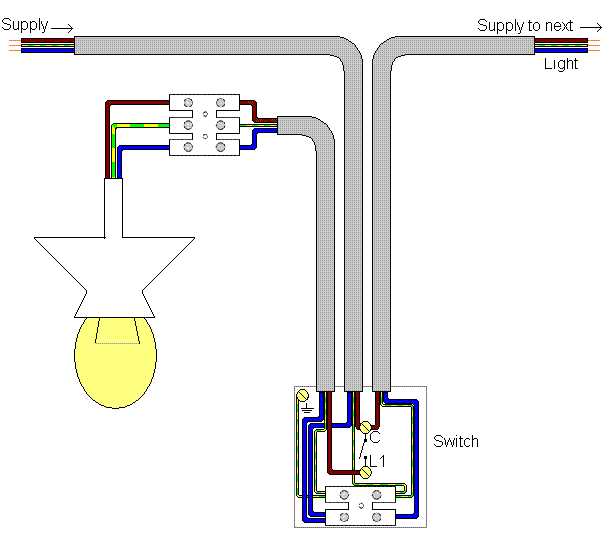

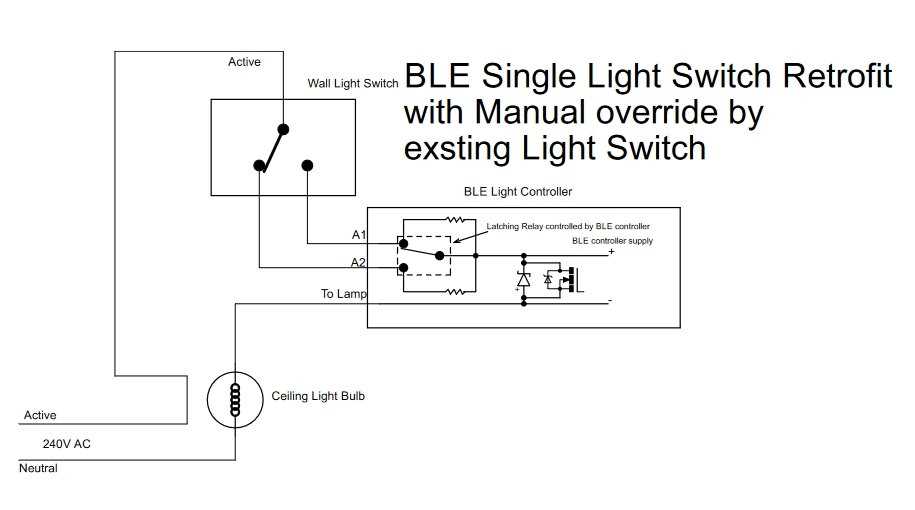

Begin by verifying the circuit breaker is off before handling any conductors. A non-contact voltage tester confirms the absence of live current–hold it near each wire to rule out residual charge. Identify the feed cable (typically entering from the top or side of the junction box), which contains a black (hot), white (neutral), and bare or green (ground) conductor. The load cable (leading to the fixture) follows the same color-coding.

Strip ⅜ inch of insulation from each conductor using wire strippers, ensuring no nicks or exposed strands beyond the intended length. Twist the copper ground wires together with an additional 6-inch pigtail, securing them with a green wire nut. This splice will attach to the metal toggle’s grounding screw or the box’s grounding terminal if metal-clad.

Connect the neutral conductors–white wires from both cables–with a wire nut, tucking the splice neatly into the box. For the switched conductor, attach the black wire from the feed cable to the lower brass terminal on the control (marked *COM* or *LINE*). The black wire from the load cable connects to the opposite brass terminal (*LOAD*). Ensure both screws are tightened to 12–15 inch-pounds of torque to prevent loosening over time.

Fold conductors back into the junction box with slight bends to avoid stress points, then secure the control’s mounting strap to the box using the provided screws. Recheck all connections for exposed copper–no more than ¼ inch should protrude from wire nuts. Restore power at the breaker and test operation immediately. If the fixture fails to energize, revalidate each step with a multimeter set to AC voltage mode.

For older installations with no ground wire, wrap the bare conductor around the grounding screw of a metal box before attaching it to the control’s grounding terminal. If the box lacks a ground, install a grounding clip or self-drilling screws to bond the bare wire directly to the box. Plastic enclosures require no grounding to the control but must still bond load and feed ground wires together.

Connecting a Basic On-Off Control for Fixtures

Start by cutting power at the circuit breaker to avoid accidental shocks. Use a non-contact voltage tester to confirm the line is dead before proceeding. Remove the faceplate from the existing installation by unscrewing the mounting screws. Identify the feed cable–typically a Romex with black (hot), white (neutral), and bare/green (ground) conductors.

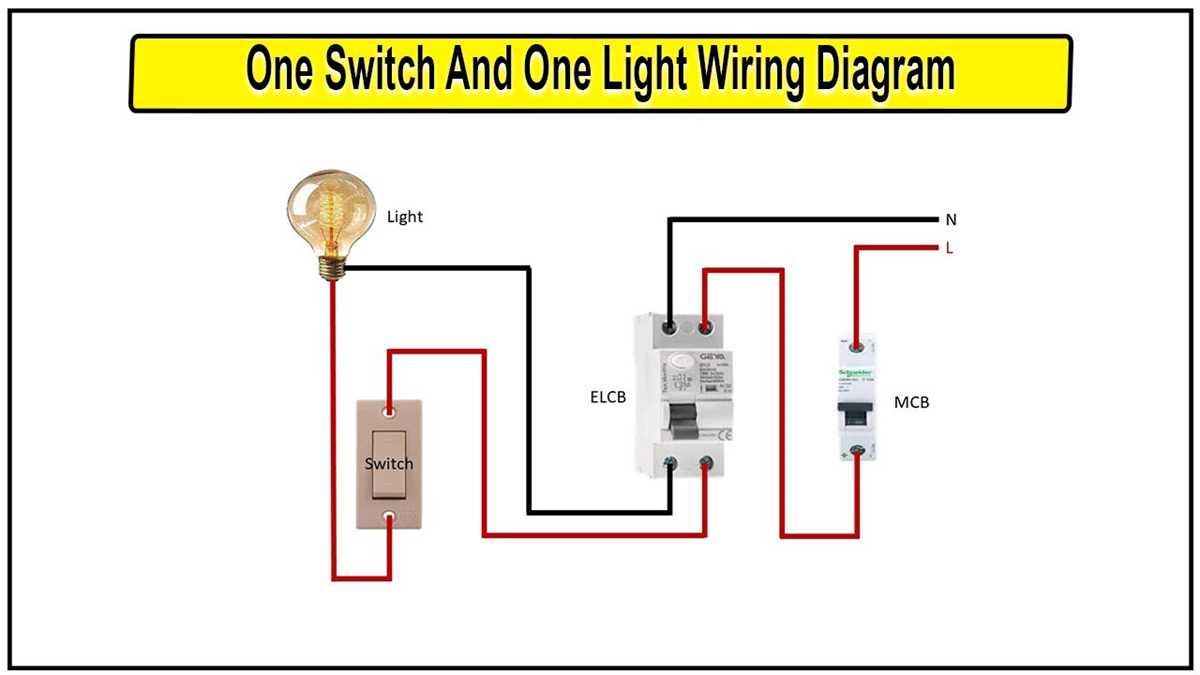

For a simple two-terminal setup, connect the incoming hot wire to one terminal on the mechanical toggle. Attach the outgoing hot wire leading to the luminaire to the second terminal. Secure all connections with wire nuts and wrap them with electrical tape. Ensure no bare copper is exposed after securing.

Grounding is critical: attach the bare or green ground wire to the green grounding screw on the toggle unit. If the device lacks a grounding screw, bond the ground to the electrical box if it’s metal. Fold wires neatly into the box, ensuring no tension on the terminals, then fasten the toggle with the supplied screws.

Common Terminal Configurations

Setup Type	Incoming Wire	Outgoing Wire	Grounding Method
Standard toggle	Black to brass terminal	Black to second brass terminal	Bare/green to device screw
Back-wired toggle	Black inserted into backstab	Black to side terminal	Bare/green to box clamp
Dimmer control	Black pigtailed to red lead	Red lead to load wire	Green to metal box

Always verify compatibility with LED loads; some older mechanical toggles cause flickering due to insufficient current draw. Replace with a LEDs-rated device if flickering occurs. Install the faceplate after testing functionality by toggling power at the breaker and operating the control.

In installations with separate neutral feeds (common in newer codes), splice the neutrals together in the box and cap them. Never interrupt neutral with the control–this violates safety standards and risks burning out fixtures. Use twist-on connectors rated for the wire gauge, typically #14 or #12 AWG.

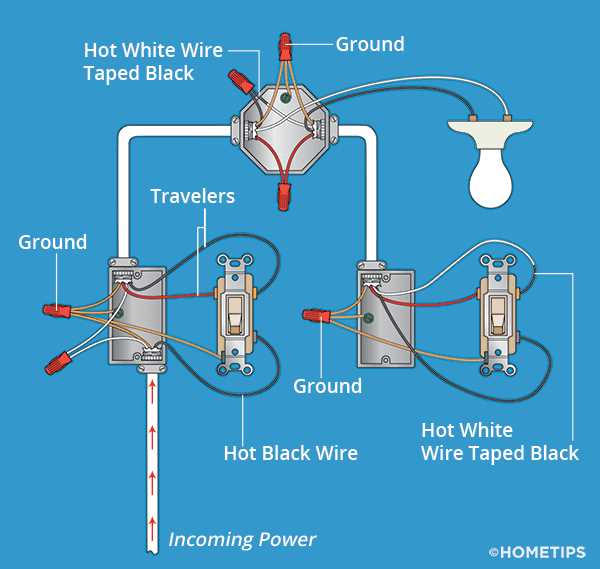

For three-way setups (multiple controls for one fixture), mark traveler wires with colored tape. The common black wire goes to the dark screw; travelers to brass screws. Labeling prevents confusion during later troubleshooting or upgrades. Secure all splices with heat-shrink tubing for added durability in high-vibration areas.

After completing connections, restore power and test. If the fixture fails to activate, turn off power and recheck all splices for loose connections. Ensure the breaker rating matches the circuit (usually 15A for #14, 20A for #12). Replace corroded boxes or cables if found during inspection–this prevents future faults.

Seal outdoor or damp-location installations with silicone caulk around the box edges to prevent moisture ingress. Use weatherproof covers for exposed controls in garages, porches, or basements. For dimmers, match the wattage rating to the total load–exceeding the limit overheats components and shortens lifespan.

Essential Equipment for Installing a Basic Wall Control

Select a screwdriver with an insulated handle rated for at least 600 volts–non-contact voltage testers fail if probes touch live contacts. A flathead and Phillips #2 combination tool covers 90% of terminal screws; avoid magnetic tips as they can damage sensitive components. Wire strippers with 12-14 AWG notches prevent nicked conductors, while needle-nose pliers help bend loops for screw terminals. Include a cable ripper with a blunt tip to avoid piercing insulation when removing outer jackets. For older installations, add a clamp meter to verify current without disconnecting circuits.

• Non-metallic sheathed cable (NM-B): 14/2 for 15-amp circuits, 12/2 for 20-amp
• Electrical tape (vinyl, rated for 600V): wrap exposed copper at least twice around wire twists
• Wire nuts (red or tan): match connector size to combined gauge of joined wires
• Outlet box (plastic or metal): choose depth based on number of cables; 3″ minimum for future expansion
• Faceplate: ensure it matches toggle style (decorator or toggle)
• Ground pigtail: 6″ length of bare or green-insulated copper (12-14 AWG)

Step-by-Step Guide to Identifying Hot, Neutral, and Ground Conductors

Start by ensuring the power is completely disconnected at the circuit breaker. Use a non-contact voltage tester to verify no current flows through the lines–this prevents accidental shock during inspection. Hot conductors typically carry black or red insulation, but color codes vary by region: some systems use brown (hot), blue (neutral), and green/yellow (earth). If colors deviate, rely on a multimeter set to AC voltage mode (200V range) to confirm function.

Attach the multimeter’s red probe to the suspected hot line and the black probe to a grounded surface, like an outlet box screw or metal conduit. A reading of 120V (or 230V, depending on your electrical standard) confirms the hot conductor. Neutral lines should show near-zero voltage when tested against ground–though slight readings (under 2V) may appear due to minor imbalances. Ground wires always register 0V when measured against themselves.

Trace each conductor’s route if splices or junctions obscure identification. Hot wires connect directly to the protective device’s output side, while neutrals return to the panel’s bus bar. Ground conductors bond to the box or terminate at a grounding electrode. In older installations, cloth-insulated wires may lack color coding–strip small sections of insulation to check for tinned copper (neutral/ground) or untinned (hot).

For terminals, note screw colors: brass accepts hot, silver receives neutral, and green clamps ground. Twist-on connectors (e.g., yellow or red nuts) often group neutrals separately from hots. If wires enter the box loose, use a continuity tester to match conductors to device terminals. Label each line immediately with masking tape to avoid confusion during reinstallation.

Recheck all connections with the voltage tester before restoring power. Hot conductors must never contact neutral or ground outside intended paths; improper pairing risks short circuits or fire. If readings fluctuate or invert, suspect miswiring in upstream devices–a licensed electrician should inspect complex or unfamiliar circuits before energizing.

How to Safely Turn Off Power Before Installing a Control

Locate the main service panel in your home–usually a metal box mounted on a wall in a basement, garage, or utility room. Open the door to reveal the circuit breakers. Identify the breaker labeled for the room where the fixture will be replaced; if labels are missing, turn off the main breaker to cut power to the entire house. Verify the breaker is in the “OFF” position by flipping it firmly until it clicks and stays in place.

Confirm Power Is Off Before Proceeding

Use a non-contact voltage tester to check the terminals of the existing control or the wires leading to it. Hold the tester near each wire–if it beeps or lights up, power is still present. Test both the hot wire (typically black or red) and the neutral (white) to ensure no residual current remains. If the tester detects voltage, return to the service panel and double-check that the correct breaker is fully disengaged. For added safety, use a multimeter set to AC voltage mode (200V or higher range) to measure between the hot wire and ground; a reading above 10V means power hasn’t been properly disconnected.

If the fixture is hardwired into a junction box without a dedicated breaker, shut off the main breaker supplying the entire structure. Label the breaker with masking tape before turning it off to prevent accidental reactivation while working. Wait 30 seconds after switching off to allow capacitors in connected devices (like smart controls) to discharge fully. Never rely on wall-mounted toggles to cut power–they only interrupt the circuit, not the live feed.
