How to Convert a Light Switch into an Electrical Outlet Step by Step Guide

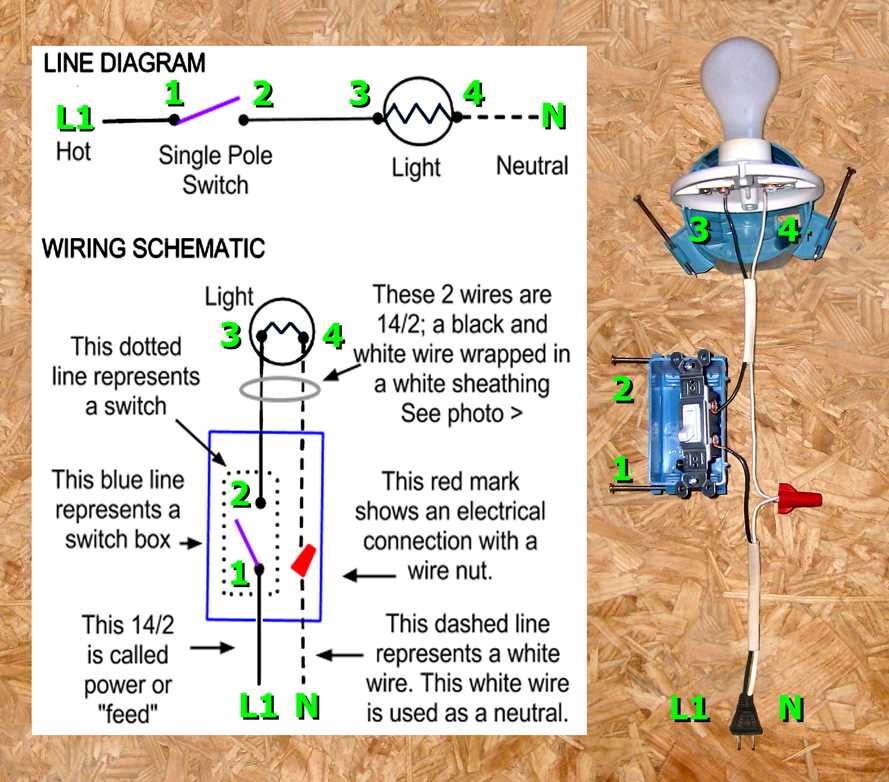

Start by verifying the circuit’s amperage–never exceed 15A for standard household modifications. Use a multimeter to confirm the live conductor is disconnected before proceeding. For a single-pole configuration, connect the incoming hot wire (typically black or red) to the brass terminal on the new receptacle. The neutral (white) must link to the silver terminal, while the ground (green or bare) secures to the green screw. If the existing box lacks a ground, replace it with a GFCI unit marked “No Equipment Ground” for safety compliance.

Cut power at the breaker panel–no exceptions. Remove the wall control’s cover plate and unscrew the device from the box. Straighten the wires for clarity: identify the supply line (hot), load (if applicable), and neutral. For a basic conversion, cap the load wire with a wire nut to isolate it. Use wire strippers to expose 3/8 inch of conductor for secure connections. Twist the stripped ends clockwise before attaching to the receptacle’s terminals; loose connections cause arcing and fire risks.

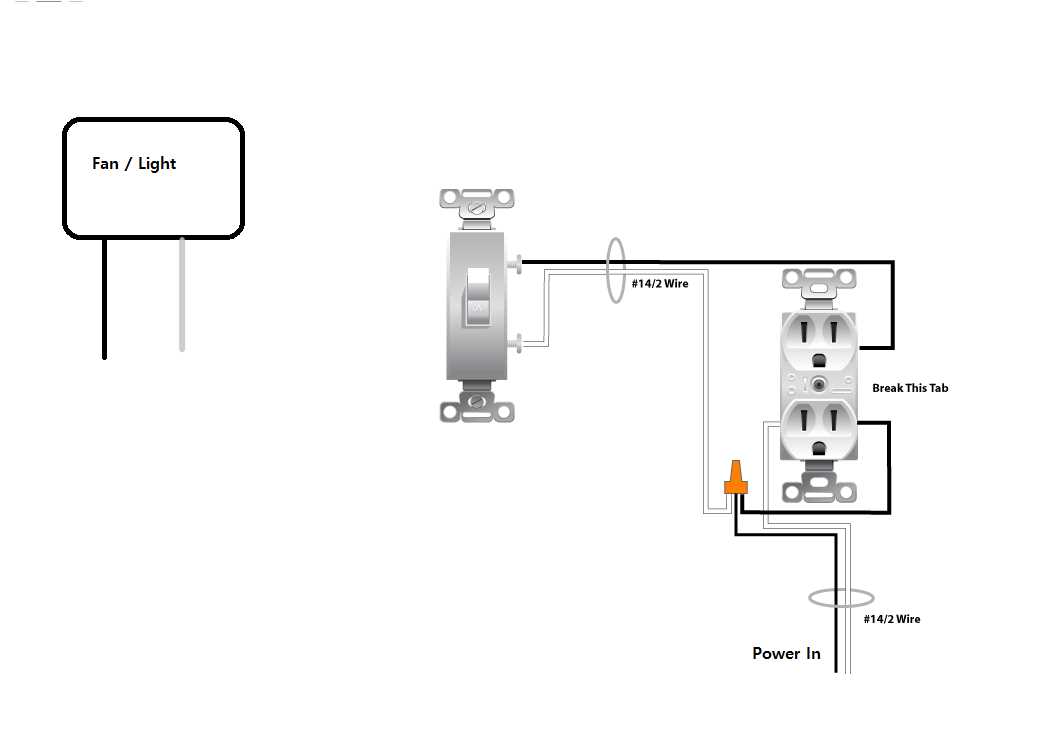

For a half-hot setup (split control), retain the brass jumper tab on the receptacle’s hot side. Break the tab only if the top half remains switched while the bottom stays powered continuously. Confirm polarity with a plug-in tester before securing the device back into the wall box. Use 12-gauge wire for 20A circuits; 14-gauge suffices for 15A. Do not daisy-chain more than four receptacles on a single 15A circuit to prevent overload.

If the box is non-metallic, ensure a grounding pigtail connects the receptacle’s green screw to the bare ground wire. Metal boxes require bonding via a 10-32 grounding screw. Test the installation with a non-contact voltage detector before handling–no shortcuts. Label the breaker panel to reflect the change: “Former Light Switch Now Outlet Bedroom NE Corner.” Check local codes; some jurisdictions mandate permits for this alteration.

Converting a Fused Control to a Power Receptacle: Key Steps

Begin by verifying the circuit’s amperage rating–most residential setups support 15 or 20 amps. Confirm the existing connection uses a dedicated neutral conductor; shared neutrals in multi-wire branch circuits (MWBCs) require additional precautions to prevent overloading. Interrupt power at the breaker panel and test for voltage using a non-contact detector before proceeding.

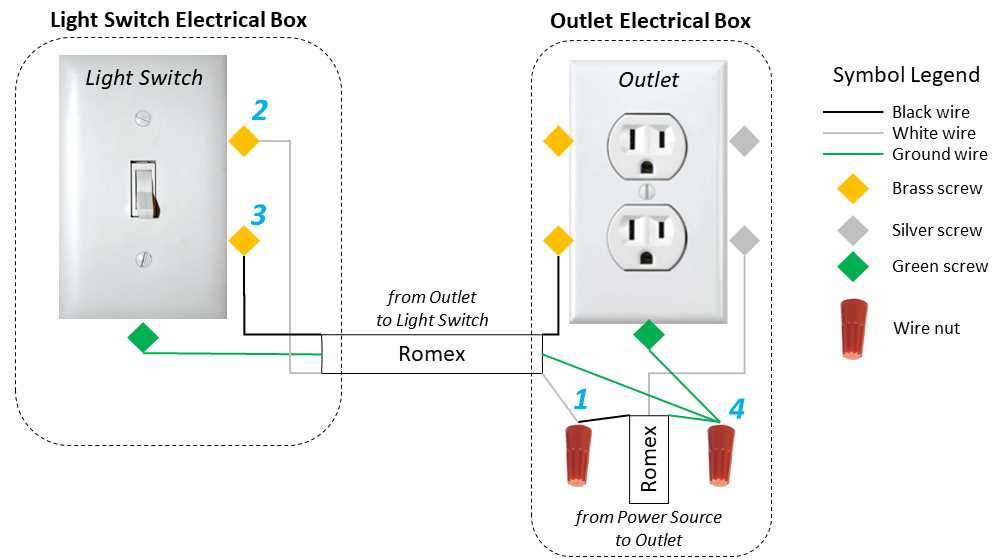

• Remove the cover plate and disconnect the live feed entering the control box–identify the hot (typically black or red) and neutral (white) conductors.
• Straighten terminal screws on the receptacle–side-wired types accept 14-12 AWG wire loops, while back-wired models use push-in connectors for 14 AWG only.
• Secure the hot wire to the brass-colored screw (or corresponding slot) and the neutral to the silver screw.
• For grounded installations, attach the bare or green grounding conductor to the green screw or grounding clip.

If the circuit originally powered a ceiling fixture, cap any unused wires with a safety connector and tuck them into the junction box–never leave exposed ends. Use a torque screwdriver to tighten terminal screws to 12-15 lb-in (1.36-1.7 Nm) to prevent loosening over time. Reinstall the cover plate only after confirming no stray wires protrude beyond the box’s edge.

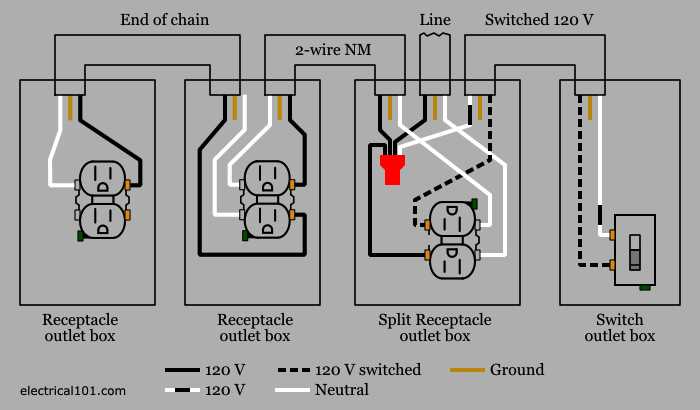

Test the new receptacle with a plug-in analyzer to validate correct polarity, grounding integrity, and absence of live-leakage faults. For split-circuit configurations (e.g., half-switched outlets), jumper the brass terminals and use pigtail connections to maintain separate functionality on the unmodified side.

Essential Equipment for Electrical Conversion Tasks

Begin with a voltage tester to confirm power absence before handling any connections. Non-contact models like the Fluke 1AC-II or Klein NCVT-3 detect live circuits at a safe distance, eliminating guesswork. For direct measurement, a multimeter (e.g., Fluke 87V or Amprobe AM-510) verifies voltage, continuity, and resistance with precision. Never assume a circuit is dead–test twice, cut once to avoid accidental shocks.

Stripper-cutter pliers rank next in priority. Tools like the Ideal 45-121 or Klein 11055 combine wire stripping, cutting, and looping functions, handling 10–22 AWG copper conductors without nicking. Cheaper models often slip or damage insulation, leading to short circuits. For tight enclosures, needle-nose pliers (Knipex 06 03 160) grip and bend wires in confined spaces. A fish tape (e.g., Greenlee 463) simplifies pulling conductors through walls–opt for steel over nylon for durability.

Secure connections demand the right connectors. Twist-on wire nuts (e.g., Ideal 72B for #14–#10 wires) create reliable joints but require proper twisting force. Push-in connectors like Wago 221 series save time for solid or stranded wires up to #12 AWG. For outlets, leverage Leviton’s Decora-style plates–match amperage ratings (15A or 20A) to circuit breakers. Grounding pigtails (6″ of bare #12 copper) ensure compliance with NEC requirements.

Mounting hardware includes plastic junction boxes (Carlon B618R for new work, B620R for retrofits) with depth ratings suitable for conductor fill. Metal boxes (e.g., Hubbell 52151) provide better heat dissipation for high-wattage loads. Drywall anchors (E-Z Ancor #8 x 1-1/4″) secure boxes in hollow walls; toggle bolts work for heavier assemblies. Cable clamps (Arlington NM94) prevent sheathing damage where NM-B wire enters boxes.

Labeling tools streamline future maintenance. Brother P-touch PTD600 prints durable adhesive tags for circuits, while a wire marker set (Panduit LRY11-49) identifies individual conductors. For documentation, a smartphone app like CircuitIQ overlays diagrams on real-time photos, eliminating paper blueprints. Keep spare fuses (Bussmann ATC for 15A/20A circuits) and a circuit finder (Klein ET310) to map paths without opening walls.

Safety gear rounds out the toolkit. Insulated screwdrivers (Klein 1043-6) prevent shorts when adjusting terminal screws. Arc-resistant gloves ( Salisbury 88100) shield against unexpected surges, while ANSI-rated safety glasses (Pyramex I-Force) block debris. A headlamp (Petzl ACTIK CORE) frees both hands for working in dim spaces. Store tools in a rolling organizer (DeWalt TSTAK) to prevent loss and reduce trip hazards in work areas.

Step-by-Step Guide to Convert a Control Mechanism to a Power Receptacle

Turn off the circuit breaker supplying electricity to the fixture you’ll modify. Use a non-contact voltage tester to confirm the absence of current–probe both the live and neutral terminals before proceeding. If the device was originally part of a multi-way setup (e.g., controlled from two locations), disconnect all auxiliary connections and cap exposed conductors with wire nuts to prevent accidental shorts.

Required Tools and Materials

• Flat-head and Phillips screwdrivers (magnetic tip preferred)
• Needle-nose pliers and wire strippers (12–14 AWG)
• Replacement receptacle (grounded, 15A or 20A depending on existing wire gauge)
• Blank wall plate matching the new opening size
• Wire nuts (red for 12 AWG, yellow for 14 AWG)
• Fish tape or flexible drill bit if rerouting cables is necessary

Remove the existing control plate and unscrew the mounting bracket holding the device in place. Gently pull the mechanism outward to expose the connected leads–note their positions: typically, brass screws for hot conductors, silver for neutrals, and green/bare for earth. If the existing setup lacks a neutral (common in older installations), you’ll need to run a new cable from the nearest neutral junction box, ensuring the conductor is rated for the circuit’s amperage. Connect the new receptacle’s brass terminal to the hot lead, the silver terminal to the neutral, and the green grounding screw to the bare copper wire or metal box ground. Secure the receptacle into the wall cavity, ensuring no conductors are pinched, then attach the blank plate. Restore power and test with a plug-in lamp, verifying the ground connection with a multimeter (0V between neutral and ground indicates proper bonding).

Decoding Conductor Colors and Their Roles in Electrical Paths

Always verify conductor colors against your local electrical code–standards vary by region. In North America, black or red wires typically carry live voltage, while white serves as the neutral return. Grounding conductors are either bare copper, green, or green with yellow stripes. European systems often use brown for live, blue for neutral, and green/yellow for earth.

Check the insulation labels if colors are faded or ambiguous. A wire marked “L” on its sheath indicates a line conductor, while “N” denotes neutral. For multi-phase circuits, phase conductors may be color-coded: red for L1, black for L2, and blue for L3 in some configurations. Never assume–use a non-contact voltage tester to confirm.

White conductors repurposed as hot lines must be wrapped with black or red electrical tape at both ends to indicate their modified function. This common practice prevents misidentification in split circuits or when converting a controlled device to a constant-power source. Failure to mark these correctly creates serious shock hazards.

Grounding paths require special attention. A green or bare conductor should terminate only at the grounding busbar in the service panel or bonding to metal enclosures. Mixing ground and neutral downstream of the main disconnect violates safety codes and risks equipment damage during faults.

In three-way or four-way circuits, travelers–usually red–connect between the controlling units. These carry the same potential between devices but do not supply power directly. Identifying them correctly ensures proper isolation when modifying connections.

For older installations, cloth-insulated conductors may lack modern color coding. Strip a small section to expose the copper; tinned wires suggest neutral, while untinned often indicate line conductors. Always de-energize the circuit before inspection.

Handling Unconventional Color Schemes

Motor circuits and specialized equipment sometimes use non-standard colors like orange for delta wiring or purple for isolated ground. Consult the manufacturer’s schematic or equipment label–never proceed based on color alone.

When replacing components, maintain consistency with existing color assignments. If original colors conflict with current standards, document the deviation with permanent labels at all access points. This prevents future errors during maintenance or upgrades.
