How to Connect a Switch in Your Electrical Circuit Step by Step

Start with a color-coded schematic mapped on graph paper or in a specialized tool like PCSCHEMATIC or QElectroTech. Assign each conductor a distinct hue–black for line, red for load, green for ground, and blue for neutral if AC is involved. Verify voltage ratings before proceeding; a 120V toggle fitted into a 240V setup will fail catastrophically within minutes, producing heat and potential fire hazards. Always use a multimeter to confirm the circuit is dead before touching terminals–even a brief arc can weld contacts or damage components irreversibly.

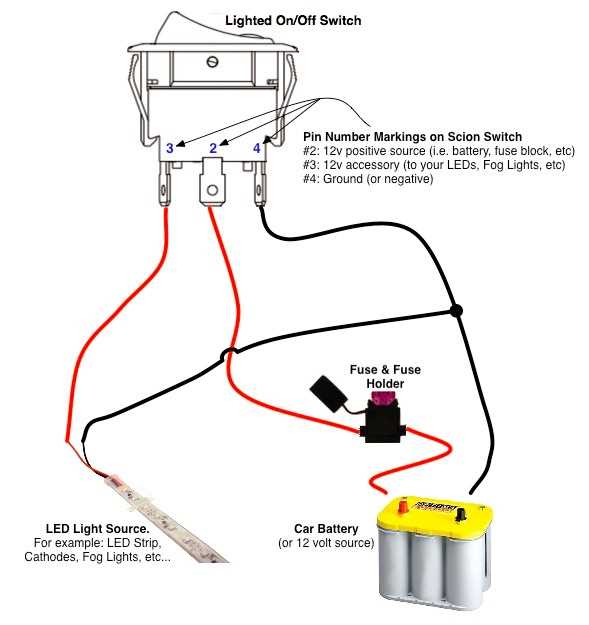

For a simple on-off mechanism, link the live wire directly to the common terminal, then route the load side to the appliance. If the device requires polarity (e.g., LED fixtures), attach the positive lead to the load terminal and ground the negative. Avoid daisy-chaining multiple devices on a single circuit; exceeding 80% of the breaker’s rating (e.g., 16A on a 20A breaker) invites tripping or overheating. Always install a fuse or breaker rated 10-15% below the wire’s ampacity (12-gauge copper handles 20A, but a 15A protective device ensures headroom for inrush currents).

Use crimp connectors (not twist-on wire nuts) for high-vibration environments like vehicles or machinery–loose connections generate resistance, increasing fire risk. For three-way setups, label travelers in advance; miswiring turns a two-location control into a single-point failure. Ground all metal housings, even in low-voltage DC systems–static buildup can destroy sensitive electronics. If integrating smart modules (e.g., Sonoff or Shelly), isolate low-voltage logic from mains using optocouplers or relays to prevent interference that corrupts firmware. Test every configuration with a live load before finalizing; a 60W bulb on a dimmer circuit dictates minimum load requirements to avoid flickering or premature wear.

Store labeled backups of each configuration on a secure cloud service like Google Drive or Procore–snapshots of both the schematic and installation photos save hours during troubleshooting. Use weather-sealed boxes for outdoor setups, and apply dielectric grease to terminals exposed to moisture. For industrial applications, hardwire emergency stops in series with the main control loop; software-controlled cutoffs can fail under power surges. Replace any damaged insulation immediately–even a nicked jacket increases the risk of short-circuiting under normal operating conditions.

Creating Electrical Connection Schematics for Control Devices: Hands-On Instructions

Begin by identifying the power source voltage. Most residential circuits operate at 120V or 240V; industrial setups may use 208V, 277V, or 480V. Verify the voltage rating on the device’s label before proceeding. Incorrect voltage matching can damage equipment or create safety hazards. Use a multimeter to confirm the live voltage if documentation is unavailable.

Select the appropriate cable gauge based on load current and circuit length. For 15-amp circuits, 14 AWG copper wire suffices for runs under 50 feet. 12 AWG handles 20 amps, while 10 AWG is required for 30 amps. Longer runs demand thicker wire to prevent voltage drop–consult NEC Table 310.16 for exact specifications. Never exceed 3% voltage drop for critical loads.

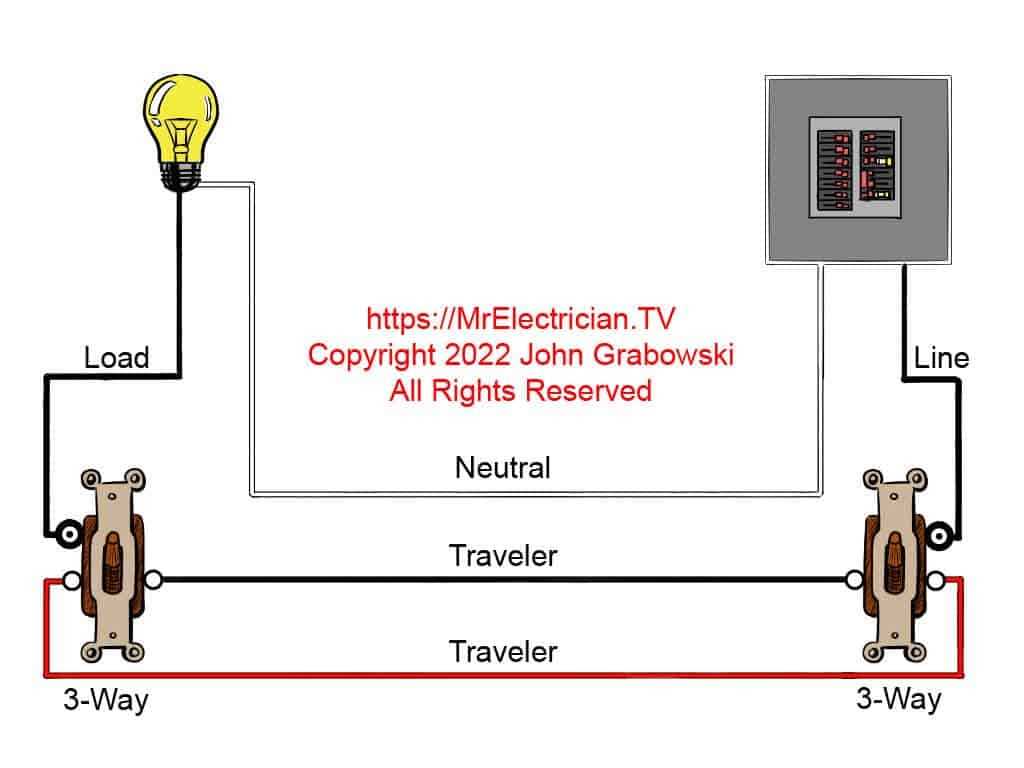

Connect the common terminal to the hot conductor (black or red wire) from the power source. This is typically marked “COM” or “L” on most devices. For three-way setups, the common terminal links to the traveler wires (usually black and red). Single-pole installations require only one traveler wire connected to the terminal. Confirm terminal assignments with a continuity tester if markings are unclear.

Use pigtail connections when splicing wires to devices. Twist wires clockwise with lineman’s pliers, then secure with a wire nut sized for the gauge (e.g., red for 12-10 AWG, yellow for 14-12 AWG). Wrap the connection with electrical tape to prevent loosening. Avoid backstab connections–they fail under vibration or thermal cycling. For metal enclosures, ground the device to the box with a bare copper wire (minimum 12 AWG).

Special Configurations and Troubleshooting

For dimming controls, verify compatibility with LED bulbs. Many older dimmers are rated only for incandescent loads (600W minimum). LED-compatible dimmers require a neutral connection and must match the bulb’s forward voltage (typically 10-60V). Check the manufacturer’s derating curves for multi-gang installations–heat buildup reduces capacity. Replace cracked or discolored devices immediately; these indicate internal arcing.

Test polarity before energizing the circuit. A reversed hot and neutral can cause LEDs to flicker or motors to run backward. Use a non-contact voltage tester to verify the neutral (white wire) carries no voltage. If the device doesn’t operate, check for loose screws (max 1/4″ wire stripped), broken travelers (three-way setups), or tripped breakers. For GFCI-controlled circuits, ensure the load and line terminals are correctly assigned–reversing them prevents protection.

Label all conductors at both ends for future maintenance. Use permanent markers or colored sleeves (e.g., yellow for travelers, blue for neutrals). Store a copy of the schematic in the breaker panel and near the device for quick reference. For outdoor installations, use corrosion-resistant terminals and silicone-filled wire nuts. Replace any device showing signs of overheating (melted plastic, burnt odor) without delay.

Decoding Fundamental Circuit Symbols in Electrical Schematics

Start by identifying the most common symbol for a mechanical toggle: a break in a straight line, often marked with letters like “SPST” (single pole, single throw) or “DPDT” (double pole, double throw). The gap indicates where the contact interrupts or permits current flow. SPST versions show a single line with one break, while DPDT variants add a parallel line with two breaks. Check for arrows or angled lines branching from the main path–these denote momentary contacts, which revert to their original state when released.

Examine terminal labels to avoid misconnections. Most schematics use numbers (1, 2, 3) or letters (A, B, C) near connection points. A “COM” (common) terminal pairs with “NO” (normally open) or “NC” (normally closed) terminals in latching configurations. Momentary types usually omit these labels but include spring-loaded symbols (e.g., a curved line or zigzag) beside the break. Verify polarity markings–while most toggles are polarity-neutral, certain relays or solid-state variants may require correct orientation.

Interpreting Auxiliary Symbols

Watch for additional notations like “LED” or “R” next to the main symbol. These indicate built-in components–often LEDs with series resistors–requiring extra voltage considerations. A small circle on a terminal denotes grounding, while a dot at intersecting lines confirms a junction (no connection if absent). Thermal cutoffs appear as a bimetallic strip symbol (a zigzag with a curved line), signaling overload protection. For dimmers or variable controls, look for an upward-sloping line intersecting the main path, sometimes paired with a number (e.g., “10K” for resistance value).

Cross-reference the schematic with physical devices using a multimeter. Probe suspected terminals in continuity mode while toggling the mechanism–clicks or beeps confirm functional mapping. For multi-layered boards, trace each layer sequentially, marking verified paths with removable tape. Follow IEC 60617 or ANSI standards if symbols deviate from common conventions; discrepancies often occur in manufacturer-specific legends. Prioritize labeled power sources first–reverse-engineering from live circuits risks shorting, so always disconnect power before verification.

Installing a Basic Electrical Toggle for Lighting Fixtures

Turn off the circuit breaker supplying power to the circuit you’ll be working on–label it to prevent accidental reactivation. Use a non-contact voltage tester to confirm the wires are dead before touching them. Strip ½ inch of insulation from the incoming hot conductor (typically black or red) and the outgoing feed to the fixture (same color). If the existing setup lacks a grounding conductor (bare or green), install a pigtail from the device’s green screw to the metal junction box or a separate ground wire.

Connect the stripped ends of the hot conductor and the fixture feed to the toggle’s brass terminals–loop each wire clockwise around its screw before tightening securely. If the toggle has push-in slots, insert the stripped ends fully until they click, but screw terminals offer better reliability for repeated use. Tuck the connections neatly into the box, ensuring no bare wire is exposed. Attach the toggle plate to the wall junction, aligning screws with mounting holes, then restore power at the breaker to test operation–press the lever to confirm immediate response from the fixture.

For setups with multiple lights controlled by one lever, join additional fixture feeds to the outgoing hot conductor using a wire nut before attaching to the toggle. Avoid overcrowding the box; if space is tight, use a deeper gang box or a tandem nut to bundle connections outside the device. Replace any damaged or brittle conductors immediately–exposed wires increase fire risk and may cause intermittent failures. If the fixture flickers, check for loose connections at the toggle, fixture, or any intermediate joints.
