Complete Whirlpool Refrigerator Wiring Diagram Guide with Troubleshooting

To troubleshoot power issues in your cooling appliance, locate the control board behind the rear panel near the compressor. Check connections to the defrost heater (typically a 120V or 240V circuit) and verify continuity with a multimeter. The thermistor (resistance ranges 10k–100k ohms at room temperature) often fails; replace if readings are erratic. For models with dual compressors, the start relay (PTC or current type) must match the compressor’s specifications–mismatches cause overheating. Always disconnect the power cord before handling internal components; residual voltage in capacitors can persist for hours.

Trace the evaporator fan motor circuit from the main board–look for 12V DC or 120V AC supply lines depending on the model variant. If the fan runs but airflow is weak, inspect the condenser coils for dust buildup (clean with a soft brush and vacuum). For ice maker wiring, follow the water inlet valve solenoid (usually 120V) from the control module; clogs or faulty solenoids starve the system of water. Use a wiring reference from the service manual (search by model number, not serial) to identify fuse locations–blown fuses often indicate deeper failure in the compressor or defrost circuit.

Test the door switch continuity–an open circuit disables interior lights and may disrupt cooling cycles. The user interface (UI) board connects via ribbon cables; corrosion here mimics software glitches (clean contacts with isopropyl alcohol). For inverter-driven models, the frequency converter requires stable 200–240V input–fluctuations damage the compressor’s windings permanently. If cooling is uneven, the damper motor (stepper type) may need recalibration via the control board’s diagnostic mode. Always discharge capacitors with a 20k-ohm resistor before servicing; ignoring this step risks electrical shock.

Electrical Schematic for Modern Cooling Units

Locate the central control board beneath the rear lower panel–usually secured by two screws–and disconnect the power supply before inspection. Use a multimeter set to 200 Ω resistance to test continuity across terminals labeled “L” (line) and “N” (neutral) on the main harness. Values outside 1-3 Ω indicate a faulty thermal fuse or compressor relay, often PN 2252189 for older models.

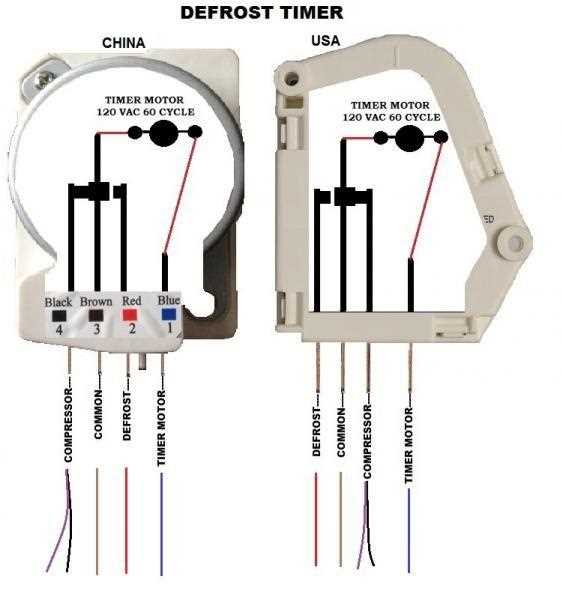

Trace the defrost heater circuit from the evaporator coil to the bi-metal thermostat, ensuring the defrost timer advances beyond the 8-hour mark. A frozen coil despite active heating suggests a defective defrost termination switch, typically requiring part W10511004. Verify voltage at the heater terminals during defrost cycles–absence of 120V AC confirms a failed timer motor or burned heating element.

Examine the door switch connections for corrosion, particularly on the right hinge assembly. A malfunctioning switch disrupts interior lighting and fan operation, with symptoms mimicking evaporator fan failure. Swap with a known-good switch (AP3076573) to isolate the issue–bad switches often measure >5 kΩ when pressed.

For dual-evaporator systems, prioritize testing the adaptive defrost control board first when experiencing inconsistent cooling. Probe the ADC sensor at the evaporator inlet: readings should drop from 10 kΩ at room temperature to

Always cross-reference resistance values with the technical sheet adhered inside the rear access panel–manufacturers update tolerances biannually. Mark suspect wires with masking tape before disconnecting to prevent misconnection of the compressor start capacitor or overload protector, which can void warranties if improperly handled.

Finding Electrical Schematics Inside Appliance Parts

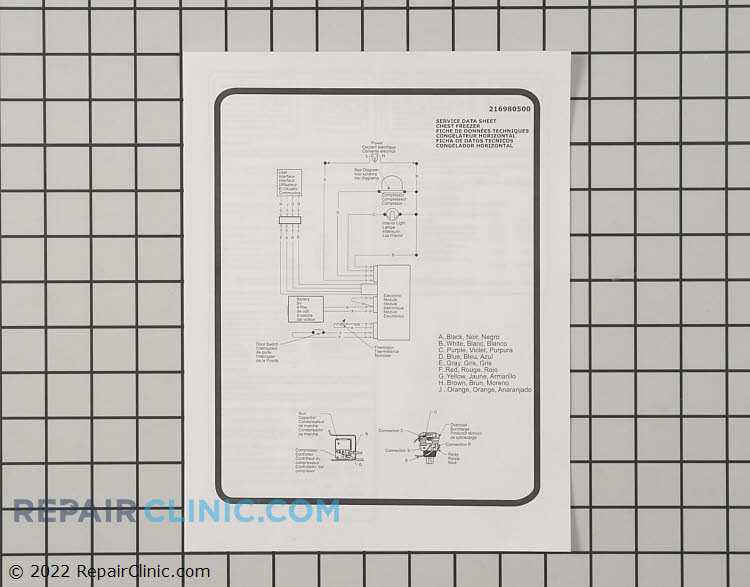

Check the interior side panel near the compressor or main control board–most models print the circuitry layout on a white or silver label. Peel back protective film if present, as schematics often hide under vinyl covers.

Examine the rear housing unit: lift the lower back cover by removing screws, then look for a laminated sheet attached to the frame. Newer variants position this behind the evaporator fan assembly.

• Door hinge area: dismantle the upper hinge bracket–certain versions embed the connection map beneath.
• Freezer section: detach ice maker or right-side shelving–folded diagrams occasionally sit taped behind.
• Condenser coils rarely hold labels, but adjacent plastic shrouds sometimes include partial routing keys.

Models WS25T5240 and WSZ57L built after 2020 embed SVG-encoded electrical paths inside digital control menus. Access via “diagnostics mode” by pressing temperature + light buttons simultaneously; scroll until “P-CODE” reveals graphic sequence.

Decoding Hidden Tags

If labels seem missing, inspect harness connectors–color-coded sticky tabs next to terminals often mirror abbreviated circuit logic. Black-yellow stripes mark compressor relays; blue-white pairs correspond to defrost thermistors.

1. Remove toe grille using flathead, exposing lower front casing–early 2018-20 units place full schematics on metallic backing here.
2. Extend water filter housing downward–certain side-by-side variants tape waterproof copies inside.
3. Unmount evaporator cover: French-door lines from 2019 forward occasionally stamp simplified layouts directly on plastic mold.

Unconventional Storage Spots

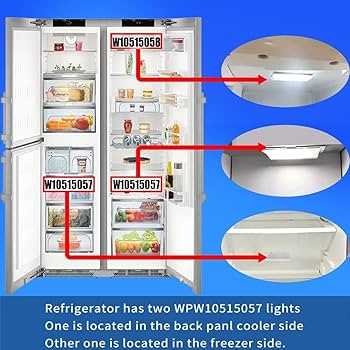

Disassemble light diffuser lenses–some units slide folded paper inserts behind translucent panels. Check drain pan area beneath crisper drawers: select bottom-mount configurations hide laminated copies wrapped in foil pouches.

Step-by-Step Guide to Interpreting Appliance Electrical Layouts

Locate the legend before tracing any connections. Most schematics include a symbol key–often in a corner–detailing component icons like compressors, fans, and defrost heaters. Cross-reference each symbol with its label; mismatches here cause misdiagnosis. If the key is missing, search the model number’s manual online for a separate sheet.

Identify power sources first. Trace thick lines from the plug or terminal block; these feed high-current paths like compressors and heaters. Note voltage ratings marked beside lines–common splits include 120V, 240V, or lower for controls. Split-phase systems show two hot legs; single-phase has one. Verify ground paths (green or bare wires) connect every metallic chassis component.

Follow sensor circuits next. Thin lines typically represent low-voltage signals for thermistors, door switches, or control boards. Check for pull-up resistors marked “R” values–usually 1K–10K ohms. Compare sensor paths against temperature ranges listed in specifications; deviations beyond ±5°F indicate faulty components or misrouted traces.

Common Pitfalls

• Assuming same-color wires share functions; color codes vary by region and model year.
• Ignoring fuse ratings (e.g., 3A, 5A); exceeding these triggers thermal cutoffs.
• Overlooking relay coil voltages–mismatches fry control modules.
• Disregarding lockout timers (e.g., 7-minute compressor delay) during testing.

Test continuity with a multimeter before replacing parts. Probe both ends of each circuit segment; infinite resistance means breaks. For relays, energize coils with 12V/24V and listen for clicks–silence suggests faulty contacts. Replace only after confirming adjacent components (capacitors, diodes) don’t leak or short. Store schematics offline–a losing Wi-Fi connection during repairs risks errors.

Key Conductors and Terminals: Decoding Appliance Electrical Pathways

Start by locating the compressor relay harness–typically a white or yellow 4-pin connector near the motor housing. Pin 1 (thicker gauge, red) carries the primary 120V feed from the start capacitor, while Pin 2 (black, slim) grounds the run winding. Pins 3 and 4 (purple/blue striped) manage defrost heater activation and compressor lockout signals respectively. Use a multimeter to verify 3-5 ohms resistance between Pins 1-2 for proper winding continuity; readings outside 2-8 ohms indicate internal shorting.

Defrost thermostats utilize a two-wire snap disc (pink/white, 22 AWG) clipped to the evaporator coil. Test for 0 ohms below 25°F (-4°C) and infinite resistance above 40°F (4°C)–any deviation suggests faulty contacts. The adjacent evaporator fan harness (often tan with blue stripe) delivers 12V DC to the motor; check for consistent 10-12V at the control board terminal when the compressor cycles on.

Door switches route through miniature blade terminals (2.8mm). The main switch (brown/green) interrupts ice maker power when opened, while the secondary (gray) controls interior lights. Depress both switches to verify 0V drop across terminals–voltages above 0.5V signal corroded contacts requiring replacement. Inspect wire crimps for cold solder joints, particularly on the light socket conductors (yellow/black, 18 AWG), which frequently fail at bend points near the hinge.

Control Board Connector Pinouts

J1 on the main control module handles 16 discrete signals–focus on Pins 5-8 for critical diagnostics. Pin 5 (purple) transmits defrost initiation commands; probe for a 5V pulse every 8 hours during normal operation. Pin 6 (orange) carries evaporator temperature data via a 10kΩ thermistor–readings should drop steadily from 5kΩ at 32°F (0°C) to 1kΩ at -10°F (-23°C). Pins 7-8 (white with red trace) power the UI display; confirm steady 5V DC with no ripple exceeding 50mV.

Dispenser harnesses employ a 6-pin Micro-Fit connector, distinguishable by its 2mm pitch. Pins 1-2 (red/black) supply 12V to the auger motor; test for locked rotor amperage (max 1.8A) before condemning the motor. Pins 3-4 (blue/brown) carry water valve signals–scope the waveform for a clean 120VAC 60Hz square wave with

Condenser fan circuits use a single black/white wire (16 AWG) terminating in a spade lug on the compressor heatsink. Measure 120V between this lead and chassis ground when the compressor starts–voltage drop should not exceed 10V. For dual-fan models, the secondary wiring loom (gray/black striped) carries a high-side switch signal; confirm the control board cycles this at 25% PWM during normal operation.

Temperature sensors connect via 2-wire JST PH plugs (1.25mm pitch). Fresh food sensors typically show 10kΩ at 77°F (25°C), while freezer sensors read 5kΩ–deviation beyond ±10% indicates drift. Probe the control board side of connectors for corrosion on the gold-plated contacts, which often causes false defrost errors; clean with 99% isopropyl alcohol and a fiberglass pen if oxidation is visible.
