How to Read and Use Light Switch Wiring Diagrams Step by Step
Begin by identifying the power source before disconnecting any connections. A single-pole setup requires connecting the live conductor to the common terminal–no exceptions. Two-way configurations demand an additional traveler wire between units, marked clearly to prevent cross-wiring. Ground wires must always terminate at the designated screw, even in low-voltage systems.

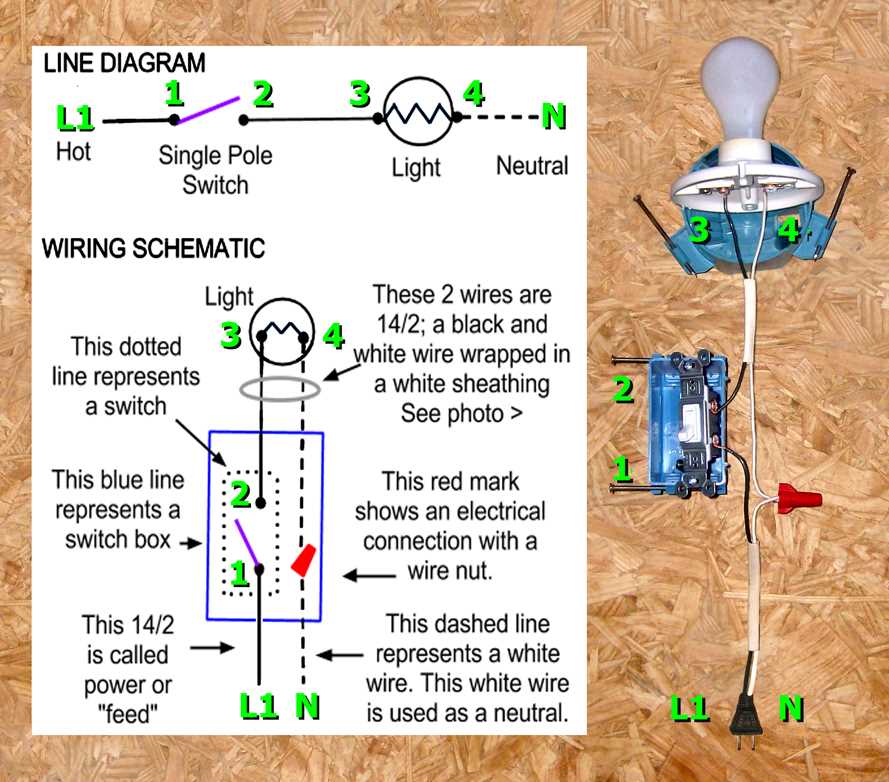

Single-pole installations follow a strict sequence: hot feed → switch → fixture. Swap these, and the device may fail or create hazards. For dimmers, verify compatibility with LED loads–some old models cause flickering. Three-way setups need travelers on both ends; label them “A” and “B” to avoid confusion during troubleshooting.
Use stranded 14 AWG copper for most residential applications, but 12 AWG for 20-amp circuits. Strip wires precisely–1/2 inch of bare conductor ensures proper contact without strain. If terminals feel loose, replace the unit–aluminum oxide on aged screws causes resistance buildup. Always test continuity after tightening connections, never assume correct placement based on color coding alone.
Smart controls require neutral wires to function. If missing, retrofit the box with a neutral bundle or opt for a battery-powered alternative. Motion sensors should connect directly to the load circuit, not through a switch loop. Overloading a single gang box (more than 4 conductors) violates NEC guidelines–consider a deeper box or split the circuit.
Electrical Schematics for Illumination Controls
Always differentiate between single-pole and three-way configurations before connecting conductors. Single-pole setups require one hot wire (typically black or red) linked to the switch terminal, while neutral and ground wires attach directly to the fixture. Three-way circuits involve two travelers (red and black) running between switches, with the common terminal marked on the device–failure to identify this terminal leads to non-functional installations.
For dimmable circuits, verify compatibility between the control device and bulb type. LED fixtures often demand low-voltage dimmers, whereas incandescent bulbs work with standard rheostat switches. Consult manufacturer specifications for minimum/maximum load requirements–exceeding these limits risks overheating or premature failure. Label all wires during disassembly to avoid misconnections when reassembling.
Grounding is non-negotiable; attach all green or bare copper wires to the grounding screw or terminal block. In metal junction boxes, ensure the ground conductor bonds to the box itself–omit this step, and fault currents may energize the enclosure. For plastic boxes, route the ground directly to the fixture or switch without interruption. Test continuity with a multimeter if corrosion or loose connections are suspected.
Looping techniques reduce wire clutter in junction boxes. Instead of running a separate neutral back to the panel, loop it through the fixture and connect to the switch’s neutral terminal if using smart controls requiring constant power. Avoid backstab connections (push-in terminals) for heavy-duty circuits–use screw terminals or pigtail splices with wire nuts.
Smart switches introduce additional requirements: neutral wires are mandatory for most models, and some need dedicated ground connections. Check for line-voltage (120V) or low-voltage (24V) variants before installation. If integrating with home automation systems, confirm Wi-Fi or Zigbee compatibility and signal strength near the installation location. Reset procedures vary–hold buttons for 5-10 seconds to restore factory defaults if pairing fails.
Aluminum wiring demands special connectors (CO/ALR rated) and antioxidant compound to prevent oxidation. Torque all connections to specification–undersized wires in overloaded circuits overheat, while oversized wires create poor contact. Use a torque screwdriver for terminal screws; manufacturers list values in inch-pounds for each device type.
Diagrams for multi-location controls (four-way switches) follow a strict sequence: travelers from the first three-way switch connect to the four-way’s terminals, then exit to the second three-way. Miswiring here causes erratic behavior or complete circuit failure. Color-code wires consistently–red for travelers, black for commons, and white (taped black) for switched hot legs–to maintain clarity during troubleshooting.
How to Identify Wire Colors and Their Roles in Electrical Control Setups
Begin by examining the cable sheathing–most regions mandate standard hues, though deviations occur. In North America, the black conductor typically serves as the hot lead for power delivery, carrying current from the source to the device. The white wire functions as the neutral, completing the circuit by returning unused energy. If present, a bare or green ground conductor prevents shock hazards by redirecting stray voltage.
For circuits with a third control point (e.g., multi-way configurations), inspect the red conductor. This often acts as a secondary hot lead, enabling switching between multiple locations. In older installations, you might encounter yellow or blue wires–these follow the same logic as red but adhere to international standards, primarily in Europe. Verify regional codes before assuming function, as misidentification risks circuit failure or damage.
Use a multimeter to confirm voltage between suspected hot leads and neutral. A reading near your system’s nominal voltage (e.g., 120V in the US, 230V in the EU) indicates a live conductor. Absence of voltage between neutrals suggests correct pairing, while readings between grounds reveal improper connections or faults. Always test with the circuit de-energized first, then validate findings under load.
Common Wire Color Codes by Region
| Region | Hot (Live) | Neutral | Ground | Traveler (Multi-Way) |
|---|---|---|---|---|
| United States/Canada | Black, Red | White | Green, Bare Copper | Red, White (with marking), Yellow |
| European Union | Brown | Blue | Green-Yellow Stripe | Black, Grey |
| United Kingdom | Brown | Blue | Green-Yellow Stripe | Black (sleeved red), Grey |
| Australia/New Zealand | Red, Brown | Black, Blue | Green-Yellow Stripe | White, Orange |
Label conductors immediately upon identification. Use heat-shrink tubing or color-coded tape to mark neutrals or travelers in multi-way setups–this prevents miswiring during maintenance. For example, wrap a white wire’s end with black tape if it’s repurposed as a hot lead in a switch loop. Document unusual color schemes in circuit documentation for future reference.
Be wary of cloth-insulated wires in pre-1960s installations. These often feature black and white conductors but may lack grounding–an immediate safety hazard. Replace such systems if possible, or install ground-fault circuit interrupters (GFCIs) to mitigate risks. Older European systems sometimes use black as neutral, further complicating troubleshooting; cross-reference with schematics or consult local regulations.
In dimmer or smart control setups, look for additional small-gauge cables. These often include a purple or pink conductor for auxiliary functions like LED signaling or phase-cut dimming. Cap unused wires with wire nuts and electrical tape, even if they appear inert–vibration or rodent damage can expose live copper unexpectedly.
For conduit-based systems, colors may deviate entirely. Prioritize continuity testing over color assumptions. Trace wires from the panel to the device, noting splices or junction boxes where routing might change. In commercial installations, conduit colors often skip standardization–verify with as-built drawings or a licensed electrician. Misassigned hot and neutral leads in 240V systems risk equipment damage or fire; double-check polarity with a plug tester.

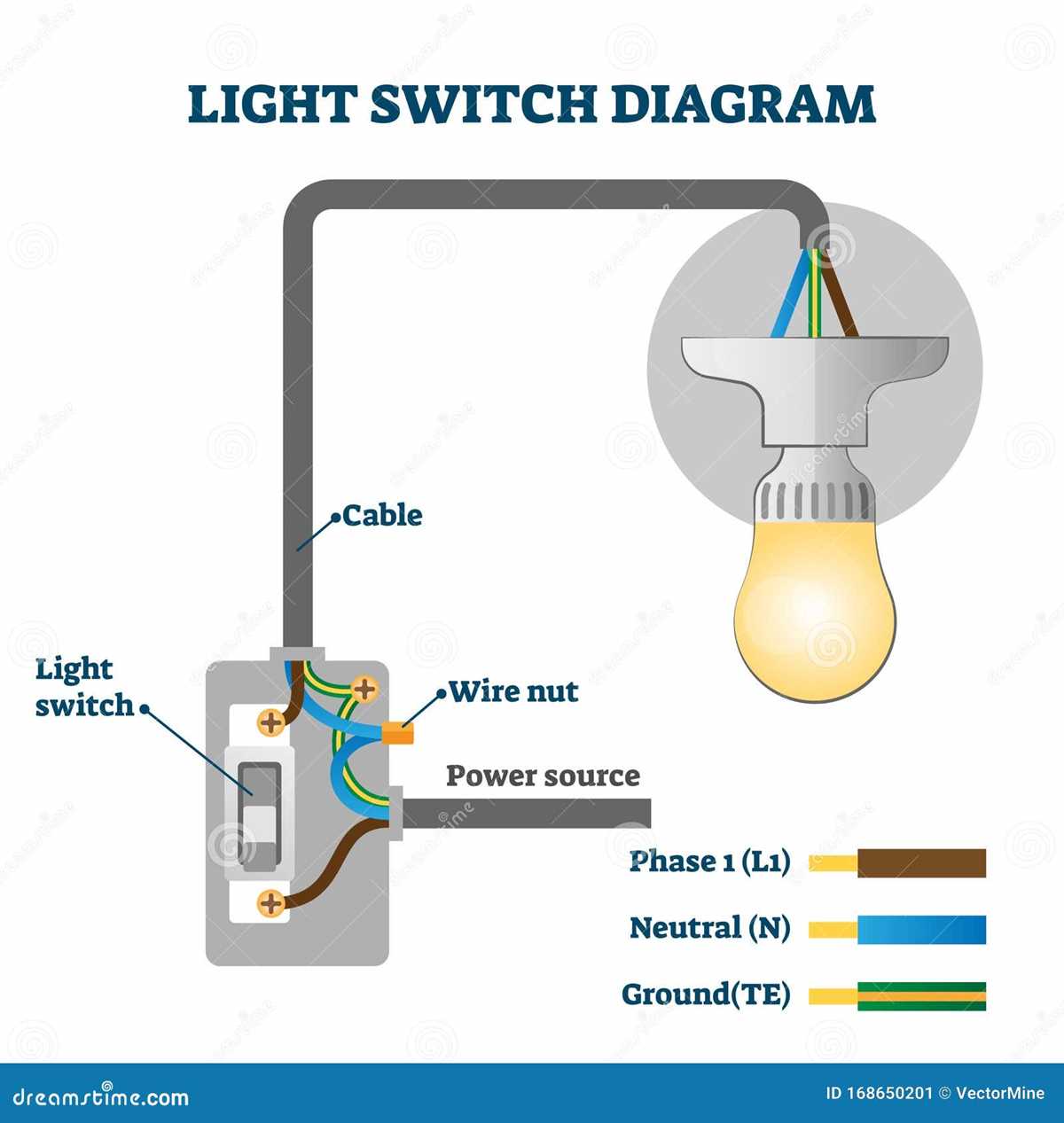

How to Connect a Basic Electrical Toggle: A Clear Procedure
First, shut off the power at the circuit breaker panel–never trust visible indicators alone. Use a non-contact voltage tester to confirm no current flows to the outlet box. Mark the breaker with tape to prevent accidental reactivation while working.
Identify the feed wire (typically black or red) and the neutral (white) coming from the power source. The ground (bare or green) must also be present. Strip 1/2 inch of insulation from each conductor using wire strippers, ensuring no nicks remain on the copper.
Attaching Conductors to the Toggle Mechanism
Loop the feed wire clockwise around the top brass terminal screw on the switch, then tighten securely. Repeat with the wire leading to the fixture on the bottom terminal–counterclockwise loops reduce loose connections over time. Avoid wrapping wires fully around screws; partial loops prevent binding.
Fold the neutral bundles together with a twist-on connector, keeping them separate from the switch. Ground wires must connect to the green screw on the toggle and to the metal outlet box if present. Tug each connection gently–proper tension prevents heat buildup.
Tuck wires neatly into the box, ensuring no bare copper touches the enclosure edges. Secure the switch with mounting screws, then restore power. Test operation by flipping the toggle–immediate response confirms correct installation. If the fixture delays or flickers, recheck terminal tightness and wire polarity.
How to Link Dual Controls to a Single Fixture: A Three-Way Circuit Guide
Start by connecting the power source’s hot wire to the common terminal of the first control. Use a 12-gauge copper conductor, preferably black or red, marked with phase tape at both ends to avoid confusion. The other two terminals on this unit–the traveler contacts–must link to matching terminals on the second control via two distinct conductors (traveler wires). These connections form the core of the dual-switch operation, enabling either unit to toggle the fixture independently.
Identify the fixture’s incoming conductor and join it to the common terminal of the second control. Secure this link with a twist-on connector or crimp sleeve rated for the circuit’s amperage–15A for most residential setups. Ensure the neutral conductor (white) and ground (bare or green) bypass both controls entirely, running directly from the source to the fitting. This separation prevents unintended loops and maintains compliance with NEC 300.13 and 404.2(C).
Key Terminals and Wire Functions
The “common” (dark screw) terminal on both controls is the pivot point–one connects to power, the other to the load. Misplacing either link will render the setup inoperative. Traveler wires, typically brass screws, must be identical in length and gauge to prevent voltage drop. Label each traveler at both ends to match their terminal pairs (e.g., “T1” to “T1”) during installation; this saves troubleshooting time if the circuit fails after initial testing.
Test continuity with a multimeter before energizing. Set the meter to ohms (Ω) and probe between the common of the first control and the fixture’s feed wire. A closed circuit (near 0 Ω) confirms correct wiring. Repeat between each traveler pair. If resistance reads infinite (OL), recheck terminations–loose strands or reversed connections are common culprits. Only proceed after verifying all paths.
Final steps include securing conductors with strain-relief bushings at the box entries and covering terminals with insulating sleeves if within 6 inches of combustible material, per NEC 404.9. Use a torque screwdriver to tighten terminals to the manufacturer’s specified inch-pounds–most switches require 12-14 in-lbs–preventing connection failures under load. Energize the circuit and operate both controls; the fixture should respond instantly with no flickering or audible hum, indicating a stable, code-compliant installation.
