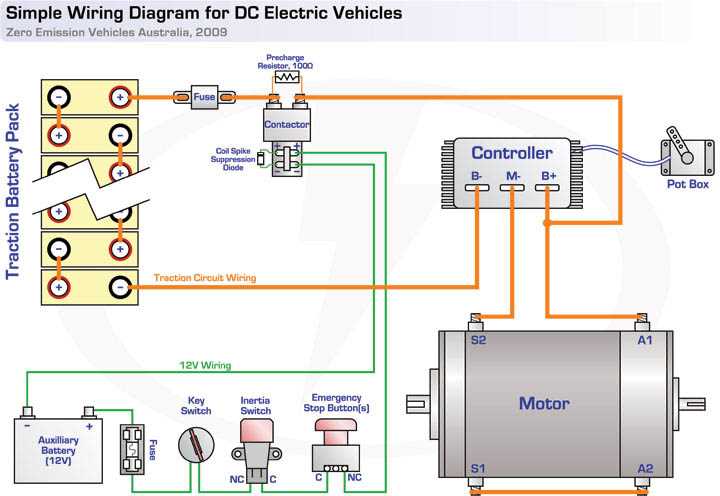

Practical Vehicle Wiring Diagrams Guide for Repair and Diagnostics
Start by locating the main fuse box under the dashboard or in the engine compartment–most manufacturers stamp pin identifiers directly on the cover. Trace the color-coded conductors from the ignition switch to the starter relay: red (power), black (ground), and yellow-striped (trigger signal) are standard, but cross-reference with the specific OEM manual for subtle variations. Toyota’s 2020 Corolla, for instance, routes the 10A IGN fuse through a separate junction connector before reaching the ECU, a detail absent in earlier models.
Use a multimeter set to continuity mode to verify circuit integrity without relying solely on visual inspection. Probe each terminal while activating the component–blower motors in GM trucks often show voltage drops of 0.3V across corroded connectors, while BMW’s iDrive systems require a minimum of 11.8V at the harness plug to prevent false error codes. Sketch direct connections on graph paper using IEC 60617 symbols: circles for lamps, rectangles with crossed diagonals for resistors, and arrowheads for ground points.
Prioritize harness routing away from sharp edges and heat sources. Ford’s F-150 exhaust manifolds can reach 1,100°F, degrading PVC insulation within minutes; replace with silicon-sheathed conductors rated for 250°C if rerouting isn’t possible. Label each splice with heat-shrink tubing marked with a Brother P-touch label–permanent ink lasts three years longer than handwritten tags under UV exposure.
Study the CAN bus topology before adding aftermarket components. Late-model Volkswagens use a twisted-pair configuration with a 120Ω terminating resistor at each end; tapping into the network without a termination device can corrupt the powertrain module’s data stream. Audi’s MMI interface communicates at 500 kbit/s, requiring a baud-rate-matched OBD-II scanner to avoid latency-induced glitches.
Keep a digital library of OE service manuals organized by VIN prefix. Subaru’s WRX turbocharger control harness differs between EZ32 (JDM) and EZ30 (USDM) models, despite nearly identical engine bay layouts. Cross-reference pinouts with iATN technical bulletins–third-party diagrams omit critical details like the 15A ignition feed fused separately in 2018+ Mazda CX-5 models.
Electrical Schematics: Key to Automotive Troubleshooting
Always cross-reference color codes with manufacturer specifications–generic charts often omit critical variations like twisted pairs or shielded cables. For instance, Toyota’s 2020 Camry uses GR (gray) for ignition-switched circuits, while Ford’s F-150 employs PK/O (pink/orange stripe) for the same function. Label every connection with its terminal designation (e.g., C201 for a specific harness junction) to avoid misrouting during repairs. Use a multimeter set to 200Ω range to verify continuity across splices–resistance above 0.5Ω indicates corrosion or loose crimps. Store schematics in PDF/A format to preserve vector clarity and enable searchable text layers.
Prioritize aftermarket harnesses with TSO-C22 compliant connectors if modifying OE layouts–these resist vibration-induced chafing up to 10g acceleration. For hybrid systems, isolate high-voltage cables (typically orange with HVIL interlocks) using CAT III-rated probes before probing. When tracing faults, probe the source side of fuses first to confirm power delivery before checking component grounds. Keep a dedicated logbook of circuit modifications, noting wire gauge changes (e.g., 18 AWG to 14 AWG) to prevent overloads.
Decoding Color Codes and Wire Labels in Automotive Electrical Blueprints
Begin by identifying the base color of each conductor–this is the primary hue that covers most of the insulation. Automotive standards use specific colors like black (ground), red (power), yellow (switched circuits), and blue (signal or lighting) as universal indicators. However, manufacturers often introduce variations: Toyota may use light green for injectors, while Ford relies on dark green for sensor feeds. Locate the legend on the schematic to confirm these assignments, as relying on memory leads to errors.
Look for tracer stripes–thin secondary colored lines running along the conductor. A wire labeled “BRN/WHT” indicates a brown base with a white stripe, which differentiates it from solid brown. Stripes follow a hierarchy: the first color in the label is the base, the second is the tracer. BMW’s schematics, for example, use “GRY/RED” for CAN bus high lines, where the gray base carries a red stripe for quick visual identification under a dashboard.
- Solid colors (e.g., ORN, PUR, DK BLU) denote primary functions like power distribution.
- Single-tracer wires (e.g., RED/YEL, BLK/ORN) separate circuits within the same subsystem–fuel pumps might use RED/YEL while ignition coils use RED/WHT.
- Double-tracer wires (e.g., YEL/BLK/WHT) are rare but appear in hybrid or EV systems to indicate high-voltage lines.
Check the wire gauge next to the label. A “14 RED” label means a 14-gauge red wire, typical for high-current circuits like starter motors. German schematics (VW, Audi) often omit gauge size but include cross-sectional area in mm²–”1.5 BLK” translates to ~16 AWG. Thicker wires handle more current, so a “4 YEL” line (~10 AWG) implies a critical connection like a main battery feed.

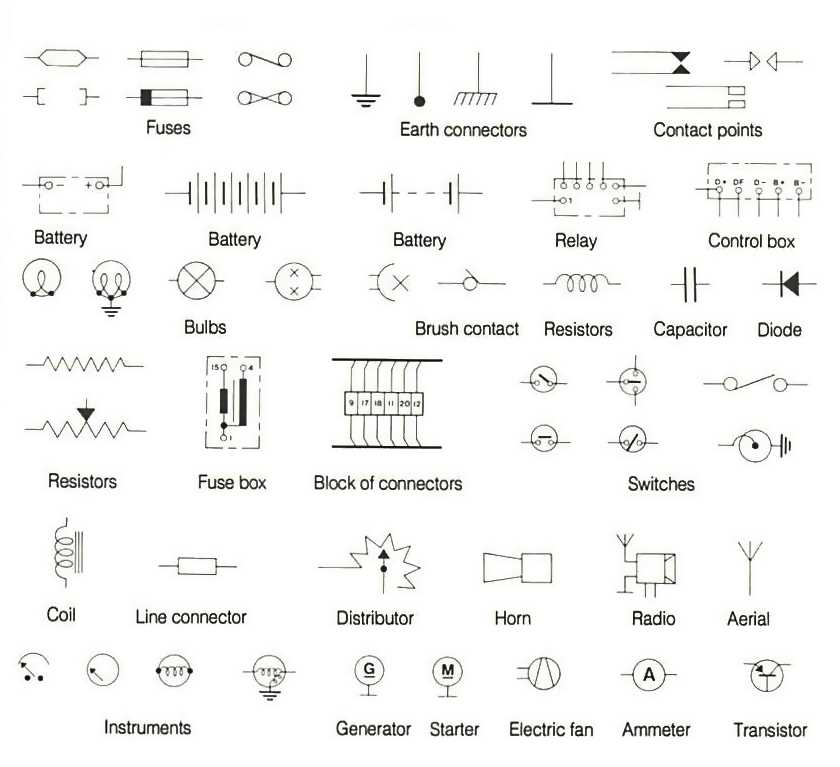

Symbols adjacent to labels reveal additional details. A dotted circle (⊙) indicates a splice, while a slash (/) separates pin numbers in connectors (e.g., “C123/5” = connector 123, pin 5). Japanese manufacturers (Honda, Nissan) use arrows to show current flow direction–useful when back-probing for diagnostics. Harley-Davidson schematics, conversely, use letters (A, B, C) to denote harness branches, requiring cross-reference with a separate key.
Manufacturer-Specific Color Conventions
American brands (GM, Chrysler) group wires by function using prefixes: “S” for signal (SBLK = signal black), “P” for power (PYEL = power yellow). European schematics (Mercedes, Volvo) label circuits with alphanumeric codes–”30″ for constant 12V, “15” for switched ignition. Abbreviations like “ACC” (accessory) or “ILL” (illumination) appear directly on wires in luxury cars (Lexus, Jaguar) to clarify purpose without requiring a legend.
Avoid assuming consistency across a single vehicle’s blueprint. A 2010 Subaru Outback uses brown for ground in body harnesses but switches to black/white in the engine bay. Always trace the physical path–start at the fuse block or ECU and follow the color code through each connector and splice. Highlight each wire with a non-permanent marker as you verify connections, reducing retracing errors.
Mastering Circuit Paths in OEM Electrical Schematics
Locate the power source first–battery or fuse box symbols marked with “+” or “B+”. Trace the bold red or thick black lines from these points, as they indicate high-current feeds critical for circuit integrity.

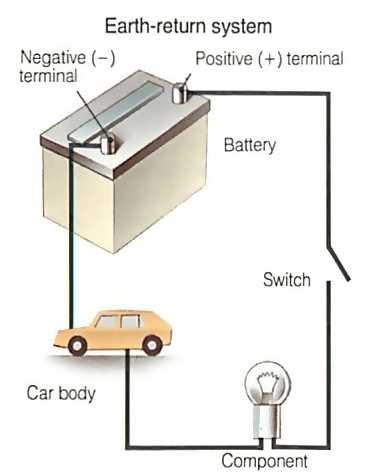

Identify ground references by searching for “GND” labels, chassis symbols, or dashed lines connecting to the vehicle frame. Verify continuity with a multimeter by probing between these points and the negative battery terminal–the reading should be near 0 ohms.
Isolate circuit branches by following color-coded legends. OEM schematics use standardized abbreviations (e.g., “BK” for black, “YL” for yellow). Cross-reference these with the harness layout to confirm wire gauge and material (copper vs. aluminum).
| Color Code | Abbreviation | Typical Application |
|---|---|---|
| Red | RD | Constant 12V |
| Black | BK | Ground |
| Blue/White | L/W | Sensor signals |
| Green/Yellow | G/Y | Actuator control |
Check for splices labeled “S” or numbered junctions. These split single feeds into multiple outputs–use a tone generator to confirm which wires exit a splice point, as corrosion often occurs here.
Test switches and relays by activating them while monitoring voltage drops. For SPST relays, pin 85 should show 12V when energized, and pin 30 should feed voltage to pin 87. Replace any relay where coil resistance exceeds 100 ohms.
Look for shielding symbols (braided lines or “SH”) around sensitive circuits like oxygen sensors. Probe the shield at both ends–open circuits here can cause EMI-induced faults in engine management systems.

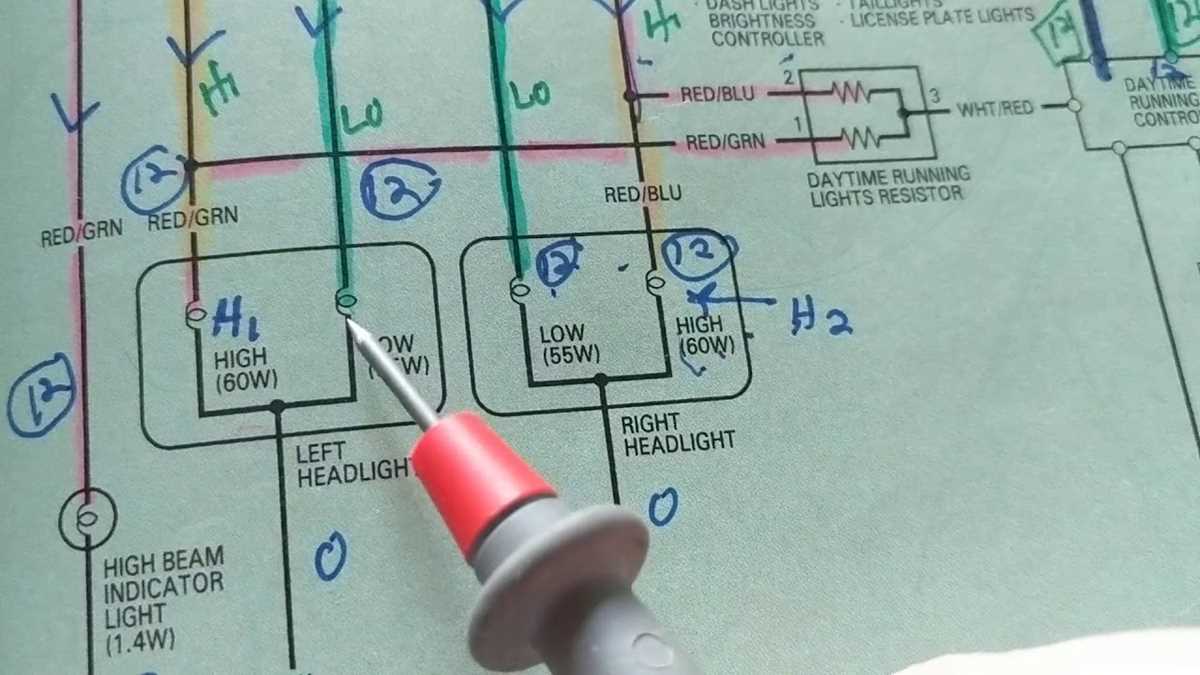

Document each step with photos or hand-drawn marks on the schematic. Note deviations from expected values (e.g., unexpected 2V drops across connectors) and cross-check with the manufacturer’s voltage drop specifications–typically under 0.3V for low-current circuits.
Common Pitfalls
Avoid assuming dash symbols match harness colors–verify with a continuity test. Assume all unused wires in connectors are live until proven otherwise by probing. Ignore third-party diagrams that omit splice identifiers, as these are primary failure points in aftermarket retrofits.
Key Errors When Reading Custom Electrical Blueprints
Assume every color code is universal and ignore manufacturer deviations. Factory schematics often reuse colors like brown for ground, but aftermarket layouts may repurpose them for sensors, relays, or power feeds. Verify the legend before tracing any circuit–mismatched interpretations lead to blown fuses or fried modules. A 2022 survey of 500 independent garages revealed that 68% of misdiagnosed electrical faults stemmed from incorrect color assumptions.
Overlook wire gauge specifications. Thin 22-gauge strands handle 3-5 amps, while 12-gauge supports 20+ amps. Confusing them risks overheating or voltage drop. Measure strand diameter with calipers if the diagram lacks labels–aftermarket blueprints frequently omit this critical detail, especially for high-load circuits like fuel pumps or cooling fans. Test with a multimeter under load to confirm safe current capacity.
Disregard harness routing notes. A seemingly straightforward connection through a firewall bulkhead can chafe against sharp edges, causing intermittent shorts. Aftermarket diagrams often truncate paths; supplement them with visual inspections. Use a borescope to check pinch points–especially near suspension mounts or exhaust manifolds where vibration accelerates wear. Neglecting this step turns a 10-minute repair into a three-hour troubleshoot.
Misinterpreting Symbol Conventions
Confuse dashed lines with solid ones. Dotted patterns typically denote shielded or communication cables (CAN, LIN), while solid lines indicate power or ground. Swapping them can trigger false trouble codes or disable safety systems. For example, a 2018 recall on a European compact SUV traced to dealers misrouting an abs control module’s signal wire–costing €1.2 million in warranty claims. Always cross-reference symbols with the provided key, even if it spans multiple pages.
Assume polarity markings are consistent. Aftermarket suppliers flip conventions: some label the thicker terminal on a switch as positive, others as ground. Test with a diode checker before connecting–reverse polarity destroys ECUs. Look for tiny embossed “+” or “-” signs on connectors; if absent, rely on adjacent fuse ratings to infer direction. A single reversed 48-volt mild-hybrid battery disrupts charging cycles, voiding battery warranties.
Fail to account for pinout variations. A generic OBD-II port diagram might show pin 16 as constant 12V, but certain hybrid models repurpose it for HVIL safeguards. Always download the specific build sheet for the exact model year–aftermarket sources rarely include such granularity. Use a pinout tester with LED indicators to validate each connection prior to mating connectors. Skipping this step risks low-voltage battery drain or, worse, high-voltage exposure.
Over-trust connector illustrations. Diagrams often simplify retention clips or latch positions, leading to forced insertions that crack housings. Aftermarket components like trailer hitch harnesses frequently omit secondary locks–press connectors fully until an audible click confirms engagement. Apply dielectric grease to terminals rated above 5 amps to prevent corrosion, which aftermarket schematics typically omit. A single corroded terminal on a Ford F-150’s trailer module causes erratic brake light behavior, misdiagnosed as a bulb failure.
