Step-by-Step Guide to Wiring Light Fixtures with Clear Diagrams

Begin by shutting off the circuit breaker controlling the power source for the unit you’re installing. Verify absence of current using a non-contact voltage detector near the terminal block. Mistakes here risk severe injury or fatal shock–no exceptions. Always confirm the detector functions on a known live circuit first.

Identify the supply conductors: typically a black (hot), white (neutral), and bare or green copper (ground). Strip 3/8 inch of insulation from each wire using wire strippers, ensuring no nicks on the copper strands–this weakens long-term reliability. Twist strands clockwise before attaching to terminal screws or wire nuts.

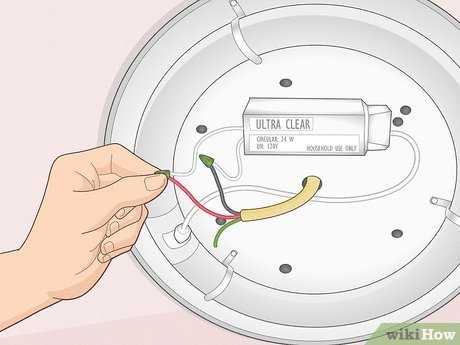

For most ceiling-mounted units, connect the ground first–attach it to the fixture’s metal chassis or designated ground screw. Secure the neutral (white) to the corresponding fixture lead, which is often marked or insulated with white sheathing. The hot (black) connects last, linked to the fixture’s line lead, usually a brass-colored screw or a black-insulated wire.

Use wire nuts sized for the gauge of wire you’re joining–typically #14 or #12 AWG for residential installations. Twist the nut clockwise until fully seated, then tug each wire to ensure a firm grip. Wrap electrical tape around the base for added security if the wires feel loose.

After securing all connections, tuck the conductors into the electrical box, ensuring no bare sections remain exposed. Fasten the unit’s mounting bracket to the box with screws provided, then attach the decorative cover. Restore power and test with the switch–if flickering occurs, immediately disconnect and recheck connections for loose strands or incorrect pairing.

For dimmable setups, match the switch to the module’s specifications–some LEDs require compatible dimmers to avoid buzzing or premature failure. Check voltage ratings on both components before assembly to prevent overheating. Always refer to the manufacturer’s documentation for variant wiring, such as multi-way switches or integrated smart modules.

Connecting Illumination Schematics: Key Steps

Always verify the circuit is de-energized before handling any electrical components. Use a non-contact voltage tester to confirm absence of power at the junction box. Failure to do so risks severe shock or damage to components. For standard setups, identify the hot (black or red), neutral (white), and ground (green or bare copper) conductors. Misidentifying these increases fire hazards.

Secure connections with wire nuts matched to the conductor gauge. For 14 AWG, use a yellow nut; for 12 AWG, red is mandatory. Twist conductors clockwise before applying the nut to ensure a tight grip. Tug gently on each lead to confirm stability–loose connections generate excessive heat and degrade over time. Avoid electrical tape as a substitute; it degrades under thermal stress.

When mounting the device, ensure the junction box supports its weight. Ceiling-mounted units exceeding 50 lbs (23 kg) require a fan-rated box with reinforcement. Shallow boxes risk insulation damage if wired too tightly. For recessed installations, check manufacturer specifications for clearance–minimum 6 inches (15 cm) from insulation prevents overheating.

Test the assembly before finalizing. Restore power and verify operation with a multimeter. Check for 120V (or 240V for specialized circuits) between hot and neutral, and 0V between hot and ground. Flickering or dim output indicates loose connections or incompatible components. Use a torque screwdriver for terminal screws–12 in-lbs for #10-32 screws–to prevent over-tightening.

For multi-switch control (e.g., three-way layouts), mark travelers with colored tape (typically red or blue) to distinguish them from load-bearing wires. Incorrect pairing here creates intermittent function or dead circuits. Ground all metallic parts, even if the device lacks internal grounding, to meet NEC requirements. Non-compliant setups void warranties and fail inspections.

Selecting Optimal Conductors for Your Illumination Setup

Prioritize copper conductors over aluminum for residential circuits. Copper offers superior conductivity (95% IACS vs. 61% for aluminum) and lower resistivity (1.68 μΩ·cm vs. 2.82 μΩ·cm), reducing voltage drop in runs exceeding 15 meters. For 15-amp circuits, use 14 AWG copper; for 20-amp, upgrade to 12 AWG. Verify local codes–some jurisdictions require 12 AWG for all new installations regardless of breaker rating.

Match conductor insulation to environmental conditions. NM-B cable suits dry, indoor locations with temperatures up to 90°C. For damp areas (bathrooms, basements), specify UF-B cable with moisture-resistant thermoplastic nylon (THWN) insulation. Outdoor installations demand underground feeder (UF) cable or conduit-protected THWN-2 wires rated for 90°C wet locations. Check insulation thickness per UL standards–minimum 15 mils for 600V ratings.

Conductor Size (AWG)	Max Load (Amps)	Voltage Drop per 10m (120V)	Min Bend Radius
14	15	1.2V	5×OD
12	20	0.7V	5×OD
10	30	0.4V	7×OD

Calculate voltage drop for runs exceeding 25 meters. For a 20-amp circuit with 12 AWG copper, expect a 2% drop at 30 meters. Compensate with 10 AWG for extended runs (>40m) or consider a 240V circuit to halve current draw. Use the formula: VD = (2 × L × R × I) / 1000, where L = length in feet, R = resistance per 1,000ft, I = current. Pre-calculate for dimmable setups–LED drivers tolerate

Avoid solid conductors in vibration-prone areas (attics, garages). Stranded copper (minimum 19 strands for 12 AWG) withstands mechanical stress better than solid wire. For switch loops or frequent bends, use Class B or C stranding (IEC 60228 standard). Verify strand count–substandard wires may have as few as 7 strands, increasing failure risk at termination points.

Grounding conductors require equal attention. For circuits ≤20 amps, 14 AWG bare or green copper suffices. Larger circuits demand proportional sizes (12 AWG for 30 amps, 10 AWG for 40 amps). Never omit grounding–even in plastic boxes, use insulated ground wires to maintain continuity. In metal boxes, bond the grounding wire to the box with a -32 screw (not sheet metal screws) to meet NEC 250.148.

Termination temperature ratings must align with conductor insulation. Use connectors rated for 90°C when joining THHN/THWN-2 wires, even if the circuit operates at lower temperatures. Crimp connectors with >80% compression force prevent loosening; soldering is code-prohibited in most jurisdictions except for field repairs. For aluminum conductors, apply antioxidant compound to all terminations to prevent corrosion.

Label all conductors at both ends. Use heat-shrink tubing or permanent markers to identify hot (black/red), neutral (white), and ground (green/bare) wires. Color-coding reduces troubleshooting time by 40%–use blue for neutrals in multi-wire branch circuits to avoid confusion. Store excess length in junction boxes, not coiled behind luminaires, to prevent induction heating and fire risk.

Select connectors based on wire gauge and material. Wire nuts sized for 14-12 AWG (e.g., Ideal 74B) accommodate copper only; for mixed aluminum-copper splices, use purple-cover nuts (e.g., Ideal Twister Al/Cu). Torque all screw terminals to specification–NEC 2020 mandates torque screwdrivers for circuits ≥20 amps. Loose connections create hotspots; thermal imaging detects issues before failure.

Step-by-Step Guide to Safely Disconnecting Old Electrical Connections

Turn off the circuit breaker labeled for the area you’re working on–use a non-contact voltage tester to confirm no current remains. If the breaker isn’t labeled, shut off the main power supply to eliminate risks entirely. Never rely on wall switches; they don’t guarantee full disconnection.

Remove Cover Plates and Secure Components

Unscrew the faceplate or decorative housing using a flathead or Phillips screwdriver, depending on the fastener type. Set screws aside in a small container. If the unit is ceiling-mounted, support its weight with one hand while loosening screws to prevent sudden drops that could damage existing cables or injure you.

Gently pull the assembly away from the junction box to expose connected conductors. Note the color-coding: black (hot), white (neutral), and bare or green (ground). If wires are twisted together, untwist them carefully using needle-nose pliers–avoid tugging sharply, as aged insulation may crumble. Label each wire with masking tape if reconnection is planned.

Disconnect and Cap Exposed Conductors

Loosen terminal screws or squeeze wire nuts to release conductors. For push-in connections, insert a small flathead into the release slot adjacent to each wire. Once detached, immediately cover each end with a twist-on wire connector or electrical tape to prevent short circuits. Store disconnected conductors inside the junction box to avoid accidental contact.

Inspect the junction box for signs of overheating (discoloration, melted plastic) or corrosion. If present, clean contacts with a wire brush or replace the box entirely before installing new components. Dispose of old electrical tape, stripped insulation, or damaged conductors according to local regulations–never leave them exposed or loose in the workspace.

Decoding Electrical Wire Color Standards for Installation

Always verify wire hues against your local electrical code before connecting components. In North America, standard color assignments differ from European or Asian systems:

• Black/Gray: Hot conductors carrying current; never assume neutral status.
• White (or white with stripe): Neutral in 120V systems, but may serve as hot in 240V circuits (check for re-marking with tape).
• Green/Bare Copper/Yellow-Green: Ground; isolated from other paths–never repurpose.
• Red/Blue/Other Colors: Secondary hot lines common in multi-switch or three-way setups.

For older installations or imported products, deviations occur. Test each path with a multimeter set to AC voltage (probe ground first). Expect 110-120V between hot and neutral, 0V between neutral and ground. Ignore sheath color–focus on inner conductor hues when stripping insulation.

Three-way switches add complexity: travelers (brass terminals) often use red or black, while the common terminal (darkest screw) requires the main power line. Match the new component’s documentation exactly–brand-specific variations exist even with ANSI-certified devices.

When splicing, twist corresponding colors together (hot-to-hot, neutral-to-neutral) and secure with wire nuts rated for the gauge (14-12 AWG for most residential applications). Cap unused paths individually–never tape or leave exposed. For aluminum conductors (silver appearance), use purple wire nuts with antioxidant paste to prevent corrosion.
