Understanding Wye and Delta Wiring Schemes Practical Connection Guide

Connect a grounding neutral point to the common junction of three-phase systems to stabilize voltage and reduce fault risks. For 400V line-to-line setups, a star arrangement ensures each phase remains at 230V relative to neutral–critical for balancing loads in motors and transformers. Use color-coded conductors: brown (L1), black (L2), grey (L3), and blue for neutral. Grounding conductors must be green/yellow.

Convert star to mesh layouts by eliminating the neutral link and interconnecting phase ends. This reconfiguration increases line voltage by 1.73× while cutting current draw–ideal for high-power industrial drives. Measure phase angles at 120° offsets; mismatched angles indicate improper termination. Apply a multimeter in AC voltage mode to verify 230V between each phase and neutral in star mode, or 400V across any two phases in mesh mode.

Label all terminals with permanent markers: L1, L2, L3 (inputs), U, V, W (outputs). For three-phase motors, consult nameplate data to confirm wiring schema–star starts under reduced voltage, while mesh handles full-load operation. Use terminal blocks rated for 500V minimum; loose connections create heat buildup and insulation failure.

Bridge resistor networks (100Ω–1kΩ) between phases during testing to prevent floating potentials. Apply an insulation tester at 500V DC to confirm ≥1MΩ impedance between conductors before energizing. Isolate circuit breakers rated for 1.5× full-load current–star configurations require higher interrupting capacity due to inrush spikes.

Document every connection step with labeled photographs and torque specifications (typically 2.5–4Nm for M4 terminals). Update single-line schematics with actual component IDs after installation–generic templates cause diagnostic errors. Store spare conductors (minimum 4mm² cross-section) on-site to address repairs without downtime.

Star-Triangle Connection Schematics: Configuration and Practical Insights

Always verify motor nameplate data before designing the circuit layout–voltage ratings for star (Y) and triangle (Δ) connections often differ by a factor of √3 (e.g., 400V in Δ vs. 230V in Y for 415V systems). Match these values precisely to prevent coil overheating or undervoltage damage during startup transitions.

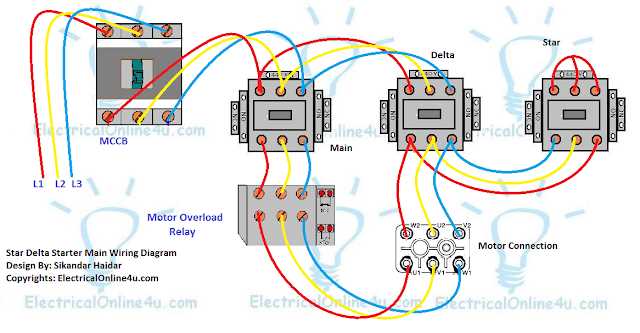

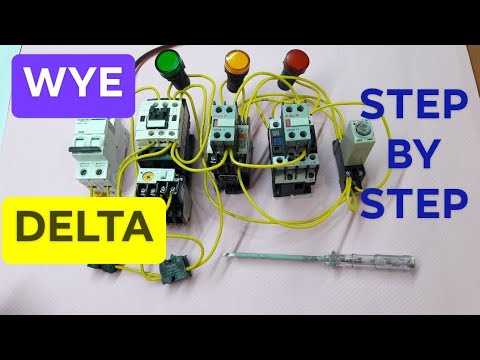

Implement a three-pole contactor arrangement with mechanical interlocks between star and triangle contactors to eliminate dangerous short-circuit paths. Use a timer relay calibrated to switch at 70-80% of motor rated speed–premature shifts cause current spikes exceeding 300% of FLA, while delayed transitions waste energy and increase thermal stress.

• For 50Hz systems: Set transition delay to 3-5 seconds for motors ≤30kW, 5-8 seconds for 30-100kW.
• For 60Hz systems: Reduce delays by ~15% to compensate for higher synchronous speeds.

Wire the neutral point in star mode as a virtual ground only when required for protective relaying–floating neutrals increase common-mode noise susceptibility. Ground one phase conductor at the supply side to stabilize potential differences between phases during transient switching, especially in unbalanced load scenarios.

Label terminal blocks with color-coded sleeves per IEC 60445 (L1/L2/L3: brown/black/grey; U/V/W: blue, orange, green) and etch phase rotation arrows directly on metallic enclosures. Document connection variants for dual-voltage motors: U1/V1/W1 for Δ high-voltage, U2/V2/W2 for Y low-voltage, and mark polarity inversion points where star-point tapping reverses winding direction.

1. For reduced-voltage starters, size conductors to handle 6x FLA during Δ engagement.
2. Use Class 10 overload relays with thermal memory for motors >55kW.
3. Install surge suppressors rated for 1.8x system voltage at star-delta transition points.

Test phase rotation before final energization using an LED phase sequence indicator–reverse polarity in Δ mode generates destructive circulating currents exceeding stall torque levels. Measure winding resistances between terminal pairs (U-V, V-W, W-U) in both configurations; deviations >5% indicate partial short-circuits or open connections in the commutation path.

For predictive maintenance, log transition current waveforms using Rogowski coil sensors and compare against baseline signatures: Normal Δ closure shows a 40-60ms inrush plateau, while faulty contactor welds produce asymmetric 3-7 cycle transients with 4-7kHz harmonic distortion peaks.

Key Electrical Arrangement Layouts for Star and Mesh Systems

Connect three-phase loads in a star arrangement by joining one terminal of each phase to a common neutral point–this reduces line voltage to 1/√3 (≈58%) of the phase voltage while maintaining uniform current across each branch. Use 4 wires (three phases + neutral) for balanced loads or 5 wires (including ground) where fault protection is critical. For 400V systems, phase voltage between any conductor and neutral measures 230V, ensuring compatibility with standard single-phase devices. Ensure neutral is grounded at the transformer to prevent voltage drift under unbalanced conditions, as even a 10% imbalance can increase neutral current by up to 30%.

Assemble a closed-loop mesh system by linking each phase endpoint to the start of the next, eliminating neutral and requiring only three conductors. Line voltage equals phase voltage, making this ideal for high-power motors–current splits across two paths, reducing conductor size for the same power delivery. For a 400V setup, each phase handles 400V; miswiring (e.g., reverse polarity) creates circulating currents up to 173% of nominal, risking overheating without thermal protection. Use color-coded leads (L1: brown, L2: black, L3: gray) and torque terminals to 12–15 Nm to prevent loose connections, which account for 22% of industrial electrical failures.

Step-by-Step Guide to Reconfiguring Star-Connected to Mesh-Connected Transformers

Begin by disconnecting all power sources and verifying zero voltage with a multimeter across all terminals. Label each conductor–phase A, B, C–and the neutral terminal (if present) to avoid misalignment during reassembly. Record existing voltage and current ratings from the nameplate; mesh configurations typically require recalculating impedance values by multiplying original phase impedance by three.

Remove the neutral connection (if applicable) and isolate the three phase terminals. For a balanced 3-phase system, measure line-to-line voltages before proceeding–these should match the system’s nominal line voltage. Any discrepancy suggests an imbalance or incorrect prior configuration, requiring troubleshooting before conversion.

Prepare new conductor lengths accounting for the mesh arrangement’s physical layout. Mesh systems eliminate the central junction, so each phase terminal must connect directly to the next in a closed loop. Cut and strip conductors to precise lengths, ensuring tight, corrosion-resistant joints–use copper lugs crimped at 25% above nominal current capacity to prevent overheating.

Connect Phase A terminal to the Phase B conductor, Phase B to Phase C, and Phase C back to Phase A, forming a continuous triangular path. Secure each joint with torque-controlled tools to manufacturer specifications–typically 12–15 Newton-meters for AWG 6 copper conductors. Avoid soldering; mechanical connections with anti-oxidation compound last longer under thermal cycling.

Verify the mesh closure by measuring resistance across each pair of terminals. Readings should be near-identical, varying by less than 5% in balanced systems. A significantly higher resistance in one path indicates a loose or faulty connection–recheck joints before energizing. For transformers rated above 100 kVA, perform insulation resistance testing with a 500V megohmmeter; values below 1 MΩ suggest moisture ingress or degraded insulation.

Energize the system in stages. Start with reduced voltage (e.g., 25% of nominal) using an auto-transformer or variac, monitoring for abnormal humming, vibration, or heat. Gradually increase to full voltage while observing line currents–phase currents in mesh should equal 1/√3 of the original star phase currents. Record all measurements; deviations exceeding 10% require recalculating load distribution or adjusting conductor sizing.

Install protective relays calibrated for mesh systems. Overcurrent settings should be 125% of the maximum expected line current, while ground fault detection may need reprogramming if the original configuration included a neutral reference. Test relay trip functions with simulated faults–mesh systems lack a neutral path, so ground faults manifest as phase-phase imbalances.

Document the new configuration with updated schematics, highlighting conductor sizes, torque values, and relay settings. Label all terminals and conductors with indelible markers resistant to operating temperatures. For future maintenance, store transformer oil samples (if applicable) in sealed containers; mesh conversions often alter thermal dissipation profiles, requiring oil analysis within 90 days to detect abnormal degradation byproducts.

Key Industrial Uses of Star-Triangle Electrical Configurations

For large three-phase electric motors exceeding 10 HP, implement a star-triangle starter to limit inrush currents during activation. This reduces mechanical stress on motor windings and drive components by staggering voltage application–first connecting coils in a radial pattern (40-60% of line voltage), then switching to a closed-loop arrangement after 5-10 seconds. Factory tests show this cuts starting torque loads by 33%, extending bearing life in applications like centrifugal pumps and fans where soft acceleration prevents fluid hammer or belt slippage.

Recommended Load Profiles

Application Type	Starting Current Reduction	Switching Delay (seconds)	Motor Size Range (HP)
Conveyor belts (light start)	60-65%	3-5	15-50
Compressors (high inertia)	70-75%	8-12	40-200
Milling machines (variable load)	50-55%	6-9	25-125

In heavy-duty machinery requiring frequent starts–such as stone crushers, ball mills, or large industrial mixers–retain a star-triangle setup but add a current-limiting resistor (0.1-0.3 ohms) between the neutral point and ground during the initial phase. This modification, used in cement plants handling 100+ HP motors, prevents voltage dips on the grid that could disrupt adjacent equipment. Ensure time-delay relays are calibrated for the motor’s specific moment of inertia; over-lengthening this interval risks overheating due to prolonged low-voltage operation. Replace standard relays with solid-state versions when ambient temperatures exceed 45°C, as electromechanical types lose timing accuracy under thermal stress.
