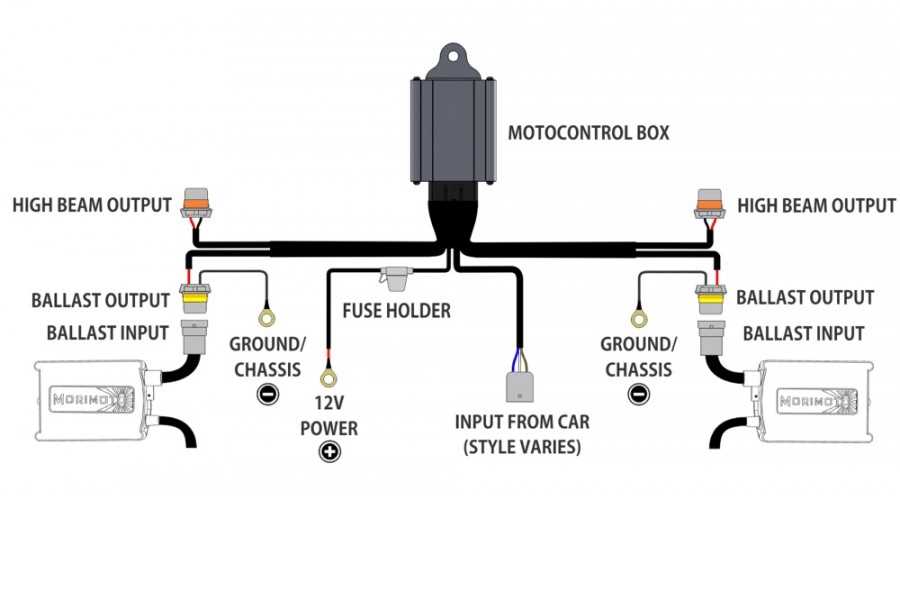

Complete Xenon HID Headlight Wiring Diagram Guide for Vehicle Installation

Begin by identifying the ballast input terminals–typically labeled with 12V DC+, ground (-), and trigger wire. Most aftermarket kits use a two-wire power connection for the ballast, while OEM setups may include a third wire for diagnostics orCAN bus integration. Verify polarity before connecting; reversing the leads risks damaging the control module. For stability, solder all joints and insulate with heat-shrink tubing rather than electrical tape.

Locate the factory headlamp harness adapter–common pinouts vary by manufacturer:

• Hella/HID-Ready: Pin 1: +12V (red), Pin 2: ground (black), Pin 3: shield/trigger (green or white).
• Bosch/Non-HID: Pin 85: relay control (+), Pin 86: ground, Pin 87: high beam (+12V out).

Remove the headlamp assembly to access the back of the bulb socket. Cut the existing halogen bulb connector ~2 inches from the socket–leaving excess wire simplifies troubleshooting. Strip 5mm of insulation from the new adapter wires and crimp/solder to the ballast leads in this order: +12V (red) → ballast (+), ground (black) → ballast (-), trigger (white/green) → adapter shield.

Mount the ballast within 18 inches of the lamp to minimize voltage drop. Use dielectric grease on all connections to prevent corrosion. Test before finalizing installation–toggle low/high beams to confirm the arc ignites without flickering. If the bulb cycles on/off, verify the ground path isn’t shared with high-draw components like fog lights or cooling fans. For CAN-equipped vehicles, check for fault codes (e.g., U1900); reprogram or install a resistor (1.5kΩ, 0.5W) across the trigger and ground if needed.

Route remaining wiring through the grommet into the engine bay. Secure slack with zip ties every 6 inches to prevent vibration-induced shorts. Avoid routing near sharp metal edges or heat sources (turbochargers, exhaust manifolds). For auxiliary lighting, tap the battery’s main power distribution block using a 10A fuse and relay–never direct ballast power through the headlight switch.

Connecting High-Intensity Discharge Lighting Systems

Begin by locating the ballast control module–typically a rectangular unit with input/output terminals–and confirm its compatibility with the vehicle’s 12V DC system. Wire color standards vary by manufacturer, but most follow this pattern: red (battery positive), black (ground), and white/blue (bulb connectors). Verify polarity before attaching; reversed connections may trigger immediate failure or damage the igniter coil. For most aftermarket kits, splice the red wire directly to the headlight relay or fuse box using a 10-15A fuse inline to prevent overcurrent. Avoid tapping into the original halogen circuit–it lacks sufficient amperage and will degrade performance.

Critical Connection Checks

• Test continuity between the ballast and bulb sockets with a multimeter; readings should show <1Ω resistance. Higher values indicate corroded terminals or faulty cables.
• Ground the black wire to a bare metal chassis point, preferably near the headlight housing–paint or rust will disrupt signal stability. Use dielectric grease on connections to inhibit oxidation.
• Secure the white/blue wires to the D1S/D2S bulb sockets with crimp connectors; soldering risks melting plastic components under sustained heat.
• Install a relay if the kit lacks one–trigger the coil with the original low-beam switch to maintain OEM wiring integrity and prevent overload.

Final calibration involves aiming the beam pattern. Mount the bulb so the arc tube sits horizontally within the projector’s focal point; misalignment causes glare and uneven dispersion. Use an infrared thermometer to monitor ballast temperature–normal operating range is 60-85°C. Exceeding 90°C indicates inadequate heat sinking; relocate the module or add thermal paste between it and the mounting surface. For CAN-bus vehicles, insert a load resistor (25W, 100Ω) parallel to each bulb to bypass error codes. Retest after 30 minutes of runtime; flickering often resolves once initial capacitor charge stabilizes.

Critical Parts for a High-Intensity Discharge Lighting Configuration

Select ballasts with a minimum 35W output rating to ensure stable arc ignition–any lower risks flickering under 9V drops. Models with built-in voltage regulation prevent damage from transient spikes, a common failure point in aftermarket setups. Verify compatibility with OEM connectors to avoid splicing; brands like Philips and Osram often match factory pinouts directly. For vehicles with LED daytime running lights, opt for ballasts featuring a delayed start function (50-150ms) to prevent ECU error codes triggered by rapid voltage swings.

The bulb type dictates color temperature and longevity–3,000K delivers a warm yellow tint ideal for fog penetration, while 6,000K produces a crisp white output but may scatter in dense precipitation. Ceramic-base bulbs withstand vibrations better than quartz, critical for off-road applications. Ensure the bulb’s ANSI code matches the vehicle’s housing optics; mismatched focal lengths reduce lumens output by up to 40%. Halogen-to-HID retrofit kits frequently omit this detail, leading to uneven beam patterns.

Component	Specification Range	Failure Impact
Ballast	35W–55W, 9V–16V input	Flicker, premature burnout
Igniter	20kV–30kV pulse	No arc initiation
Bulb	3K–12K Kelvin	Reduced visibility, color shift
Relay Harness	15A–30A fuse, 14AWG wire	Short circuits, fire risk

Relay harnesses with dual-output protection safeguard against polarity reversals, a frequent issue when tapping into factory wiring. Use marine-grade silicone-jacketed cables (14AWG minimum) for engine bay installations; PVC insulation degrades above 80°C. The ground connection should terminate at a bare-metal chassis point within 30cm of the lamp assembly to prevent voltage drop–measure resistance with a multimeter (target:

Fuse selection depends on the system’s total draw–two 20A fuses (one per bulb) protect against catastrophic shorts without nuisance blowing. Some European vehicles require a CAN bus emulator to suppress dashboard warnings; these modules simulate halogen load signatures using pulse-width modulation. For modular setups, integrate error-free controllers with adjustable timeout settings (1-3 seconds) to accommodate slow-starting ballasts. Regularly inspect connectors for corrosion, especially in coastal regions; dielectric grease extends lifespan by blocking moisture ingress.

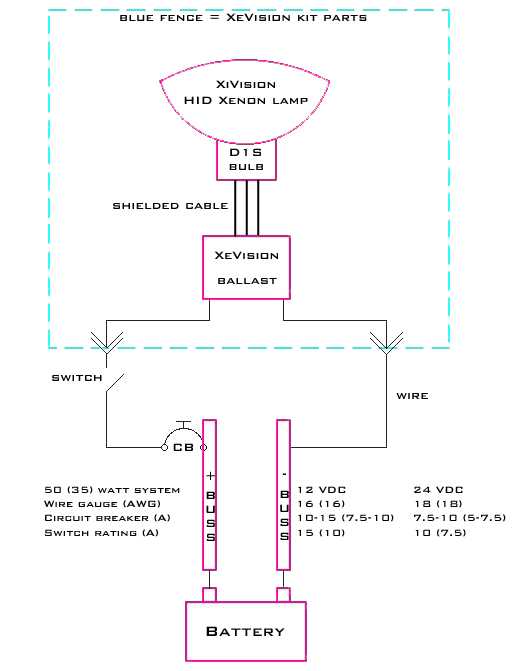

Step-by-Step Connections for Power Modules and Gas-Discharge Light Sources

Begin by securing the high-voltage cables from the ignition control unit to the lamp connector. Ensure polarity matches the marked terminals: red (+) to the anode clip and black (-) to the cathode socket. Use heat-shrink tubing over each connection to prevent arching or moisture ingress. A 24-gauge copper wire with silicone insulation is optimal for flexibility and durability under thermal cycling. Verify resistance between terminals; readings should stabilize at 0.3–0.7 ohms before proceeding.

Critical Assembly Sequence

• Detach battery ground cable to eliminate accidental shorts during handling.
• Route power leads away from moving components and sharp edges using zip ties spaced every 100mm.
• Connect the low-voltage trigger wire (typically blue or yellow) to the control module’s signal input port. Mistakes here cause erratic start sequences or premature failure.
• Temporarily energize the system at 13.2V to confirm lamp ignition without permanent mounting–initial arcs may appear violet due to partial gas excitation.

Finalize grounding by affixing the module’s metal base directly to the vehicle chassis using a serrated washer and star lock nut. Avoid paint or corrosion–bare steel contact ensures optimal surge dissipation. For dual-beam setups, isolate each control module with individual grounds to prevent crosstalk during simultaneous activation. Recheck all splices with a multimeter in diode mode; forward voltage drop across each joint should not exceed 150mV. Reinstall battery ground last, then test at idle RPM to validate stable operation under dynamic load.

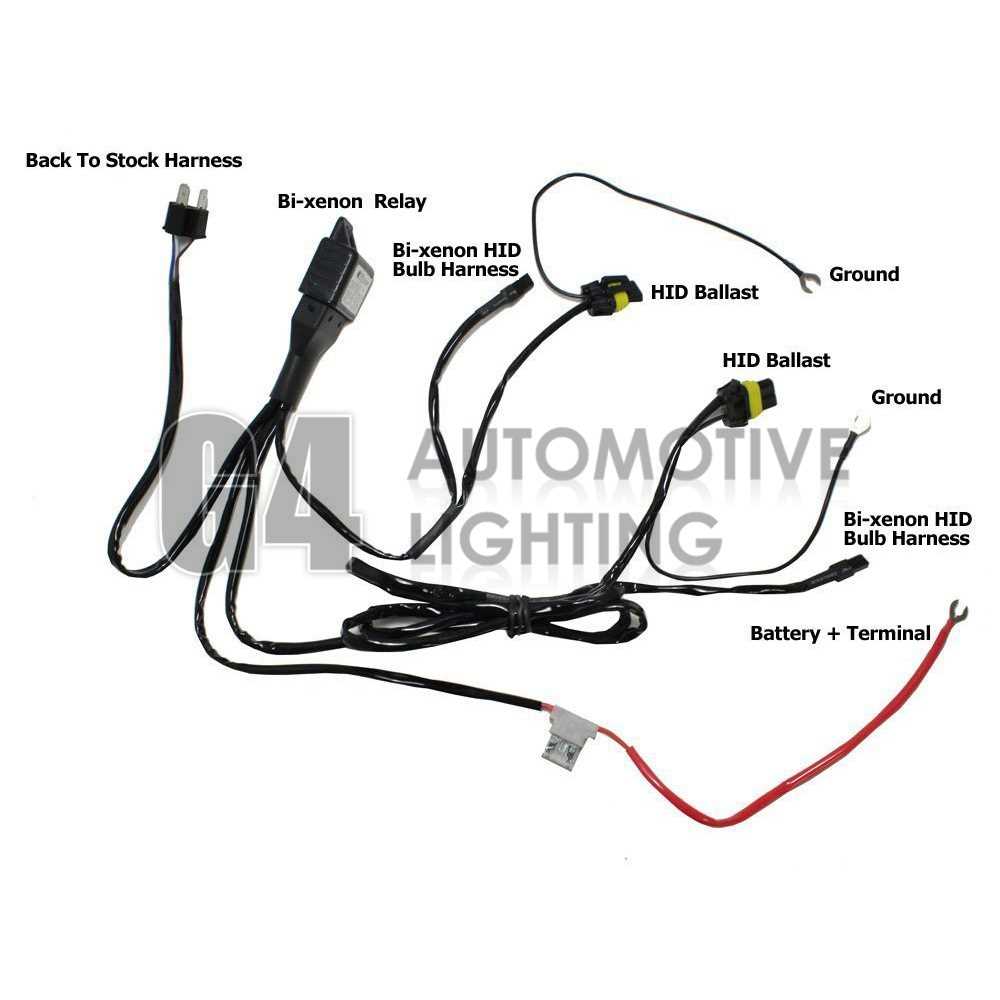

Proper Techniques for Relay and Fuse Integration in High-Intensity Lighting Systems

Identify the exact amperage rating of the lighting module before selecting a fuse–most 35W units require a 15A fuse, while 50W variants demand 20A. Use only slow-blow fuses to accommodate inrush current spikes during startup without unnecessary tripping. Install the fuse as close to the battery as physically possible, reducing the risk of exposed cables acting as potential short-circuit points.

Relay selection hinges on the coil voltage and contact rating: a 12V/40A relay suffices for standard setups, but high-draw configurations may necessitate a 100A variant. Wire the relay’s coil to a switched ignition source to prevent parasitic drain, ensuring the control circuit remains inactive when the vehicle is off. Solder and heat-shrink all relay connections to eliminate corrosion or vibration-induced disconnections.

Avoid daisy-chaining relays or fuses; each lighting circuit should have dedicated protection. Ground the relay’s case and the lighting unit’s negative terminal to the chassis at a single, clean, bare-metal point–never rely on painted or coated surfaces. Verify ground integrity with a multimeter: resistance should read below 0.5 ohms between the negative terminal and the chassis.

Use 14-gauge wire for relay control circuits and 12-gauge (or thicker) for power delivery, matching the wire gauge to the fuse rating to prevent overheating. Route cables away from moving parts, sharp edges, and heat sources, securing them every 6–8 inches with nylon zip ties or adhesive clips. Wrap sensitive sections in corrugated loom tubing for additional abrasion resistance.

Test each connection with a load tester before finalizing the installation–relay contacts can fail under high current, leading to intermittent power loss or arcing. Monitor wire temperatures during initial operation; if any segment exceeds 60°C (140°F), immediately downsize the fuse or upsize the wire gauge. Replace any melted or discolored insulation to prevent future shorts.

Label every fused circuit at the fuse block with its intended device and amperage rating–this simplifies troubleshooting and prevents accidental mismatches during future modifications. Store spare fuses and relays in the vehicle’s fuse panel compartment for quick access during roadside repairs. Document the entire circuit layout, including wire colors and lengths, for reference during maintenance.

Relay sockets should be mounted vertically or angled downward to prevent moisture accumulation–water ingress is a leading cause of coil failure. Apply dielectric grease to all relay pins before insertion to improve conductivity and inhibit oxidation. Periodically inspect relays for physical damage or unusual buzzing, which indicates degraded contacts or coil issues.

Never bridge fuses with wires or foil–this bypasses critical short-circuit protection and can result in catastrophic electrical fires. If a fuse blows repeatedly, disconnect the load and test the circuit with a multimeter; a resistance below 1 ohm suggests a short that requires trace isolation. Replace any compromised wiring rather than splicing, as joints introduce resistance and failure points.
