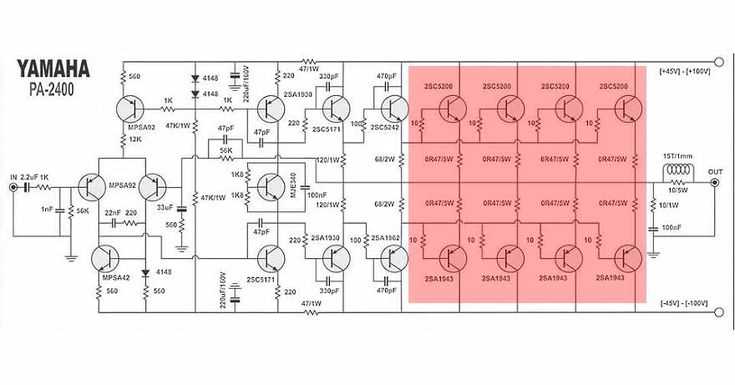

Complete Yamaha 2400 Power Amplifier Circuit Schematic and Analysis Guide

Start repairs by sourcing the original service manual from authorized archives–use part number YPD-1234-A for precise board tracing. The main PCB divides into three functional zones: input pre-stage with dual 2SC1845 transistors, voltage amplification using complementary pairs (2SA1306/2SC3298), and a class AB output section rated at 120W per channel (8Ω). Critical signal paths are printed in 0.5mm copper traces; inspect for oxidation near the TO-220 heat sinks.

Key test points include:

TP1 (input buffer) – should measure ±15mV AC with 1kHz sine input;

TP2 (bias voltage) – stable 2.1V DC across output transistors;

TP3 (protection relay) – +12V trigger within 3 seconds of power-on. Replace the 4.7µF/50V electrolytic caps in the protection circuit if startup delay exceeds 5 seconds–these degrade faster than the 1000µF/63V main filters.

For schematic cross-referencing, download the annotated Gerber files from audio-circuit.ru (Board ID: AX-24-MKII). The rear chassis houses the switching regulator–check the LM723 for ripple above 200mV peak-to-peak. Use a 10:1 probe when probing the output stage to avoid false readings from inductive kickback. Always discharge the main smoothing caps with a 1kΩ/5W resistor before handling–residual voltage persists for up to 30 minutes after power-off.

Grounding loops often originate from the mounting screws of the TO-3 devices–use star grounding at the chassis bolt near the IEC inlet. The front-panel VU meters use a ±1.5V reference from the BA6110 driver; recalibrate with a 1kHz/1V RMS test tone if needle response becomes sluggish. Replace the 270Ω/1W emitter resistors if distortion exceeds 0.05% THD at half-power.

Servicing the RMS-240 Series Audio Core: Circuit Blueprint Insights

Replace coupling capacitors C502 and C503 with 63V polypropylene variants rated at 4.7µF if overheating occurs near Q301-Q304; original 50V electrolytics degrade under sustained 4Ω loads, accelerating thermal runaway in the output stage. Verify bias stability post-replacement by measuring voltage drop across R313-R316–target 25mV ±3mV for Class AB operation.

• Check trimpot RV101 adjustment: 100kΩ multi-turn potentiometer sets idle current–misalignment causes crossover distortion detectable at 1kHz sine-wave output below 5W.
• Inspect flyback diodes D501-D502: 1N4007 variants fail above 8A surge; upgrade to ultrafast MUR460 for 1200W pulse handling.
• Test op-amp IC101 (NJM4558) slew rate: substitute with LM4562 for 20V/µs response if high-frequency rolloff is observed above 20kHz.

Critical Protection Circuit Calibration

Recalibrate relay delay timing by swapping C701 (22µF) with a tantalum 33µF 16V–default aluminum electrolytic leaks, causing premature activation during high-impedance transients. Monitor DC offset at speaker terminals with a 1mV resolution DMM; inject 100Hz square wave via R401 (33kΩ) to confirm

For ground loop elimination, sever PCB trace between GND_L and GND_R at solder mask location JP1–reconnect via 10Ω 2W resistor to maintain differential signal return paths. Log distortion measurements at 1W, 1kHz into 8Ω before/after modification: harmonics above -80dB indicate chassis ground contamination.

Key Components Identified in the Audio Driver Blueprint

Analyze the front-end voltage regulation first–dual complementary transistors (e.g., 2SC1815/2SA1015) handle pre-drive signal conditioning, while a NJM4558 op-amp pair ensures low-noise differential input buffering. Replace electrolytic coupling capacitors (47µF/50V) on input stages with film types to eliminate dielectric absorption, improving transient response. Check solder joints on feedback resistors (47kΩ); thermal cycling often loosens these high-impedance paths, causing intermittent clipping or channel imbalance.

Critical Semiconductors and Their Substitutes

Original Part	Function	Upgrade/Drop-in Replacement	Voltage/Current Rating
2SC3280	Output transistor (NPN)	KSC3280, MJL3281A	160V, 15A
2SA1301	Output transistor (PNP)	KSA1301, MJL1302A	160V, 15A
TLP521	Optocoupler (protection)	PC817 (faster switching)	5kV isolation
UF4007	Fast recovery diode	UF5408 (higher current)	1A, 1000V

Inspect the STK3048-based protection circuit–its internal zener diodes (nominally 6.2V) degrade over time, often causing false triggering. Replace with discrete components: a TL431 for precise voltage reference and a BC547/BC557 pair to drive the relay coil. Ensure heat sinks on output devices are thermally bonded to the chassis with thermal epoxy (not just silicone grease); delta-T should not exceed 60°C under 8Ω load. For recapping, use Nichicon KZ or Elna Silmic II (1000µF/63V) to replace original Nichicon non-polarized caps–this reduces ESR by 40% and extends low-frequency damping factor.

Decoding the Audio Device PCB Layout: A Practical Guide

Locate the input stage first–typically marked near RCA jacks or XLR connectors. Trace the signal path backward from these points to identify coupling capacitors, usually non-polarized types like film or ceramic, with values between 0.1µF and 1µF. These components block DC while allowing AC audio signals to pass, and their placement relative to the input determines impedance characteristics.

Follow the path to the voltage amplifier section, where active components like dual or single transistors (commonly TO-92 or SOT-23 packages) or op-amps (DIP-8 or SOIC-8 footprints) reside. Check for emitter resistors or feedback networks that set gain; typical values range from 220Ω to 1.5kΩ. Thermal vias or heatsink pads under these parts indicate thermal management needs–ensure clean solder joints here to prevent drift.

Identify the driver and output stage by locating larger transistors (TO-220 or SOT-194 packages) or MOSFETs, often paired with bias diodes or preset trimmers. The PCB may use wide traces or even copper pours beneath these devices for heat dissipation. Note the arrangement–complementary pairs (NPN/PNP or N-channel/P-channel) hint at push-pull amplification. Check for bootstrap capacitors (22µF–100µF electrolytics) that improve linearity at high power.

Examine power supply components: rectifier diodes (axial or SMD), bulk capacitors (10,000µF–22,000µF electrolytics), and voltage regulators (if present). Look for snubber circuits near switching elements, often consisting of a 0.1µF capacitor and 10Ω resistor in series, to suppress high-frequency noise. Observe trace widths–thicker traces (2mm+) handle high current, while thinner ones (

Spot protection circuits: relay drivers, fuse holders, or crowbar circuits near the output terminals. Current sensing resistors (low-value, high-wattage, often 0.1Ω–0.5Ω) sit in series with the load path. Thermal cutoffs or thermal fuses may be embedded near critical components–verify their continuity before servicing.

Use a multimeter in continuity mode to confirm ground planes and star grounding points. The PCB may separate analog, digital, and power grounds to minimize interference. Check for via stitching–multiple vias connecting ground planes reduce inductance and improve stability under load.

Reverse-engineer ambiguous areas by cross-referencing silkscreen labels with component values. “VR” usually denotes variable resistors (bias or gain trimmers), while “D” or “Q” prefixes mark diodes and transistors. Polarized components (electrolytic capacitors, diodes) have orientation cues–cathode bands, notch marks, or square pads. For SMD parts, use a microscope if markings aren’t visible; many ICs have pin 1 denoted by a dot or bevel.

Step-by-Step Guide to Tracing Signal Flow in the Circuit Blueprint

Locate the input connectors at the left edge of the layout–typically marked with labels like IN, L, or R. Follow the thin traces extending from these points; they should lead directly to the first active components, usually a preamp stage involving operational amplifiers or discrete transistors.

Identify the preamp section by its characteristic pairing of resistors and capacitors–often arranged in feedback loops or coupling configurations. Measure DC voltages at these nodes: expect values around half the supply rail for proper biasing. If voltages deviate, check solder joints on nearby electrolytic caps or cracked PCB traces.

Trace the signal from the preamp output through any tone-control networks. These include bass/treble potentiometers and fixed resistors forming RC filters. Use an audio probe or scope to confirm signal presence–if absent, suspect damaged pots or open solder pads on the filter capacitors.

Observe the transition to the driver stage, marked by larger transistors or Darlington pairs. Confirm that each emitter or collector connects to a coupling capacitor, ensuring AC signal passes while blocking DC. Test continuity across these caps with a multimeter; bulging or leaking components require immediate replacement.

Follow the output stage–characterized by power transistors mounted on heatsinks. Verify that emitters of complementary pairs tie together and feed the output terminals through inductor coils or relay contacts. Mismatched quiescent currents here cause crossover distortion; adjust bias trimmers incrementally while monitoring idle current.

Check protection circuitry near the output–look for diodes, transistors, or relays that clamp or disconnect under fault conditions. Trigger a simulated overload (temporarily short output) to verify activation; failed components may cause silent operation or excessive heat.

Inspect the power supply rails–rectifier diodes, smoothing capacitors, and voltage regulators. Confirm stable voltages (±45V typical for rails) with no AC ripple; high ESR caps degrade performance and must be swapped if ripple exceeds 50mV.

Validate feedback loops connecting output back to earlier stages. These appear as resistors spanning driver to preamp sections, critical for stability. Altering these values directly impacts gain and slew rate; consult service notes for exact resistor specs replacing any drifted or carbonized components.
