Complete Yamaha Timberwolf 250 Electrical Wiring Diagram Guide and Troubleshooting

Begin by locating the main fuse box beneath the left side cover–the primary circuit protector is rated at 20A. If accessories fail, check this component first before probing deeper. The ignition switch wires (red, black/white, and black) connect directly to the battery’s positive terminal via a 6.0mm bullet connector; corrosion here disrupts power delivery to the CDI unit and starter relay.

The color-coded wiring harness follows this sequence for critical paths: pink (12V ignition feed), brown (ground), blue/white (ignition pulse), and green/red (charging coil output). Trace these from the stator to the voltage regulator–voltage drop below 13.5V at 5,000 RPM indicates a faulty rectifier. For fuel injection models, the grey wire (TPS signal) must read 0.5V at idle and 4.5V at wide-open throttle; deviations require sensor recalibration or replacement.

Resistance checks demand specific values–stator coils should measure 0.2–0.5 ohms between phase wires, while the lighting coil ranges from 0.1–0.3 ohms. Exceeding these thresholds signals internal shorts. The starter solenoid’s pull-in voltage is 8V; anything higher suggests a weak battery or corroded terminal posts (

ATV Electrical Schematic: Hands-On Troubleshooting

Identify the main harness connector labels before probing circuits–pins are color-coded: white/red (W/R) for ignition coil positive, black/white (B/W) for ground, orange (O) for charging coil output. Disconnect the battery terminal first to prevent accidental short circuits when testing continuity. Use a multimeter set to 20V DC scale to measure voltage drops across key nodes: 12.6V at battery posts, 13.2V–14.8V at the stator under load, 0.5V–1.5V across ignition pickups at idle. Any deviation below these thresholds indicates a compromised rectifier- regulator or corroded connectors.

Component	Expected Voltage	Failure Symptoms
Stator coil (wire cluster)	120V AC unloaded, 13.2V DC loaded	Dim lights, weak spark, erratic idle
CDI unit power pin	12.2V–12.8V DC	Misfires, no-start, backfiring
Solenoid trigger terminal	11.8V–12.4V DC during crank	Click only, unresponsive starter

Trace wiring paths by color: follow green/red (G/R) from kill switch to CDI, black/yellow (B/Y) from ignition switch to main fuse. Inspect insulation for chafing near the frame, especially behind the front fender and beneath the seat–exposed copper sparks intermittent faults under vibration. Replace any wire showing brittleness or discoloration with 16-gauge automotive-grade primary wire, crimping spade connectors instead of soldering for consistent conductivity. Verify all splices are sealed with adhesive-lined heat shrink tubing to prevent moisture ingress.

Finding Critical Electrical Elements in Your ATV Model

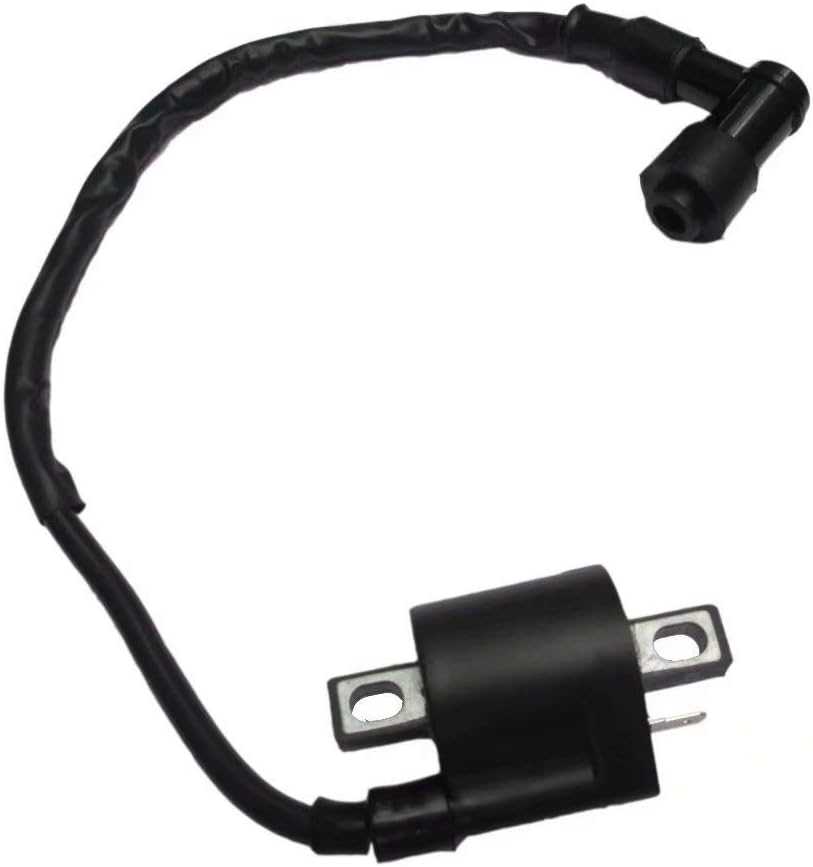

Start by removing the left-side plastic cover beneath the handlebars. The ignition coil sits directly behind this panel, secured with two bolts. Disconnect the spark plug cap before unplugging the primary wires to avoid accidental arcing. Label both connectors–one leads to the kill switch, the other to the CDI unit. Mistaking these during reassembly will prevent the engine from starting.

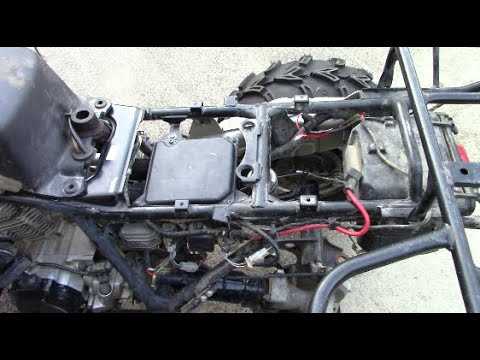

Trace the main harness along the frame’s underside toward the rear. The rectifier-regulator, a black aluminum block with cooling fins, mounts near the battery tray. Its three yellow wires connect to the stator, while the red and white outputs link to the battery’s positive terminal. Corrosion here causes voltage drops; clean connections with a wire brush if voltage readings fall below 12.6V at idle.

The CDI box hides under the right-side footwell cover. Access requires removing the floorboard–four screws hold it in place. The box itself is sealed, but check the five-wire connector for moisture ingress. A multimeter’s diode test mode confirms continuity between pins 1 (black/white) and 4 (green) for proper ground function. No reading means the unit needs replacement.

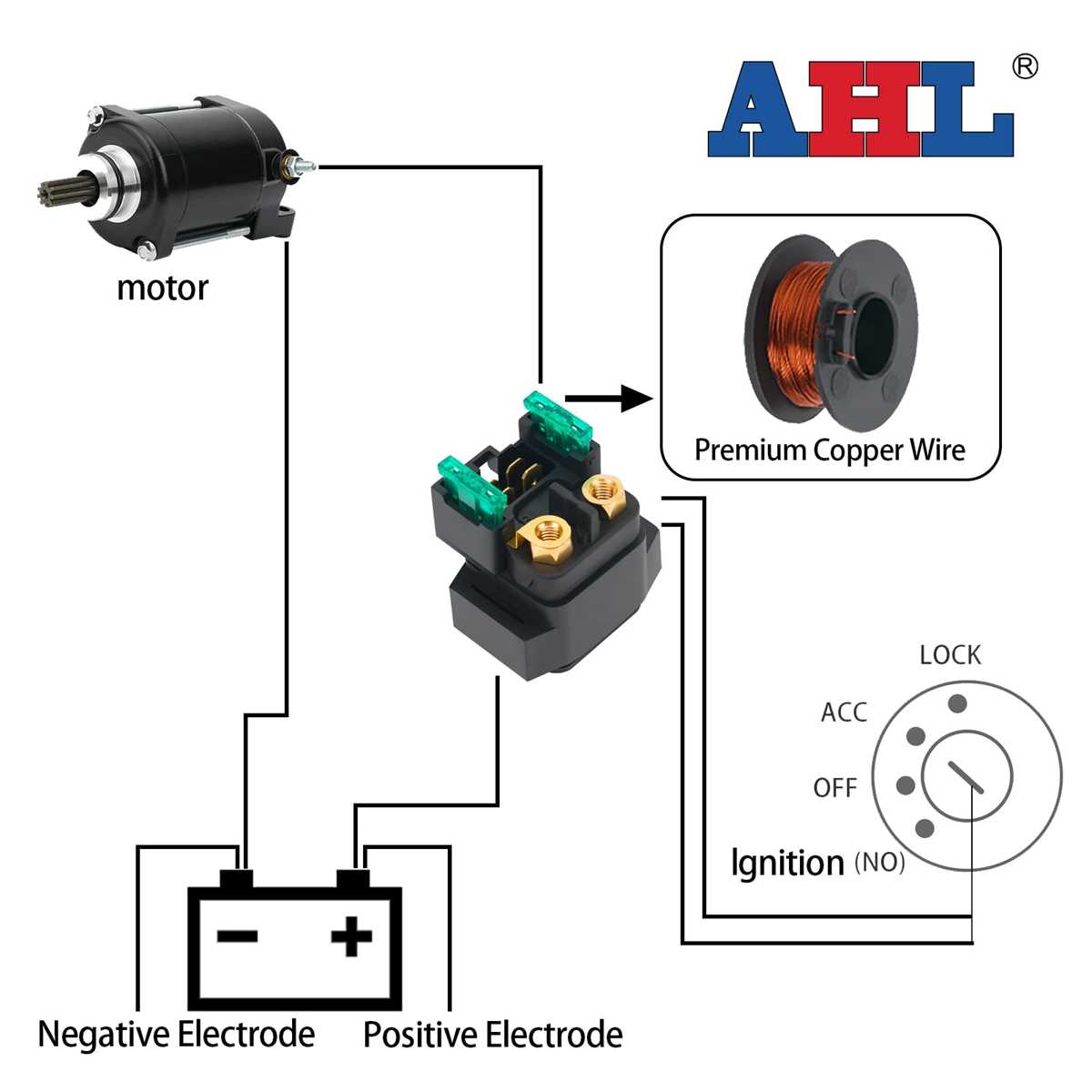

Locate the starter solenoid on the frame’s right side, between the engine and gearbox. The thick red cable attaches to the battery, while the thinner green/red wire triggers activation from the starter button. Jump the solenoid’s terminals with a screwdriver to test if the motor cranks. Failure here indicates either a faulty solenoid or a dead starter relay, found adjacent to the main fuse box under the seat.

The fuse panel sits behind the battery, accessed by removing the seat and rear storage bin. Each fuse slot corresponds to a labeled circuit: 10A for lights, 15A for ignition, 20A for accessories. Use a test light to verify power–probe both sides of each fuse. If only one side illuminates, replace the fuse; if neither, inspect the corresponding wire along the harness for breaks or shorts to ground.

Inspect the stator under the left engine cover. Three yellow wires emerge from the flywheel housing, connecting to the rectifier-regulator. A damaged stator produces erratic AC voltage (normal range: 18-22V at 5000 RPM). Secure connections with dielectric grease during reassembly to prevent corrosion-induced failures.

Step-by-Step Guide to Interpreting the ATV Electrical Schematic

Begin by locating the main power source on the schematic–typically a battery symbol with thick connecting lines. Trace these lines to the ignition switch, then follow the branches to verify they split into the starter relay, lighting circuit, and accessory outputs. Each path should include colored codes (e.g., R for red, B for black) matching the physical harness wires.

Identify critical components first: alternator (marked with coil symbols), voltage regulator (often a box with +/- signs), and fuse block (rectangular shapes with ratings like 10A). Cross-reference these against the owner’s manual to confirm their placement in the actual machine. Note that ground wires (usually black or green) terminate at chassis points labeled with a downward triangle.

Decoding Color Codes and Labels

• B = Black (ground or primary return)
• R = Red (primary power)
• Y = Yellow (ignition feed)
• G = Green (safety circuits, neutral switch)
• Br = Brown (tail/running lights)
• W = White (headlight high/low beam)
• L = Blue (turn signals)
• P = Pink (ECU/critical sensor power)

Follow the colored lines to their endpoints–connectors are shown as circles or squares with pin numbers (e.g., C101, C202). Measure continuity between these pins and the corresponding wires on the ATV using a multimeter set to ohms. Resistance should read near zero; higher values indicate corrosion or broken strands.

Testing Circuits Methodically

1. Disconnect the battery’s negative terminal to prevent shorts.
2. Set the multimeter to DC voltage (20V range).
3. Reattach the battery, then probe each circuit’s fuse with the ignition on. Expected readings:
   • Primary feed (R): 12.6V
   • Ignition (Y): 12.6V when key is ON
   • Lights (Br/W): 12V with lights activated
4. Check grounds by probing between chassis and battery negative–voltage should read

If a circuit fails, isolate the fault by splitting the schematic into zones. For example, if the starter relay clicks but the engine doesn’t crank, focus on the relay’s coil (small wires) and solenoid outputs (thick wires). Compare wire gauge (thickness) on the schematic to the physical wire–mismatches suggest incorrect replacements. Replace any wire with nicks, burns, or insulation damage.

Typical Electrical Faults and How to Diagnose Them

Check for corroded connectors first–especially near the voltage regulator and ignition coil. Oxidation on the pins disrupts current flow, causing intermittent starting problems or sudden engine cuts. Clean terminals with electrical contact cleaner and a small wire brush, then apply dielectric grease to prevent future corrosion. Test continuity between the stator and regulator with a multimeter; readings below 0.5 ohms indicate shorted windings requiring stator replacement.

Inspect the kill switch circuit if the engine stalls when released from choke. A faulty switch or frayed ground wire can send false signals to the CDI unit, triggering shutdown. Trace the circuit from the handlebar switch to the CDI box, testing each connection with a 12V test light–no light at any point reveals an open circuit. Replace the switch or repair damaged wiring with solder and heat-shrink tubing.

Ignition system failures often stem from a weak spark, traceable to either the CDI box or faulty spark plug cap. Measure resistance across the plug cap; values exceeding 5,000 ohms suggest internal deterioration. Swap the cap and coil temporarily with known-good components to isolate the issue. If spark remains weak, test the CDI output voltage–consistent 10V+ pulses confirm proper function, while erratic readings necessitate CDI replacement.

Dim or flickering headlights signal charging system issues, typically linked to a failing alternator or rectifier. Load-test the battery with a 10A draw–voltage should not drop below 12.5V; lower readings demand rectifier replacement. Monitor alternator output at 3,000 RPM–consistent 13.5–14.5V confirms functionality, while fluctuations indicate stator or diode failure. Replace the stator if output falls below specifications after verifying all connections are secure.

Upgrading the ATV’s Electrical System for Third-Party Add-ons

Start by locating the main fuse box under the seat–it contains six spade-type fuses rated at 10A to 20A. Replace the 15A ignition fuse with a 30A blade fuse if adding high-draw components like auxiliary lights or a winch. Use a relay for any accessory pulling over 10A to prevent overheating stock wires, which are typically 14-gauge. Crimp 12-gauge silicone-jacketed wire to the relay’s 87 terminal for better heat dissipation, especially for long-duration loads.

For GPS or heated grips, tap into the switched power source behind the instrument cluster. The brown wire with a white stripe delivers 12V when the key is on–verify with a multimeter before splicing. Avoid the red wire (constant 12V) unless installing a battery tender, as it drains power even when the ATV is off. Secure all connections with solder andheat-shrink tubing; electrical tape degrades under vibration.

Handling High-Power Upgrades Safely

Winches require direct battery connections–never splice into the factory harness. Use a dedicated 2-gauge cable from the battery’s positive terminal to the winch solenoid, grounding with an 8mm bolt to the frame near the rear cargo mount. Install a 50A circuit breaker within 7 inches of the battery to protect the winch circuit. For dual-battery setups, isolate the secondary battery with a 150A marine-grade isolator to prevent parasitic drain on the primary system.

LED light bars should run off a separate 30A relay triggered by the high-beam circuit. The blue wire with a red stripe at the headlight connector provides a clean 12V signal when high beams are on. Pair this with a dimmer switch if running both spot and flood patterns. For turn signals, splice into the flasher unit’s brown wire–this preserves self-canceling functionality while allowing aftermarket signal pods to flash in sync.

Troubleshooting Common Pitfalls

If accessories flicker or dim, check ground paths first. The stock ground strap near the battery often corrodes–clean the mating surfaces with a wire brush and apply dielectric grease. For intermittent failures, probe connectors with a non-contact voltage tester while wiggling wires; chafed insulation near the steering column is a frequent culprit. Avoid backfeeding power into the regulator–stock alternators output 17A at max, and adding too many accessories risks burning out the stator.

Use waterproof Deutsch connectors for exposed circuits, especially those routed near the front bumper or rear rack. For USB chargers, wire a 5V DC-DC converter to the accessory circuit, not the battery. This prevents voltage spikes from damaging phone circuitry. Always disconnect the negative battery terminal before working on the electrical system–shorts can fry the ECU or atomize small-gauge wires instantly.
