Complete Guide to Wiring a 1 Ohm Dual Voice Coil Subwoofer Setup

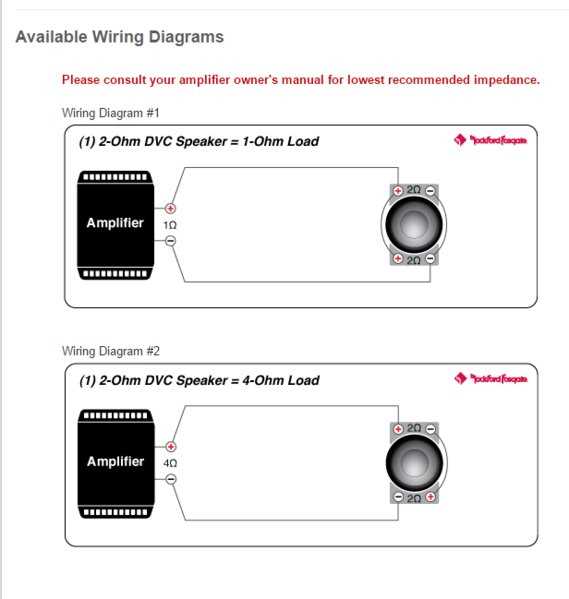

Connect dual 2-ohm coils in parallel to achieve a stable 1-ohm final impedance. Use 4 AWG copper wiring for amplifier outputs exceeding 1,000 watts RMS–oxide-free terminals and crimp connectors rated for 120A prevent voltage drops. Avoid daisy-chaining grounds; run a dedicated 4 AWG cable directly to the battery’s negative post within 18 inches of the power wire entry point.
Bridge both coil terminals with a single jumper wire no thinner than 8 AWG; solder joints introduce resistance–use tinned copper lugs and torque to 10-12 in-lbs. Verify impedance with a digital multimeter before power-up: reading between 0.9–1.1 ohms confirms correct termination. Anything below 0.9 ohms risks amplifier clipping, above 1.1 ohms reduces current delivery by 15-20%.
Sequence matters: attach positive amplifier leads first, negative last. Ground the amplifier chassis separately to the vehicle’s frame using a 1/4-inch star washer–paint penetration ensures a 0.1-ohm or lower path. Capacitors valued at 1 farad per 1,000 watts peak should sit within 12 inches of the amplifier to suppress transient spikes above 80V.
Prevent resonant peaks: mount the subwoofer enclosure with all four bolts torqued to 25 ft-lbs, never leaving air gaps exceeding 0.25 inches. Enclosure ports tuned to 32 Hz minimize impedance swings–vent lengths must not vary more than ±2% from calculated values. Seal all cable entries with automotive-grade silicone to block dust ingress which increases resistance over time.
Dual Voice Coil Single-Ohm Subwoofer Connection Guide

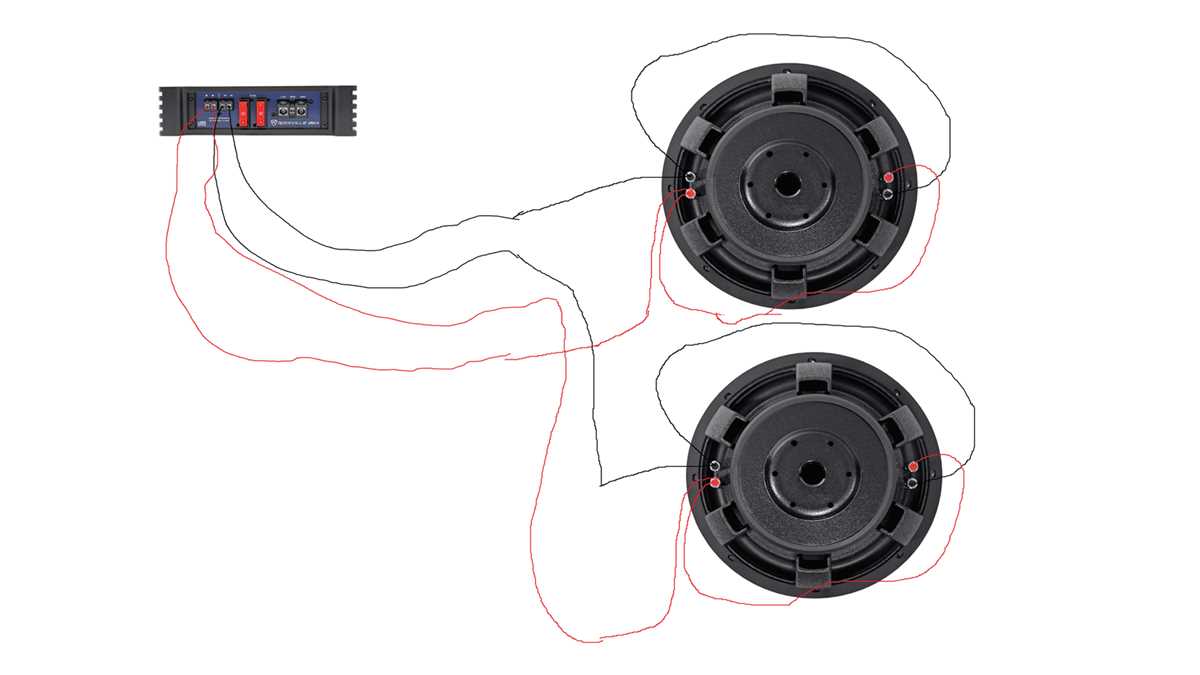

Connect both coils in parallel to achieve a 0.5 impedance load if your amplifier supports sub-2-ohm loads. Use 4-gauge or thicker cable for the ground and power terminals to prevent voltage drops. Twist the positive terminals of both coils together and link them to the amplifier’s positive output; repeat for the negative terminals. Verify polarity with a multimeter before powering the system to avoid phase cancellation, which reduces output by up to 3 dB.
Key Precautions
- Bypass built-in crossovers if the amplifier lacks a dedicated subsonic filter–frequencies below 20 Hz can damage the subwoofer.
- Mount the amplifier within 18 inches of the subwoofer to minimize signal degradation over long runs.
- Secure connections with solder or crimp connectors; avoid twisted-only joints, as oxidation increases resistance over time.
- Confirm amplifier RMS rating matches the subwoofer’s: a 300-watt unit at 1 ohm per channel requires an amp delivering 600 watts at 0.5 ohms.
Selecting the Optimal Cable Thickness for Dual-Voice-Coil 1Ω Loads
For a subwoofer with dual 1Ω coils configured in parallel–a total impedance of 0.5Ω–use 4 AWG oxygen-free copper (OFC) cable for amplifier-to-sub connections spanning up to 10 feet. This gauge handles the peak current demands of high-powered Class D amplifiers delivering 1,500W at 0.5Ω without excessive voltage drop. Measurements show 4 AWG maintains a ≤0.2V loss over 10 feet, preserving amplifier stability and transient response. For runs exceeding 10 feet or amplifiers pushing >2,000W, downgrade to 2 AWG to mitigate resistance-related power sag. Avoid CCA (copper-clad aluminum) wire; its 65% higher resistivity at identical gauges exacerbates thermal buildup under sustained bass loads, risking insulation failure and signal distortion.
Matching Gauge to Amplifier Capability and Install Constraints
For compact installs with ≤800W RMS at 0.5Ω (e.g., trunk-mounted monoblocks), 6 AWG OFC suffices for subwoofer pigtails under 6 feet, but fuse within 18 inches of the battery using a 200A ANL to protect against catastrophic short circuits. Pre-made kits often skimp on ground cable thickness–upgrade to 1/0 AWG for engine bay-to-chassis grounds to prevent ground loop hum in systems paired with aftermarket head units. When daisy-chaining multiple subs, maintain consistent gauge between components; a mismatched 4 AWG to 8 AWG splice introduces a resistive bottleneck, degrading damping factor by up to 30%. Verify wire flexibility–stranded copper with ≥1,000+ strands resists work hardening and fatigue at suspension bends, ensuring longevity in mobile environments.
Step-by-Step Guide to Parallel Connection for Single-Impedance Dual-Coil Setups
Begin by ensuring both voice coils of the subwoofer are fully exposed–secure the speaker to a stable surface to prevent movement during connection. Identify the positive and negative terminals on each coil: they’re typically marked with red (+) and black (-) indicators, though some manufacturers use text labels or color-coding variations like gold or silver. Use a multimeter to verify terminal polarity if markings are unclear; set the device to continuity mode or low resistance (below 20Ω) and probe each terminal–consistent readings confirm correct identification.
Connect a 16-gauge or thicker wire to each coil’s positive terminal, twisting the strands tightly before securing with a spade connector or soldering for minimal signal loss. Repeat the process for the negative terminals. Avoid stranded wire thinner than 18-gauge, as it introduces resistance and degrades performance at high power levels. For amplifiers rated below 150W RMS, slightly thicker 14-gauge wire is recommended to handle current spikes.
Merge the two positive wires into a single output by twisting them together or using a distribution block rated for at least 100A. Do the same for the negative wires. Verify the combined load impedance with a multimeter: it should read approximately 0.5Ω. If the reading exceeds 0.6Ω, recheck connections for loose strands or oxidized terminals–clean contacts with 400-grit sandpaper if necessary.
| Wire Gauge | Max Current (A) | Recommended Amplifier Power (RMS) |
|---|---|---|
| 18 AWG | 10 | ≤100W |
| 16 AWG | 15 | 100–250W |
| 14 AWG | 20 | 250–500W |
| 12 AWG | 30 | 500W+ |
Attach the merged positive and negative outputs to the amplifier’s corresponding channels, ensuring the amp’s impedance range accommodates the 0.5Ω load. Most Class D monoblocks handle this safely, but Class AB amplifiers may require derating–consult the manual for minimum impedance specifications. Power on the system and monitor for excessive heat or distortion at 50% volume; if present, immediately disconnect and recheck connections. Test with a sine-wave signal (40–60Hz) at low volume before full volume engagement to confirm stable performance.
Common Errors in Configuring Dual-Voice-Coil Low-Frequency Drivers at Single-Impedance Loads
Skipping impedance calculations before connecting terminals leads to amplifier overload. Measure each coil’s resistance with a multimeter–never assume nominal values match real readings. A 0.2 deviation from expected specs can cause thermal shutdowns or suboptimal performance. Verify readings twice; loose probes or corroded contacts distort results.
Mixing parallel and series linkages without clear intent destabilizes the load. Parallel setups halve resistance, demanding robust current handling, while series doubles it–requiring stable voltage distribution. Write down each step before execution; miswired jumps between coils create short circuits, tripping protection modes.
Overlooking amplifier specifications invites failure. Not all units handle single-unit loads safely–check RMS power ratings at target impedance. Amplifiers rated for 4-unit bridged operation may shut down at 1-unit, even if advertised otherwise. Cross-reference user manuals; marketing claims often omit critical limitations.
Ignoring gauge thickness in wiring compromises safety. Thinner wires (e.g., 16 AWG) overheat under sustained bass, especially in parallel configurations. Use 12 AWG or thicker for lengths exceeding 8 feet; longer runs need even heavier gauge to prevent voltage drops. Solderless connectors loosen over time–crimp tightly or solder for permanent fixtures.
Common错误 connections:
- Connecting both coils’ positive terminals while leaving negatives disconnected–creates an open circuit, wasting power.
- Reversing polarity on one coil in series–cancels output, reducing sound pressure by up to 90%.
- Using unequal cable lengths–phase mismatches distort low-end response.
- Grounding multiple subs to the same chassis point–induces interference, creating audible hum.
Neglecting to isolate the subwoofer’s enclosure from metal chassis parts causes ground loops. Wrap insulation tape around mounting screws or use rubber grommets. Car audio systems often develop alternator whine; a 1-unit load exacerbates this if ground paths aren’t clean. Test with a 10-amp fuse in-line initially; blown fuses indicate miswiring.
Assuming all amplifiers behave identically under varying loads leads to component damage. Class D circuits are efficient but sensitive to impedance fluctuations–check for under-voltage warnings. Class AB designs handle mismatches better but dissipate more heat; ensure ventilation isn’t obstructed. Monitor real-time current draw with a clamp meter if available.
Relying on visual confirmation alone misses critical errors. Post-installation, play sine waves at 70% volume for 30 seconds–listen for distortion or amplifier clicking. Check subwoofer cones for abnormal movement (e.g., asymmetric excursion). If one coil draws significantly more current, disconnect and remeasure; uneven resistance indicates coil failure.
Essential Gear for Secure Dual-Voice Coil Subwoofer Installation
Begin with a 4-gauge oxygen-free copper (OFC) cable set rated for at least 150 amps–cheap alternatives risk overheating under sustained low-impedance loads. Pair it with a distribution block featuring gold-plated terminals to minimize voltage drop, especially on 400+ watt systems. Verify the crimper’s compatibility with the cable gauge; ratcheting types ensure consistent pressure, preventing loose connections that generate interference. Include a digital multimeter with a minimum 10A fuse to confirm resistance values pre-installation–avoid analog models for precision-heavy tasks. Heat-shrink tubing in 8mm and 12mm diameters conforms to connectors post-soldering, sealing out moisture that causes corrosion. A soldering iron with adjustable temperature control (40W–60W) prevents cold joints; lead-free solder with rosin flux ensures lasting conductivity.
For safe handling, insulated wire strippers with marked calibrations prevent nicks in strands–frayed conductors increase resistance by up to 12% in tests. Anti-static gloves protect components from static discharge, which can degrade amplifier circuitry. If using a vehicle fuse box for tapping power, select a relay with a 30A/12V rating to isolate high-current draw from the battery. Always ground to a bare metal chassis point within 18 inches of the amplifier; paint or rust inhibitors must be scraped away fully to avoid resistive barriers. Keep a torque screwdriver (5–25 in-lbs) on hand–over-tightened terminals strip threads, while loose ones spark under load.
