Gas Chromatography Mass Spectrometry Schematic Breakdown and Key Components

Start with a capillary column–fused silica with an internal diameter between 0.1–0.53 mm and lengths from 15 to 60 meters. Coat the inner wall with a stationary phase (5% phenyl-polydimethylsiloxane for general use, polyethene glycol for polar analytes) at thicknesses of 0.1–5 µm. The column sits in an oven programmed from 40°C to 320°C at rates of 5–20°C/min; precision here prevents co-elution of compounds with melting points differing by less than 3°C.

Feed the sample–liquid volumes of 0.1–2 µL–through a split/splitless injector. Set split ratios from 1:10 to 1:200 to avoid column overload; splitless mode works for trace-level (

Position the ionization source–EI at 70 eV or CI with methane or ammonia–immediately after the column outlet. EI provides reproducible fragmentation patterns (NIST library matches), while CI gives molecular ion peaks critical for unknowns with masses above 500 Da. Keep the source temperature 230–280°C to avoid cold spots that cause analyte condensation.

Use a quadrupole, time-of-flight, or ion trap analyzer: quadrupoles scan 50–1000 Da at 0.1–1 scans/sec with unit mass resolution; TOF delivers 50000 resolution at 200 scans/sec, detecting transient eluents. Calibrate weekly with perfluorotributylamine: 69, 131, 219, and 502 m/z peaks must align within ±0.1 Da. Set detector voltage to 1200–1800 V; higher values increase sensitivity but shorten dynode lifespan.

Wire the system via shielded BNC cables to a data station running deconvolution algorithms: AMDIS extracts overlapping spectra, while MassHunter applies retention-time locking (±0.5 min). Export raw data in CDF or mzXML format for compatibility with third-party libraries. Store files on solid-state drives–minimum 2 TB for high-throughput labs–with automated daily backups to encrypted off-site servers.

Visualizing the Analytical Workflow of GC-MS

Begin by illustrating the sample introduction point at the left edge of your layout. Use a thin capillary tube (0.10–0.32 mm ID) leading into a heated inlet (250–300 °C) with split or splitless mode clearly labeled–split ratio 1:10 to 1:200 for trace analysis, splitless for high sensitivity. Annotate injection volume (0.1–2 µL) and carrier phase (helium at 1.0–2.0 mL/min, hydrogen 2.0–4.0 mL/min for cost efficiency). Include back-pressure regulation at 5–15 psi to prevent column overloading.

Depict the separation column as a coiled capillary (10–60 m length, 0.10–0.53 mm ID) housed in a temperature-programmed oven. Show initial hold at 40–60 °C (1–3 min), ramp 5–20 °C/min to 280–320 °C, final hold 5–10 min. Label stationary coat thickness (0.1–5.0 µm) and polarity (5% phenyl-methylpolysiloxane for general use, polyethylene glycol for polar compounds). Add retention gap (1–5 m uncoated pre-column) to protect analytical segment from non-volatile residues.

Interface and Ionization

Connect the column outlet to a transfer line maintained at 250–300 °C. Illustrate electron ionization (EI) source with a 70 eV filament emitting electrons orthogonal to the molecular flow. Mark repeller voltage (10–20 V) and ion focal lenses (+5 to +20 V) directing ions into the mass analyzer quad (0–1000 m/z). Include an optional chemical ionization (CI) gas inlet (methane, isobutane) at 1–2 mL/min for soft ionization of labile compounds.

Show quadrupole rods segmented into DC (10–100 V) and RF (200–2000 V p-p, 1 MHz) zones. Annotate scan range (50–1000 m/z) and dwell time (20–200 ms per ion) for SIM mode. Place detector (electron multiplier or Faraday cup) at rod exit with post-acceleration voltage (-2 to -5 kV) for signal amplification. Indicate vacuum stages: rough pump (1–2 mbar) and turbomolecular pump (10^-5–10^-6 mbar) to prevent ion scattering.

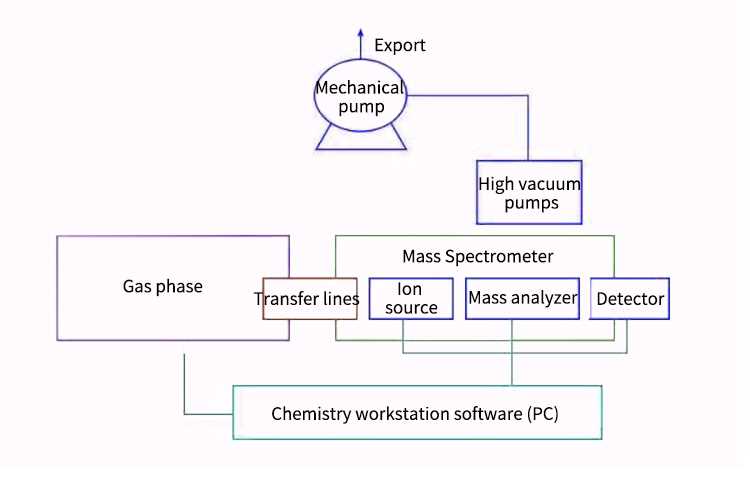

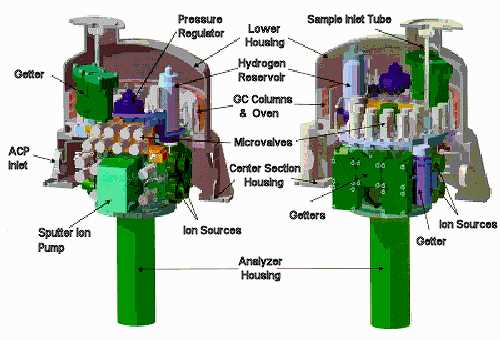

Key Components and Flow Path in a GC-MS Analysis System

Begin with a high-purity carrier medium – helium or hydrogen at 1–2 mL/min – to ensure consistent elution and prevent detector saturation. The injector must operate in splitless mode for trace-level analytes, holding at 250–300°C to transfer the entire sample onto the separation column without thermal degradation. Use a 30-meter fused silica capillary column with a 0.25 mm internal diameter and a 0.25 µm bonded stationary phase (e.g., 5% phenyl-methylpolysiloxane) for optimal separation of volatile and semi-volatile compounds. Maintain oven temperature programming at 50°C for 2 minutes, then ramp at 10°C/min to 300°C, holding for 5 minutes to elute high-boiling components.

Interface the column outlet directly to the ion source via a deactivated fused silica transfer line heated to 280°C to prevent condensation. Employ electron ionization (EI) at 70 eV for fragmentation reproducibility, though chemical ionization (CI) with methane or ammonia offers softer ionization for molecular weight confirmation. Set the quadrupole mass analyzer to scan 50–600 m/z at 2 scans/second with a resolution of 0.5–1.0 Da to balance sensitivity and selectivity. Enable automatic gain control on the detector to adjust electron multiplier voltage dynamically, extending tube lifespan while maintaining signal-to-noise ratios above 10:1 for quantitation limits below 1 ppb.

Integrate a backflush valve between the column and detector to divert high-boiling matrix components away from the ion source, reducing maintenance to once every 50 injections. Use a closed-cycle roughing pump and turbomolecular pump to sustain vacuum at 10⁻⁵ Torr, ensuring ion transmission efficiency exceeds 95%. Calibrate the system with perfluorotributylamine (PFTBA) weekly, monitoring ions at m/z 69, 219, and 502 for mass accuracy within ±0.1 Da. Store raw data in centroid mode to reduce file size without compromising spectral integrity, and export to AIA/CDF format for cross-platform compatibility with NIST or Wiley spectral libraries.

Role of the Separation Column in Analytical Detection Workflows

Select a column with a stationary phase polarity matching your target analytes: non-polar dimethylpolysiloxane (e.g., DB-1) for hydrocarbons, phenyl-arylene (e.g., DB-5ms) for aromatic compounds, or polyethylene glycol (e.g., DB-WAX) for alcohols, acids, and polar organics. Column dimensions–30 m length, 0.25 mm ID, 0.25 µm film thickness–offer optimal trade-offs between resolution and analysis speed for most lab-scale operations, while shorter (10–15 m) or narrower (0.15 mm ID) variants accelerate runs when high throughput is prioritized over baseline separation.

Thermal stability dictates performance: bonded and cross-linked phases (e.g., VF-5ms) withstand repeated 350°C pulses needed for low-volatility residues, whereas cyano-propyl or trifluoropropyl phases degrade above 260°C, limiting their use to low-boiling point mixtures. Install a guard segment–deactivated, 1–2 m of uncoated fused silica–to trap non-volatile contaminants before they reach the analytical segment, extending column lifespan by 3–5×. Helium carrier at 1.0–1.2 mL/min yields consistent retention times; switch to hydrogen for 30–40% faster separations at 0.8–1.0 mL/min, but monitor column bleed via baseline drift at temperatures >300°C–hydrogen accelerates phase degradation in some chemistries.

Retention gap effect ensures sharp peak shapes: inject samples at 40–60°C below the solvent’s boiling point to prevent flash evaporation, then program a 5–10°C/min ramp up to 20–30°C above the highest analyte boiling point for efficient elution without cold trapping. Adjust split ratios–20:1 for concentrated samples, 50:1 for trace analysis–to balance sensitivity and column overload; overload manifests as peak fronting, artificially lowering detection limits by 15–25%. After 100–150 injections, trim the inlet end 10–30 cm to restore efficiency; silica deposits reduce theoretical plate count by 5–8% per 50 injections, measurable via Grob test mix retention time shifts (±0.03 min tolerance).

Coupling Separation Instrumentation with Detection Systems: Key Design Principles

Opt for an open-split interface when working with volatile matrices or samples prone to spectral interference, as it allows precise control of flow rates while minimizing vacuum load disruptions. The interface must maintain a pressure drop below 10^-5 mbar at the extraction point to prevent analyte condensation and ensure consistent ion transmission. Avoid fixed restrictors for samples with wide boiling-point ranges–they induce discrimination against high-molecular-weight compounds, skewing relative abundances by up to 30%.

Select a deactivated fused silica capillary with an internal diameter of 0.1–0.25 mm for the transfer line, as untreated surfaces accelerate catalytic decomposition of thermally labile analytes like terpenoids or steroids. Coat the transfer line with silanized material if operating above 250°C to prevent adsorption losses exceeding 15% in polar compounds. Position the inlet of the capillary within 2 mm of the ion source entrance to reduce dead volume, which otherwise broadens peaks by 2–5 seconds and degrades resolution.

Critical Temperature and Pressure Considerations

• Set the transfer line temperature 10–20°C above the maximum oven temperature to eliminate cold spots where low-volatility components condense.
• For electron ionization, maintain source pressure between 10^-6 and 10^-4 mbar to balance sensitivity and fragmentation reproducibility–variations beyond this range alter ionization efficiency by 40%.
• Use a differentially pumped interface for chemical ionization to preserve reagent gas concentrations; a single-stage pump risks backstreaming, diluting reactant ions and reducing yield by 25%.

Implement a jet separator for packed columns or high-flow applications (>5 mL/min), but accept a 5–10% analyte loss in exchange for reduced background noise. For capillary systems, direct coupling through a vacuum-tight union suffices; avoid separators–inefficient at flow rates below 2 mL/min and prone to clogging with non-volatile residues. Clean the interface weekly if processing dirty samples (e.g., biological extracts) to prevent ion suppression from accumulated siloxanes or lipids.

Monitor vacuum system performance hourly when analyzing sulfur-containing or halogenated compounds–they corrode filament materials and degrade electron emission by 1–2% per day. Replace filaments every 300 operational hours to maintain baseline stability within ±0.1% relative standard deviation. For automated systems, integrate pressure sensors with real-time feedback to adjust flow controllers if conductance drops by 5% or more, as this indicates contamination buildup.

Troubleshooting Common Interface Failures

Detect leaks using helium leak detection–helium should not exceed 1×10^-9 mbar·L/s at the source flange. If peak tailing worsens or retention times shift abruptly, inspect the transfer line for microfractures or septum debris. Replace septa after every 50 injections to prevent ghost peaks from accumulated solutes. For persistent noise or drifting baselines, verify grounding integrity–resistance between the chassis and source should not exceed 0.1 Ω.

Calibrate mass axis weekly with perfluorotributylamine or similar reference standards, adjusting tuning parameters in 0.1 amu increments to compensate for thermal expansion in the interface. When sensitivity drops suddenly, check for column bleed depositing on the ion optics–clean with methanol-soaked lint-free wipes, but avoid sonication, which damages lens coatings. Store the system under nitrogen purge when idle to extend filament life and prevent moisture-induced corrosion of metal surfaces.
