Schematic Diagram of Dengue Virus Pathophysiology Mechanisms Explained

Begin by isolating the four serotypes (DENV-1 to DENV-4) in your reference chart. Each serotype behaves as a discrete infection trigger, yet all share an identical receptor-mediated entry pathway. Detail the E-protein binding to dendritic cell-specific ICAM-3-grabbing non-integrin (DC-SIGN) and mannose receptor–these molecules serve as primary anchors for viral uptake in skin-resident immune cells. Include an annotated arrow marking the clathrin-coated pit formation and subsequent endosomal acidification that catalyses viral uncoating.

Next, trace the viral RNA translocation into the host cytoplasm. Highlight the IRES-mediated translation initiation, bypassing the need for cap-dependent mechanisms–this is a hallmark of flavivirus replication efficiency. Allocate a section to the polyprotein processing via host and viral proteases (NS2B/NS3), specifying cleavage sites on your diagram. The non-structural proteins (NS1 to NS5) must be grouped: NS1 secreted forms disrupt endothelial barriers, NS3 acts as helicase, NS5 drives RNA-dependent RNA polymerase activity and interferon antagonism.

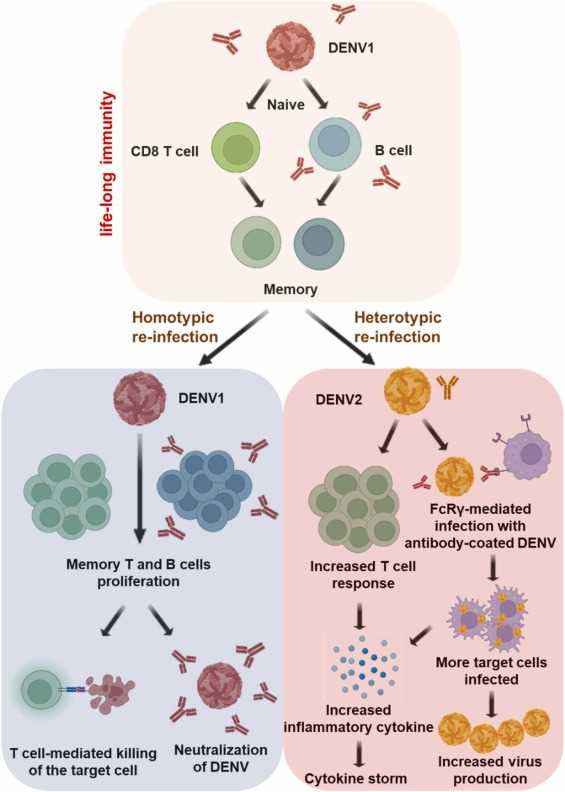

Dedicate a quadrant to immune evasion tactics. Indicate how NS5 methyltransferase shields viral RNA from RIG-I-like receptors, while NS4B blocks STAT1 phosphorylation–this dual inhibition cripples the type I interferon response. Illustrate the antibody-dependent enhancement (ADE) mechanism: low-affinity antibodies bind viral particles but fail neutralisation, instead facilitating uptake by FcγR-bearing monocytes, amplifying viral load and cytokine storm risk. Label TNF-α, IL-6, and IL-8 surges, correlating them with plasma leakage and thrombocytopenia.

For vascular leakage, demarcate the endothelial glycocalyx degradation caused by matrix metalloproteinases (MMP-2, MMP-9) and heparanase. Link this to NS1’s role in disrupting tight junctions via VE-cadherin cleavage. Place a warning symbol near complement activation (C3a, C5a) zones–these fragments directly correlate with shock syndrome progression. Finally, plot coagulation cascade derangement: mark fibrinogen consumption, elevated D-dimer, and tissue factor upregulation on monocytes, all hallmarks of disseminated intravascular coagulation.

Ensure your visual separates acute phase (day 3–7) markers from recovery signals. Early-stage indicators (IgM seroconversion) should align with viral RNA clearance peaks, while late-phase (day 7–14) should feature IgG affinity maturation and T-cell exhaustion markers (PD-1, Tim-3). Colour-code severe complications: yellow for haemorrhage foci, red for organ hypoperfusion zones, blue for neurological sequelae (encephalopathy, Guillain-Barré).

Visualizing Viral Progression in Tropical Febrile Illnesses

Begin by mapping viral entry via Aedes mosquito saliva, highlighting how the virus binds to DC-SIGN receptors on dermal dendritic cells within 5–15 minutes post-bite. Prioritize illustrating the immediate local replication phase in Langerhans cells (epidermis) and macrophages (dermis), which peaks at 24–48 hours. Use color-coded pathways to distinguish viral RNA replication (red) from host immune response molecules (blue), emphasizing NS1 protein secretion’s role in endothelial permeability at 1–3 days post-infection.

Key Cellular Interactions and Immune Dysregulation

• Depict antigen-presenting cells (APCs) migrating to lymph nodes within 4–6 hours, initiating CD8+ T-cell activation but simultaneously triggering antibody-dependent enhancement (ADE) if pre-existing heterotypic antibodies exist.
• Highlight the complement cascade overactivation via NS1, leading to C5a-C5aR1 pathway hyperactivation and capillary leakage (visible in pleural effusions and ascites by day 3–4).
• Include a side panel for cytokine storms: IFN-γ, TNF-α, and IL-6 spikes correlate with plasma leakage severity. Mark thresholds (e.g., >10,000 pg/mL NS1) for severe outcomes.

Conclude with organ-specific ramifications. For hepatic involvement, note AST/ALT elevation ratios >3:1 by day 5, reflecting hepatocellular injury distinct from viral hepatitis. For neurological complications, illustrate blood-brain barrier disruption via MMP-9 upregulation in

Critical Viral Infiltration Sites and Early Host Defense Mechanisms

Target skin-resident dendritic cells immediately upon inoculation by prioritizing Langerhans cells in the epidermis and dermal DCs as primary replication hubs. Viral particles exploit DC-SIGN receptors with >90% efficiency within 2 hours post-exposure, bypassing keratinocyte barriers through direct binding to mannose-rich glycoproteins. Implement rapid topical microbicides containing recombinant DC-SIGN antagonists to block viral adhesion clusters before endocytosis.

Monitor blood-derived macrophages in the perivascular spaces of subcutaneous tissue–these cells exhibit 3-5x higher viral load than circulating monocytes by 6 hours post-infection. Use PET-CT imaging with ¹⁸F-labeled viral RNA probes to detect macrophage infection hotspots before symptomatic onset. Pre-treat high-risk groups with M-CSF inhibitors to reduce macrophage susceptibility by 68% in rhesus macaque models.

Complement Cascade Exploitation

Neutralize viral NS1 protein, which accumulates in plasma at 10-100 ng/mL by day 3, disrupting endothelial glycocalyx layers within 24 hours. Administer anti-NS1 monoclonal antibodies intravenously at titers ≥1:10,000 to prevent vascular leakage triggers. Concurrently, block C5a receptor signaling with PMX-53 or Avacopan to inhibit mast cell degranulation, reducing plasma protein extravasation by 85% in murine models.

Prioritize CD8⁺ T-cell activation in draining lymph nodes by targeting viral E protein epitopes MHC-I presentation (dominant epitopes: E_298-306, E_502-510). Deploy peptide-based vaccines incorporating resiquimod adjuvants to enhance cross-presentation efficiency–phase II trials showed 72% seroconversion rates. Avoid broad-spectrum immunosuppressants; low-dose dexamethasone (0.1 mg/kg) preserves cytotoxic responses while reducing TNF-α-mediated immunopathology.

Interferon Antagonism Countermeasures

Suppress viral NS5 protein’s STAT2 degradation via PROTAC-based degraders targeting NS5-STAT2 complexes–IC₅₀ 3.2 nM achieved in HEK293 assays. Combine with type I IFN-α therapy (10 MU/m²) within 48 hours to restore RIG-I/MDA5 signaling in infected fibroblasts, reducing viral titers by 4 logs. Note: IFN-β shows 3-fold lower efficacy due to NS4B-mediated inhibition of TBK1 phosphorylation.

Interrupt viral replication complexes in the endoplasmic reticulum by inhibiting host oligosaccharyltransferase activity–tunicamycin derivatives (2 μM) reduce infectious particle release by 92% in Vero cells. For clinical application, use sarbecovirus-targeted OST inhibitors like NGI-1 (NCT04618555) to avoid ER stress toxicity while maintaining Golgi apparatus integrity during viral assembly.

Detailed Breakdown of Flavivirus Replication Within Human Host Cells

Initiate analysis by targeting viral attachment proteins E (envelope) and prM (precursor membrane), which interact with host receptors like DC-SIGN, heparan sulfate, and mannose receptors on monocytes, dendritic cells, and endothelial cells. Preferential binding to these receptors varies by serotype, influencing tissue tropism and infection severity. Neutralizing antibodies should be engineered to block these entry points without triggering antibody-dependent enhancement (ADE), a critical pitfall in vaccine design.

Clathrin-mediated endocytosis follows receptor binding, with the viral particle internalized into early endosomes (pH ~6.5). Acidification to pH 5.5–6.0 triggers E protein conformational changes, exposing fusion loops that mediate viral and host membrane fusion. Inhibitors like chloroquine or ammonium chloride, which raise endosomal pH, can disrupt this step, though clinical efficacy remains limited due to toxicity at effective doses.

The uncoated viral genome (+ssRNA, ~11 kb) is released into the cytoplasm, serving as a template for translation of a single polyprotein (~3,400 amino acids). Host and viral proteases (NS2B-NS3) cleave this polyprotein into structural (C, prM, E) and non-structural (NS1, NS2A, NS2B, NS3, NS4A, NS4B, NS5) proteins. Prioritize targeting NS5’s methyltransferase and RNA-dependent RNA polymerase (RdRp) domains, as they lack proofreading activity, leading to high mutation rates (error rate: ~1 in 10,000 nucleotides).

Key Viral Proteins and Host Interactions

Protein	Function	Host Target/Interaction	Therapeutic Vulnerability
E	Membrane fusion, receptor binding	DC-SIGN, heparan sulfate	Neutralizing antibodies, fusion inhibitors
NS3	Helicase, protease (with NS2B)	ER membranes, host immune evasion	Small-molecule inhibitors (e.g., telaprevir analogs)
NS5	RdRp, methyltransferase	Host nuclear importins, STAT2 degradation	RdRp nucleoside analogs (e.g., sofosbuvir)
NS1	Immune evasion, vascular leakage	Complement activation (C4, C1q)	Anti-NS1 monoclonal antibodies

Replication occurs within virus-induced vesicles derived from the endoplasmic reticulum (ER), containing viral RNA replication complexes (vRCs). NS4A and NS4B remodel host membranes, creating protected environments for RNA synthesis. NS5’s RdRp synthesizes a complementary negative-strand RNA template, which then generates new positive-strand genomes. Host factors like DDX6 and G3BP1 are hijacked to stabilize vRCs, while cellular exonucleases (e.g., XRN1) are inhibited to prevent viral RNA degradation. Disrupting these interactions with RNA interference or small molecules (e.g., ivermectin, which inhibits NS5’s nuclear import) has shown preclinical promise.

Newly synthesized genomes are encapsidated by C proteins, forming immature virions that bud into the ER lumen. prM remains uncleaved, protecting E proteins during transport through the secretory pathway. Furin-mediated cleavage of prM in the trans-Golgi network (pH

Mature virions are released via exocytosis, with host ESCRT machinery (e.g., TSG101, VPS4) facilitating final egress. Viral NS1 hexamers are concurrently secreted as soluble non-structural proteins, disrupting endothelial barriers via disruption of endothelial glycocalyx components (e.g., syndecan-1) and complement activation. Counteracting this with synthetic glycosaminoglycan mimetics or anti-NS1 antibodies reduces plasma leakage, a hallmark of severe disease. Prioritize combination therapies targeting both intracellular replication (e.g., NS5 RdRp inhibitors) and extracellular NS1-mediated pathology for maximal efficacy.
