Step-by-Step Guide to Wiring a 110V Electrical Outlet Safely
To wire a single-phase terminal correctly, first ensure the breaker is off. Identify the hot (black), neutral (white), and ground (green or bare) conductors. Strip 12 mm of insulation from each wire. Insert the hot wire into the brass screw, neutral into the silver screw, and ground into the green screw. Tighten each screw with a torque of 12–15 in-lbs (1.36–1.7 Nm) to prevent loosening over time.
Use a circuit tester to verify connections before restoring power. The hot-neutral voltage should read 220–240 VAC (nominal 230 V), with ground potential matching neutral. If readings deviate, check for reversed polarity, loose screws, or improper breaker sizing–15 A circuits require 14 AWG wire, 20 A circuits require 12 AWG. Replace any damaged insulation or nicked conductors to avoid arc faults.

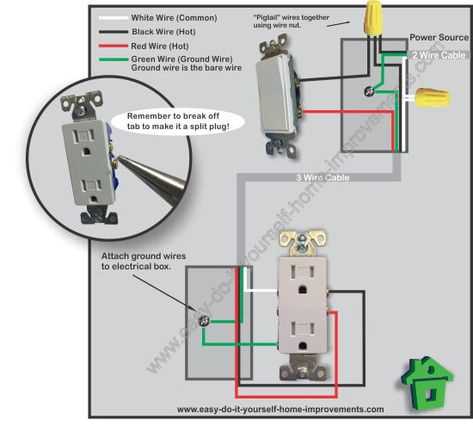

For outlets spaced over 6 ft (1.8 m), use a pigtail splice for neutrals to maintain circuit integrity. Avoid daisy-chaining grounds–bond each terminal directly to the panel’s grounding bus. In unfinished basements or garages, use GFCI-protected terminals rated for moisture resistance. Label breaker panels with terminal locations to streamline future troubleshooting.
When installing multiple terminals on one circuit, calculate total load. A 20 A circuit can support up to 10 standard terminals (2.4 kW continuous load). Exceeding this risks tripping breakers or overheating wires. For high-draw appliances (space heaters, AC units), dedicate separate circuits with wire gauges specified in the NEC (Table 310.16).
In older homes with knob-and-tube or aluminum wiring, consult local codes before modification. Aluminum conductors require CO/ALR-rated terminals and anti-oxidant paste at connections. Never splice dissimilar metals (copper-aluminum) without UL-approved connectors to prevent galvanic corrosion.
Single-Phase Receptacle Connection Guide
Always verify circuit voltage with a multimeter before handling live terminals–standard North American household grids operate at 120V AC, not the misleading “110” label often cited on devices.
Installation requires three conductors: hot (black or red, 14-12 AWG), neutral (white, same gauge), and ground (bare/green, matching gauge). Use
| Wire Gauge | Max Current (A) | Circuit Breaker (A) |
|---|---|---|
| 14 AWG | 15 | 15 |
| 12 AWG | 20 | 20 |
| 10 AWG | 30 | 30 |
for reference.
Strip insulation 5/8″ from wire ends, loop clockwise around screw terminals, and torque to 12–15 lb-in to prevent loosening. Cross-threaded connections cause arcing and overheating. For back-wired push-in terminals, ensure strands are fully inserted–partial engagement risks intermittent faults.
Polarity matters: terminate hot wires on brass screws (shorter slot on faceplates), neutrals on silver screws (longer slot). Reversed polarity can damage sensitive electronics. Ground must connect to the green screw–never omit this, even in older homes retrofitting ungrounded systems.
Test each connection with a receptacle analyzer before re-energizing. Look for:
- Open ground (plug tester LED pattern: two yellow, one off)
- Hot/neutral reversed (corrected by swapping white/black wires)
- No power (check breaker or outlet upstream)
Ignore “ghost voltages” below 50V on unloaded circuits.
For GFCI protection, use terminals labeled “LINE” for incoming power; “LOAD” extends protection downstream. Reset buttons must click firmly–weak engagement indicates faulty installation or internal damage. Replace any device with cracked housings or burnt plastic immediately; latent failures often precede fires.
Essential Gear for Installing a Single-Phase Socket
Start with a non-contact voltage tester (CAT III 600V minimum) to verify power cutoff–never trust breakers alone. Pair it with a multimeter (Fluke 117 or equivalent) to check for 120V hot-to-neutral and absence of stray currents. Include fish tape (steel, 25 ft) for pulling 12 AWG THHN wire through ½” EMT or rigid conduit–avoid vinyl-coated variants as they kink under tension. Use wire strippers with auto-adjusting blades (Klein Katapult or Ideal T-Stripper) to prevent nicked conductors; manual gauges cause future resistance faults.
Mandatory Safety and Precision Items
Conduit benders (Klein tubing bender for ½” EMT) require exact measurements: subtract 6” for 90° sweeps, 12” for offsets. Stock blue wire nuts (Ideal 72B) for #12 solid copper splices–yellow nuts create cold joints in 20A circuits. Keep anti-oxidant paste (NOALOX) on hand for aluminum-to-copper junctions, though avoid aluminum wire entirely for 15-20A residential runs. Armor arc-fault breakers (Square D QO or Eaton CH) instead of standard ones–code now mandates them in 90% of dwelling unit locations. Clamp torque screwdriver (Neiko 03717, calibrated to 18 in-lbs) for terminal screws–over-tightening fractures brass busbars.
Step-by-Step Guide to Identifying Hot, Neutral, and Ground Conductors
Shut off the circuit breaker before handling any conductors. Use a non-contact voltage tester to confirm zero current. Identify the hot conductor by its color: in North American installations, it’s typically the brass-colored screw terminal or the black-insulated wire. In some older setups or reconfigured circuits, red insulation may also denote the hot wire–always verify with a multimeter set to AC voltage against a known ground or neutral.
Confirming Neutral and Ground
Neutral (white or gray insulation) connects to the silver-colored screw terminal and carries return current. Ground (bare copper, green, or yellow-striped) attaches to the green screw terminal or metallic junction box; it’s a safety path and should never carry current under normal operation. Probe each conductor against the metal box or a known ground with the multimeter set to continuity–ground should show near-zero resistance, while neutral may register slight resistance due to circuit load. Avoid assuming color codes: test every conductor before touching.
How to Safely Attach Conductors in a Household Receptacle
Turn off power at the circuit breaker before handling any live terminals. Use a non-contact voltage tester to confirm the absence of current–hold the probe near screws and wire entry points. A false negative risks severe injury or death.
Strip 5/8 inch of insulation from each copper strand using wire strippers calibrated for 12 AWG. Avoid nicks; even slight damage reduces conductivity and increases resistance, which can overheat connections. Twist strands clockwise to prevent fraying when securing under terminal screws.
Identify brass screws for hot (black) wires, silver screws for neutral (white), and green screws for ground (bare or green). Tighten each screw to 12 inch-pounds of torque–over-tightening distorts the metal, creating loose connections over time.
Loop each conductor clockwise under its screw before tightening. The direction matches the screw rotation, preventing wires from slipping out. Use needle-nose pliers to shape loops precisely; jagged edges can pierce insulation under pressure.
Secure ground first, then neutral, then hot. This order reduces the chance of accidental contact with live metal during installation. If a wire slips while tightening, discard it–insulation stretch weakens integrity.
Common Mistakes to Avoid:
- Leaving more than 1/8 inch of exposed copper beyond the screw–shorts or arcing may occur.
- Mixing wire gauges (e.g., 14 AWG with 12 AWG)–uneven load distribution overheats thinner strands.
- Using backstab connections–they fail faster than screw terminals under load cycles.
- Skipping the anchor clamp–loose conductors vibrate, loosening terminals over time.
After securing all conductors, fold them neatly into the box without sharp bends. A convex bend stresses copper; gentle curves prevent cracking. Tug each wire lightly to ensure mechanical grip–proper tension keeps connections stable under vibration.
Restore power only after verifying no exposed metal contacts the box or adjacent terminals. Replace the faceplate and test with a plug-in device rated for 15 amps or higher. If the breaker trips immediately, disconnect and inspect for crossed wires or stray strands.
Post-Installation Checks
- Touch the cover plate 10 minutes after power-up–warmth indicates loose connections.
- Check with an infrared thermometer: terminal temperatures should not exceed 75°C under load.
- Listen for buzzing–arcing sounds mean re-termination is needed.
- Monitor for intermittent faults weekly for the first month–early failures reveal poor initial crimps.
Solving Frequent Problems in Household Voltage Socket Setups
Check the circuit breaker first if power stops suddenly. A tripped switch may appear slightly off-center or feel loose when pressed. Reset it firmly to the “ON” position–if it trips again immediately, the issue likely involves a short or overload farther down the line. Avoid repeated resets without identifying the root cause, as this can damage internal components.
Use a non-contact voltage tester to confirm live conductors before touching any terminals. Hold the device near each wire–it should beep or light up when detecting current. If no signal appears, the problem may stem from a disconnected neutral, faulty receptacle, or broken conductor inside the wall. Test both slots of the faceplate separately, as partial failures occasionally occur.
Inspect wire nuts and terminal screws for loose connections if flickering occurs. Gently tug each conductor after removing the cover plate–any movement indicates a poor splice or improperly tightened screw. Re-secure all connections with a screwdriver, ensuring no copper strands protrude beyond the terminal. For back-wired fixtures, press release tabs firmly to lock wires in place.
Examine the receptacle with a multimeter set to AC voltage mode. Insert probes into the slots–readings should show ~115-125V. If voltage fluctuates or drops below 108V, the upstream feed may have high impedance due to corroded junctions or undersized wire. Trace the circuit back to the panel, testing each junction box for consistent readings.
Replace cracked or discolored faceplates immediately. Heat buildup from poor connections often leaves scorch marks or melted plastic. Before installation, verify the new unit matches the existing configuration–polarized designs require correct hot/neutral orientation. Align the brass screw with the black conductor and the silver screw with the white neutral to maintain proper grounding.
Address buzzing sounds by tightening all mounting screws and verifying secure grounding. If noise persists, the fixture may be arcing internally–swap it out. For outlets near water sources, ensure GFCI protection is functional by pressing the “TEST” button monthly. A non-responsive GFCI suggests internal failure and requires immediate replacement to prevent shock hazards.
