Complete Nilight Wiring Harness Installation Guide with Diagrams

Begin by identifying the power source–typically a 12V battery or fuse box with a stable current output. Use a relay to prevent voltage drops, especially with high-output LED assemblies; connect the relay’s coil to the switched ignition or a dedicated toggle switch. Avoid splicing directly into headlight circuits–this risks overloading factory wiring and voiding warranties.

Terminal assignments matter. Pin 87 on a standard 40-amp relay delivers power to the lights, while pin 85 grounds the coil. Pin 30 connects to the battery via a 10-gauge cable, fused within 7 inches of the power source. For multiple light sets, parallel connections distribute load evenly; series connections will dim performance under strain.

Grounding errors cause flickering–attach grounds to bare metal chassis points, sanded clean of paint or corrosion. Use dielectric grease on connections to prevent oxidation in humid or off-road conditions. For modular setups, label each wire with heat-shrink tubing and a permanent marker; this speeds troubleshooting if a segment fails.

Test voltage at each connection before finalizing–expect 12.6V at the relay input and no less than 12.2V at the light terminals. Voltage drops below 12V indicate undersized cables or loose terminals. Adjust cable gauge if running lights over 15 feet from the relay; 8-gauge is minimum for distances exceeding 20 feet.

Pre-assembled kits often include inline fuses–upgrade to blade-type fuses in a weatherproof holder if exposed to elements. Avoid using ATC/ATO fuses for currents above 20 amps; opt for MAXI fuses rated 30A or higher for auxiliary lighting. Mount the fuse holder within 12 inches of the battery to protect the entire circuit.

Installation Schematics for Off-Road Lighting Kits: Step-by-Step Breakdown

Start by locating the vehicle’s primary power source–typically the battery’s positive terminal–using 10-gauge wire for the main feed to handle the current load of auxiliary lighting. Cut the fused relay lead to 18 inches, stripping ¼ inch of insulation from both ends; this length prevents voltage drop while allowing flexible routing under the hood. Connect one end to the relay’s 85 terminal and the other to a grounded chassis point, ensuring no paint or corrosion interferes with conductivity. For vehicles with frame grounds, use a star washer and a dedicated bolt to create a low-resistance path.

Route the output cable (via the relay’s 87 terminal) directly to the light bar’s central connector, avoiding sharp edges or moving parts that could chafe the insulation. For dual-switch setups, split the positive lead into two 14-gauge wires, each fused at 15A and running to separate dash-mounted rocker switches. Label each wire with heat-shrink tubing marked “L” (left) and “R” (right) to simplify troubleshooting. If integrating a dimmer or strobe function, splice in a 3-terminal connector after the relay but before the switches to maintain modularity.

Test the system before finalizing installation: activate each circuit while monitoring voltage at the light bar with a multimeter–readings should match the battery voltage (±0.5V). If dimming occurs, check for loose connections or undersized wire gauges, particularly at crimp points. Secure all cables every 12–18 inches using zip ties or adhesive mounts, keeping them at least 2 inches away from exhaust manifolds or turbochargers. For winch-compatible setups, add a 40A breaker inline with the main power feed to isolate the lighting system during heavy winch draws.

On vehicles with CAN bus networks, bypass factory load-sensing modules by installing a diode between the switch and the relay’s 86 terminal–this prevents false “bulb-out” warnings without requiring resistor packs. For trailers or roof racks, use waterproof connectors (IP68-rated) and loop the cables through rubber grommets at body penetrations. When mounting the control box, ensure it’s at least 6 inches above potential water pooling areas, and seal all entry points with dielectric grease to prevent moisture ingress.

How to Identify Electrification Kit Parts

Locate the power relay first–it’s typically a small black or gray box with multiple terminals. Check for labels like “85,” “86,” “87,” and “30” embossed on its housing, which correspond to input, output, and ground connections. If absent, use a multimeter to probe terminals while activating the system; the relay should click when engaged.

Trace the main fuse holder from the battery-positive cable–it’s often a transparent or colored cylindrical component with metal ends. Common ratings range from 10A to 30A depending on the kit’s capacity. Verify the fuse value matches the current draw of connected devices; exceeding it risks system failure.

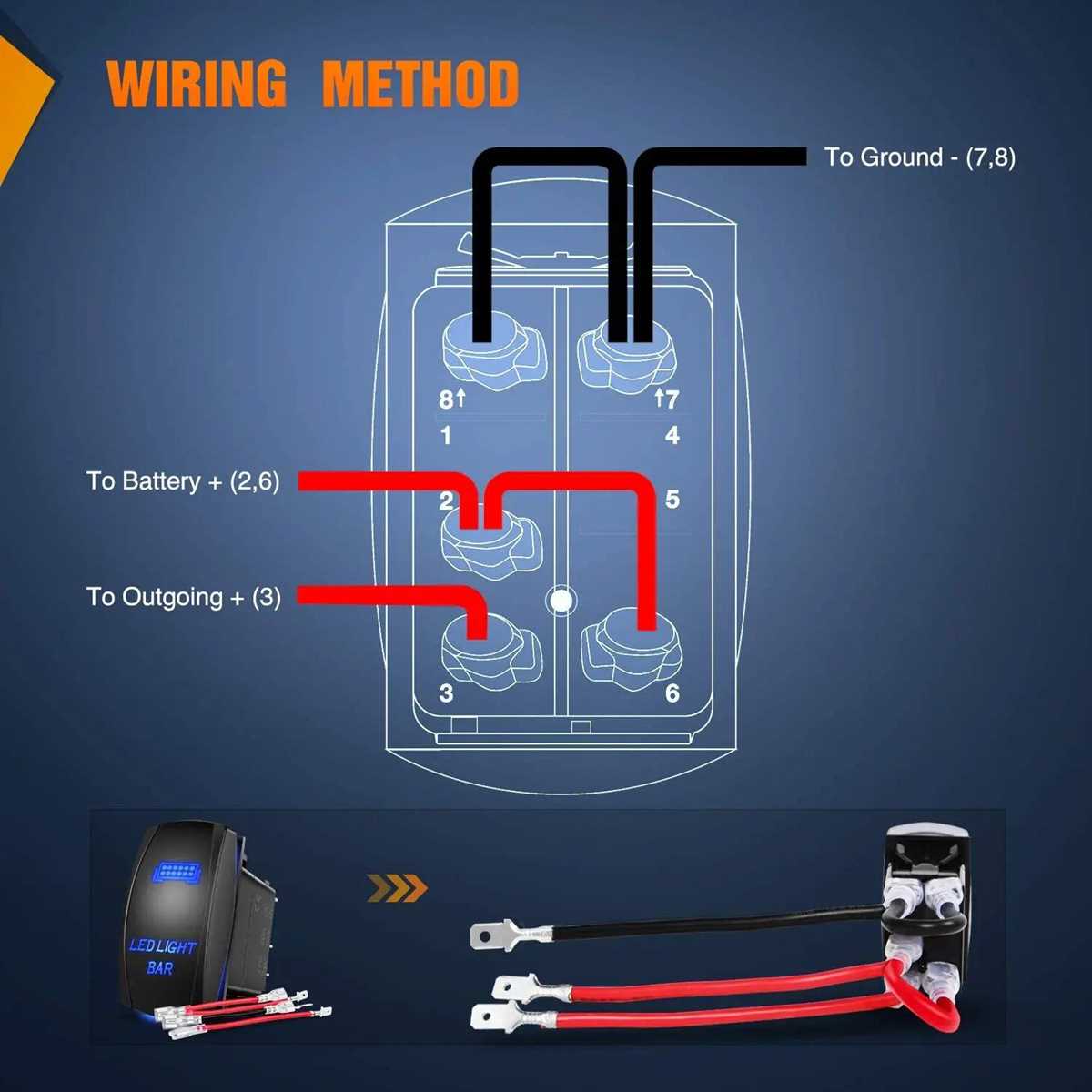

Examine the control switch for distinct markings: “ON/OFF,” “+,” or a small LED indicator. Some switches integrate a momentary push button, while others use a rocker design. Confirm compatibility with the relay’s trigger voltage–most kits use 12V, but variations exist for 24V systems.

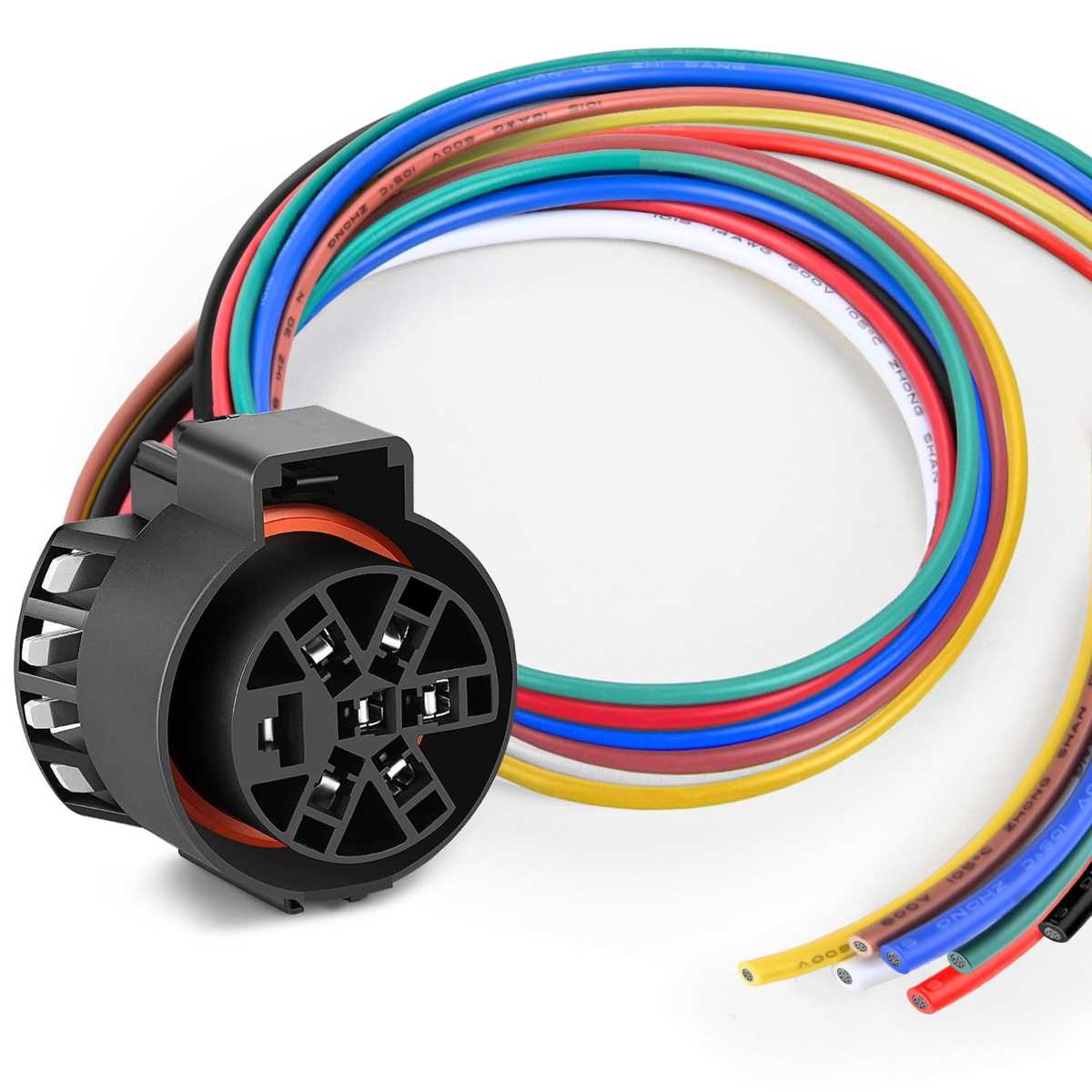

Connector Types and Wires

• Bullet connectors: Round, single-pin terminals, color-coded (red for power, black for ground). Crimp or solder properly to avoid voltage drops.
• Spade terminals: Flat, fork-shaped ends, often labeled “M” or “F.” Match male to female ends; misalignment causes intermittent connections.
• Deutsch connectors: Waterproof, multi-pin assemblies with locking tabs. Identify pin counts (e.g., 2-pin, 4-pin) by aligning tab notches.
• Heat-shrink tubing: Inspect sealed sections–tug lightly to ensure adhesion. Poor sealing leads to moisture intrusion.

Identify the ground terminal: a ring or lug attached to a bare wire, usually paired with a self-tapping screw. Scrape paint or corrosion from the mounting surface to ensure a solid connection. Loose grounds cause erratic device behavior.

Additional Components

1. Diodes: Small glass or epoxy-coated cylinders, often on control circuits. Polarized–reverse installation disables the trigger path.
2. Resistors: Ceramic or wire-wound, typically 10Ω–100Ω, placed in series with LEDs to limit current. Absence may shorten bulb lifespan.
3. Jumpers: Short colored wires bridging circuits. Redistribute as needed for specific voltage paths (e.g., splitting 12V to multiple outputs).

Refer to the included documentation for voltage maps–some kits include a decal or schematics showing wire colors and function pairs (e.g., yellow-stripe for high beams, solid brown for ground). Cross-reference with actual components; discrepancies indicate manufacturing updates or custom modifications.

Step-by-Step Electrical Kit Installation for Auxiliary Lights

Disconnect the vehicle’s battery negative terminal before handling any connectors to prevent short circuits. Identify the fuse box location–typically under the dashboard or in the engine compartment–and verify the amperage of the nearest available fuse slot. Use a fuse puller to extract the existing fuse and insert the provided mini fuse tap, ensuring the amperage matches the lights’ requirements (usually 10-15A for LED setups). Route the power lead from the tap toward the mounting location, securing excess length with zip ties away from moving parts or sharp edges.

Locate the relay module near the fuse box or a grounded metal surface. Connect the relay’s 30 terminal to the fuse tap’s output wire, the 87 terminal to the main power wire of the auxiliary lights, and the 85 terminal to a switched ignition source (e.g., the vehicle’s accessory circuit). Ground the 86 terminal to a clean, unpainted metal surface using a self-tapping screw or ring terminal, ensuring a solid connection to avoid voltage drops. Test continuity with a multimeter before proceeding.

Ground and Trigger Connections

Choose a grounding point close to the relay or light bar to minimize resistance. Sand down any paint or corrosion at the grounding site to expose bare metal, then secure the ground wire with a ring terminal and bolt. For switched activation, splice the trigger wire (often blue) into an existing accessory circuit, such as the fog light or radio wire, using butt connectors or soldered joints sealed with heat shrink tubing. Avoid tapping into high-load circuits like headlights to prevent voltage sags.

Connect the auxiliary lights to the kit’s output wires using waterproof connectors. Match the red (positive) and black (negative) wires to the corresponding terminals on each light, ensuring polarity correctness. For multi-light setups, use a distribution block to split power evenly. Apply dielectric grease to all connections before crimping to prevent moisture ingress. Route wires along existing vehicle harnesses for protection, avoiding areas prone to heat or abrasion.

Final Checks and Testing

1. Reconnect the battery negative terminal carefully.
2. Turn the ignition to the accessory position and activate the auxiliary lights. Verify brightness consistency and absence of flickering.
3. Check for abnormal heat buildup at connections or relay after 10 minutes of operation.
4. Inspect all wire routes for pinching, especially near doors or hinges.
5. Use a thermal camera or infrared thermometer to scan for hotspots if the setup draws high current.

Secure all loose wires with adhesive-lined clamps or split loom tubing. Apply UV-resistant tape to splices exposed to sunlight. Store spare fuses and connectors in the vehicle’s glovebox for future troubleshooting.

Common Errors in Auxiliary Lighting Connection Setups

Skipping the ground wire check before finalizing the installation leads to intermittent failures. Corrosion or loose connections at the grounding point cause voltage drops, reducing output by 20-30%. Test continuity with a multimeter–resistance should read below 0.5 ohms. If higher, clean the contact surface with a wire brush and apply dielectric grease before securing bolts.

Ignoring fuse ratings near the power source risks overheating the cable. The inline fuse must match the cable’s gauge: 10AWG requires a 30A fuse, 12AWG needs 20A, and 14AWG demands 15A. Exceeding these values by even 5% accelerates insulation breakdown. Always measure the actual current draw with a clamp meter–factory specs often understate real-world loads.

Mounting the relay more than 30cm from the battery introduces unnecessary voltage loss. Each extra 30cm of 12AWG cable drops 0.1V under 10A load. Route the relay wires in a straight line, avoiding sharp bends or proximity to moving parts. Secure them with nylon ties every 15cm to prevent chafing against the vehicle’s frame or engine components.

Using incorrect terminal connectors shortens the system’s lifespan. Crimp-on terminals must match the wire gauge–undersized terminals overheat, while oversized ones fail to maintain tension. For 10-12AWG wires, use sealed butt connectors with heat-shrink tubing. Avoid solder-only joints; vibration causes fatigue fractures within 12-18 months.

Overlooking the switch’s current rating leads to premature failure. Most toggle switches handle 10-15A continuously, but high-output driving lamps demand 20A+ relays. Bypass the switch with a relay if the total load exceeds 80% of its rating. Test the switch’s contact resistance before installation–values above 0.1 ohms indicate internal wear.

Improper bundling of cables creates heat buildup. Grouping power and signal wires tightly raises temperatures by 10-15°C, degrading insulation. Maintain a 2cm gap between high-current (10A+) and low-current wires. Use split loom tubing for exposed runs, securing it with self-vulcanizing tape at stress points like suspension mounts or torso hinges.

Failing to verify voltage at the light fixtures after installation wastes hours of troubleshooting. Measure voltage at the lamp terminals: 11.8V+ for halogens, 11.5V+ for LEDs. Below these values, recheck the relay’s output, fuse, and ground. For dual-intensity systems, confirm the dimming function delivers at least 70% of full voltage–lower readings indicate a misconfigured resistor or faulty switch contact.

Error Type	Consequence	Correction	Verification Method
Loose ground connection	Flickering lights	Use star washers + dielectric grease	Multimeter continuity test
Incorrect fuse size	Cable melt at 60°C	Match fuse to wire gauge	Clamp meter current measurement
Excessive wire length	Voltage drop >0.3V	Shorten run or upsize wire	Voltmeter at fixture terminals
Poor crimping	Terminal oxidation in 3-6 months	Use heat-shrink butt connectors	Pull test (10 lbs minimum)
