Step-by-Step Guide to Wiring a 115V Plug Safely and Correctly
For a standard NEMA 5-15 connector, ensure the hot wire attaches to the brass screw, the neutral wire to the silver screw, and the ground wire to the green screw. Reverse polarity risks shock hazards–verify with a multimeter before energizing. Wire gauge must match breaker ratings: 14 AWG for 15A circuits, 12 AWG for 20A. Copper conductors only; aluminum requires specialized connectors and anti-oxidant compounds.
Voltage drop becomes critical over long runs. A 120VAC supply losing 3% (3.6V) at full load requires thicker cables: 10 AWG for 50-foot runs, 8 AWG for 100 feet. Use stranded wire for flexibility in tight enclosures, solid wire for permanent installations. Secure connections with torque-rated drivers–15 in-lbs for 10-12 AWG, 20 in-lbs for 8 AWG–to prevent loosening under thermal cycling.
Color coding follows NEC Article 200: black for live, white for neutral, bare/green for earth. In split-phase systems, red designates the second live conductor. Mark all splice points with UL-approved wire nuts or lever nuts–Mechanical connections outlast solder in vibration-prone environments. Test insulation resistance before closing junction boxes; minimum 1 MΩ at 500V DC indicates integrity.
GFCI protection mandates a different approach: Connect load-side terminals only for downstream protection. Miswiring GFCI outlets renders them inoperable while appearing functional. AFCI breakers require pigtail connections–neutral cannot terminate on the breaker in multi-wire branch circuits. Always confirm local amendments to NEC; some jurisdictions demand tamper-resistant receptacles regardless of occupancy type.
Connecting a North American Outlet: Step-by-Step Instructions
Begin by verifying the local electrical standard matches the 120-volt socket type. Check the circuit breaker rating–typically 15 or 20 amperes–to confirm compatibility with your device’s power draw.
Required tools include a flathead screwdriver, stripper (for 14-12 AWG conductors), and a non-contact voltage tester. Ensure the breaker is off before proceeding. Inspect the cable’s insulating jacket; it must comply with NEC Article 400 for handling and voltage capacity.
- 18–22 AWG wires suit low-load devices like lamps.
- 14–12 AWG wires handle appliances exceeding 10 amperes.

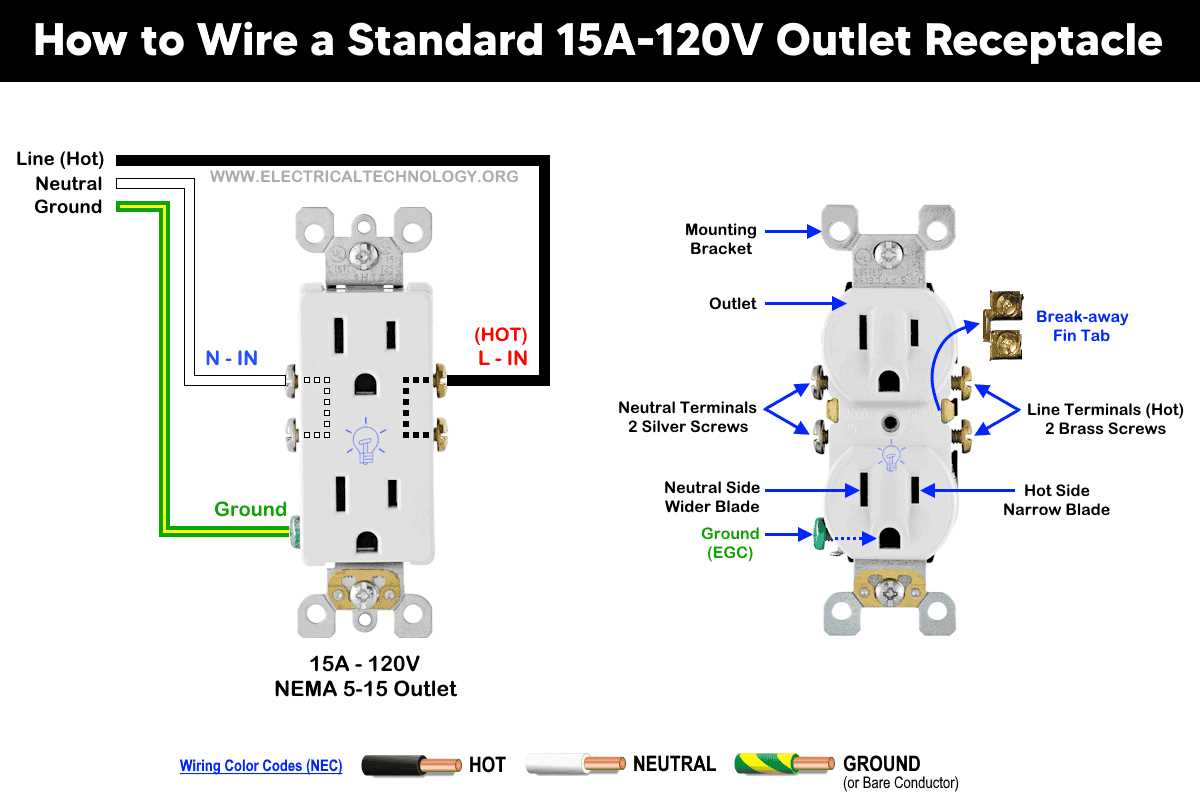

Examine the outlet’s terminal layout. The brass screw connects the hot conductor (black or red), the silver screw secures the neutral (white), and the green screw grounds the bare or green wire. Misalignment here risks short circuits or equipment damage.
Strip 5/8 inch of insulation from each lead. Twist the exposed strands clockwise, then hook them around the corresponding terminal screws in the same direction to ensure tight contact. Tighten screws firmly while avoiding overtightening, which can strip threads or snap conductors.
For polarized plugs, the neutral blade is wider than the hot one. Match the neutral wire to the wider slot internally. Failure to observe polarity can result in reversed voltage output, potentially voiding warranties or damaging sensitive electronics.
- Wrap leads around screws, not under them, to prevent wire slipping.
- Trim excess conductor length to prevent shorting across terminals.
- Recheck connections with a multimeter–120V between hot and neutral, 0V between neutral and ground.
Secure the assembled connector into the socket housing. Slide the cover plate over it, aligning screw holes. Restore power at the breaker and verify functionality with a receptacle tester. If the device fails to activate or trips the breaker, revisit each joint for loose connections or insulation faults.
Essential Equipment for Installing an Electrical Connector
Begin with a heavy-duty wire stripper capable of handling 12-14 AWG conductors–cheaper models often fail to cleanly remove insulation without damaging copper strands. Pair it with a digital multimeter (True RMS for accuracy) to verify voltage absence before handling terminals; analog meters lack precision for low-current checks. Include a crimping tool with dedicated slots for insulated and non-insulated fork/spade connectors–never use pliers, as improper compression creates resistance hotspots.
A torque screwdriver (5-20 in-lbs) prevents terminal loosening under vibration, a leading cause of intermittent failures; standard screwdrivers over-tighten and strip threads. For insulation protection, use heat-shrink tubing (polyolefin, 3:1 shrink ratio) instead of electrical tape–UV-resistant variants last decades. Include a grounding spade connector (green, with a captive screw) to meet NEC 250.148 standards; standard crimped terminals risk corrosion in humid environments.
Select oxygen-free copper wire (THHN/THWN-2) in 12 AWG for 20A circuits, ensuring 90°C insulation rating even if local codes permit 75°C–overbuilding reduces future rework. For outdoor use, a weatherproof junction box (NEMA 3R) with stainless-steel hardware prevents moisture ingress; avoid zinc-plated screws that corrode within two years. Store tools in a lineworker’s pouch with individual pockets to prevent conductive contact–mixed tools arc unexpectedly during fault checking.
Step-by-Step Color Coding for NEMA 5-15 Connector Leads
Verify the cable’s insulation colors match the U.S. standard before insertion. The green lead must attach to the ground terminal–marked with a green screw or grounding symbol. Connect the brass-colored screw to the gold or yellow conductor (hot), and the silver screw to the white conductor (neutral). Cross-check against the table below to prevent miswiring:
| Terminal | Color Code | Function |
|---|---|---|
| Brass screw | Gold/Yellow | Line (energized) |
| Silver screw | White | Return (grounded) |
| Green screw | Green | Earth |
Strip insulation back exactly 5/16 inch–excessive bare wire risks shorting, while insufficient exposure may cause loose contact. Twist stranded copper clockwise before wrapping it around the screw terminal to ensure uniform tension. Tighten screws until snug (torque 12-15 in-lbs), then tug each lead firmly to confirm zero movement. Re-test polarity with a multimeter after assembly to avoid potential hazards.
How to Identify Hot, Neutral, and Ground Terminals Safely
Start by using a non-contact voltage tester to confirm the live conductor–this wire carries the active current and typically connects to brass or gold-colored screws on devices. Hold the tester 1–2 cm from the wire insulation; a steady beep or LED flash indicates the hot terminal without requiring direct contact, reducing shock risk. Verify results by testing known live circuits first to ensure the tool’s accuracy, as false readings can occur near fluorescent lighting or faulty wiring.
Distinguishing Neutral and Ground
Neutral terminals usually attach to silver-colored screws and return current to the source, while ground connects to green screws or bare copper wires, providing a safe path for fault currents. Measure continuity with a multimeter: set to low resistance (Ω), touch one probe to the suspected neutral and the other to a grounded metal surface–near-zero resistance confirms neutral. Repeat for ground, expecting similar readings. Avoid relying solely on wire color (white for neutral, green/bare for ground in North American standards) as miswiring or code violations may exist.
For added safety, disconnect power at the circuit breaker before handling terminals. If visual inspection reveals a white wire wrapped with colored tape, treat it as hot–local codes sometimes permit this for switch loops or multi-wire circuits. Probe screw terminals directly with the multimeter (voltage mode, AC setting) after re-energizing: hot-to-ground should read 120V, hot-to-neutral 120V, and neutral-to-ground near 0V. Deviations suggest reversed polarity or faulty grounding, requiring immediate correction to prevent fire hazards or equipment damage.
Critical Errors in Household Socket Installation and Prevention
Mixing hot and neutral conductors at the terminal risks immediate short circuits. Terminal screws on outlets accept only one wire each–never loop two separate conductors together. For split circuits requiring two leads, use a pigtail splice in the box with a twist-on connector rated for 20A Wire gauge 12 copper. Label every conductor at the breaker panel with indelible ink matching NEC Article 408, section 4.
Ignoring amperage ratings invites overheating. Standard receptacles carry a 15A max rating stamped on the casing; replace any outlet showing scorch marks immediately. Copper wiring sized at 14 AWG matches 15A circuits, while 12 AWG handles 20A loads–never substitute thinner wire to save cost. Verify torque settings on terminal screws with a calibrated torque screwdriver set to 12 in-lbs for side-wired terminals.
Frequent Missteps in Grounding
- Connecting grounding conductor to the neutral bus bar inside subpanels–retain separate ground and neutral buses per NEC 250.24(A)(5).
- Using metal boxes without bonding the grounding screw or jumper to the ground bus.
- Daisy-chaining ground wires without verifying continuity with a multimeter set to ohms.
- Omitting GFCI protection in kitchens, bathrooms, and outdoor outlets–test monthly using the “Test” button.
Loose connections generate heat; NEC 110.14 requires tight terminations at 14 AWG and 12 AWG copper. Strip insulation exactly 5/8 inch, form a clockwise hook, and secure under terminal screws–counterclockwise loops unravel under vibration. After final tightening, tug each conductor with needle-nose pliers to confirm mechanical retention. Measure voltage drop across each outlet with a voltmeter; anything above 3% indicates corrosion or loose termination.
Installing outlets upside-down contravenes common practice but adheres to NEC 200.6(C), which allows any orientation if done consistently. Mark the top of every outlet with a paint pen dot for future reference during troubleshooting. Before securing drywall, photograph each circuit run with a labeled legend showing breaker associations–store images in a fireproof document case alongside the electrical permit.
