Complete Guide to Creating Accurate Spa Electrical Circuit Layouts

Begin by isolating the power source. Use a dedicated 240V GFCI-protected breaker for systems exceeding 3 kW, matching the load specifications of pumps, heaters, and blowers. Connect the breaker to a 4-wire configuration (L1, L2, neutral, ground) to prevent interference between components. Label each conductor at the junction box to avoid miswiring during maintenance.

Integrate a dual-speed pump with a manual reset high-limit switch calibrated to 118°C (245°F). Position the switch within 15 cm of the heater’s exit port to detect overheating promptly. For silent operation, couple the pump with a 3 HP motor and mount it on rubber vibration pads rated for 85 dB(A).

Select a titanium-coated heater with a 5.5 kW output for corrosion resistance in chlorinated environments. Ensure the heater’s thermostat allows adjustments in 1°C increments, safeguarding against thermal stratification. Install a pressure switch on the return line–set it to trip at 34 kPa (5 PSI) to prevent dry-fire scenarios.

Use 2 AWG copper wiring for heater connections, derating for 60°C ambient temperatures. Shield control cables with EMI-resistant conduit if routing near variable-frequency drives. Ground all metallic components, including handrails and jets, with 6 AWG bare copper straps to a common bonding grid.

For ozone systems, incorporate a venturi injector with a 3 mm orifice and a Mazzei 484 model for optimal suction. Position the ozone generator’s air pump 30 cm above water level to prevent backflow. Include a UV sterilizer downstream to neutralize residual ozone, using a 40 W lamp with a 254 nm wavelength.

Verify flow rates with a digital anemometer: target 15–20 L/min per jet for hydro-massage consistency. If using a sand filter, size it to 50% of the total system volume–opt for a 30″ tank with a 220 kg silica media layer. Backwash every 7–10 days at 40 L/min to maintain pressure below 103 kPa (15 PSI).

Test electrical connections with a megohmmeter, ensuring insulation resistance exceeds 1 MΩ at 500V DC. Apply dielectric grease to all terminals exposed to moisture. Finally, simulate a ground fault by shorting a 15 mA resistor across the neutral and ground–confirm the GFCI trips within 5 ms.

Designing a Reliable Hydrotherapy Pool Electrical Layout

Install a dual-pole 30A breaker for the primary heater to prevent voltage imbalance–single-pole 240V circuits risk uneven resistive loads, accelerating element burnout. Wire gauge must match the breaker’s ampacity: use 10 AWG for 30A, 8 AWG for 40A, and account for 3% voltage drop over runs exceeding 50 feet by upsizing conductors. Ground all metallic components, including pumps and control panels, with an insulated copper wire (minimum 6 AWG) bonded to a buried 8-foot copper rod at least 6 feet from the equipment pad.

Component	Voltage	Wire Size (AWG)	Breaker Rating	Max Wire Length (ft)
High-speed pump	240V	12	20A	75
Blower	120V	14	15A	60
LED lights	12V	16 (low-voltage)	N/A	20
Ozone generator	120V	14	15A GFCI	40

Use waterproof flex conduit (Liquidtight) for outdoor connections, securing with stainless steel straps every 36 inches. Separate low-voltage lighting circuits from high-current loads to avoid electromagnetic interference–keep transformers at least 24 inches from pump motors. Label each conductor at both ends with heat-shrink sleeves, marking phase, neutral, and ground with color-coded tags: black/red (hot), white (neutral), green (ground).

Critical Safety Checks Before Energizing

Verify torque settings on all terminal connections using a calibrated screwdriver–UL 486A requires 18 lb-in for #10 AWG copper. Test GFCI outlets with a multimeter in both trip and no-trip conditions; leakage current should not exceed 5 mA. Apply dielectric grease to all aluminum-to-copper splices to prevent galvanic corrosion. For outdoor installations, use NEMA 4X-rated junction boxes and seal cable entries with silicone-based duct seal. Recheck resistance between bonded components and grounding rod–values above 0.5 ohms indicate faulty connections requiring retermination.

Critical Elements for Your Relaxation System Electrical Layout

Begin by clearly labeling the power source connections, including the main breaker panel and subpanels. Use a 50-amp dual-pole breaker for standard installation, ensuring compatibility with 240V systems. Mark wire gauges–typically #6 AWG for pumps and #8 AWG for heaters–to prevent overheating and voltage drops. Include a ground fault circuit interrupter (GFCI) within 5 feet of the equipment pad to comply with NEC Article 680 safety standards.

Core Functional Units

• Heating mechanism: Specify whether it’s an electric, gas, or heat pump model. Electric elements require a dedicated 30-60 amp circuit, while gas units need proper ventilation pathways marked.
• Pump assembly: Indicate single-speed, dual-speed, or variable-speed models. Single-speed pumps run on 120V or 240V; note voltage and amperage (e.g., 1.5 HP at 10-12 amps). Variable-speed units often integrate control boards requiring 120V low-voltage wiring.
• Filtration system: Label the filter type (cartridge, sand, or DE) and its backwash cycle components if applicable. Sand filters may need a multi-port valve schematic for rinse, filter, and waste modes.
• Air blower: If included, denote its amperage (typically 5-7 amps for 120V units) and position relative to jets to avoid pneumatic interference.

Integrate control systems with precise wiring paths. For digital interfaces, map the circuit from the keypad to the motherboard, using 18-22 AWG low-voltage cables. Analog timers or mechanical switches should connect via #14 AWG wires to relays. Highlight sensor placements–temperature probes (located near the heater outlet) and pressure switches (installed on the pump discharge line)–to ensure accurate feedback loops.

Safety and Auxiliary Features

1. Lighting: Use LED fixtures with transformers if operating on 12V. Mark switch locations and dimmer compatibility.
2. Ozonator or UV sanitizer: Show power requirements (usually 240V for ozonators, 120V for UV) and plumbing integration points.
3. Drainage and plumbing: Include check valves (to prevent backflow) and bleed lines. Note pipe diameters–typically 1.5″ to 2″ PVC–for proper water flow calculation.
4. Emergency cutoffs: Position an emergency stop switch near the equipment pad. Label all disconnect boxes and lockout/tagout points for service access.

Add a legend with symbols for components like capacitors, relays, and contactors. Use color-coded wires–black for hot, white for neutral, green/bare for ground–and cross-reference with a wire run table detailing lengths and termination points. For multi-zone setups, separate controllers for jets, lighting, and heating to avoid signal conflicts. Test continuity paths with a multimeter before finalizing connections to verify load distribution.

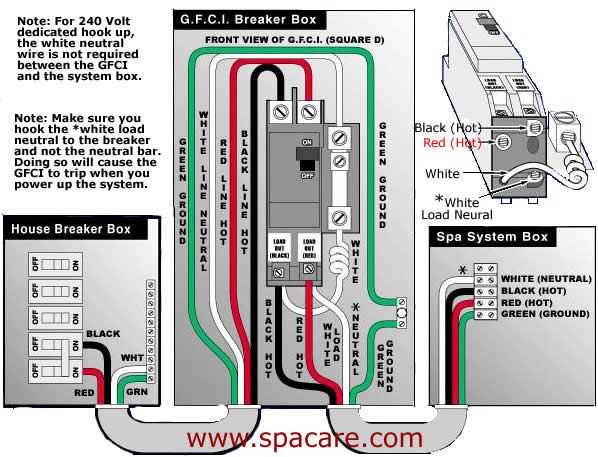

Step-by-Step Wiring Guide for a Basic Hot Tub Installation

First, disconnect all power sources at the main breaker before handling any electrical components. Use a non-contact voltage tester to confirm wires are dead. For a 240V setup, run a dedicated 50-amp GFCI-protected circuit from the breaker panel to the control box, using 6 AWG copper wire for distances under 50 feet. Label each conductor (black, red, white, green) at both ends to prevent misconnection.

1. Mount the GFCI breaker in the panel, connecting the black and red wires to the breaker terminals, white to the neutral bus, and green to the ground bus.
2. Route cables through a rigid metal conduit or liquid-tight flexible conduit if exposed to moisture or UV rays. Secure with straps every 4.5 feet.
3. At the control box, strip 0.5 inches of insulation from each wire. Attach black to L1, red to L2, white to N, and green to the grounding lug.
4. Connect the load side of the GFCI to the pump motor terminals, matching voltage ratings (check the motor label–most require 240V with dual-voltage capability). Wire the heater element directly to the control box’s relay, using 8 AWG wire for 40-amp heaters to handle current draw.

Install a 2-pole, 50-amp disconnect switch within 5 feet of the tub, accessible but not within arm’s reach of water. Use a weatherproof enclosure rated NEMA 3R. Wire the disconnect by connecting the incoming conductors from the GFCI breaker to the top terminals and outgoing wires to the control box at the bottom. Test continuity with a multimeter before energizing.

• For auxiliary components, wire the blower motor to a separate 120V circuit or a relay controlled by the main board if shared.
• Use waterproof butt splices or terminal blocks (rated for 600V) for all joints, covering with heat-shrink tubing or silicone sealant.
• Before final inspection, verify torque specs on all terminals with an inch-pound torque screwdriver–l1/l2: 20 in-lbs, neutral/ground: 15 in-lbs.
• Energize the system and check voltage at the heater with a multimeter; readings should show 220-240V L1 to L2 and 110-120V L1 to N.
• If errors occur, measure resistance across the heater element–values below 5 ohms indicate a short, while OL signals an open circuit.

Frequent Errors in Hot Tub Electrical Schematics

Skipping ground fault protection for pumps and heaters invites serious safety risks. NEC Article 680 requires GFCI protection for all 120V and 240V loads within 6 feet of the tub’s edge. Install a 5mA GFCI breaker for each component–failure to do so can lead to paralysis or fatal shocks, especially in wet environments where stray currents find unintended paths through water or plumbing.

Underestimating wire gauge calculations wastes energy and creates fire hazards. A 6 AWG copper conductor handles 55A at 75°C, but derating factors apply: 80% of the breaker rating (e.g., 40A breaker needs 32A after derating), ambient temperature above 30°C, and bundled conductors. Using 10 AWG for a 20A load over 10 feet of conduit causes voltage drops exceeding 3%, reducing pump efficiency by 12% and overheating motors.

Avoid Overloading Neutral Conductors

Shared neutrals in multi-wire branch circuits (MWBC) for jets and lights cause overloads if phase balancing is neglected. A 20A MWBC with 15A on Line A and 5A on Line B leaves only 10A on the neutral–exceeding this trips breakers or melts insulation. Use separate neutrals for inductive loads like blowers to prevent harmonic distortion from creating circulating currents.

Mislabeling disconnect switches confuses troubleshooting. Label each switch with its corresponding load (e.g., “Pump 1 – 240V, 10A”) and include the circuit breaker number. Omitting this delays repairs by 40% on average, as technicians waste time tracing wires. Add permanent ink markings on conduit entries to track wire runs–UV-resistant labels last 10+ years in outdoor installations.
