Step-by-Step Guide to 12V LED Strip Connection and Installation Layout
For consistent illumination with minimal voltage drop, segment twelve-volt luminous tape in runs of no more than five meters when powered by a central supply. Use 18-gauge copper conductors for standard installations; reduce wire resistance by half with 16-gauge for longer distances or higher wattage loads. Connect parallel branches directly to the power source rather than daisy-chaining through previous segments–this ensures uniform brightness and prevents overheating at connection points.
Select a power supply rated at 1.2 times the total wattage of all connected segments. For example, two five-meter sections consuming 14.4 watts each require a minimum 35-watt transformer. Install a fuse rated at 125% of the expected current draw on the positive feed line, positioned within thirty centimeters of the supply output for immediate fault isolation.
Polarity reversal causes immediate failure in luminous elements–verify connections with a multimeter set to DC voltage before finalizing. Secure joints using soldered couplings or waterproof heat-shrink terminals to prevent oxidation. For outdoor installations, enclose all junctions in IP67-rated silicone-filled enclosures and route wiring through conduit to shield against moisture ingress.

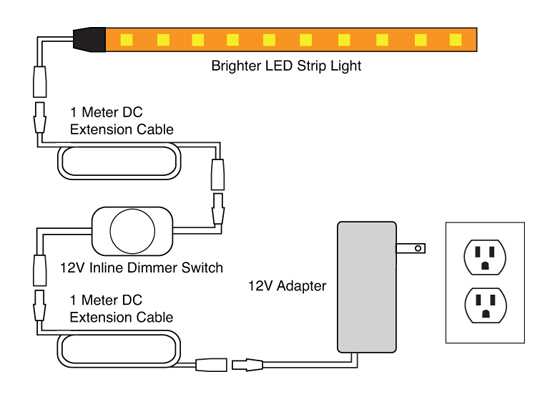

To dim low-voltage luminous tape without dedicated drivers, integrate a pulse-width modulation controller outputting a frequency between 500Hz and 2kHz; lower frequencies produce visible flicker. Avoid resistive dimmers–they dissipate excess energy as heat, reducing system efficiency and lifespan. When mixing color temperatures, wire segments of similar voltage drop characteristics in series groups to maintain color consistency across installations.
Ground the supply unit to a dedicated earth point if the installation exceeds ten meters in total length or incorporates metallic structural elements. Use isolation transformers for installations near sensitive electronics to eliminate voltage fluctuations induced by switching supplies. Inspect all connections at six-month intervals–corrosion at splice points often precedes visible brightness degradation.
How to Connect Low-Voltage Illumination Tapes Properly
Always verify the manufacturer’s specified current draw per meter before selecting a power supply. Most 5-meter flexible light boards consume between 0.2A and 0.8A per segment, so a 3A adapter handles standard single-color rolls, but RGB variants demand 6A or higher for full brightness. Overloading causes flickering or premature burning of the adhesive copper pads.
Use a multimeter in continuity mode to confirm each trace’s polarity after cutting sections to custom lengths. Soldering headers directly to the exposed tabs ensures reliable contact, but pre-applying a small amount of rosin flux prevents cold joints. For solder-free connections, lever clips rated for 10A conductivity reduce voltage drop across splices.
Route the feed lines along edges where they won’t snag during installation. Tuck cables into U-channel plastic raceways fixed with double-sided tape every 20 cm to avoid sagging. Exposed wires near high-traffic areas require heat-shrink tubing or conduit to prevent abrasion.
Avoid daisy-chaining more than three rolls serially; parallel connections maintain consistent luminance. Each branch should originate at the power adapter terminals using 18 AWG stranded wire for lengths up to 5 m, switching to 16 AWG for 10 m runs to mitigate resistive losses.
Position the transformer centrally relative to the connected segments to equalize voltage distribution. For installations exceeding 20 m total, install a secondary 120W supply every 10 m to prevent dimming at the far end. Include a 1A fuse on the positive leg immediately after the adapter for overcurrent protection.
Test full-length illumination before final mounting by activating all channels simultaneously. Measure voltage at the farthest connector; a drop below 11.5V indicates undersized wiring or excessive segment length. Rectify by redistributing loads or upgrading conductor gauge.
Secure loose connectors with zip ties or silicone sealant to prevent vibration-induced disconnection in automotive or marine applications. Avoid mounting near heat sources above 60°C, as elevated temperatures degrade phosphor coatings and increase forward voltage.

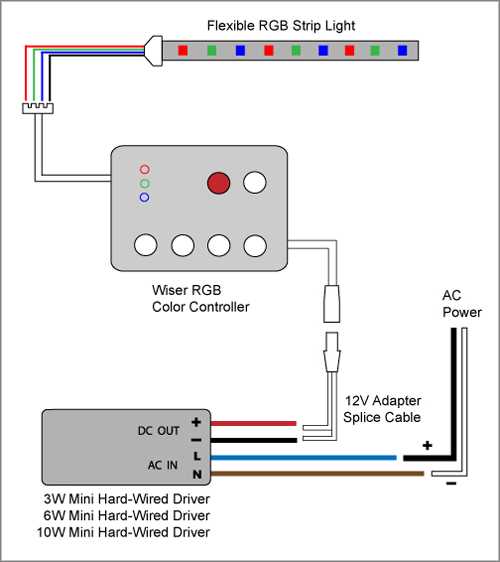

Dimmable configurations require compatible controllers–pulse-width modulation (PWM) drivers rated for 1kHz minimum avoid perceivable flickering. For smart lighting, select microcontrollers with isolated outputs to prevent interference between control signals and luminous elements.
Selecting an Optimal Power Source for Low-Voltage Illumination Bands
Calculate the total wattage of your lighting setup before purchasing a transformer. Multiply the wattage per meter (check manufacturer specs) by the length in meters. Add a 20% buffer to prevent overload–most reliable suppliers list derating factors for continuous operation. A 5-meter reel consuming 12 watts per meter requires at least a 72-watt adapter when accounting for efficiency losses and voltage drop.
Verify voltage tolerance ranges. High-quality power units maintain 11.8–12.2 volts under load; budget options may sag below 11.5, causing dimming or flicker. Test with a multimeter under full load by connecting the negative probe to the return wire and the positive probe to the input terminal while all segments are active.

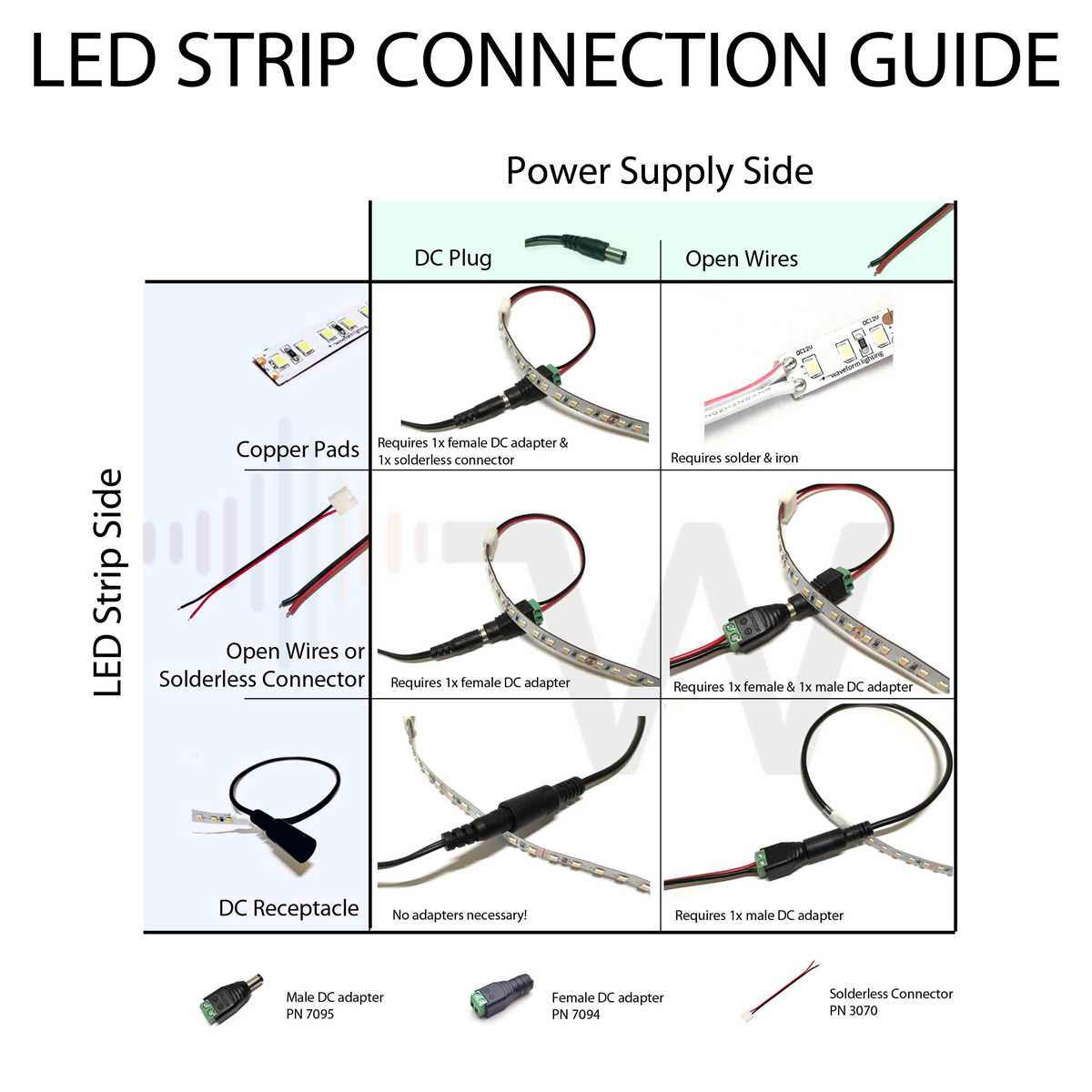

Match output connectors to device terminations. Screw-terminal adapters suit permanent installations where pigtail connections will be crimped or soldered. Barrel-plug transformers work for modular setups but verify plug polarity (center-positive is standard). Molex or JST connectors offer snap-in convenience for automotive or marine applications but confirm pinout compatibility.
Choose between linear and switched-mode supplies. Linear types emit less electrical noise–a critical factor near sensitive electronics like audio amplifiers–but weigh more and waste energy as heat. Switched-mode units convert power efficiently (85–92%), operate cooler, and tolerate input spikes (90–260 VAC) but may require additional EMI filtering.
Prioritize protection ratings. IP67-rated enclosures resist dust and temporary immersion, essential for outdoor or under-cabinet use. Look for built-in safeguards: short-circuit detection cuts power automatically, overheating sensors trigger thermal shutdown, and overvoltage crowbars clamp spikes exceeding 13.5 volts to prevent permanent damage.
Assess cable gauge requirements for long runs. Copper wires experience voltage drop proportional to distance: 18 AWG loses ~0.5V per meter at 1 ampere. For distances over 3 meters, step up to 16 AWG or parallel two 18 AWG strands. Use online calculators to confirm acceptable drop (
Evaluate compatibility with dimming protocols. PWM drivers simulate analog dimming by pulsing the signal at 100–2,000 Hz; verify the controller and power source support the same frequency range. TRIAC dimmable transformers work with standard wall dimmers but may exhibit a minimum load requirement (typically 10–20 watts) below which flickering occurs.
Factor in duty cycle for intermittent lighting. Metal halide or high-pressure sodium replacements demand 100% duty-rated supplies, while decorative accent lighting (operating
Step-by-Step Guide to Connecting Multiple Low-Voltage Lighting Segments in Parallel
Begin by ensuring your power supply matches the combined load of all segments. Calculate the total wattage by multiplying the length of each flexible light module by its rated consumption (typically 4.8W per meter). For example, three 2-meter lengths would require a supply capable of delivering at least 28.8W. Use a supply with a 20% overhead to prevent voltage drop–opt for a 35W unit in this case. Connect the positive terminal of the supply directly to a bus bar or thick gauge wire (18 AWG minimum) and do the same for the negative terminal.
To prevent uneven brightness, each segment must connect independently to the main power lines rather than daisy-chaining. Measure the distance from the power source to the farthest segment–voltage drop becomes noticeable beyond 5 meters. If this distance exceeds the limit, inject power at midpoint intervals using additional wire runs. For segments exceeding 5 meters, run separate cables from the supply to each segment’s start and end, then link both ends together. The table below outlines wire gauge requirements based on segment length and current draw:
| Current (A) | Max Segment Length (m) | Recommended Wire Gauge (AWG) |
|---|---|---|
| 2 | 3 | 22 |
| 4 | 3 | 20 |
| 6 | 5 | 18 |
| 8 | 5 | 16 |
When soldering or using connectors, ensure joints are heat-shrunk or insulated with electrical tape to prevent short circuits. For modular installations, use T-shaped connectors to split the main lines into parallel branches. Test each segment with a multimeter before finalizing connections–ideal voltage at the farthest point should be within 5% of the source (e.g., 11.4V for a 12V nominal system). Avoid twisting wires; instead, twist the stripped ends together clockwise before applying solder for better conductivity.
For dimming or smart control integration, place the controller or dimmer module after the power supply but before the parallel splits. Ensure the controller’s wattage rating exceeds the total load. If using PWM dimmers, confirm compatibility with flexible light modules–some require low-frequency drivers to prevent flicker. Secure all connections with zip ties and route wires along structural edges to avoid damage from foot traffic or tools. Label each branch for future troubleshooting.
