Complete Samsung Galaxy J6 Plus Circuit Board Schematic PDF Download Guide
Begin by locating the official service manual for the J6 variant. The engineering blueprint is typically distributed through authorized repair portals like Samsung’s Service Center, Octoplus, or Z3X. Avoid unverified third-party sources–counterfeit schematics often contain critical inaccuracies that can damage components during repairs. The document filename usually follows the pattern: SM-J600X_service_schematics_v1.0.pdf.
Key areas to focus on include the power management IC (U400), charging circuit (U301), and CPU connections. Pinouts for the Exynos 7870 are labeled with precise resistance and voltage values–verify these with a multimeter before replacing any parts. Pay special attention to the PMIC diagrams, where common failures occur at buck regulators (BUCK1–BUCK6).
Trace lines using the color-coded legend: red indicates high-current paths (battery or USB), blue for data buses (I2C/UART), and yellow for antenna connections. When troubleshooting touchscreen issues, reference the synaptics_rmi4 section–interrupt lines (IRQ) and reset signals (RST) must match the expected voltages (1.8V). For bootloop cases, isolate the eMMC chip (KLM8G1GETF-B041) and confirm bootloader integrity via JTAG.
Hardware repairs require a 60W microscope and 0.1mm solder tips. High-risk components include the CoF (Chip-on-Flex) connectors–apply low-temperature solder paste (138°C) and avoid excessive heat to prevent delamination. Always cross-reference the blueprint with thermal images; hotspots exceeding 85°C often indicate faulty capacitors or shorted transistors.
Store schematics in a secure, encrypted drive to prevent unauthorized distribution. For offline access, use PDF markup tools to annotate modifications–especially for custom ROM flashing, where pinouts for EDL mode differ from factory defaults. Document every step; even minor deviations (e.g., a 0.5mm trace reroute) can void warranty eligibility.
J6+ Circuit Reference: Troubleshooting with Precision
Locate the power management IC (PMIC) labeled “SM5703” on the board layout–marked near the battery connector pins 2, 3, and 4. Use a multimeter in diode mode to verify continuity between these pins and ground; expected readings should fall between 0.350V–0.450V. If values deviate, trace the adjacent decoupling capacitors (C540, C541) using the 6-layer PCB cross-section: layer 3 hosts critical power rails linking the PMIC to the AP (Exynos 7870). Replace any faulty 0402-sized MLCCs with identical 10µF/6.3V X5R components–higher voltage ratings may cause unstable power delivery.
- For baseband failures (no network/IMEI), probe the RF transceiver (SKY77624) at pins 1–8 (TX path) and 33–40 (RX path) with a spectrum analyzer set to 900MHz. Key signals:
- TX_OUT: ~2.1dBm at 850MHz band
- RX_IN: -70dBm to -80dBm sensitivity
- MIPI_CLK: 19.2MHz sine wave
Repair charging issues by isolating the USB-C port from the switch IC (FUSB302B). Measure input resistance at USB_DM (J3004 pin 3) with charger disconnected–should read ~500kΩ; lower values suggest shorted ESD diode (D300). If intact, test U300 Buck converter (output 5V/2A) with dummy load: failures here require complete reflow of the BGA package at 260°C for 120 seconds max, using flux specifically for lead-free solder (T46B). Avoid overheating adjacent flash memory (KLM8G)–its thermal threshold sits at 135°C.
Trusted Sources for the J6+ Official Circuit Reference
Begin with Samsung’s official support portal under the “Manuals & Software” section. Use exact model number SM-J610F or regional variants like SM-J610G to filter downloads. Official service documents often embed board layouts within firmware repair files labeled “Service Manual” or “Level 2 Repair.” These archives require a technician login–register as a partner through their authorized service center program.
Next, explore GSM-Forum Russia, specifically threads tagged with SM-J610 hardware revisions. Users routinely upload compressed archives containing PCB scans, component placement guides, and power distribution charts. Sort by “Last Modified” to find recently verified uploads; look for filenames prefixed with “SM-J610_” followed by revision codes (e.g., “REV1.0”).
For direct file access without forums, Easy-Firmware hosts a searchable database of manufacturer disassembly guides. Filter by brand variant “Galaxy Wide 3,” then narrow results to files marked “Board View” or “Block Diagram.” Create a free account to bypass download limits, and verify checksums with SHA-1 hashes provided in accompanying metadata.
Specialized repair platforms like Z3X Team’s support site archive internal schematics within their toolbox firmware updates. Download the “Samsung Tool Pro” installer; during setup, opt for “Schematic Library” in the components checklist. Post-installation, navigate to the “Hardware” tab and enter model SM-J610F–this unlocks layered PDFs with signal paths and voltage regulators mapped to component IDs.
Manufacturer-adjacent repositories, such as FCC ID lookup, often leak unintended documentation under equipment authorization filings. Search for FCC ID A3LSMJ610F; exhibits attached to test reports frequently include RF block diagrams and pinout configurations. For deeper technical breadth, query “internal photos” on the same filing–these reveal unpopulated debug ports and test point grids.
If commercial sources dry up, contact regional service centers listed on the brand’s official site. Technicians sometimes share proprietary wiring layouts in exchange for proof of business (e.g., VAT ID or repair shop license). Request files via email subject “SM-J610F Board Schematic – Urgent Repair Case,” attaching a screenshot of your work order to expedite responses.

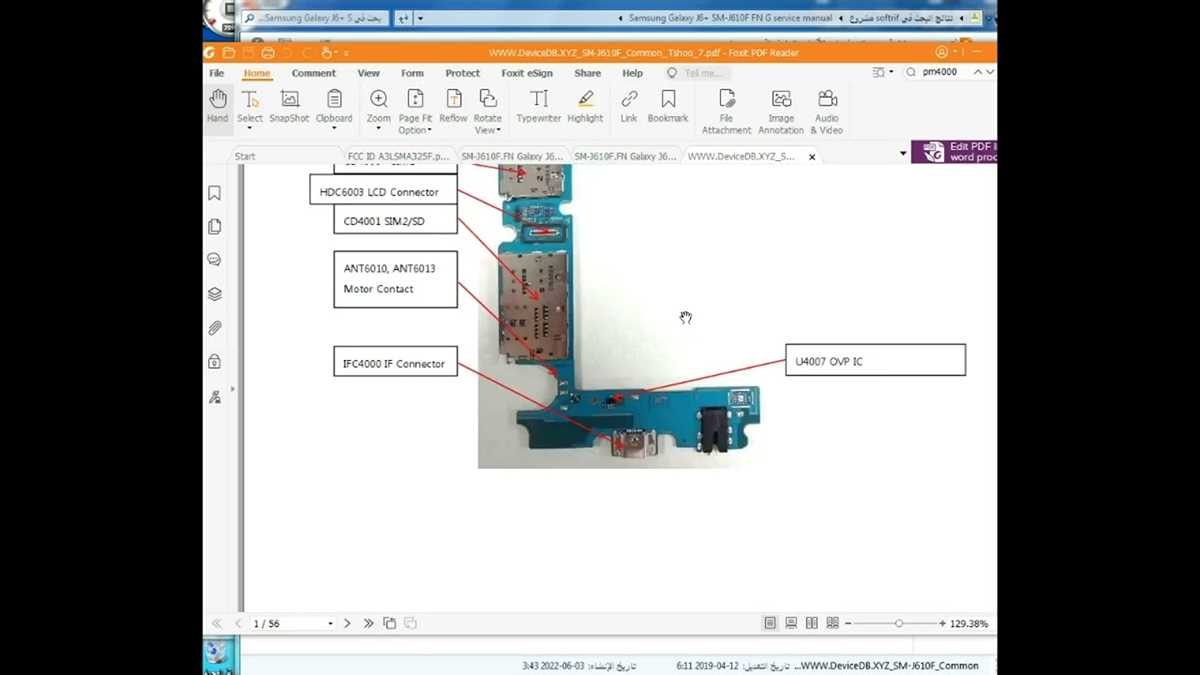

Key Components and Their Locations in the J6 Smartphone Circuit Layout
Begin troubleshooting by pinpointing the power management IC (PMIC) near the battery connector–commonly labeled as U501 on the board. This chip regulates charging, voltage distribution, and power sequencing. Verify its connections using a multimeter: measure 3.8V at the VBATT input and 1.8V at the VDDCORE output. If voltages deviate, check for corroded pads or damaged solder joints under a microscope.
For signal integrity issues, focus on the RF transceiver (usually U801), located adjacent to the antenna flex connector. This component handles GSM, WCDMA, and LTE bands. Test its functionality by probing the TX/RX lines with a spectrum analyzer; expected signal strength should exceed -85 dBm at 850 MHz. Replace the IC if thermal camera inspection reveals overheating (>60°C) or if bypass capacitors (C801-C810) show leakage.
The processor (U100), often an Exynos 7870, sits centrally on the mainboard, surrounded by four layers of copper traces. Critical supporting components include:
| Component | Reference Designator | Purpose | Failure Symptoms |
|---|---|---|---|
| DDR4 RAM | U101/U102 | Volatile memory | Reboots, boot loops |
| eMMC | U201 | Non-volatile storage | Error 4008 (ODIN failure) |
| Power MOSFET | Q501-Q504 | Voltage switching | No charging, random shutdowns |
Desolder and reball the processor only if JTAG testing confirms a dead boot–alternative causes like corrupted eMMC firmware or faulty RAM must be ruled out first.
Display issues typically trace to the MIPI bridge IC (U401) under the LCD flex connector. This chip converts parallel RGB to MIPI signals for the screen. Replace it if the display shows vertical lines or flickering after verifying the flex cable’s integrity. For touch unresponsiveness, test the touchscreen controller (U402)’s I²C lines with an oscilloscope–waveforms should be 3.3V square pulses. If signals are absent, check for shorted ESD diodes (D401-D404) near the connector.
How to Trace Power and Signal Paths in the J6 Circuit Board
Begin by identifying the main power rails labeled as VBAT, VCC_MAIN, or BUCK_* on the board layout. Use a multimeter in continuity mode to confirm connections from the battery connector to voltage regulators–typically marked with components like PMIC (e.g., S2MPS18) or discrete inductors and capacitors. Measure resistance to ground; values below 1Ω on these rails often indicate a direct path, while higher readings may reveal open circuits or faulty components.
Locate the PMIC chip, which coordinates power distribution. Trace its output pins–usually labeled LDO_* or BUCK_*–to small surface-mount inductors or ferrite beads. Each output should route to at least one decoupling capacitor near the load, such as the application processor (Exynos 7870) or memory chips. Missing or swollen capacitors will disrupt voltage delivery, causing boot loops or random reboots; replace them if ESR exceeds 0.5Ω.
For signal paths, focus on high-speed interfaces like MIPI_DSI (display) or MIPI_CSI (camera). These lines appear as differential pairs on the board, often annotated with DP/DN or CLK+/CLK-. Use an oscilloscope at 200MHz+ bandwidth to verify signal integrity; ringing or excessive overshoot (>10% of Vpp) suggests damaged termination resistors or broken traces. Probe directly on test points–typically exposed copper pads near connectors–to isolate faults.
Examine the eMMC or UFS flash storage by tracing data lines (CMD, DAT0-7) back to the application processor. Data lines should exhibit 1.8V logic levels with clean edges; deviations point to failed level shifters or corrupted firmware. For audio paths, follow PCM_DOUT and PCM_CLK from the codec (AK4376) to the speaker amplifier (TPA6166A)–interrupted signals here cause distorted playback or no sound.
Check ground connections by verifying continuity between the battery’s negative terminal and chassis points near high-current components (e.g., charging IC, PA modules). Resistance above 0.1Ω indicates cold solder joints or corroded vias–reflow affected areas with lead-free solder at 350°C. For RF paths, confirm the antenna switch (SKY77353) connects to the primary antenna via a coaxial cable; signal loss (>3dB) often stems from cracked flex cables or detached connectors.
Use a thermal camera to identify abnormally hot components–excessive heat on a buck converter (SY8824B) suggests overloaded outputs or shorted capacitors. Cross-reference measured values with the reference design’s specifications; for example, VCC_CORE should read 1.1V±5% under load. If readings deviate, bypass the PMIC by injecting regulated voltage (0.1V increments) directly into downstream rails while monitoring current draw–sudden spikes indicate faulty ICs needing replacement.
