Complete Wiring Diagram Guide for the 1961 Corvette Electrical System
Identify the main harness routing through the firewall using the original factory schematic–specifically, the red-wire circuit from the battery to the ignition switch. This 10-gauge line carries the primary load and must be traced before any additional connections. Replace cracked insulation immediately with 3M Super 33+ vinyl electrical tape, ensuring a minimum 50% overlap on wraps to prevent moisture ingress.
Locate the voltage regulator on the driver-side inner fender. The purple wire here interfaces with the generator field circuit, requiring a multimeter check for 13.8–14.2 volts at idle. If readings fall outside this range, clean the regulator contacts with DeOxit D5 before replacing with a solid-state unit rated for 40 amps. Original mechanical regulators often fail due to internal corrosion; bypassing them risks overcharging the battery.
Trace the instrument cluster loom to the white/black wire feeding the fuel gauge. This circuit passes through the dimmer switch, notorious for intermittent failure. Use a Tonka YJ-24 connector to splice in a new sender wire without cutting the original harness. Resistance values should read 0 ohms at empty and 90 ohms at full–any deviation indicates a faulty sending unit requiring replacement.
The turn-signal flasher module mounts behind the dashboard near the steering column. The light blue wire controls left-side indicators; if bulbs stay lit (no flash), replace the flasher with a 6-terminal electronic unit matching OE specs (12V, 3-4 amp load). Avoid universal flashers as they often misfire at higher RPMs due to voltage spikes.
Inspect the taillight lens gaskets for brittleness–replace with NOS GM part #3755173 to maintain waterproofing. The brown wire powers the brake lights; test continuity from the pedal switch to the rear sockets. If resistance exceeds 0.5 ohms, clean the brake light switch terminals with contact cleaner and adjust the plunger for 1/8″ travel to ensure proper engagement.
For headlight circuits, focus on the yellow low-beam and dark green high-beam wires. These pass through the headlight switch, where oxidation commonly disrupts current flow. Measure voltage drop across the switch–if exceeding 0.2 volts, disassemble and polish terminals with 220-grit sandpaper. Avoid ring terminals here; soldered connections outlast crimped joints in high-vibration areas.
Restoring the Classic Roadster: Electrical Blueprint Walkthrough

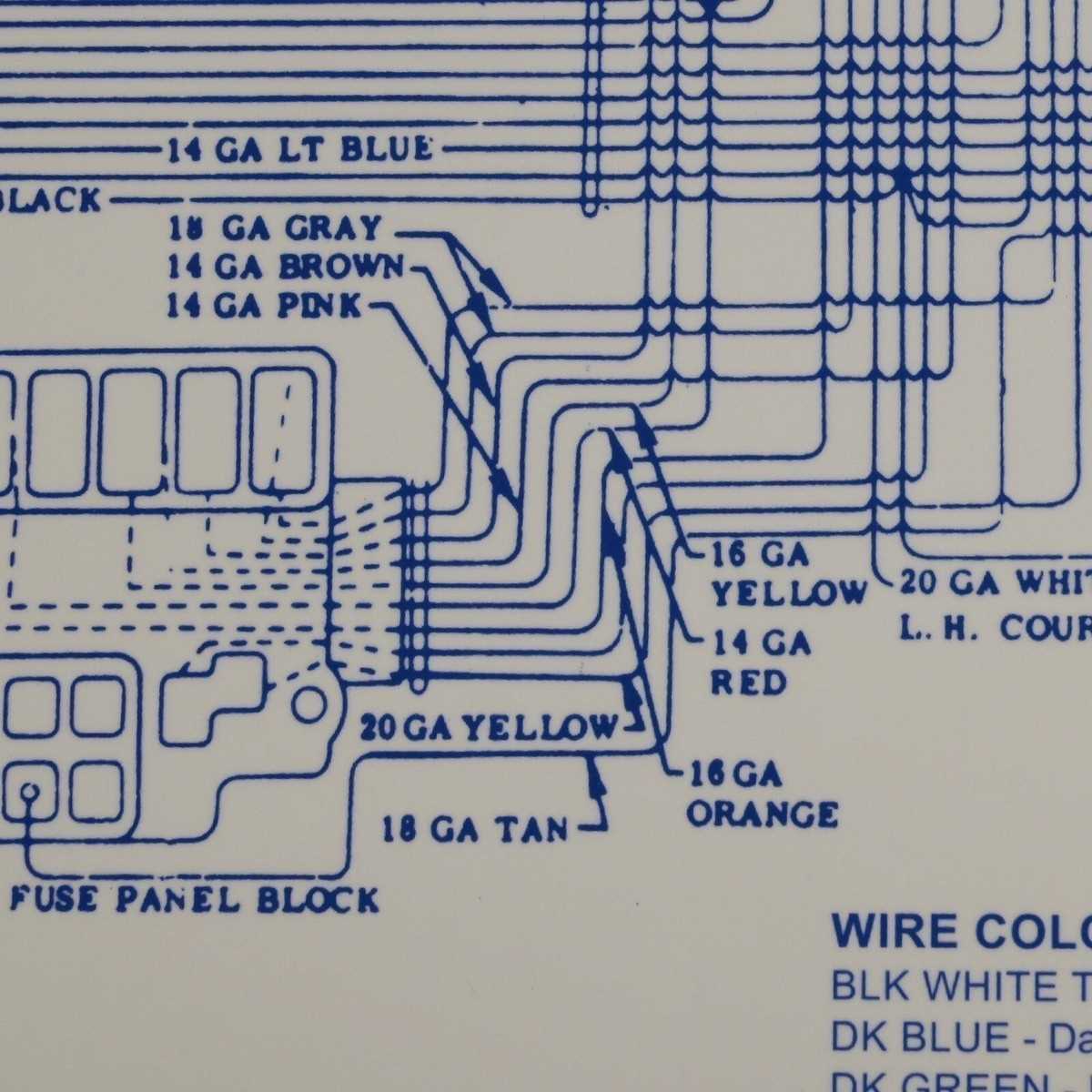

Locate the main fuse block beneath the instrument panel near the steering column–original schematics label it “Fuse Panel A.” Use a multimeter to verify continuity across each 14-amp fuse before reinstalling; corrosion at the clip contacts is a common failure point. Replace any brittle wiring with 18-gauge stranded copper coated in PVC insulation matching the factory color-coding: red/white for ignition, black/yellow for headlights, and brown for taillights.
Trace the charging circuit starting at the generator’s “A” terminal, following the heavy-gauge purple wire to the voltage regulator’s “GEN” post. If alternator output tests below 13.8V at 2000 RPM, adjust the regulator’s air gap to 0.045 inches using a non-magnetic feeler gauge. Bypass the original ammeter by installing an inline 50-amp shunt between the battery terminal and starter solenoid for accurate current monitoring.
Key Junctions for Troubleshooting
Inspect the bulkhead connector behind the dashboard–original schematics identify it as “Junction Block C.” Separate each pin connection and clean with DeoxIT, re-crimping terminals with insulated butt connectors if oxidation is present. The turn signal flasher relay, mounted to the left of the steering column, often fails after 60 years; test by bridging terminals “B” and “L” with a jumper wire–lights should flash at 60-120 cycles per minute.
For engine compartment harness repairs, splice damaged sections using heat-shrink tubing over soldered joints rather than crimp connectors. The primary ignition feed (solid red wire) should measure 0.5 ohms or less between the coil’s “+” terminal and the ignition switch’s “I” terminal; higher resistance indicates degraded connections at the firewall grommet or under the intake manifold. Replace the original phenolic distributor cap with an epoxy unit to prevent carbon tracking.
Verify all ground paths by testing resistance between each component’s ground terminal and the battery negative post–values above 0.1 ohms require cleaning chassis contact points. The headlight dimmer switch’s two-position mechanism often sticks; disassemble and lubricate the bakelite plunger with dielectric grease. Route replacement wiring through original loom channels using zip ties spaced at 8-inch intervals to prevent sagging, securing to frame rails with Adel clamps where necessary.
Finding the Factory Routing for Your Classic Sportster’s Electrical System
Start by obtaining an official factory service manual–Chevrolet’s 1961 edition, section 10, pages 10-12 through 10-18, details the complete harness path. Reproductions from vendors like Eckler’s or NCRS-approved suppliers retain the exact connector labeling and color-coding as the original assembly. Trace the main loom from the fuse block under the driver-side dash, following the three primary branches: the front harness (headlights, turn signals, and horn), the rear harness (taillights, fuel sender, and license plate illumination), and the engine harness (ignition, generator, and temperature gauge connections). Verify wire gauge matches the factory specs–12-gauge for the starter circuit, 16-gauge for lighting, and 18-gauge for auxiliary circuits–to avoid splicing errors.
Consult the GM Heritage Center’s microfilmed build sheets for your specific VIN if discrepancies exist. Early models with T-10 4-speed transmissions use a slightly different harness layout near the backup light switch compared to Powerglide-equipped variants, requiring reference to the chassis number suffix. Restoration forums like CorvetteForum or the NCRS technical library archive high-resolution scans of period-correct wiring schematics, including notes on factory deviations–some early production runs modified the turn signal relay location due to supplier changes.
Critical Conductive Pathway Hues and Purposes in Classic Sports Roadster Schematics
Begin restoration or troubleshooting by isolating the black/white stripe (B/W) lead–this serves as the primary chassis return for lighting circuits, including the instrument cluster and taillight assemblies. Verify continuity between the fuse block ground terminal and each lighting fixture; resistance exceeding 0.2 ohms indicates corrosion at the bullet connectors or terminal eyelets, necessitating dielectric grease coating. Failure to address this results in intermittent gauge flickering and dim external lamps, especially under electrical load.
High-Ampacity Circuits: Color Groupings and Load Distribution
| Cable Hue | Primary Function | Wire Gauge (AWG) | Critical Failure Modes |
|---|---|---|---|
| Red (R) | Battery positive feed to ignition/starter solenoid | 10 | Voltage drop at solenoid studs; pitted contacts require sanding and anti-oxidant paste |
| Yellow (Y) | Generator output to voltage regulator | 12 | Inconsistent charging; verify regulator ground integrity and alternator brush wear |
| Green (G) | Headlight high-beam switch leg | 14 | Double-check fuse rating (25A); trace for chafe against radiator support bracket |
When repairing the yellow/green stripe (Y/G) circuit–a dedicated horn relay trigger–access the driver-side firewall grommet with a multimeter set to continuity. A closed loop confirms proper relay activation; an open circuit mandates inspection of the under-dash harness bundle where wires frequently fatigue at the turn signal switch pivot.
Auxiliary circuits rely on paired conductors: light blue/black stripe (Lt Blu/Bk) carries A/C blower motor current, while dark green/white stripe (Dk Gn/W) energizes the heater fan relay coil. Trace these separately behind the glovebox mounting; corrosion manifests as white powdery residue at soldered joints. Clean terminals with a brass brush and apply rosin flux before re-soldering to prevent cold joints, which aggravate parasitic drain during prolonged inactivity.
Step-by-Step Approach to Mapping Circuit Paths with Schematic Blueprints
Locate the power source on the schematic–battery terminals, fusible links, or ignition feeds–and mark each terminal with colored tape on the physical harness. Trace the conductive path from the positive terminal to the first junction, verifying continuity with a multimeter set to resistance mode (Ohms). Document every branch, noting wire gauge discrepancies (e.g., 16 AWG vs. 12 AWG) that could indicate voltage drops under load.
- Isolate circuits by disconnecting secondary components–start with non-critical loads like interior lights or radio.
- Use a toner probe to follow wires obscured by loom or chassis grounding points.
- Check for parasitic draws by measuring amperage at the main fuse block while the system is off (threshold: <50mA).
Ground paths demand equal scrutiny: scrape chassis paint at attachment points, apply dielectric grease, and retighten fasteners to 18 ft-lbs. For complex clusters (e.g., instrumentation or cooling fans), split the circuit into voltage stages–12V supply, relay coil, relay contact, and final load–testing each segment independently. Replace any brittle conductors (resistance >1 Ohm over 12 inches) with fresh Teflon-insulated replacements soldered and heat-shrunk at connections.
