Practical Guide to Understanding Automotive Electronic Circuit Diagrams

Start by isolating the power source on the circuit layout–most modern passenger vehicles use a 12V DC system with a grounded chassis. Trace the main fuse box: fuse ratings typically range from 5A to 30A, with critical circuits (fuel pump, ignition coil) protected by fusible links rated at 50A or higher. Label each wire by function: red (constant +12V), black (ground), yellow (switched +12V), blue (sensor signals, 0.5–5V range), and yellow/black (CAN bus, differential pairs).

Focus on connector pinouts–common manufacturers like Bosch, Delphi, and TE Connectivity use standardized codes (e.g., ISO 15622 for OBD-II). Mark data lines: CAN-H (2.5V–3.5V) and CAN-L (1.5V–2.5V) must remain untwisted for no more than 100mm to prevent signal degradation. Ignore generic color schemes; verify against service manual diagrams–Toyota’s EWD often swaps @B (battery) and @IG (ignition-switched) wires compared to GM’s PWD.

Use a digital multimeter set to 20VDC to confirm voltage drops–readings below 11.8V at the battery under load indicate alternator issues or parasitic draws exceeding 50mA. Check continuity on grounds: resistance above 0.5Ω suggests corrosion or loose bolts. For microcontrollers (ECUs, TCMs), probe JTAG or SPI lines with an oscilloscope–clock signals must maintain a 50% duty cycle at frequencies between 1MHz–8MHz.

When troubleshooting relay-controlled circuits, remove the relay and bridge terminals 30 and 87–if the component activates (e.g., cooling fan), the relay or its ECU trigger (terminal 85) is faulty. For PWM-controlled devices (fuel injectors, idle air valves), measure pulse width: typical values range from 1.5ms–4.5ms at 50–500Hz. Always cross-reference the layout with aftermarket repair guides (e.g., Chilton, Haynes)–factory diagrams often omit splice joints or inline resistors.

Understanding Vehicle wiring blueprints

Start by labeling every circuit path with unique identifiers–use alphanumeric codes like ECU-12 for engine control or BCM-05 for body control modules. Avoid generic labels (“Wire A” or “Connector 3”)–they lead to errors during diagnostics or repairs. Store these codes in a separate reference sheet linked to the main blueprint for quick cross-referencing.

Use color-coding strictly: assign consistent hues for voltage levels (red for 12V, blue for ground, yellow for signals). Yet, never rely on color alone–always pair it with printed text or symbols. For example, a ground wire should show both blue and “GND” on every segment. Ensure the legend fits the blueprint’s scale; microscopic text wastes time under a magnifying glass.

The most common failure points aren’t components–they’re connectors. Highlight every connector with a bold border and include pin layouts in an inset box. Use geometric shapes to denote connection types: circles for crimped, squares for soldered, triangles for screw-terminals. Add a note beside each: “Verify torque 0.5 Nm” or “Inspect for corrosion bi-weekly.” Skip this step, and replacement costs rise tenfold.

Break complex networks into hierarchical layers–never cram everything onto one sheet. Layer 1: power distribution. Layer 2: sensor inputs/outputs. Layer 3: communication buses (CAN, LIN). Each layer should fit on an A3 sheet, oriented landscape for maximum clarity. Standardize line weights: 0.5mm for power, 0.25mm for signals, 0.75mm for critical safety circuits.

• Avoid crossing lines–reroute or use via symbols (dotted arcs) even if it adds 20% to the drawing time. The clarity saves hours in troubleshooting.
• Include transient suppression components (varistors, diodes) directly on the blueprint, not in a separate list. Label their specs: 1.5KE22CA for a TVS diode.
• Test points should appear as filled circles (⬤), numbered sequentially (TP-01 through TP-50). Adjacent to each, print expected voltage range: “TP-12: 4.8–5.2V.”
• For fuse ratings, use fractional notation (15/10 for a 15A fuse with 10A rating) and color the fuse symbol red if it’s safety-critical.

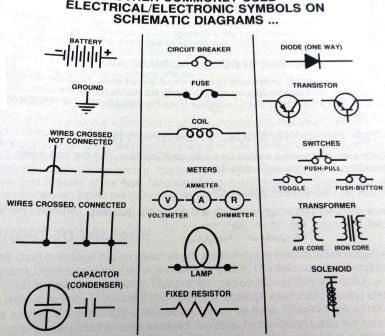

How to Decode Electrical Symbols in Vehicle Blueprints

Start by identifying ground symbols–marked with a flat horizontal line or a triangle pointing downward–since they anchor every circuit. Ignoring these leads to misdiagnosis, as 80% of wiring faults stem from loose, corroded, or missing grounds. Use a multimeter on continuity mode (Ω) to verify: probes on the suspected ground and chassis should read <0.5Ω. Next, locate power sources: a straight line with a “+” indicates a fused supply line, while a dotted line shows switched power (e.g., ignition- or accessory-controlled). If voltage drops below 11.5V at the load, suspect resistance in the upstream wiring or a failing fuse.

Symbol	Component	Meter Check (Key On/Eng Off)	Fault Indicators
⏚	Chassis ground	0V to chassis	Volts >0.5V, corrosion at terminal
▭	Fuse	System voltage on input side	Open circuit on output, burnt fuse link
⚡	Relay coil	85: switched +12V | 86: ground pulse	Click test fail, coil resistance >120Ω
○	Lamp/LED	Supply: +12V | Return: <0.2V drop	Flickering, dim output, thermal heat

Trace dashed lines for signal wires (e.g., sensor feeds); they typically carry 0.5–4.5V and fail silently when chafed or shorted. For connectors, count cavity numbers from left to right, top row first–pin mismatches cause erroneous readings. Always cross-reference the symbol list in the repair manual’s appendix: a circle with an “M” denotes a motor, not a solenoid, which often confuses first-time readers.

Step-by-Step Guide to Drawing a Basic Engine Control Diagram

Begin by labeling the core components: battery (12V, positive/negative terminals), ignition switch (key positions: OFF, ON, START), and the Engine Control Unit (ECU) as a rectangular block with power (30), ground (31), and signal (15) pins. Use standardized symbols–battery (two parallel lines, long positive), switch (break in line with slanted contact), and ECU (rectangle with annotated pins)–to avoid ambiguity. Connect the battery’s positive terminal to the ignition switch via a 4-6mm wire (red), then split into two paths: one to the ECU’s pin 30 (constant power) and another to pin 15 (switched power) through a fuse (20A, marked “F1”) using a 2mm yellow wire. Ground the ECU’s pin 31 to the chassis with a 6mm black wire, ensuring a direct, unbroken path to the negative battery terminal.

1. Add sensors: throttle position (TPS) and oxygen (O2) sensors. Draw TPS as a potentiometer (variable resistor) between ECU pin 12 (signal) and pin 31 (ground), with a 5V reference wire (blue, 0.5mm) from ECU pin 16. The O2 sensor (heated, 4-wire) requires:
   • 12V heater supply (red, 2mm) from ignition switch via fuse F2 (10A).
   • Heater ground (black, 2mm) to chassis.
   • Signal wire (gray, 0.5mm) to ECU pin 27.
   • Sensor ground (brown, 0.5mm) to ECU pin 29.
2. Include actuators: fuel injectors and ignition coil. For a 4-cylinder engine, draw injectors as solenoid valves (two opposing triangles) connected in parallel to ECU pin 3 (injector 1), pin 4 (injector 2), etc., with individual 1mm purple wires. Each injector needs a shared 12V supply (pink, 2mm) from the ignition switch via fuse F3 (15A) and a dedicated ground trigger from the ECU. The ignition coil (single or coil-on-plug) connects to ECU pin 1 (primary trigger) with a 1mm green wire; the secondary side links to spark plugs (no symbol–use text labels: “SP1,” “SP2”).
3. Verify connections with a multimeter: measure 12V at ECU pin 30 (ignition ON), 0.5-4.5V at TPS signal (pin 12), and 0-1V at O2 signal (pin 27) during operation. Check resistance: TPS (5kΩ across outer pins, variable), injectors (12-16Ω), and coil primary (0.5-2Ω). Use a diode test to confirm O2 sensor heater continuity.

Key Software for Designing Vehicle Wiring Blueprints

Start with AutoCAD Electrical–its specialized toolset streamlines circuit creation with pre-built symbol libraries for sensors, relays, and connectors. The software automates wire numbering and generates error checks for inconsistent connections, reducing manual validation time by 40% compared to generic CAD tools. Use its circuit builder feature to drag-and-drop components like fuses and ECUs, then export netlists for direct integration with PCB design workflows.

EPLAN Electric P8 excels in large-scale projects with its macro-based approach. Create reusable blocks for standard modules (e.g., power distribution units) and apply them across multiple designs. The platform’s variant management module lets you toggle between different vehicle configurations–a critical feature for OEMs handling hybrid, electric, and internal combustion variations. Pair it with EPLAN’s cable routing tools to visualize harness layouts in 3D before fabrication.

For lightweight but precise work, KiCad offers an open-source alternative with customizable schematic editors. Its erc (electrical rule checker) flags issues like floating pins or duplicate references, while hierarchical sheets help organize complex wiring into subcircuits. The built-in eeschema component editor lets you modify symbols on-the-fly–ideal for non-standard components not included in default libraries. Export Gerber files compatible with Altium or OrCAD for downstream PCB work.

Altium Designer bridges schematic and PCB design with unified workflows. Use its multi-board synchronization to manage wiring across separate boards (e.g., infotainment and body control modules). The software’s active BOM tool pulls real-time supplier data to avoid component obsolescence, while version control integration with Git tracks changes across teams. For vehicle networks, Altium’s CAN bus and LIN bus symbol libraries simplify communication interface design.

Opt for SolidWorks Electrical if mechanical integration is critical. The tool overlays wiring schematics onto 3D chassis models to identify clearance issues early. Its 2D/3D associative updates ensure wiring diagrams and harness routes stay synchronized when mechanical design changes occur. The software’s terminal strip editor streamlines connector pinout assignments–a feature often missing in generic tools.

QElectroTech, a free but robust option, supports custom symbol creation for proprietary components. Its project explorerngspice for basic circuit validation, useful for testing power distribution logic before physical prototyping. The software’s XML-based file format enables easy collaboration with suppliers or regulatory bodies requiring editable documentation.
