Complete 1967 Chevrolet Camaro Wiring Diagram Guide and Repair Tips
Start by isolating the main harness connections at the firewall–specifically, the red and purple leads feeding the ignition coil. Verify continuity with a multimeter set to 200 ohms; readings above 5 ohms indicate corrosion in the bullet connectors. Replace factory crimp terminals with soldered joints and heat-shrink tubing to prevent voltage drops under load.
Trace the fused circuits branch by branch: headlamp relay (orange wire, 18-gauge), tail lamp cluster (yellow/black stripe, 20-gauge), and instrument illumination (gray, 22-gauge). Use a 1965 factory service manual supplement for exact color-coding–aftermarket reproductions often invert the dash dimmer switch wires (light blue vs. dark blue), causing reverse polarity.
Check the voltage regulator plug for oxidation on the battery terminal (red with white stripe). Clean with a brass brush and apply dielectric grease; alternator field current (green/white) must not exceed 0.3V drop when the engine runs at 2,000 RPM. If readings fluctuate, replace the regulator–modern solid-state units require recalibration by adjusting the internal potentiometer to 14.2V.
Test the starter solenoid engagement: a click with no crank signals faulty contact disc (part #1115200) or ground strap corrosion. Remove the transmission tunnel cover to access the starter ground bolt–sand the chassis point until bare metal is exposed. For automatic transmissions, ensure the neutral safety switch (black wire, terminal “N”) shows infinite resistance in park and less than 0.5 ohms in drive.
Route replacement wire looms away from exhaust manifolds and sharp edges using nylon ties spaced every 6 inches. Label each circuit with adhesive heat-shrink sleeves matching original schematics–confusion between turn signal flasher (light green) and hazard relay (dark green) causes intermittent failures. For auxiliary components like factory tachs, route shielded cable through the passenger kick panel to avoid ignition noise.
Restoring Classic Circuit Schematics: Hands-On Tips
Locate the fuse block under the dashboard near the driver’s footwell–it’s secured by two screws. Label each wire before disconnecting anything; use masking tape and a fine-tip marker. The original harness branches into three main segments: front lighting, ignition, and rear electrical. Trace each segment outward from the block to avoid confusion; factory color codes (e.g., purple with black stripe for headlight switch) are reliable but verify against a physical chart before trusting faded labels.
Key Connections and Common Pitfalls
Check the voltage regulator’s two-prong connector–the red wire must show battery voltage at idle, dropping no more than 0.5V under load. If gauges fluctuate, solder a 10Ω resistor across the temperature sender terminals; corrosion here mimics a failing sender. The turn signal switch often shorts internally; bypass it temporarily by jump-wiring to isolate the issue. Route replacement cables through existing loom grommets, securing with zip ties every 6 inches to prevent chafing against the frame.
Replace the original glass fuses with ATO blade-style adapters–upgraded holders accept modern fuses without cutting wires. Test each circuit with a multimeter set to continuity; probe splices directly, not the insulation. Keep a spare relays in the glovebox; the horn and starter relays share identical pinouts and fail unpredictably. For intermittent faults, spray contact cleaner into connectors, then work the plug in and out 10 times to clear oxidation–repeat until resistance drops below 0.2Ω.
Where to Locate Precise First-Gen Rally Sport Electrical Blueprints

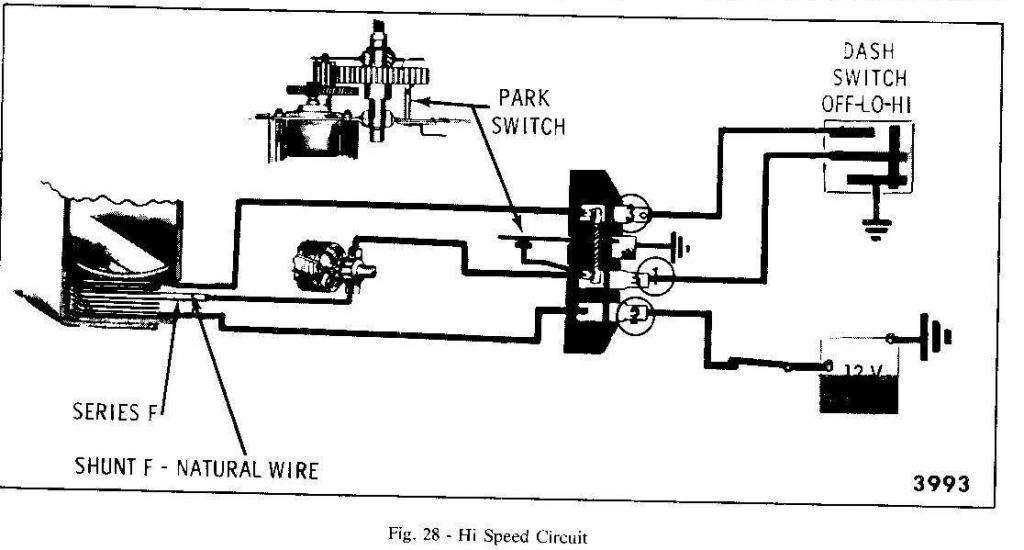

Factory-authorized Chevrolet dealership archives remain the most reliable primary source for verified fuse panel layouts. Service manuals from 1966–1968 model cycles include fold-out schematics that detail ignition circuits, lighting harnesses, and accessory terminals specific to SS and RS trim variations. Request reproductions through GM Heritage Center using VIN-based build sheets–these confirm original wiring colors and connector pinouts absent from aftermarket guides.
Trusted Third-Party Resources
| Source | Content Type | Access Notes |
|---|---|---|
| Helm Inc. reproduction manuals | Full-color wiring foldouts, component locators | ISBN 978-0837616970, available via Summit Racing |
| Chilton Total Car Care guides | Step-by-step diagnosis charts | Out-of-print but digitized on eBay PDF scans |
| Automotive forums (Team Camaro, NastyZ28) | High-res user-uploaded diagrams | Search by harness ID (e.g., “12-circuit fuse block”) |

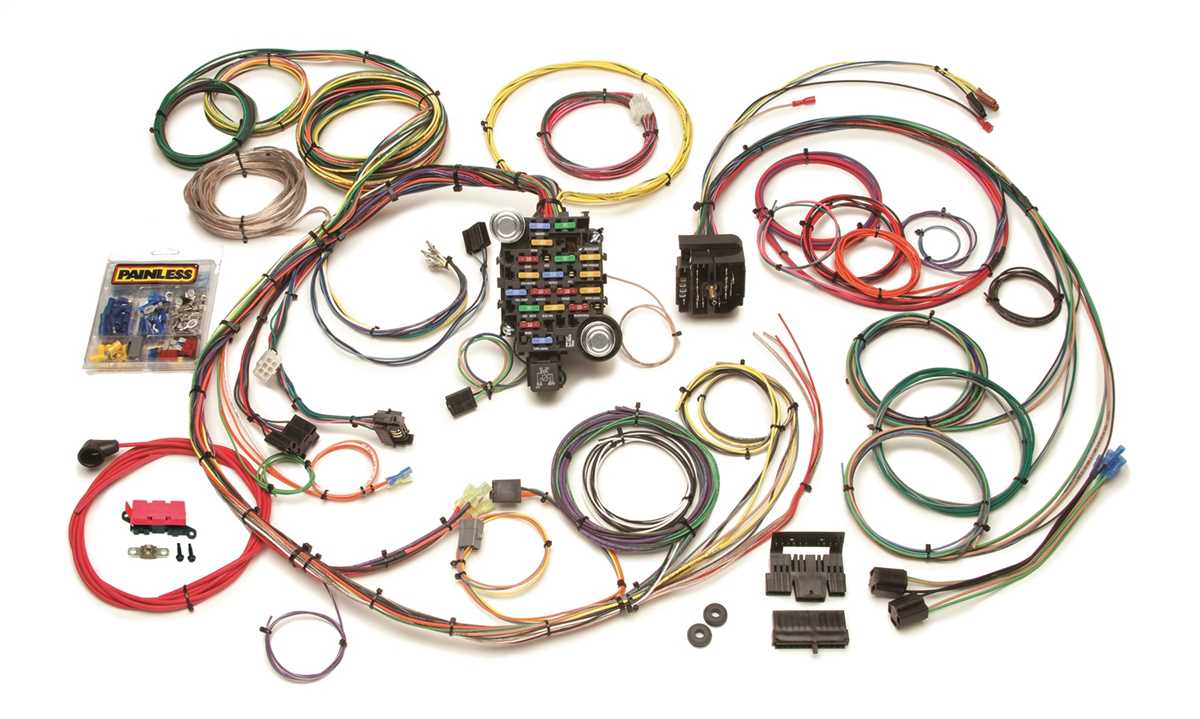

| Wiring harness vendors (Painless, American Autowire) | CAD-drawn schematics with terminal maps | Included with kit purchases, labeled “original-style” |
Specialized automotive restoration suppliers like Classic Industries preserve microfilm scans of OEM engineering drawings. Their catalogs isolate variants–for instance, the optional console gauge circuits versus base models. Verify harness part numbers (67-19621 for coupe configurations) against these scans to resolve discrepancies in grounding points. Online repositories such as the Internet Archive host digitized assembly line documents, but cross-reference with physical manual pages to avoid digitization errors.
Vendor-sponsored YouTube channels (e.g., Rick’s First Gen Restorations) demonstrate meter probe tests using donor fuse blocks as reference. These videos often overlay voltage paths on real chassis, clarifying ambiguous symbols in printed diagrams. For late-model upgrades, extraction guides from Pontiac Firebird forums (sharing 70% electrical architecture) fill gaps in decade-specific repair literature. Always prioritize sources with timestamped revisions–early emissions components introduced mid-year require separate schematics.
Step-by-Step Guide to Decoding Fusebox and Harness Connections
Start by isolating the central power distribution panel under the dashboard–label each terminal with masking tape and a fine-tip marker before disconnecting anything. Use a multimeter set to 20V DC to verify live circuits; probe the input side of the fuse slots while the ignition is off, then again in the “on” position to identify switched versus constant feeds. Record voltages for each slot, noting discrepancies between expected values (typically 12-14V) and readings, which indicate corroded contacts or faulty protection devices.
Trace the main loom back to its crimp points using a tone generator. Clip the transmitter to the wire’s exposed copper at the fusebox end and follow the beep with the receiver, pausing every 6 inches to mark critical junctions–especially where branches split toward the ignition switch, headlamp relay, and turn signal flasher. If the tone cuts abruptly, expect a broken conductor hidden beneath loom tape or a bad splice; use a razor to carefully slice open the outer sheath and inspect the joint.
Locate the bulkhead connector where the engine bay harness enters the cabin. Pry open the plastic shell with a flathead screwdriver, clean each pin with contact cleaner, and apply dielectric grease before reassembly. Cross-reference each pin’s function with the factory schematic: pins 1-4 usually serve high beams, 5-8 handle low beams, and 9-12 manage the horn circuit. Swap any oxidized terminals for new 0.25″ female spades to prevent intermittent failures.
Testing Continuity Across Load Circuits
Disconnect the battery negative cable and switch the multimeter to continuity mode. Attach one probe to the fuse output terminal and the other to the corresponding device’s ground connection–headlights, starter solenoid, or wiper motor. A continuous beep confirms a complete path; silence suggests an open circuit, often caused by a melted fusible link or a severed wire inside the harness conduit. Replace any damaged links with tinned copper wire of identical gauge, soldering and heat-shrinking each joint.
Verify ground integrity by probing between the chassis and the negative battery post while toggling accessories. A reading above 0.2 ohms signals poor grounding; scrape paint from mounting points, remove rust with a wire brush, and secure the ground strap with stainless bolts tightened to 18 ft-lbs. Repeat this check for the engine block ground near the bellhousing–critical for starter engagement.
Inspect underhood relay sockets for melted plastic or discolored contacts. Pull each relay and probe socket terminals: terminals 85 and 86 should show infinity ohms with the switch off, dropping to near zero when energized. Terminals 30 and 87 should show an open circuit unless the load (fans, A/C clutch) is active. Replace any relays with erratic readings, using only identical replacements rated for the original amperage.
Reassemble the system in reverse order, reconnecting the battery last. Cycle each circuit–headlights, signals, wipers–while monitoring the fusebox for overheating or voltage drops. If a fuse blows immediately, disconnect the load and retest with a higher-rated fuse (temporarily) to confirm a short to ground before digging into the wiring loom for chafe points near sharp edges or suspension components.
Troubleshooting Electrical Problems in Classic Muscle Cars
Start by inspecting fusible links near the battery terminal–these thin, insulated segments often fail silently, mimicking larger system collapses. Replace corroded or brittle links with new 14-gauge wire, crimping terminals securely before soldering for durability. Verify continuity with a multimeter set to ohms; readings above 0.5 ohms indicate hidden resistance.
Check ground straps connecting the engine block to the firewall–original units deteriorate under heat cycles. Scrape paint from attachment points, then attach new 4-gauge braided straps using stainless steel bolts. Poor grounds manifest as erratic gauge readings, dim headlights, or starter solenoid clicks without engagement.
Examine the voltage regulator connector pins for green oxidation–a common cause of erratic charging. Clean contacts with electrical cleaner, then apply dielectric grease to prevent recurrence. For mechanical regulators, adjust the cut-in voltage to 13.8–14.4V at 2,000 RPM with a fully charged battery.
Trace brittle insulation on harnesses behind the dashboard, particularly where wires bend near the steering column. Chafing here can short the turn signal or backup light circuits. Wrap damaged sections with electrical tape, then secure with cable ties to prevent vibration-induced abrasion.
Test bulbs in the taillight assembly by swapping left and right housings–if the issue moves with the bulb, replace it. If not, probe the socket terminals with a voltmeter; 12V should be present when the brake or turn signal is activated. Socket corrosion requires cleaning or replacement with pigtail adapters.
Inspect the starter solenoid connections for loose or overheated terminals. Tighten the main battery cable to 15 ft-lbs–overtorquing strips threads. If the engine cranks slowly, bench-test the solenoid by jumping the small terminal to the battery post; a strong click confirms proper operation.
Replace cracked or hardened spark plug wires with high-temp silicone-core replacements. Route them away from exhaust manifolds and sharp edges, using OE-style guides to maintain clearance. Resistance should measure 1,000–5,000 ohms per foot; values outside this range indicate internal degradation.
