How to Build a Parallel Lighting Circuit Step-by-Step Guide

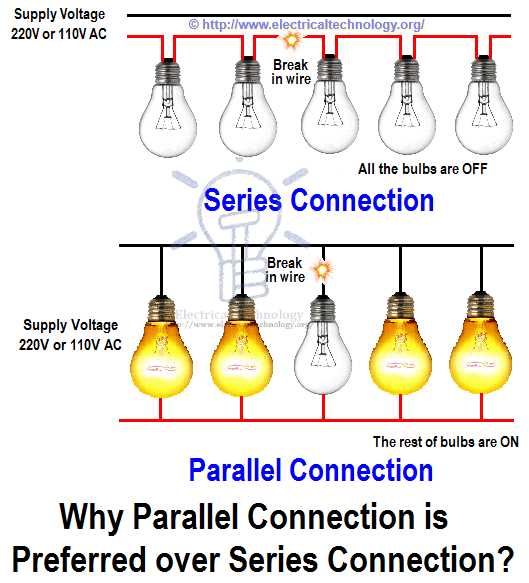

Use independent current paths for each luminaire to prevent a single failure from disabling the entire system. Split the power feed into separate branches–each fixture gets its own dedicated conductor from the main bus. This ensures that if one lamp burns out, the others remain lit without interruption. Sketch the layout on graph paper first: draw the main supply line at the top, then branch downward into individual feeds for each light source.

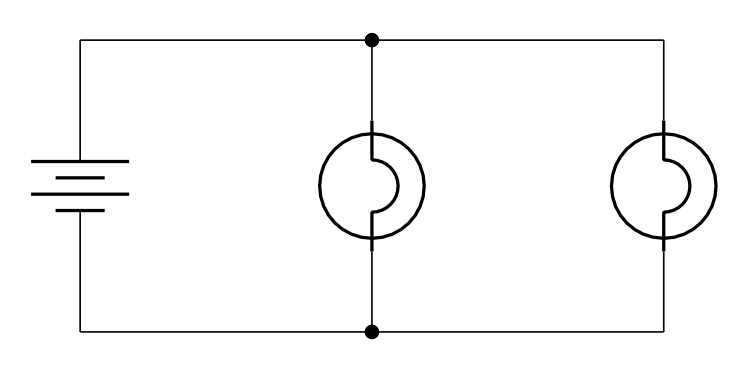

Connect all positive terminals together at a common junction and do the same with the negative terminals. This creates a uniform voltage across every branch, eliminating voltage drops that can dim bulbs further from the source. For 12V systems, keep wire runs under 5 meters to maintain brightness; for 120V, length constraints are far less critical. Use wire gauges appropriate to the load: 18AWG for low-power LEDs, 14AWG for incandescent bulbs drawing more than 1 amp.
Install a fuse on the main input line rated 1.25 times the total current draw. If the system pulls 8 amps, use a 10-amp fuse. For added safety, insert a disconnect switch between the power source and the branching point. Test each branch individually before finalizing connections–measure voltage at the farthest luminaire to confirm it matches the supply voltage. Label each branch with its intended load and wire gauge to simplify future troubleshooting.
Group fixtures by function: separate ambient lighting from task lighting by dedicating a single branch to each category. For outdoor applications, add a waterproof junction box at the branching point and use waterproof connectors on all splices. If dimming is required, insert a separate dimmer module for each branch rather than sharing one across the entire network–this allows independent brightness control per zone.
Multi-Branch Electrical Schematics for Illumination Systems
Use identical voltage-rated bulbs across all branches to prevent uneven brightness or premature burnout. Each branch should connect directly to the power source with independent wires–never daisy-chain–since a failure in one branch will not disrupt others. For household applications, 12V or 24V configurations are optimal, reducing current draw while maintaining safety and efficiency. Calculate total current by summing the amperage of each branch; overspecify the power supply by at least 20% to accommodate fluctuations and future expansions.
Install dedicated switches for each branch to enable granular control. Toggle placement should prioritize accessibility–mount near entry points or along primary pathways for ergonomic operation. For high-load setups, use relays rated for 1.5x the total amperage to prevent switch overheating. Avoid combining different technologies (e.g., incandescent with LED) in the same network, as voltage drops and flickering can occur due to mismatched electrical characteristics.
Wiring Precautions for Stable Performance
Use stranded copper wire (minimum 1.5mm² for 12V, 2.5mm² for 24V) to minimize resistance and voltage loss over distance. Secure all connections with crimp connectors or solder, then insulate with heat-shrink tubing–exposed joints corrode or short-circuit in humid environments. Route wires away from heat sources and sharp edges; conduit or cable trays protect against physical damage and simplify maintenance. Label each branch at both ends with indelible markers to expedite troubleshooting.
Ground all metal fixtures and conductive components to a common busbar linked to the main earth point. This prevents static buildup and reduces fire risk. For outdoor implementations, seal junction boxes with silicone to prevent moisture ingress, which degrades conductivity over time. Test insulation resistance with a megohmmeter before energizing–values below 1MΩ indicate compromised wiring requiring immediate rectification.
Load Distribution and Safety Mechanisms
Distribute load evenly across branches to avoid overloading individual segments. Use fuses or circuit breakers (rated for 110% of branch amperage) at the origin of each branch to isolate faults without affecting the entire system. For 120V/240V networks, position protective devices within 30cm of the power source to comply with electrical codes. Integrate surge protectors if the system powers sensitive devices (e.g., dimmable LEDs) to shield against transient voltage spikes.
Verify voltage drop at the farthest fixture–values exceeding 3% of nominal voltage (e.g., >0.7V for 24V) necessitate thicker wires or additional power feeds. For dynamic setups (e.g., theatrical rigs), incorporate patch panels to reconfigure branches without rewiring. Regularly inspect for signs of overheating (discoloration, brittle insulation) and measure current draw annually; deviations beyond 10% signal pending failures. Document all modifications in a system schematic stored on-site for maintenance personnel.
Build a Multi-Branch Electrical Scheme Step-by-Step
Gather the correct symbols before drafting: power sources use a single line with positive and negative indicators, resistive loads rely on a zigzag, and switches appear as breaks in straight segments with a pivot point. Mistakes in symbol selection cause confusion later–standardize them across branches to maintain consistency. A compact reference table helps:
| Component | Symbol Shape | Size (mm) |
|---|---|---|
| Battery | Parallel lines (long/short) | 20×8 |
| Filament element | Zigzag | 15×5 |
| On/off switch | Gap with pivot | 10×3 |
Map each branch on graph paper or digital grid–spacing dictates readability. Draw power rails vertically on opposite sides, keeping 3cm clearance between them; this prevents accidental overlap during drafting. Extend horizontal lines outward from rails at equal intervals, spacing them 2.5cm apart for neat alignment. Label each branch numerically (Branch 1, Branch 2) or by load function (Reading, Entrance, Pantry) using 8pt font to save space.
Insert load elements across branches to ensure each path interacts independently. Double-check connections: a node connecting top and bottom rails equals a short, rendering the entire drawing useless. Route switch symbols between rail and load–placing them at branch start or mid-point changes operational logic. Use red pencil for live wires and blue for neutral to highlight polarity differences; this visual aid speeds troubleshooting.
Verify branch independence by tracing each path manually: start from power origin, follow through switch, load, and back to opposite rail–no deviations allowed. Incorrect paths appear as gaps or intersecting loops, requiring redraw. Annotate branch current ratings next to each resistive symbol (e.g., 0.5A, 1.0A) to document expected behavior; this data aids in component selection later.
Finalize by adding a legend explaining symbols, color codes, and branch labels–keep it concise (four lines max). Export or photocopy the scheme before making hardware connections; mistakes detected on paper prevent wasted materials. Store multiple copies in project binders or cloud storage for quick access during installations.
Critical Elements for a Multi-Branch Illumination Network
Begin with a robust power supply rated for 12V or 24V DC, ensuring it exceeds the total wattage of all connected loads by at least 20%. For instance, if six 10W fixtures are used, select a unit delivering no less than 72W to prevent voltage drop under peak demand. Switched-mode units outperform linear transformers due to lower heat output and consistent voltage regulation, especially in installations exceeding 50W total draw.
Branch Conductors and Terminal Blocks
Use stranded copper wire sized per the American Wire Gauge (AWG) standard–14AWG for runs under 10 meters with loads up to 15A, or 12AWG for longer distances or higher currents. Each branch must terminate at a barrier strip or terminal block with screw-down clamps–soldered joints degrade under thermal cycling. Ensure blocks accommodate double the expected current; for example, a 30A block for a 15A branch prevents resistive heating at connection points.
Integrate a miniature circuit breaker (MCB) or fuse holder inline with the primary feed, sized at 125% of the branch’s maximum current. A 5A branch requires a 6.25A MCB; omitting this risks melted insulation during fault conditions. For temporary setups, automotive blade fuses with holders provide modular replacement, while DIN-rail-mounted breakers suit permanent installations.
Load Distribution and Switching Mechanisms
Opt for relays or solid-state switches for branches exceeding 3A–mechanical toggle switches arc and weld shut under inductive loads like LED drivers. A 10A relay costs under $2 but isolates control wires from high-current paths, extending switch life. For dimmable branches, ensure the switch or controller matches the driver’s protocol (e.g., 0-10V, DALI, or PWM); incompatibility causes flickering or shutdown.
Label every branch with heat-shrink tubing or adhesive markers–the common practice of scribbling on wires fails under UV exposure. For outdoor setups, IP67-rated junction boxes protect splice points from moisture ingress; silicone-filled wire nuts inside these boxes prevent corrosion. Verify torque settings on all screw terminals (typically 5-7 inch-pounds for 14AWG) to avoid loose connections that manifest as intermittent failures weeks after installation.
Step-by-Step Wiring Process for Independently Powered Bulbs
Begin by disconnecting the main power supply to prevent electrical hazards. Use a voltage tester to confirm no current flows through the wires. Strip 1 cm of insulation from the ends of each conductor–live (hot), neutral, and ground–using wire strippers, ensuring no stray copper strands remain.

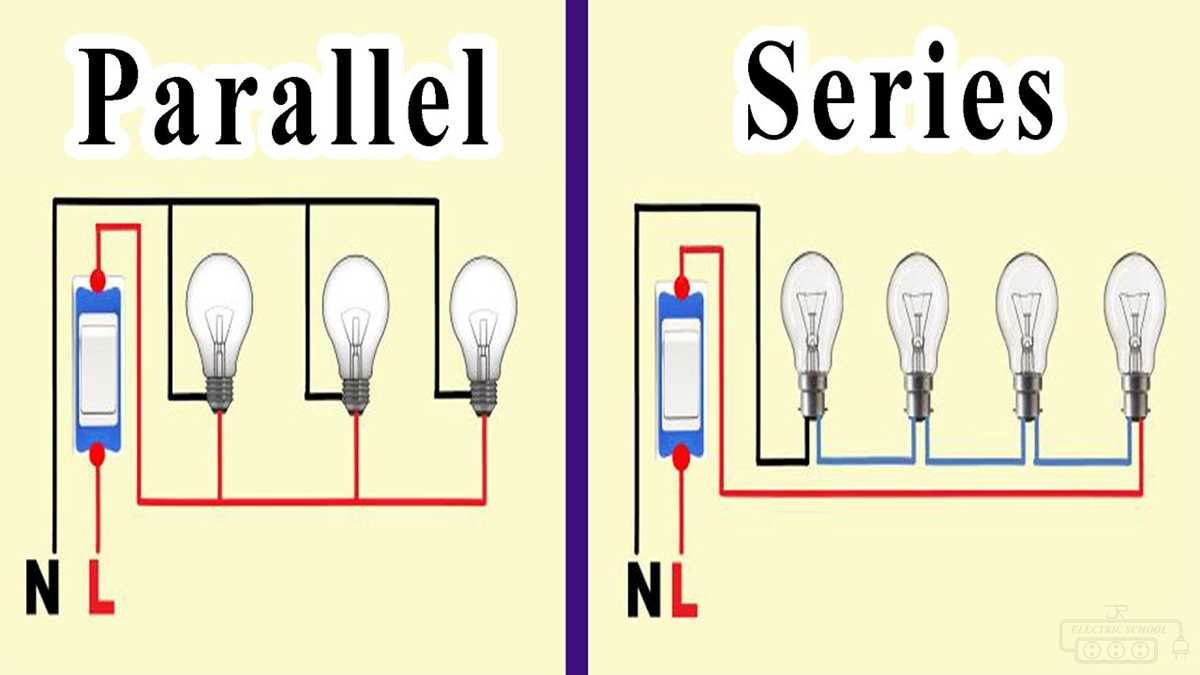

Connect the live wire from the power source to a terminal block or wire nut, then run separate branches to each bulb holder’s live terminal. Repeat for the neutral wire, linking it directly to each bulb holder’s corresponding terminal. Secure all connections with insulated wire nuts, twisting clockwise until tight. For safety, attach the ground wire to each fixture’s grounding screw. Verify all connections with a multimeter (≤0.5 ohms between matching terminals) before restoring power. Use 14 AWG copper wire for 15A breakers, 12 AWG for 20A.
Critical Wiring Checks
- Avoid mixing wire gauges–use identical thickness for all branches.
- Ensure each bulb holder’s live/neutral terminals align with the feed wires (swapping causes failure).
- Test each branch individually before grouping connections.
- Use heat-shrink tubing or electrical tape to insulate wire nuts if exposed to vibration.
- Load calculation: Sum bulb wattages, divide by supply voltage (e.g., 60W × 3 bulbs = 180W ÷ 120V = 1.5A–check breaker rating).
Troubleshooting Immediate Issues
- No illumination: Test each bulb in a known-working socket. Verify live/neutral continuity at the first bulb holder (
- Flickering: Check wire nut tightness; twist wires firmly before capping. Replace corroded terminals.
- Breaker trips: Disconnect all bulbs, reset, then reconnect one at a time to isolate the faulty branch.
- Uneven brightness: Confirm identical bulb wattages; test voltage at each holder (should match supply ±3V).
