Complete Ford Mustang 1969 Electrical Wiring Guide and Diagram

Begin by sourcing the factory-authorized schematics manual for the vehicle’s model year–this remains the most reliable reference. Aftermarket reproductions vary in accuracy, so verify the publisher: Ford Motor Company’s official service literature or trusted third-party providers like Motorcraft or Haynes offer the least deviation from original specifications. If physically unavailable, high-resolution scans from reputable automotive archives (e.g., Mustang Owners Club forums or Classic Mustang Restoration Resources) can serve as temporary substitutes, but cross-check every connection against a known-good chassis.

Prioritize tracing circuits in segments: ignition, lighting, charging, and instrumentation. Use a multimeter set to continuity mode to confirm paths–never assume wire color codes alone. Factory schematics often note exceptions for optional equipment (e.g., console-mounted gauges or tilt steering columns), which require additional relays or fused links. Replace brittle insulation with cross-linked polyethylene (XLPE) wire of identical gauge; avoid PVC alternatives prone to heat degradation. For connectors, prefer gold-plated terminals to prevent corrosion, especially in high-current circuits like the starter solenoid.

Label every harness section before disassembly using heat-shrink tubing with printed identifiers. This eliminates guesswork during reassembly–critical for components like the voltage regulator or aftermarket stereo harnesses, which often conflict with original wiring if improperly integrated. Ground paths demand special attention: clean contact surfaces to bare metal, apply dielectric grease, and secure with stainless steel fasteners. Ignoring this risks intermittent failures, particularly in the dimmer switch or turn signal circuits.

For modifications, isolate aftermarket additions (e.g., LED conversions or electric fans) on dedicated fusible links rather than tapping into factory circuits. Use circuit breakers instead of fuses for high-draw accessories to prevent fire hazards. The amplifier circuit for the horn relay is a common failure point–upgrade to a 40-amp relay if replacing the original 30-amp component. Document all changes in a personalized schematic using vector-based software (e.g., QElectroTech) for future reference.

Classic Ford Coupe Electrical Schematics: Hands-On Tips

Start troubleshooting by locating the fuse block under the dashboard–label each fuse with its amperage and circuit function before touching anything. The 30-amp main fuse protects the entire system, while the 10-amp fuse covers the instrument cluster. Use a multimeter set to continuity mode to verify each fuse’s integrity without removing it.

Trace the ignition switch harness by following the red wire from the battery terminal through the firewall grommet to the switch’s “BAT” terminal. The yellow wire with a black stripe powers the starter solenoid, while the brown wire supplies the accessories. Label these connections with heat-shrink tubing to prevent miswiring during reassembly.

Check the voltage regulator mounted on the inner fender panel–adjust screws A and F for proper charging output (13.8–14.4 volts at 2,000 RPM). The white wire sends field current to the alternator, while the red wire carries charging voltage back to the battery. Use a resistor bypass test if the alternator fails to excite; connect a 10-ohm resistor between the “F” terminal and ground temporarily.

Inspect the headlight switch pigtail for melted insulation, especially where the tan wire connects to the high-beam circuit. Replace the harness if corrosion is visible; use dielectric grease on connectors to prevent future oxidation. The dimmer switch wires (light green for high beams, dark green for low) must be secured with crimp connectors–solder alone won’t withstand vibration.

For turn signals, follow the flasher unit’s input (light blue wire) from the hazard switch to the steering column. The pink wire carries power to the brake light circuit, which shares the same bulb filaments on the rear assembly. Test each bulb socket with a 12V test light–ground failure is common on these models due to rusted tail light housings.

Replace brittle wiring harnesses section-by-section using GXL-rated wire (minimum 18-gauge for lighting, 12-gauge for high-draw circuits). Route new wires along factory paths, securing them with factory-style loom or braided sleeve. Avoid zip ties–they crack over time under hood heat; use nylon clamps instead.

Test the courtesy light circuit by probing the door jamb switch–white wire should show 12V when the door opens. The dome light’s black wire must have a solid chassis ground (sand paint down to bare metal if necessary). For intermittent issues, clean the fuse block’s blade connectors with contact cleaner and a brass wire brush.

Document every modification with labeled diagrams using colored markers matching the wire’s insulation. Store backup copies of factory schematics in sealed plastic bags inside the glovebox–original manuals deteriorate with humidity. Keep a dedicated repair log for voltage readings, replaced components, and resistance values to track recurring faults.

Finding the Right Electrical Blueprint for Your Classic Ford Coupe

Start by identifying the exact variant of your vehicle–Mach 1, Grande, Boss 302, or base model–since each requires a distinct schematic. Factory-reproduced manuals from sources like Ford Motor Company’s official licensing partners (e.g., Motorbooks or Helm Incorporated) include model-specific pages with precise pinouts for ignition systems, lighting circuits, and charging components. Avoid generic aftermarket guides; these often merge incompatible configurations across trims, leading to incorrect splices or short circuits.

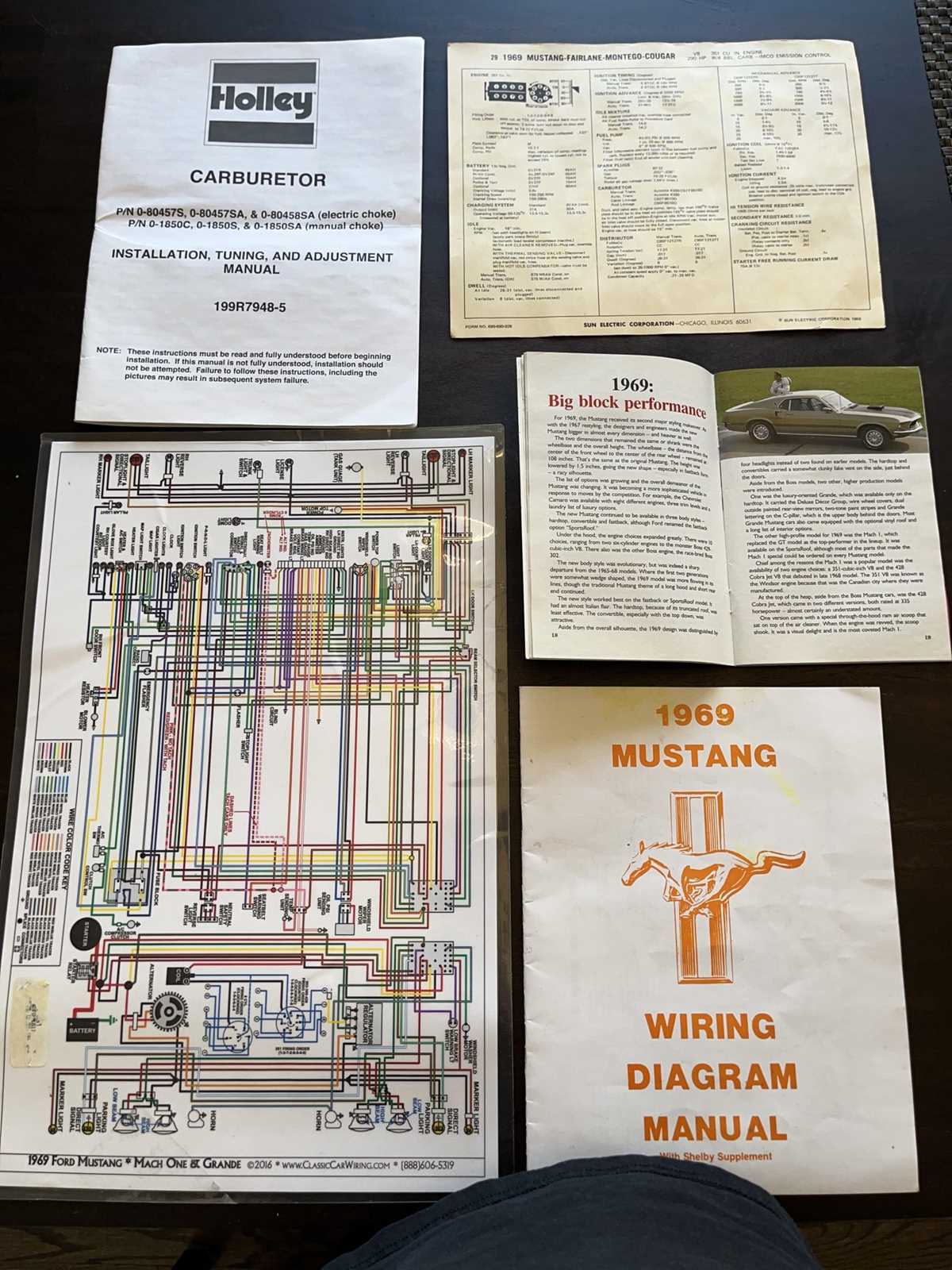

Motorcraft’s original service publications, labeled PN FPS-12300-B or later revisions, contain fold-out sheets with color-coded traces for the entire harness layout. Purchase a physical copy through authorized Ford heritage retailers or verified eBay listings; digital scans of these sheets frequently omit critical details like ground strap locations or relay connections hidden beneath dash panels. Ensure the print quality retains the original wire gauge legends and fuse ratings, as these determine safe current loads for aftermarket upgrades.

Leveraging Restoration Communities

Join specialized forums such as ClassicCougarCommunity.com or StangNet; experienced builders often share annotated photos of chassis harnesses tied to specific vehicle identification numbers (VINs). Request close-ups of firewall plugs, trunk harness routing, or alternator pigtails–these details vary between 302ci and 428ci engines due to solenoid and voltage regulator differences. Save these images in a dedicated folder tagged with your VIN’s suffix (e.g., “T5” for manual transmissions) to cross-reference later.

Visit local car shows where original survivors are displayed; owners may grant access to underhood or interior compartments for direct tracing of factory connections. Use a multimeter set to continuity mode to validate suspected paths against published diagrams, marking each verified segment with masking tape. Record discrepancies in a notebook–common variances include deleted air conditioning wiring on non-optioned models or unique plug shapes for early stereo systems.

For rare sub-models like the Shelby GT350 or GT500KR, consult the Shelby American Automobile Club (SAAC) registry. They maintain archives of dealer-installed options that alter wiring paths, such as competition fuel pumps or auxiliary brake lights. If no exact match exists, splice together verified segments from multiple sources, testing each new connection with a 12V test light before securing with solder and heat-shrink tubing.

Step-by-Step Harness Color Codes and Connector Layouts for Classic Pony Edition

Begin by isolating the main harness loom under the dashboard–locate the red/LR (light red) wire with a white tracer, which routes to the ignition switch’s “ACC” terminal. Verify continuity against the engine bay firewall plug (C9ZZ-14488-A) using a multimeter set to 200 ohms; resistance should not exceed 0.5 ohms. If readings fluctuate, inspect the inline fusible link (18-gauge green) near the battery junction block, as corrosion here mimics a dead short.

Critical Plug Pin Assignments

Connector	Pin	Color Code	Destination/Function	Tolerance (V)
Instrument Cluster (10-way)	A	Black/Orange (BK/O)	Oil pressure sender	0–12 (±0.2)
Headlight Switch (7-way)	3	Yellow/Black (Y/BK)	High beam indicator	11.8–12.6
	5	Light Green/Red (LG/R)	Brake warning lamp	12–14.4
Alternator (4-way)	D	Dark Green/Yellow (DG/Y)	Voltage regulator sense	13.5–14.8 (±0.3)

For the taillight harness, trace the brown/LB (light blue) wire from the rear harness grommet to the left-hand lens assembly; splice integrity is critical–any fraying above 2 mm requires replacement with 18-gauge Teflon-coated wire. The right-hand assembly mirrors this with a brown/PK (pink) lead, but note the splice near the fuel sender uses a unique crimp (AMP 60976-3) prone to oxidation; apply dielectric grease post-repair.

Test the starter solenoid’s purple/WH (white) wire at the firewall stud–voltage should drop below 0.3V during cranking. If readings spike, replace the solenoid ground strap (Ford #C5ZZ-11562-A) and inspect the battery-to-body bonding point under the driver’s fender; paint contamination here creates phantom amperage draw. For electronic gauge clusters, bypass the original printed circuit board by splicing a 14-gauge DK BLU (dark blue) wire directly to the sender, but ensure the cluster’s internal ground (chassis-mounted screw) is free of rust.
