Complete Home Telephone Wiring Guide with Easy to Follow Diagram
Start by identifying the network interface device (NID) installed on an exterior wall–this gray or beige box separates the provider’s cables from your internal setup. Open the NID carefully; inside, you’ll find the demarcation point where the service line terminates in a RJ11 jack or screw terminals. Verify line polarity here before proceeding–connecting red and green wires incorrectly will disrupt service.
Route internal cables along baseboards or through attic spaces using low-voltage staples, spacing them every 12–18 inches to prevent sagging. Avoid running alongside power lines; maintain at least 6 inches of separation to minimize interference. Use solid copper 24-gauge wire for analog lines–cat3 cable works but is unnecessary unless extending service to multiple jacks.
At each outlet location, install a single-gang low-voltage mount box for clean termination. Strip 0.5 inches of insulation from each wire pair, twist strands tightly, and insert into the matching RJ11 slot or screw terminal–red/green for primary line, black/yellow for secondary if needed. Secure connections with wire nuts if using screw terminals, then attach the cover plate.

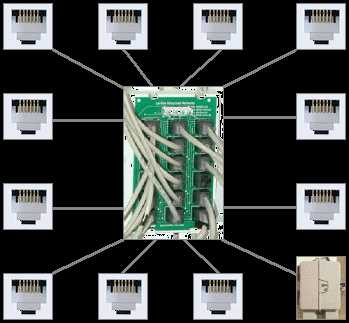

Test each connection with an analog telephone–dial tone confirms successful polarity, while static or silence indicates reversed wires or broken continuity. For multi-line setups, install a punch-down block or 66-type connecting block near the NID to manage branching. Label every cable termination for future reference.
If extending service to detached structures like garages, use outdoor-rated UV-resistant cable and waterproof junction boxes at splice points. Bury direct-burial cable at least 12 inches deep or run through conduit to prevent rodent damage. Replace deteriorated insulation immediately–exposed wires corrode quickly under load.
Residential Voice Connection Blueprint
Begin by locating the network interface device (NID) on an exterior wall–this is the demarcation point where the service provider’s line terminates. Open the NID cautiously; inside, you’ll find a modular jack or screw terminals labeled “line” or “telco.” Verify the pair count: standard analog services use the red (tip) and green (ring) wires, while additional lines may utilize yellow/black (second line) or other pairs.
Use a punch-down tool rated for 66 or 110 blocks to secure connections if working inside the NID or a distribution panel. Strip no more than 0.25 inches of insulation; excessive bare wire risks shorting or degraded signal. For jack installation, follow the EIA/TIA 568B standard: pin 3 to green, pin 4 to red. Crossed or reversed pairs will cause hum, static, or no dial tone.
- Single-line setup: connect red/green to a single RJ11 jack.
- Multi-line setup: add yellow/black to a second jack, observing polarity.
- VoIP adapter: bypass NID; plug directly into router’s Ethernet port.
Test continuity with a multimeter: set to ohms (200Ω range). Probe between the NID’s line terminals and an installed jack’s red/green contacts; resistance should read near 0Ω. Infinite resistance indicates an open circuit–check for cut wires, loose terminations, or corrosion at connectors. Replace any damaged copper cables; impedance mismatches degrade call quality.
If extending lines through walls, use Category 3 or better twisted-pair cable–minimum 24 AWG for runs under 150 feet. Avoid solid-conductor cables for movable devices; stranded wire (26 AWG) is more flexible but limits length to 50 feet without repeaters. Label each cable at both ends with line numbers to simplify troubleshooting.
- Disconnect power before handling internal wiring.
- Avoid running cables parallel to electrical wires within 12 inches.
- Use surge protectors rated for voice lines if lighting strikes are common.
For advanced configurations, install an inline DSL filter at each jack serving analog devices when sharing the line with broadband. Splitters must be high-pass (for data) and low-pass (for voice); incorrect placement causes interference. Re-test dial tone after every modification–static during calls suggests filter failure or improper grounding.
Essential Supplies for Residential Communication Line Setup
Begin by acquiring a butt set or lineman’s test handset–this will verify signal continuity and diagnose faults after connections are made. Without one, troubleshooting becomes guesswork, risking miswired terminals or dead circuits.
For terminating cables, 66 blocks or modular RJ-11 jacks are non-negotiable. Avoid using wire nuts or electrical tape; these degrade performance over time, especially in humid environments where oxidation accelerates corrosion. A punch-down tool with a 110-style blade ensures secure, gas-tight connections, preventing intermittent disruptions.
Stock Cat3 or Cat5e twisted-pair cable, even if the system doesn’t require high-speed data. Cat3 suffices for traditional voice lines, but Cat5e offers future-proofing for VoIP or DSL. Use solid-core copper (not stranded) for wall runs to minimize attenuation. Pre-made patch cords work for short jumps, but bulk cable allows precise length cuts, reducing slack that can hinder airflow in conduits.
| Tool/Material | Recommended Specifications | Quantity (Avg. 3-room setup) |
|---|---|---|
| Cable stripping tool | Adjustable, 20-26 AWG capacity | 1 |
| Crimping pliers | RJ-11/RJ-45 compatible | 1 |
| Fish tape | 25-ft fiberglass or steel | 1 |
| Voltage tester | Non-contact AC detector | 1 |
| Wall plates | Single/dual-gang, low-voltage rings | 6-8 |
Label every conductor at both ends with heat-shrink tubing or colored electrical tape–never assume “red is live” without verification. A multimeter set to continuity mode confirms pair matching, critical when dealing with split pairs or dual-line setups. For outdoor runs, use direct burial cable or schedule 40 conduit to prevent rodent damage or water ingress.
A stud finder with AC detection prevents drilling into live wires during wall penetrations. For stapling cables, low-voltage mounting brackets reduce signal degradation from tight bends. Avoid staples without insulated crowns; these can pinch conductors, causing shorts or crosstalk.
Consumables and Safety Gear
Disposable gloves protect against sharp metal fragments when cutting cable sheaths. Safety goggles are mandatory when snipping kevlars or pulling cable through attics with insulation fibers. Cable lubricant eases pulls through conduits, but silicone-based products can degrade rubber gaskets–opt for water-soluble alternatives.
Store leftover cable on plastic reels in a dry, temperature-controlled space. Coiled near AC units or furnaces, PVC jacket can leach plasticizers, making conductors brittle. For quick fixes, keep butyl rubber sealant and heat-shrink butt connectors to repair nicks or exposed copper before permanent termination.
How to Install a Residential Communication Outlet: A Practical Walkthrough
Turn off the circuit breaker labeled for the line you’ll work on. Verify absence of voltage using a non-contact tester on the cables entering the junction box. If no breaker is dedicated, shut off the main power to eliminate risk of shock from crossed or live pairs.
Expose 6–8 mm of copper on each wire end using strippers calibrated for 22–24 AWG solid conductors. Twist strands clockwise if using stranded wire to prevent fraying. Ensure no nicks remain–even minor cuts reduce signal integrity.

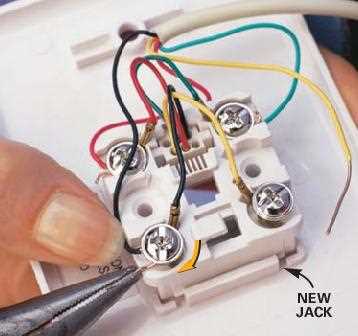

Identify the terminal block inside the outlet: green screws for line one (tip), red screws for line two (ring). For standard POTS service, connect the red wire to the green screw and the green wire to the red screw. This reverses the polarity, which aligns with most provider conventions and ensures reverse compatibility with older handsets.
Secure connections by wrapping each wire clockwise around its screw, then tightening with a screwdriver torque of 8–10 in-lbs. Avoid overtightening–excessive pressure can fracture the plastic housing or strip threads. Tug gently on each wire to confirm mechanical hold before snapping the cover plate.
Attach the outlet to the wall box using mounting screws; ensure alignment so the faceplate sits flush. Misalignment can stress the cable entry points over time. If the box lacks screws, use drywall anchors rated for 20 lbs minimum–outlets weigh less than 3 oz but must withstand repeated plug cycles.
Re-energize the circuit and attach a test handset. Listen for a dial tone within 2 seconds; longer delays suggest loose connections. If static is present, re-check screw tightness–oxidation on the wire surface can mimic a solid contact. For persistent issues, use a butane-powered wire brush to remove corrosion without damaging insulation.
Label the outlet with the provider’s service number and installation date using a permanent marker on the inside of the faceplate. This simplifies troubleshooting if the line drops or needs service later. Store the spare cable slack in a loop behind the outlet–coiling too tightly can introduce inductive noise on analog signals.
Demystifying Communication Cable Color Standards
Use a toner probe or multimeter to verify each wire’s function before making connections. In North America, twisted-pair installations follow a strict color scheme: the tip (positive) wire is always solid-colored (blue, orange, green, brown), while the ring (negative) counterpart has a white stripe. For example, a blue pair consists of blue (tip) and white/blue (ring). This pattern repeats for up to four pairs–critical for multi-line systems like office setups or fax lines. Misidentifying these can cause cross-talk or dead lines.
European systems often adhere to the ITU-T Recommendation K.27, where pairs are color-coded differently: white/blue, blue/white, white/orange, orange/white, etc. Unlike North American standards, the first wire in each pair is striped, not solid. Always consult local telecom regulations–some regions mix both schemes. For instance, Australia typically mirrors the U.S. model but swaps green/red for pair three (used in older equipment). Labeling cables at both ends prevents configuration errors.
Troubleshooting with Color Identifiers
If a connection fails, trace the circuit by checking continuity: the solid color (tip) should connect to the corresponding striped conductor (ring) without interruption. A common mistake is swapping pairs–blue/white and white/blue *must* terminate together. For PBX or VoIP adapters, pair one (blue) often handles the primary line, while pair two (orange) carries auxiliary signals or power. Some devices require only two wires (tip and ring), but others–like digital systems–demand all four conductors.
Legacy installations may use older schemes with red, green, yellow, and black. Here, red/green is the primary pair, and yellow/black is the secondary. Mixing these with modern standards risks signal degradation. If refurbishing old infrastructure, replace non-compliant cabling entirely–adapters rarely solve polarity issues reliably. Keep a reference chart nearby when working on mixed-era systems.
Safety and Best Practices
Never assume color consistency across devices. Test each wire with a voltage detector; even “dead” lines can carry residual current from adjacent circuits. For outdoor lines, use gel-filled cables to prevent moisture damage–corrosion alters resistance, mimicking connectivity failures. When splicing, strip only the necessary length (≈12mm) to avoid shorts. If unsure, disconnect the service panel before modifications–telecom lines can carry voltages up to 90V AC, enough for a painful shock.
