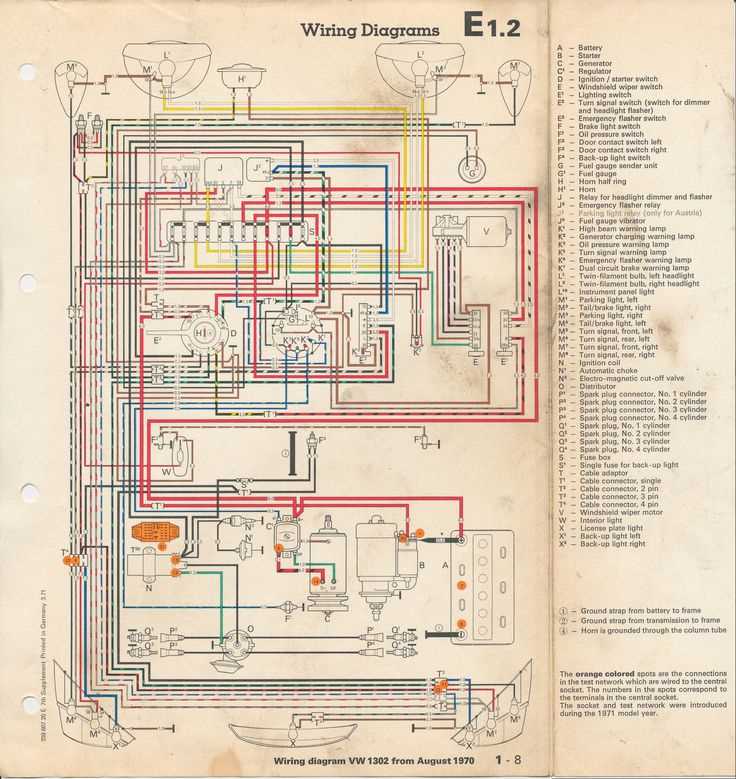

Complete Guide to 1970 Volkswagen Beetle Ignition Wiring Schematic
For a Type 1 vehicle from that era, the color-coded wire sequence begins with the black lead from the coil’s positive terminal (+) routing directly to the ignition switch’s “15” post. From there, trace the brown wire leading to the distributor’s points, ensuring it doesn’t exceed 0.5 ohms of resistance when grounded. The coil’s negative terminal (-) connects via a thin black/white striped wire to the distributor’s condenser–verify this path remains uncompromised, as corroded terminals are a common failure point.
Check the voltage drop between the ignition switch and coil with a multimeter set to DC: readings should stabilize at 12.6V with the key in the “on” position. If fluctuations occur, inspect the fuse block’s #1 fuse (8A) and the white wire linking it to the ignition switch. The condenser’s role in suppressing voltage spikes is critical; replace it if arcing at the points is visible or if engine misfires persist after adjusting the gap to 0.016 inches.
Bypass testing can isolate faults quickly: disconnect the coil’s negative wire and attach a jumper directly to the distributor’s points terminal. If the engine cranks but won’t start, the issue lies in the condenser or points. For intermittent stalling, probe the black/yellow wire feeding the ballast resistor–it should measure 6-8 ohms. Compare your findings against the factory schematic’s wire gauge specifications: primary circuit uses 1.0 mm², while the secondary (coil-to-distributor) requires 0.5 mm² insulated leads.
Label each connection before disassembly using masking tape and a permanent marker–mistaking the distributor’s vacuum advance wire (green/black) for the tachometer signal (blue/black) is a frequent error. When reassembling, apply dielectric grease to the terminal contacts to prevent oxidation. For aftermarket electronic ignitions, confirm compatibility with the stock 12V system; some kits require a resistor bypass wire (red) to maintain proper voltage to the coil.
How to Connect Early Air-Cooled Volkswagen Electrical Components
Start by locating the primary coil terminal marked “+” or “15” on the factory Bosch unit. Attach this to the fused side of the ignition switch output–typically a brown wire with a red stripe on original harnesses. The “-” or “1” terminal must link directly to the distributor’s points; verify continuity with a multimeter before securing. Any resistance over 0.5 ohms indicates corrosion inside the wire sheath.
Route the condenser lead from the distributor to the coil’s negative terminal using the original stranded copper wire. Avoid shortening this run–length helps suppress voltage spikes. If replacing with a modern electronic module, bypass the condenser entirely, but confirm the module’s grounding path is isolated from the engine block to prevent stray current loops.
For vehicles with an external voltage regulator, trace the field wire (thin green) from the alternator’s “DF” post to the regulator’s matching terminal, then to the ignition switch’s accessory output. Ensure the ground strap between the alternator housing and chassis is intact; paint or rust here induces charging failures. Use a crimp connector with heat shrink on all connections to prevent oxide buildup.
The distributor’s vacuum advance unit should connect to the carburetor’s ported vacuum tap via a 6mm rubber hose. Check for cracks–aged hoses cause erratic timing. If the vehicle has aftermarket electronic advance, cap the vacuum port to prevent unmetered air leaks, which lean the mixture unpredictably. Label all disconnected wires with masking tape before removal to avoid misrouting.
Test spark output by removing a spark plug and grounding its shell against the cylinder head. Crank the engine; a bright blue spark confirms correct coil polarity. Yellow or weak sparks suggest reversed coil wires or faulty ballast resistor–replace with a 1.5 ohm resistor if voltage exceeds 9.5V during cranking. Keep wires separated from exhaust manifolds by at least 5cm to prevent heat damage.
Key Parts of the Classic Air-Cooled Engine Spark Setup
Start by locating the coil–it sits on the right side of the engine bay near the fan shroud. A single thick wire runs from its top terminal to the distributor cap, while the side terminal connects to a thin wire leading to the points. Check for corrosion at these connections; even slight resistance here disrupts spark delivery. Use dielectric grease when reassembling to prevent future oxidation.
Distributor and Points Breakdown
The distributor cap contains four terminal posts, each linked to a spark plug via thick ignition leads. Inside, the rotor spins, directing voltage from the central post to the correct cylinder terminal. Remove the cap carefully–plastic clips snap off easily. Inspect the points under the rotor; they should open at 0.4mm gap. Adjust using a feeler gauge with the engine at TDC for cylinder one.
Condensers under the distributor plate fail silently. Symptoms include weak sparks or hard starting even with new points. Test by temporarily substituting a known-good condenser. If symptoms vanish, replace the unit permanently. Original condensers use wax-paper insulation; modern equivalents use polyester film for better moisture resistance.
Voltage drop across the ballast resistor–a ceramic block between the ignition switch and coil–should not exceed 0.2V. Higher readings suggest the resistor is deteriorating; bypassing it will fry the coil in minutes. Always measure under load with the starter engaged, as cold engine draws more current causing misleading steady-state readings.
Step-by-Step Color Codes for the Engine Startup Circuit
Begin by locating the ballast resistor (if equipped) near the coil–its input terminal connects to a black/yellow striped lead from the ignition switch. The output side delivers power via a white wire to the coil’s positive (+) post. Ensure the black ground wire from the coil clamps securely to the engine block; corrosion here causes intermittent failure. For early models with points, the distributor’s brown wire attaches to the coil’s negative (-) terminal–verify this path before testing spark.
Key Wire Paths and Functions
- Black/yellow (striped) – Switch to resistor input
- White – Resistor to coil positive (+)
- Brown – Coil negative (-) to distributor points
- Black – Coil/engine ground
- Green (solid) – Starter solenoid to battery positive (+)
- Red – Alternator field excitation (post-72 models)
Trace each conductor back to its origin: the green starter lead originates at the solenoid’s activation tab, while the red alternator wire emerges from the voltage regulator. Cut back brittle insulation ½ inch and solder joints for reliable contact. Label loose ends with masking tape to avoid confusion during reassembly.
Test continuity with a multimeter: probe the black/yellow lead at the switch while turning the key–readings should drop from 12V to near zero when engaged. If voltage persists, the switch contacts are faulty. For the coil, measure resistance across its terminals: 1.5–3.0 ohms confirms proper windings. Replace the coil if readings exceed this range or spark output weakens. Always disconnect battery ground first–reversing polarity destroys the electronic components.
Common Faults in Classic Air-Cooled Engine Spark Circuits and Troubleshooting
Inspect the condenser for signs of leakage or overheating–tell-tale discoloration on the housing or swelling often precedes failure. A faulty condenser disrupts voltage regulation, causing erratic spark plug firing or weak spark intensity. Replace it immediately if testing with a multimeter shows capacitance below 0.18–0.25 µF or resistance under 1 Ω. Always pair condenser replacement with a new points set to prevent cross-contamination of worn materials.
| Symptom | Likely Cause | Diagnostic Method | Action Threshold |
|---|---|---|---|
| Engine misfire under load | Cracked rotor arm or worn distributor cap | Visual check for carbon tracking or pitting | Replace if cracks exceed 1mm or carbon deposits cover >30% of surface |
| Hard starting when cold | Corroded wire terminals at coil or distributor | Scrape terminals; measure voltage drop >0.2V at 12V input | Clean or replace terminals if resistance exceeds 0.5 Ω |
| Backfiring through intake | Incorrect dwell angle or sticking breaker points | Use a dwell meter; adjust to 50°±2° for 4-cylinder engines | Replace points if dwell variation exceeds 5° or pitting is visible |
Check for voltage drop across the ignition switch by probing both sides of the circuit while cranking–the differential should never exceed 0.5V. A degraded switch introduces resistance, starving the coil of full voltage. If symptoms persist after verifying switch integrity, trace the harness for chafing against the chassis, particularly near the battery tray and firewall grommet. Bare copper strands cause intermittent shorts; solder and heat-shrink any exposed sections, then secure the harness away from moving parts using nylon zip ties spaced at 15cm intervals.
How to Diagnose and Swap the Spark Generator on a Classic Air-Cooled VW
Disconnect the battery ground cable before touching any high-voltage components. Using a multimeter set to 20 kΩ, probe the primary coil terminals–expect 0.75 to 1.2 ohms. If readings exceed 1.5 ohms, corrosion in the male spade connectors or burnt windings are likely. Clean terminals with 400-grit sandpaper and dielectric grease; replace the unit if resistance stays high.
For the secondary coil, set the multimeter to 20 kΩ and measure between the negative primary terminal and the high-voltage tower. Correct values range from 6,000 to 10,000 ohms. Any deviation above 11,000 ohms signals insulation breakdown–common after 50,000 miles on original units. Remove the distributor cap and rotor beforehand; misrouted cables can mimic coil failure.
Mount the new spark generator with M6 bolts torqued to 8-10 Nm. Align the tower facing the rear cylinder; reversed installation disrupts firing order. Reconnect wires per factory color codes: black/white to the negative terminal, black/green to the distributor, and brown to the engine block–ground paths must be bare metal, not painted surfaces.
After reassembly, crank the engine while holding a grounded screwdriver 6 mm from the coil tower. Blue-white arcs at 8 mm gap confirm proper output. Weak or yellow sparks necessitate checking condenser voltage; a quick swap with a known-good unit isolates faults in 30 seconds without tools.
Prevent premature failure by applying heat-shrink tubing over spliced wires. Original wiring harnesses degrade at 250°F–route replacements away from exhaust manifolds. Store spare coils indoors; humidity accelerates internal corrosion within weeks. Test every 6 months if the vehicle sits idle; long-term storage reduces capacitance by 15% annually.
