Complete 43 Vortec Engine Wiring Diagram Guide for Easy Troubleshooting

Begin by isolating the main power feed at the battery terminal. Use a multimeter set to 20V DC to verify voltage at the starter solenoid–readings below 12.4V indicate corrosion in the positive cable or ground straps. Replace the cable if resistance exceeds 0.2 ohms across a 1-meter segment. For 1996–2002 models, trace the pink wire from the ignition switch to the fuel pump relay; a break here will stall the engine without warning.

Check the engine control module (ECM) connector pins for oxidation–focus on terminals 24 (fuel pump signal) and 50 (ignition reference). Clean with electrical contact cleaner and apply dielectric grease to prevent moisture ingress. If the check engine light flashes with code P0340, probe the crankshaft position sensor wiring: green (signal), yellow (5V reference), and black (ground). A short in the green wire will trigger intermittent misfires.

For exhaust gas recirculation (EGR) circuits, examine the dark blue wire linking the ECM to the solenoid. High resistance (>5 ohms) here causes poor idle quality. The alternator’s excitation circuit (white wire at pin A) must show 14.2V at 2000 RPM; lower readings point to a failing voltage regulator or bad ground at the engine block.

Ground locations demand scrutiny–remove the intake manifold to access the rear mounting point. Sand the surface to bare metal and secure the strap with a star washer. Loose grounds mimic transmission shift delay or erratic instrument cluster behavior. Test all splices in the harness with a load tester–any voltage drop over 0.5V under load requires re-crimping or soldering. Seal repaired sections with heat-shrink tubing to prevent chafing against the engine.

When rewiring, match wire gauge: 12 AWG for high-current paths (starter, alternator), 16 AWG for sensors, and 18 AWG for relays. Use cross-linked polyethylene (XLPE) insulation for heat resistance near the exhaust manifold. Label each segment with mil-spec wire markers–confusion between the oxygen sensor heater wire (tan/black) and CAN bus wires (yellow/black) will trigger false diagnostics.

Chevy 262 CID Engine Connection Blueprint: Key Steps for Reliable Setup

Begin by identifying the ignition control module (ICM) connector–locate the gray plastic plug near the distributor. Pin 1 (black/white stripe) delivers the ignition reference signal to the ECM, while Pin 4 (red/white stripe) handles the bypass circuit. Use a multimeter to verify voltage: 3-5V at Pin 1 during cranking indicates a functional signal. If readings deviate, inspect the crankshaft position sensor (CKP) resistance (should be 900-1200 ohms) and ensure the harmonic balancer’s reluctor ring hasn’t shifted or cracked. Wire gauge for these circuits must be 18-20 AWG; smaller diameters risk voltage drop under load.

Component	Wire Color	Pin (ICM)	Expected Voltage	Resistance Check
Ignition Reference	Black/White Stripe	1	3-5V	N/A
Bypass Circuit	Red/White Stripe	4	12V (key on)	N/A
CKP Sensor	Yellow/Black Stripe	N/A	N/A	900-1200 Ω
Injector Bank #1	Pink/Black Stripe	N/A	12V (key on)	14-17 Ω

For the fuel injector harness, connect the pink/black wire (Bank 1) and dark blue/white wire (Bank 2) to their respective ECM pins. Measure injector coil resistance: 14-17 ohms at room temperature confirms operational condition. If resistance exceeds this range, replace the injector–high resistance causes lean misfires. Secure grounds by scraping paint off the intake manifold mounting points and use star washers for the main engine-to-chassis ground (black wire). Corrosion here mimics sensor failures, triggering misleading trouble codes like P0300 (random misfire).

Pinpointing Critical Electrical Connection Elements in GM’s 262 cubic-inch Powerplant

Begin by locating the engine control module (ECM) harness connector, typically positioned near the firewall on the driver’s side. Inspect the 80-pin Delphi connector for corrosion or bent terminals–common failure points. A multimeter test of pins 5, 7, and 12 confirms oxygen sensor feedback; resistances should register between 0.2 and 1.5 ohms. Deviations indicate internal harness breaks requiring replacement.

Trace the ignition coil bundle, secured to the intake manifold via a plastic retainer. The black/light blue stripe wire delivers 12V switched power, while the tan/black stripe carries the ECM-triggered ground pulse. Probe these wires at idle; a healthy circuit shows 9-11V on power leads and a 0.5-2.0V square wave on signal lines. Mismatched voltages suggest wire chafing against the alternator bracket.

Sensor Circuit Integrity Checks

Focus on the throttle position sensor (TPS) connector–the gray four-pin housing mates with a white male plug. Backprobe the dark blue and light blue wires while cycling the throttle; voltages must sweep smoothly from 0.5V (closed) to 4.5V (wide open). Jumps exceeding 0.3V indicate contact oxidation or a frayed section near the exhaust crossover pipe.

Examine the crankshaft position sensor’s two-wire connector (purple/orange and yellow/black stripes). Use a scope to verify a 0.2-1.0V AC sine wave at 800-1500 RPM; DC readings confirm a short to the engine block. Replace the entire harness segment if shielding integrity is compromised–typically where it routes under the oil pan rail.

The fuel injector harness branches into eight individual connectors, each with a white/green stripe (power) and a color-coded trigger wire. Clip a noid light into the #1 injector connector; a rapid blinking confirms injector pulse width. Solid illumination reveals a fused ignition feed or an open ECM driver circuit. Swap injectors to isolate faulty wiring versus a dead cylinder.

Ground Distribution Network

Identify the primary engine ground strap–a braided cable bolted to the transmission bellhousing. Scrape paint and corrosion off contact surfaces before retorquing to 18 ft-lbs. A weak ground mimics fuel pump relay failures, causing extended crank times. Measure voltage drop across the strap; readings above 0.1V require cleaning or relocation to a clean chassis site.

Verify the under-dash fuse block’s pink wire feeds the ignition run circuit–this wire often frays near the bulkhead connector. Use a fused jumper wire to bypass suspect sections; successful engine start confirms a compromised harness segment. Snip and solder fresh 12-gauge wire if insulation degradation exceeds 20% of circumference.

Step-by-Step Pinout Connections for ECM and Sensors

Begin by locating the engine control module (ECM) under the vehicle’s dashboard or near the firewall. Identify pin A12 (typically a tan/black wire) for the ignition feed–this supplies 12V when the key is in the “on” position. Connect it to a fused circuit with a 10-amp fuse to prevent shorts. Avoid splicing into existing harnesses; use a dedicated relay if additional current is needed.

For the crankshaft position (CKP) sensor, trace the gray and black wires to pins C1 and C2 on the ECM. Ensure the sensor’s reluctor ring is clean and properly aligned–misalignment causes faulty timing signals. Test resistance between the wires (500–1500 ohms typical); deviations indicate a faulty sensor or corroded terminals.

Oxygen Sensor (O2) and Throttle Position Sensor (TPS) Wiring

The upstream O2 sensor (pre-catalytic converter) connects via pins D2 (signal) and D6 (ground) on the ECM. Use a digital voltmeter to verify 0.1–0.9V swings during closed-loop operation; steady voltage suggests contamination or a bad sensor. For the TPS, pin D12 receives the 5V reference, while D4 carries the varying signal. Adjust the sensor until voltage reads ~0.5V at idle and ~4.5V at wide-open throttle.

Map the coolant temperature (ECT) and intake air temperature (IAT) sensors to pins B1 (ECT) and B2 (IAT). Both use a shared 5V reference from pin D12 but return signals on separate circuits. Check resistance: ECT should drop from ~3000 ohms at 70°F to ~200 ohms at 200°F. Erratic readings often stem from poor grounds–verify continuity to the ECM chassis ground (pin A1 or A2).

Fuel Injector and Ignition Coil Drive Circuits

Each fuel injector pairs with a specific ECM pin: cylinders 1–3 (pins E1–E3) and cylinders 4–6 (pins E4–E6). Use a noid light to confirm pulse signals during cranking; no flash indicates ECM or wiring failure. For the ignition coil, pin A10 supplies 12V, while pins E13–E15 (cylinders 1/4, 2/5, 3/6) deliver the drive signal. Test coil primary resistance (~0.5–1.5 ohms) and secondary resistance (~5000–10,000 ohms).

For the vehicle speed sensor (VSS), connect the purple wire to pin D10 and the purple/white wire to pin D8 (ground). The ECM expects a 0–5V square wave; test frequency (~40–50 Hz at 60 mph) to confirm signal integrity. If readings are absent, inspect the sensor’s magnetic pickup or reluctor gear for damage. Avoid tapping into the data bus–shorts can corrupt ECM memory.

Finalize by securing all connections with solder and heat-shrink tubing. Route wires away from sharp edges, moving parts, or heat sources. Recheck voltages after reassembly: ignition-on voltage (12V), sensor references (5V), and ground continuity (less than 0.1 ohms to chassis). Record baseline readings for future diagnostics.

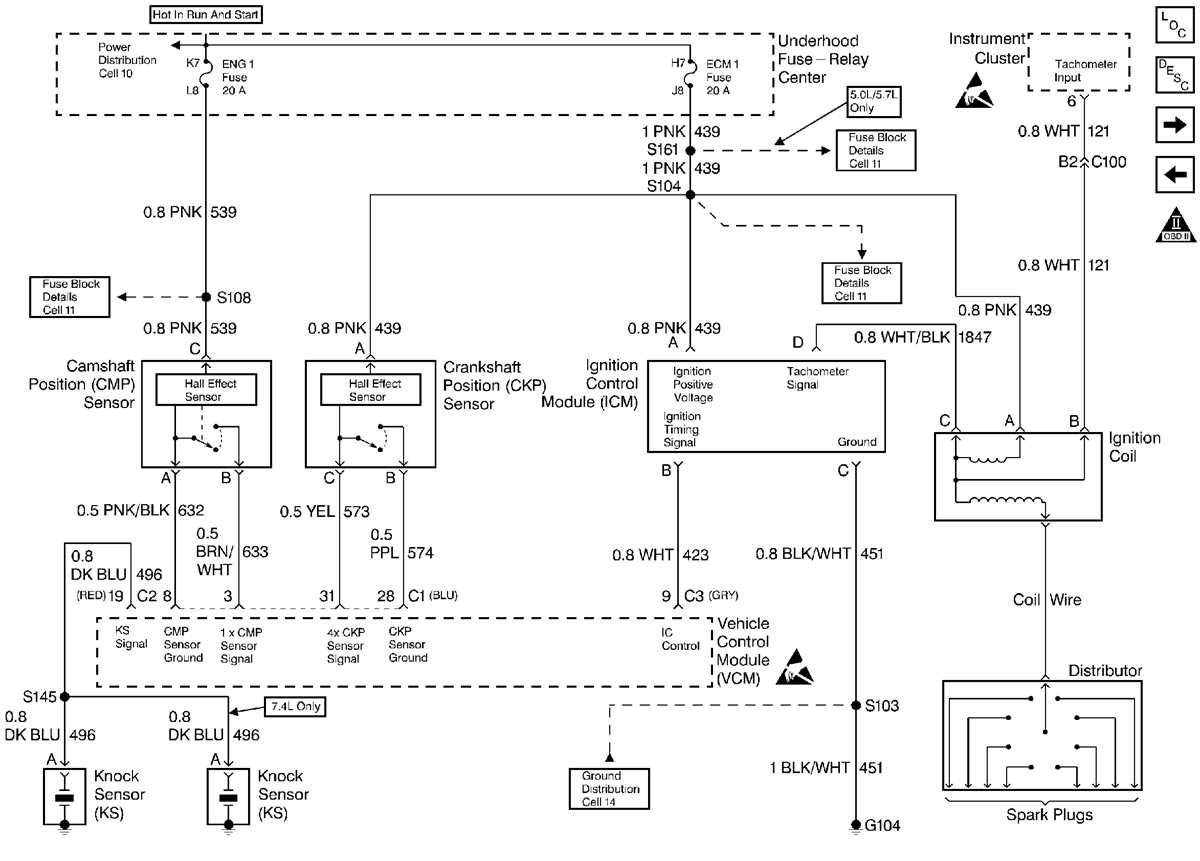

Troubleshooting Common Ignition System Wiring Issues

Check the ignition coil resistance first. Use a multimeter set to 20kΩ to measure primary and secondary windings. Primary should read 0.4–0.6 ohms, secondary 5,000–7,000 ohms. Deviations indicate a failed coil requiring replacement. Avoid relying on visual inspection–internal damage isn’t always visible.

Inspect spark plug connectors for corrosion or carbon tracking. Remove the boot and examine the inner conductor. If discolored or brittle, replace the entire connector. A common failure point is the silicone boot cracking, allowing moisture ingress. Apply dielectric grease during reassembly to prevent future issues.

Testing Crankshaft and Camshaft Position Sensors

Access the sensors (typically behind the harmonic balancer or timing cover) and measure resistance. Crankshaft sensors should read 200–1,000 ohms; camshaft sensors vary by model but often 700–1,300 ohms. No reading signals an open circuit. Verify wiring continuity from sensors to the ECM–broken wires are frequent in high-vibration areas near the exhaust manifold.

If the engine cranks but fails to start, probe the sensor signal wires with an oscilloscope. A clean square wave pattern should appear. Irregular waveforms suggest a faulty sensor or reluctor ring damage. For intermittent failures, swap sensors with a known-good unit before condemning the ECM–module errors rarely cause complete no-start conditions.

Grounding and Voltage Supply Verification

Locate the ignition control module (often near the distributor or coil pack) and check power input. Battery voltage should be present at the key-on position. Test ground connections by backprobing–poor grounding causes erratic spark timing. Common grounding points include the intake manifold or cylinder head; scrape paint and clean metal surfaces if corrosion is visible.

For misfires limited to specific cylinders, swap ignition coils between plugs. If the misfire follows the coil, replace it. Persistent misfires on the same cylinder may indicate valve or piston ring issues. Avoid ignoring fuel system checks–clogged injectors mimic ignition failures during diagnostic scans.
