Complete Wiring Diagram for 1972 Chevrolet C10 Step-by-Step Guide

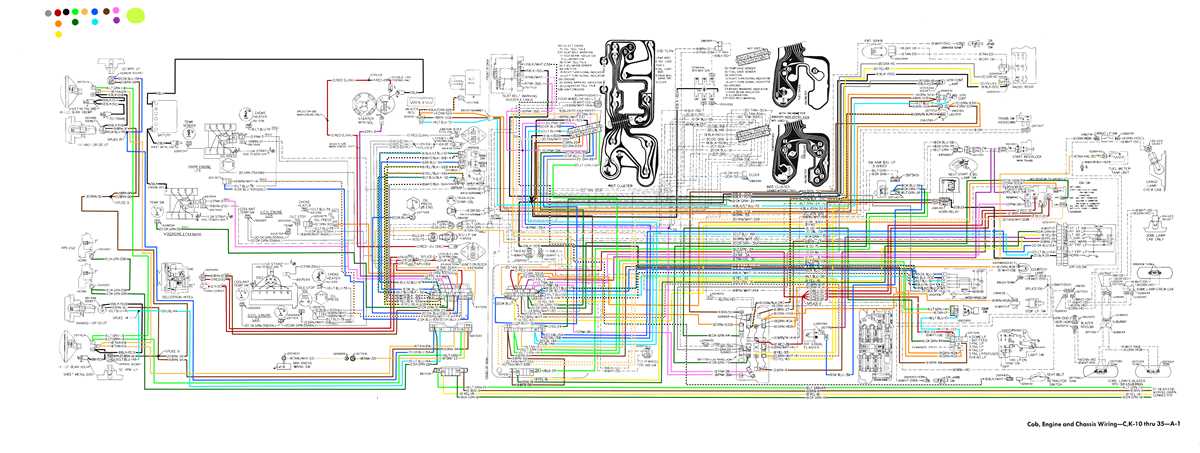

Start with verifying the fusible links–these are critical yet often overlooked components in vintage trucks. Locate the two primary links near the starter solenoid; one powers the ignition circuit, the other the auxiliary systems. Replace any brittle or discolored links immediately, as they degrade faster than standard wiring and can fail under load. Use 16-gauge copper wire with heat-shrink tubing for replacements, matching the original color coding (red for ignition, yellow for accessories).
Trace the headlight circuit first–the 1970s models use a dual-filament bulb with separate high/low beams, controlled by a three-prong plug near the firewall. Test for continuity between the dimmer switch and the bulb socket; corrosion here causes intermittent failures. If resistance exceeds 0.5 ohms, strip and re-solder the connections, applying dielectric grease to prevent future oxidation. For the turn signals, note the use of a combination flasher relay under the dashboard–this unit handles both front and rear circuits and fails silently. Swap it with a new mechanical flasher (NOS or quality reproduction) to avoid diagnosing phantom issues.
Pay attention to the instrument cluster, particularly the voltage regulator. The original mechanical regulator (mounted on the firewall) is prone to contact pitting, leading to erratic gauge readings. Bypass it entirely by installing an electronic solid-state regulator (adjustable for 14.2V output). The fuel sender wire (pink/black) often frays at the tank fitting–replace the entire harness section if insulation is cracked. For the heater blower, check the resistor block behind the glove box; the 4-speed models use a two-stage resistor that burns out under sustained high loads. Upgrade to a ceramic resistor rated for 30+ amps to prevent overheating.
When rewiring, group circuits by function:
- Engine bay: Battery (red), starter (purple), alternator (white), and ignition (pink).
- Lighting: Headlights (tan/white), brake lights (brown), and turn signals (dark green).
- Interior: Dash lights (light green), dome light (light blue), and radio (black/white ground).
Use color-coded conduit sleeves to bundle wires and avoid pinching at sharp edges (e.g., hood hinges). For ground connections, scrape paint to bare metal on the firewall or frame, then secure with star washers–poor grounds cause 70% of electrical gremlins. If tackling a custom install (e.g., aftermarket gauges), add a fused distribution block at 12V to prevent overloading the original harness.
Electrical System Guide for the Classic 1972 Half-Ton Pickup
Begin by disconnecting the battery ground cable to prevent short circuits while tracing circuits. Label each wire with masking tape and a permanent marker–note the color codes and terminal locations before removal. The main harness exits the firewall at the driver’s side, splitting into three primary branches: ignition, lighting, and accessory circuits. Verify connections against a factory-issued schematic, as aftermarket modifications often introduce deviations.
The ignition circuit starts at the battery-positive terminal, passing through the starter solenoid, ignition switch, and coil. Use a multimeter set to 20V DC to test voltage at each point: battery (12.6V), solenoid input (12.5V), switch output (12.4V), coil positive (12.3V). A drop below 12V indicates corrosion or frayed wires–clean terminals with a wire brush and dielectric grease. Replace fusible links if melted; they’re rated at 14-gauge for this chassis.
Lighting circuits require special attention. Headlights run through a dimmer switch mounted on the column; test continuity with the switch in both high and low positions. Taillights and brake lights share a common ground at the frame rail behind the rear axle–sand the contact surface if lights flicker. Turn signals use a flasher unit under the dash; if non-functional, swap with a known-good 12V flasher (standard EP24 relay).
| Component | Wire Color | Gauge | Fuse Rating |
|---|---|---|---|
| Headlight (high beam) | Light blue | 14 | 20A |
| Brake light | Brown/white stripe | 16 | 10A |
| Ignition feed | Red | 12 | 30A fusible link |
| Turn signal | Dark green/white stripe | 16 | 15A |
Accessory circuits include the heater blower, radio, and cigarette lighter. The blower motor draws power directly from the battery via a 20A fuse–check for seized bearings if it hums but doesn’t turn. Radios of this era often lack noise suppression; install a 0.5Ω resistor in-line if alternator whine persists. The lighter circuit shares power with the courtesy lights; test by probing the green wire at the fuse block.
Ground straps are critical. This model uses four main grounds: battery to frame, engine to frame, transmission to frame, and cab to bed. Scrape paint off contact points and secure with star washers for reliable conductivity. If gauges fluctuate, focus on the voltage regulator ground (black wire, D terminal)–clean the mounting surface and retighten to 12 ft-lbs. For intermittent issues, spray terminals with contact cleaner and agitate wires while observing the symptom.
Troubleshooting Voltage Drops
Voltage drop testing isolates resistance points. Set the multimeter to 2V DC and connect probes across suspected connectors while the circuit is active. A drop above 0.2V means corrosion or undersized wire–replace affected sections with marine-grade wire (GPT specification). Common failure points: headlight switch terminals (oxidized), dimmer switch contacts (pitted), and ignition switch (burnt contacts). Use a test light for quick diagnostics–if it dims when probing a live circuit, resistance is present.
Finding the Stock Fuse Panel and Electrical Bundle Link Points
Begin under the dashboard on the driver side–trace the main power feed bundled in black insulation. Follow this thick conduit toward the firewall; the molded junction box mounts adjacent to the brake master cylinder. Remove the lower dash trim panel to expose the edge of the panel–two securing screws flank the unit.
Label connections before detachment:
- Leftmost post feeds the headlight switch–red harness exits toward the front clip.
- Center post powers the turn relay–tape identifies orange tracer wire (right lamp circuit).
- Right cluster handles cigar gauge–brown lead branches to courtesy lamps.
Inspect for brittle insulation where bundles split near the steering column jacket. Yellowed conduit often conceals green corrosion at splice sleeves–clean these with fine-grit emery paper before reseating crimp terminals. Ensure blade-style fuse orientation matches the embossed current rating molded into the panel’s phenolic base (standard 8AL, 14AL, 16AL configurations).
Verify ground straps screwed into the firewall–bare copper braid should terminate without oxide buildup. If missing, bolt a new strap directly beneath the heater plenum box to restore chassis continuity.
Check harness routing clips–factory clips snap into drilled holes along the frame rail. Missing or broken clips allow vibration fatigue; replace with nylon zip ties tightened to 12 inch-lbs torque. Avoid deforming conduit insulation.
Test each circuit with a 12V probe before reattaching connectors:
- Ignition feed–yellow with black stripe at bulkhead clip.
- Tail lamp relay–white with purple stripe entering cowl bulkhead.
- Instrument voltage stabilizer–pink wire exiting firewall grommet.
Seal exposed splices with heat-shrink tubing after confirming continuity. Use dielectric grease on blade connectors to prevent future oxidation.
Step-by-Step Guide to Reading the Ignition System Circuit Paths
Locate the battery positive terminal on the schematic and trace the red wire leading to the ignition switch. Use a multimeter set to continuity mode to verify the connection–voltage should measure 12V when the key is in the “ON” position. If no reading appears, inspect the fusible link near the solenoid for corrosion or breaks.
Follow the circuit from the ignition switch to the starter solenoid via the purple wire. Check resistance between the switch output and solenoid input–values above 0.5 ohms indicate resistance buildup in the wire or connectors. Clean terminals with a wire brush and apply dielectric grease to prevent oxidation.
Identify the coil’s primary circuit path: power flows from the ignition switch through the ballast resistor (if equipped) to the coil’s positive terminal. Measure voltage drop across the resistor–expect 1-2V less than battery voltage. If the drop exceeds 3V, replace the resistor or bypass it temporarily to test coil performance.
Examine the distributor’s wiring: the coil secondary circuit sends high-voltage pulses through the ignition cable to the distributor cap’s center post, then to each spark plug via rotor rotation. Use a spark tester to verify output–weak or absent sparks suggest degraded ignition cables, a faulty coil, or distributor cap cracks. Replace components one at a time to isolate the issue.
Ground paths require attention: ensure the coil’s negative terminal connects securely to the distributor via a solid black wire. Poor grounding can cause erratic spark or no-start conditions. Scrape chassis paint at ground points and tighten connections with a torque wrench to 8-10 ft-lbs to prevent intermittent failures.
How to Identify and Repair Damaged Ground Connections in a Classic Pickup
Start by locating the primary grounding points under the hood and along the chassis. The most common failure spots are the battery-to-engine strap, the firewall-mounted cluster near the brake master cylinder, and the rear tailgate harness connections. Use a multimeter set to continuity mode to test each ground–expect readings below 0.5 ohms; anything higher indicates corrosion or a loose connection.
Remove the ground terminal bolts and inspect the mating surfaces for oxidation. Common culprits include white powder (aluminum oxide) or greenish crust (copper corrosion). Scrub the contact areas with a stainless-steel brush, then apply dielectric grease before reattaching. Avoid over-tightening–12-15 lb·ft of torque is sufficient to avoid stripping the threads in the frame.

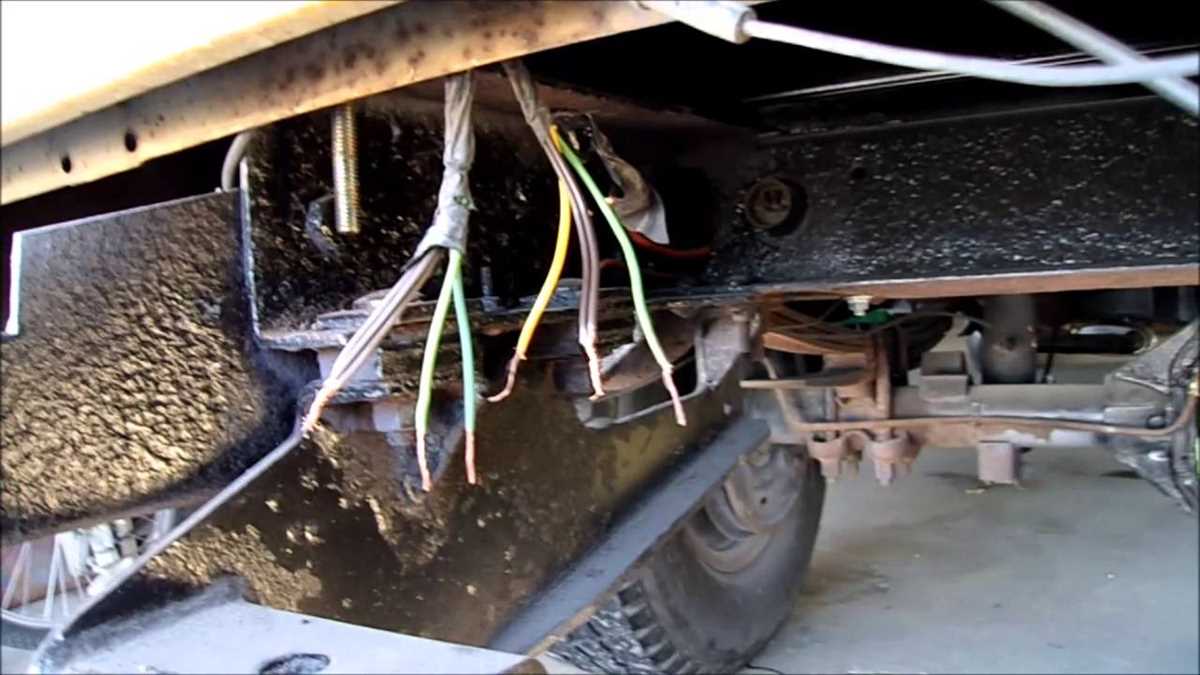

Trace the auxiliary grounding wires running to the taillights, fuel gauge sender, and starter solenoid. These often suffer from vibration-induced fatigue where they attach to sheet metal. Solder any frayed strands and cover with heat-shrink tubing rated for 250°C to prevent future abrasion. Replace crimped connectors with soldered joints for long-term reliability.
Check the instrument cluster ground, typically a black wire screwed into the back of the dash near the steering column. Corrosion here causes erratic gauge readings or dim lighting. Disassemble the cluster, clean the contact points with 400-grit sandpaper, and reinstall using a star washer to ensure a solid connection.
Testing and Verification
After repairs, reconnect the battery and perform a voltage drop test on critical circuits. With accessories turned on, measure between the battery negative terminal and the device–drops exceeding 0.2V indicate residual resistance. Focus on the charging system’s ground path; poor grounding here reduces alternator output by 10-15%.
For hard-to-reach grounds behind the dashboard or under the seats, use a test light clamped to a 12V power source. Probe each ground point–if the light flickers or dims, the connection is compromised. Re-route wires away from heat sources like exhaust manifolds or heater cores to prevent insulation melting.
Inspect the rear pivot ground for the bed, often ignored but critical for bed lighting and trailer harness function. The wire is usually bolted to the frame near the rear bumper. Clean the contact surface, add a toothed lock washer, and secure it with a nylon insert nut to prevent loosening from road vibration.
Document every repair with photographs and label new connections. Use color-coded wire (black with tracer stripes) to distinguish ground circuits from signal wires. Revisit repairs after 500 miles of driving to re-torque bolts–thermal cycling loosens fasteners over time, reintroducing resistance issues.
