Complete Fuel Injector Wiring Schematic Illustration for Engine Systems

Start with a multi-strand copper cable rated for at least 18 AWG–any thinner risks voltage drop under load. Splice the primary feed into each nozzle circuit using crimp connectors with heat-shrink tubing for moisture resistance; soldering alone fails under vibration. Route all lines away from manifold heat sources–temperatures above 125°C degrade insulation over time.

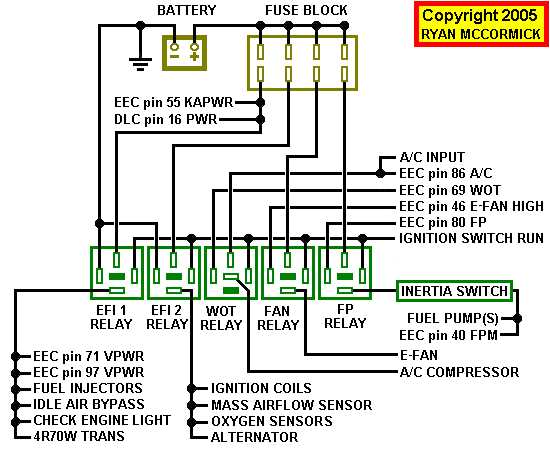

Use a relay-driven power distribution setup. Trigger coils with a low-side switch from the engine control module to avoid parasitic drain. Install a freewheeling diode across each atomic actuator to suppress voltage spikes–peak transients above 60V fry the driver circuitry within seconds.

Ground each unit directly to the engine block with star washers–surface rust or paint causes erratic actuation. Test continuity post-installation with a 5V pulse under 100Ω load; readings outside ±10% indicate faulty crimps or partial shorts. Replace any aged O-rings and seals before final assembly–fuel leaks into connectors corrode contacts within 24 hours.

Understanding Electrical Connections for Modern Engine Nozzles

Start by identifying the power source–typically the vehicle’s ECU or a dedicated relay–before tracing any circuit paths. Most multi-port setups use a 12V supply, but verify the exact voltage with a multimeter, as aftermarket control units may differ.

Locate the ground connection next. Poor grounding is a leading cause of inconsistent spray patterns. Ensure the ground wire terminates at the engine block or chassis, away from painted surfaces or corrosion-prone areas. Use star washers or dielectric grease to prevent oxidation.

Examine the signal wire’s routing. It should run directly from the control module to the nozzle’s electrical terminal without splicing. Interference from ignition coils or alternators can distort signals, so route this wire away from high-current circuits and use shielded cable if necessary.

Check the resistance of each spray unit with an ohmmeter. Factory specifications usually range between 12–16 ohms for low-impedance types and 14–17 ohms for high-impedance units. Deviations beyond 10% indicate faulty components or incorrect wiring.

For sequential setups, confirm the firing order matches the engine’s cylinder sequence. Swap any misaligned connectors if the timing appears off–crossed signals can cause misfires or engine damage. Label each connector during disassembly to avoid confusion.

Use heat-resistant tape or conduit to protect exposed sections near exhaust manifolds or turbochargers. Silicone-insulated wires withstand temperatures up to 200°C, while standard PVC degrades at 80°C. Replace any compromised sections immediately.

Test the circuit under load with a noid light or oscilloscope. A steady pulse pattern confirms proper operation; erratic flickering suggests voltage drops or grounding issues. For batch-fire systems, ensure all units activate simultaneously within 0.5ms of each other.

Document your configuration with a hand-drawn sketch or digital schematic. Include wire colors, pin assignments, and module outputs. This reference prevents errors during future repairs or modifications.

Identifying Pinout Configuration for Common Injector Connectors

Start by locating the manufacturer’s service manual for the specific engine model–OEM documentation remains the most reliable source for correct terminal assignments. For Bosch EV1-style connectors (common in European and Asian vehicles), pin 1 typically supplies the control signal from the ECM, while pin 2 bridges to ground. Verify this with a multimeter in resistance mode: a reading between 12-16 ohms confirms the coil’s integrity, while infinite resistance indicates an open circuit or faulty unit.

Denso and Delphi configurations often invert these assignments. On Denso-style plugs, the control line usually occupies the second terminal, while ground occupies the first. Delphi systems may introduce a third pin for analog feedback in newer models–check for a 5V reference signal if a third wire is present. Always compare against a known-good sample from an identical engine variant to avoid misdiagnosis.

Key Variations by Brand and Model

GM’s Multec systems frequently employ a two-pin setup where pin A carries the drive pulse, and pin B grounds through the engine block. Ford’s PIP connectors, however, sometimes use a reverse polarity–test both terminals against chassis ground to identify the live circuit. Chrysler’s returnless systems integrate fuel pressure sensors into the harness, altering pin assignments; consult the FSM for exact offsets.

Aftermarket adapters (e.g., for methanol or LPG conversions) often repurpose terminals. A Bosch EV6 connector, for instance, might split its original 12V and ground between two new injectors–measure voltage drop under load to confirm which path carries current. If the resistance exceeds 0.5 ohms, inspect the harness for corrosion or crimping damage.

Color-coding provides a secondary reference but never the sole identifier. Standard practice marks the ECM-driven line in black/yellow (Bosch) or white/black (Denso), while ground may appear as solid brown or blue. Still, manufacturers deviate–Honda’s RC engines sometimes swap blue for gray on high-impedance units. Cross-reference the vehicle’s wiring schematic with the connector’s terminal shape (rectangular vs. oval) to avoid misalignment.

For quick field verification, use a noid light: clamp it across the suspected terminals and crank the engine. A flashing pattern signals correct ECM command; steady illumination or no response points to an open driver or shorted coil. Test both pins independently–if one triggers the relay while the other doesn’t, the issue lies upstream in the harness or ECM output stage.

When replacing connectors, crimp new terminals with a ratcheting tool to ensure 20 lbs of retention force. Solder splices increase resistance and risk heat-related failures–use only heat-shrink butt connectors rated for 200°C. Label each wire at the source to prevent future miswiring; a single reversed terminal can trigger limp mode or catalytic converter damage within seconds.

Step-by-Step Connector Pinout and Current Path Analysis in Factory Blueprints

Begin by identifying the power delivery trace, typically marked in solid red or orange, on the manufacturer’s layout. This line carries the primary voltage–usually 12V DC–to the actuator solenoid. Confirm continuity at the ECU connector by referencing the pin label (e.g., “INJ1” or “C1-33”) and cross-check against service manuals for deviations between model years. A multimeter set to DC voltage mode should read 11.5–13.2V when the ignition is switched to “ON” or during engine cranking.

Locate the ground return path, distinguished by black, brown, or striped black/yellow coloring. Verify this link terminates directly at the engine block or chassis, avoiding bolted joints prone to corrosion. Measure resistance between the actuator’s ground terminal and chassis; readings above 0.5 ohms indicate high-resistance connections requiring cleaning or replacement. For turbocharged applications, ensure additional ground straps are intact, as induced currents can disrupt signal integrity.

Decode the trigger signal line–often pink, purple, or light blue–by tracing its origin from the engine control module. This pulse-width modulated (PWM) signal oscillates between 0V and 5V or 0V and 12V, depending on the system. Use an oscilloscope to validate waveform shape: a clean square wave with sharp rising/falling edges confirms proper operation. Frequencies typically range from 3.3 kHz to 5 kHz, varying with engine load and RPM. If noise is present, shielded cable may be necessary.

Inspect auxiliary connections, such as feedback circuits for pressure regulation, commonly gray or white wires with color stripes. These lines relay sensor data (e.g., fuel rail pressure) back to the ECU, enabling adaptive timing corrections. Disconnect the battery before probing these paths to avoid short circuits. For systems with peak-and-hold drivers, observe current draw: initial 4–8A spikes should taper to 1–2A within 1–2 milliseconds. Deviations suggest faulty drivers or clogged nozzles requiring ultrasonic cleaning.

Measuring Solenoid Coil Integrity and Circuit Performance

Set your multimeter to the 200-ohm resistance scale before connecting the probes. For most port-style electro-mechanical valves, expected coil resistance ranges from 12 to 18 ohms at 20°C. Values below 10 ohms indicate partial shorting; readings above 22 ohms suggest corroded connections or deteriorating winding insulation. Always test each solenoid twice–first with the wiring connector disconnected, then with the engine control module powered on–to isolate whether resistance drift originates from the coil itself or external circuit paths.

Component Type	Standard Resistance (Ω)	Acceptable Range (Ω)
High-impedance (peak-and-hold)	14.5–17.0	12.0–20.0
Low-impedance (saturated)	1.2–3.0	0.8–4.5

Voltage drop across live and ground circuits should not exceed 0.3 V when the solenoid is energized. Attach the meter’s positive lead to the power feed wire and the negative lead directly to the battery negative terminal. If the drop exceeds 0.5 V, inspect for oxidized terminals, undersized wiring, or a failing relay. Repeat the procedure on the ground side–connect the negative probe to the solenoid ground wire and the positive probe to the battery positive post. A drop above 0.2 V signals a corroded ground strap or loose chassis connection.

For dynamic testing, back-probe the control wire while cranking or idling. Pulse-width modulated solenoids will show rapid on-off fluctuations between 0 V and battery voltage; a steady 12 V implies a stuck-open driver transistor in the module. Record both minimum and maximum readings–deviations beyond 10 % of specified duty cycle may indicate timing drift or incorrect calibration. Always compare results against manufacturer torque values–some units specify unique resistance bands for cold starts or high-load conditions.
