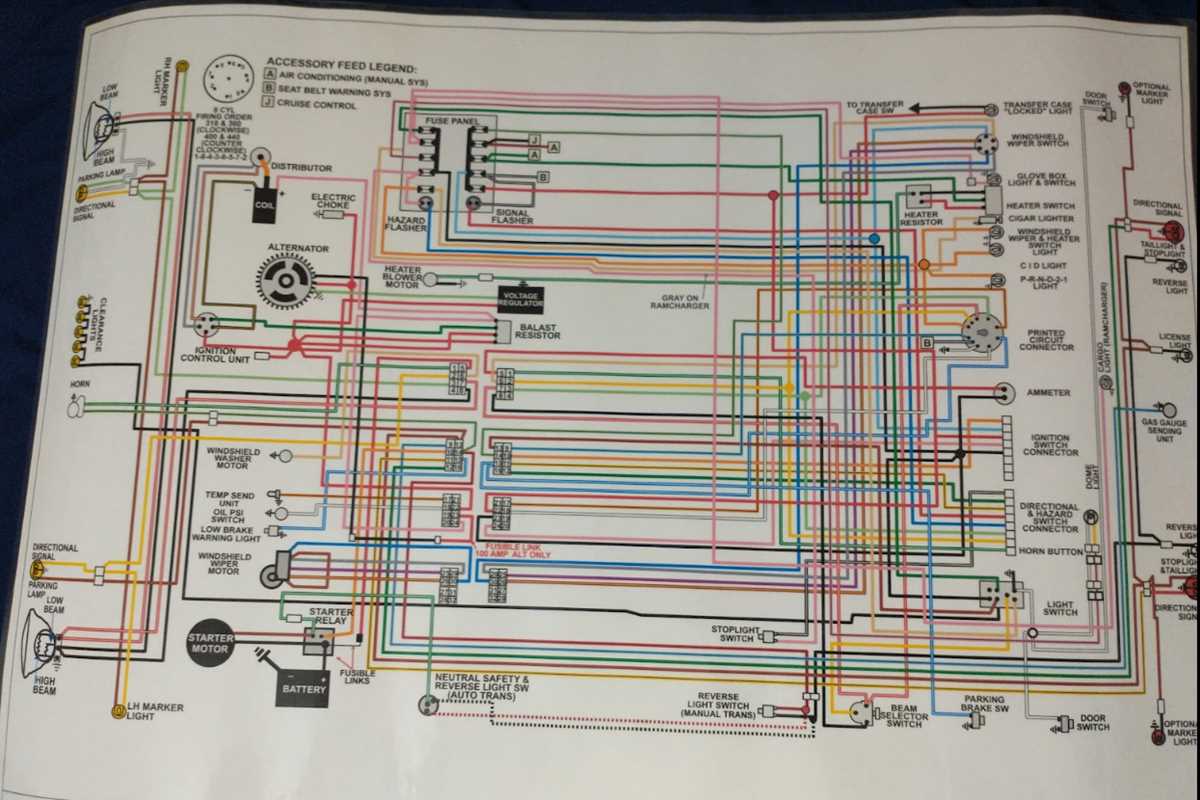

Complete Wiring Diagram Guide for 1978-1979 Dodge Sportsman and Motorhome Models
Start with the fusebox layout under the driver’s side dashboard–trace the main power distribution lines first. These models route 12V supply through a three-pronged harness marked red, yellow, and black; red delivers constant battery voltage, yellow handles ignition-switched circuits, and black serves as the ground reference. Label each connection before disassembly to avoid mismatches during reassembly.
Locate the alternator-to-battery cable, typically a thick braided wire terminating at a 50-ampere inline fuse. Check this fuse holder for corrosion–replace it with a marine-grade fuse link if terminals show oxidation. The charging system relies on this path; a degraded connection causes voltage drops leading to dim lights or failing pumps.
Examine the ingition module near the firewall–it interfaces with the starter solenoid and sends trigger signals to the coil. A multimeter set to continuity mode helps verify proper relay operation. If readings fluctuate beyond 0.5 ohms, swap the relay block with a direct-fit aftermarket unit designed for high-amp cycling.
Navigate to the interior junction box behind the passenger-side rear panel. This hub consolidates tail light clusters, roof vent fans, and auxiliary appliances. Use color-coded diagrams specifying orange stripe for brake lights and brown stripe for running lights–these markers often peel off vintage wiring.
Test all ground straps connecting the engine block to the chassis. Most failures occur here; sand the mounting spots and secure connections with star washers to prevent loosening from vibration. A weak ground path leads to erratic sensor readings and intermittent electrical malfunctions.
Replace OEM spark plug wires with suppression-core ignition cables–original silicone covers degrade over time, causing misfires at high RPMs. Route wires away from exhaust manifolds to avoid heat damage, securing them with heat-resistant loom tubing.
Electrical Blueprint Reference for Classic RV & Camper Van Models
Begin by locating the main fuse block beneath the dashboard near the driver’s seat–this cluster controls primary circuits for lighting, ignition, and auxiliary systems. Label each wire with masking tape before disassembly to avoid confusion during reconnection.
Trace the red wire (10-gauge) from the battery positive terminal to the starter solenoid, ensuring no corrosion at terminals; clean with baking soda solution if deposits exist. Disconnect the ground cable last to prevent accidental shorts while working.
- Instrument panel: Orange wire (18-gauge) powers the fuel gauge; verify continuity with a multimeter (0-15V range).
- Headlight switch: Green wire (14-gauge) links to low beams–test for 12.6V when activated.
- Blower motor: Black/white stripe (12-gauge) should read 0 ohms resistance when functional.
Check the alternator’s output at the large yellow wire; voltage should stabilize between 13.8-14.5V at 2,000 RPM. Replace the voltage regulator if readings fluctuate erratically.
For the auxiliary heater circuit, confirm the brown wire (16-gauge) delivers power only when the ignition switch is in the “on” position–bypassing this safety feature risks draining the battery.
- Remove the steering column covers to access turn signal wiring; the light blue wire (18-gauge) pulses at 60-120 flashes per minute.
- Inspect the rear marker lights’ gray wire (16-gauge)–oxidation here causes intermittent failures.
- Test the brake light circuit (white wire, 14-gauge) by grounding it briefly to confirm bulb integrity.
Replace every 30-amp fuse with a equivalent-rated blade fuse if the original glass fuses show signs of overheating–upgrade to ATO fuses if available to improve reliability. Store spare fuses in a waterproof container mounted inside the glove box.
Use dielectric grease on all harness connectors exposed to moisture, particularly the rear tail light junction and roof vent motor plugs. Secure loose harness segments with nylon zip ties every 12 inches to prevent chafing against sharp edges.
Tracking Down Legacy Electrical Blueprint Origins for RV Cabins
Begin by contacting the Chrysler Historical Foundation (current archival custodian for defunct truck and van divisions) at [email protected]. Their vault holds microfilmed schematics for Class C chassis produced between 1976-1981. Request reel numbers CD-78-3B and CD-79-4A, which specifically cover house wiring harnesses for luxury travel trailers. Expect a response within 10 business days; reproduction fees average $0.75 per page.
Visit earlyregistereds.com, a free-access repository maintained by vintage camper enthusiasts. The site’s “Wiring Vault” section organizes 1,276 OEM pinout drawings by model year, with direct downloads available for auxiliary systems (LP detector circuits, inverter interfaces, and slide-out mechanisms). Filter using the VIN prefix J9D–this identifier isolates the correct chassis platform. For offline reference, join the forum’s member-only Discord channel (#electrical-troubleshooting), where users share annotated scans with component locations overlaid on actual unit photos.
Key Documentation Sources Compared
| Source | Access Method | Turnaround | Cost | Coverage |
|---|---|---|---|---|
| Manufacturer Archive | Email request | 7-14 days | $50-$150 | Factory-issued diagrams, confirmed accuracy |
| Enthusiast Forum | Web download | Instant | Free (membership required for Discord) | Community-verified, includes user notes |
| Aftermarket Manual Publisher | Print order | 3-5 days | $28-$45 | Generalized, may lack chassis-specific details |
| Salvage Yard | Physical inspection | Same day | Free (with purchase) | Actual harnesses, potential damage/wear |
As a last resort, dissect the glove box documentation packet from any matching vintage recreational unit. Original owners often tucked away a fold-out schematic behind the vehicle warranty, labeled “Electrical Flow Chart–House Circuits.” These documents, while fragile, offer 1:1 scale connections down to grommet placements and color-coded splice points. Photograph each panel before handling to preserve ink integrity.
Decoding the Color Codes in Early Late-70s Truck Frame Harnesses
Begin by isolating the main harness bundle under the driver-side dashboard–this cluster handles nearly all critical circuits. Solid dark green wires supply constant 12V ignition feed, while light blue with a red stripe carry fused battery voltage to accessories. Confusion arises with single-color red leads; these split between taillight power (front harness) and stop lamp circuits (rear harness). Label each splice before disconnecting connectors, as factory splices often lack durability after decades of vibration.
Trace the orange wires–these are alternator output lines leading to the voltage regulator. A single black with yellow stripe is the field wire returning from the regulator to the alternator’s “F” terminal. Replace any crumbling insulation immediately; degraded sleeves cause intermittent charging failures. The starter solenoid circuit uses a purple lead from ignition switch to solenoid–verify continuity with a multimeter, as internal corrosion at the solenoid terminal mimics ignition failure.
Instrument Panel Specifics
Fuel gauge circuits rely on dual tan with black stripe wires–one from sender unit, one from gauge cluster. Swap sender unit first if gauge reads erratically; clusters rarely fail. Temperature gauge uses a white with black stripe sender wire–test sender resistance at 212°F (typically 240 ohms). Oil pressure switch connects via dark blue lead; if gauge shows zero despite engine oil pressure, replace the switch before suspecting the gauge.
Auxiliary circuits–like electric steps or roof vents–often share gray ground wires. Upgrade these grounds to 10-gauge for aftermarket loads; factory 16-gauge wires melt under sustained current. Lighting circuits mix brown wires (tail/running lights) with yellow wires (left brake/turn signals) and dark green wires (right brake/turn signals)–separate circuits at the first junction to prevent one bulb failure from killing multiple functions.
Step-by-Step Tracing of the Ignition and Battery Circuit
Locate the positive battery terminal–typically a thick red cable terminating at a 100-amp fuse or fusible link near the power source. Disconnect the ground strap first to prevent accidental shorts before probing. Using a multimeter set to continuity mode, verify the fuse’s integrity by placing probes on both ends; a reading of zero ohms confirms functionality. If the fuse is blown, replace it with the identical amp rating–never substitute with a higher value, as this risks damaging downstream components including the starter solenoid and ignition switch.
Follow the cable from the fuse to the starter solenoid’s battery terminal. The solenoid’s smaller “S” terminal connects to the ignition switch via a purple or yellow wire, depending on the chassis variant. Trace this wire visually or with a circuit tester: turn the key to the “start” position and check for 12 volts at the solenoid terminal. If voltage is present but the starter doesn’t engage, the solenoid’s internal contacts are likely corroded or welded shut–replace the unit as a complete assembly to avoid intermittent failures.
From the ignition switch, the “ACC” (accessory) circuit branches off via a light blue or pink wire to the fuse block, often labeled “IGN 1” or “IGN 2.” Test this path by toggling the key between “off” and “accessory” while measuring voltage at the fuse block terminal; fluctuations outside 11-14 volts suggest a faulty switch or loose connection. Clean all contact surfaces with dielectric grease before reassembly, focusing on the switch’s backplate and terminal screws, as oxidation here causes voltage drops that mimic dead batteries or failed alternators.
Inspect the alternator’s output circuit next. The thick red cable from the alternator’s “B+” terminal should route directly to the positive battery post or fusible link. Attach the multimeter’s black probe to a known good ground and the red probe to the “B+” terminal–with the engine running at 1500 RPM, voltage should read 13.8-14.4 volts. Readings below 13.2 volts indicate a failing alternator, while erratic fluctuations point to a bad voltage regulator or loose drive belt (check belt tension at ½ inch deflection with 10 lbs of pressure).
Ground circuits demand equal scrutiny. The battery’s negative terminal should connect to the chassis via a braided strap or bare copper cable no thinner than 4 AWG. Trace this path to the engine block ground–common failure points include corroded mounting bolts or paint interfering with conductivity. Scrape paint from the contact surface until bare metal is exposed, then secure the ground with a star washer to ensure penetration through corrosion. Use a jumper wire to bypass suspected bad grounds temporarily: if voltage stabilizes, the original ground is compromised.
For intermittent issues, shake-test each connection while monitoring voltage. Target high-resistance areas like bullet connectors (often green or white insulated) and crimp joints–subtle voltage drops here cause hard starts or accessory malfunctions. Replace any connector exhibiting greenish corrosion or brittle plastic; solder and heat-shrink repairs outlast crimp alternatives. Photograph each connection before disconnecting to simplify reassembly, and label wires with masking tape if color coding is ambiguous.
