How to Wire a 35mm Headset Jack Step-by-Step Connection Guide

Use a multimeter in continuity mode to identify each wire in a standard 3.5mm audio connector before soldering. The tip carries the left audio channel, the middle ring handles the right, while the base sleeve acts as ground. Verify polarity on TRRS variants–older models may swap the microphone and common ground positions.

TRS (stereo) configuration:

• Tip: Left channel (+)
• Ring: Right channel (+)
• Sleeve: Ground (-)

Mic-enabled plugs add a second ring (TRRS) between right channel and ground. Shielded cables prevent interference–always connect shielding to the sleeve.

For repairs, strip insulation back 3mm, twist strands tightly, and apply rosin flux before soldering. Pre-tin each contact point to avoid cold joints. Test with known-working speakers before final assembly–distorted audio often indicates reversed polarity or shorted wires.

Common failure points include broken solder joints at stress points near the plug body. Reinforce these with heatshrink tubing over the exposed leads. If channels drop out intermittently, inspect for hairline fractures in the copper strands–not always visible beneath insulation.

For adapters, match input impedance–47kΩ for line-level devices, lower for microphones. Unbalanced connections degrade if cable runs exceed 6 meters. Use a coupling capacitor (0.1µF) between hot leads and ground to block DC offset errors in older amplification circuits.

Understanding Audio Connector Pinouts for Common Devices

Identify the standard four-contact layout for modern earpiece ports: Tip (left audio), Ring 1 (right audio), Ring 2 (microphone), and Sleeve (ground). Verify each connection with a multimeter set to continuity mode–test between the sleeve and other contacts to confirm correct impedance (typically 16–32 ohms for speakers, 1–2 kilohms for mics). Reverse polarity on older two-contact plugs risks shorting circuit paths, leading to silent channels or distorted output.

Use TRRS (tip-ring-ring-sleeve) schematics when repairing smartphones or laptops–Apple devices follow CTIA standard (mic on Ring 2), while most Android manufacturers adopt the OMTP layout (mic on Ring 1). Mismatches cause one-way audio: test by toggling between both wiring sequences if the equipment behaves erratically. Always label wires during disassembly, marking ground (black/transparent insulation) separately to avoid confusion during reassembly.

For gaming peripherals, trace the inline remote’s button circuit: shorting the mic line to ground triggers playback control. Measure voltage drop across contacts (3.3V typical for detection circuits) to diagnose unresponsive buttons–replace corroded switches with identical resistance values (≤ 100 ohms) to restore functionality. Avoid cheap solder materials: lead-free tin-silver-copper (SAC) alloys reduce cold joints under mechanical stress from frequent plug cycles.

When troubleshooting noise issues, isolate the problem by swapping cables–hum or static usually originates from the electronic interface, not the auxiliary port. Shield grounded cables (braided copper foil) 2-3mm from signal paths to minimize electromagnetic interference; twisted pairs further reduce crosstalk in high-impedance setups. Ensure connectors are gold-plated for low oxidation: nickel-plated contacts degrade after ~500 insertions, increasing contact resistance exponentially over time.

Adapters bridging incompatible formats (e.g., 2.5mm to 3.5mm) require precise impedance matching: a 1:1 transformer ratio preserves signal clarity, whereas unbuffered conversions introduce latency or frequency roll-off. Test adapters with an audio signal generator at 1kHz before deployment–substitute cables failing above -70dB noise floor, and validate USB-C dongles report correct HID compatibility (check USB Device Tree in system logs).

Standard 3.5mm Audio Connector Pinout Configuration

Always verify the sleeve ground first when troubleshooting TRS or TRRS plugs–this common reference prevents shorts and signal interference. The 3.5mm format follows three primary standards: TS (Tip-Sleeve), TRS (Tip-Ring-Sleeve), and TRRS (Tip-Ring-Ring-Sleeve). Each serves distinct purposes in audio and communication systems.

For TS connections, the tip carries the audio signal, while the sleeve acts as the ground. This mono configuration is typical in instruments like guitars. Ensure soldering is precise–poor connections introduce noise. Use shielded cable to reduce electromagnetic interference, especially in live performances.

TRS connections add a ring for stereo sound or balanced signals. The pinout is:

Segment	Function (Stereo)	Function (Balanced)
Tip	Left channel	Positive (+)
Ring	Right channel	Negative (–)
Sleeve	Ground	Ground/shield

TRRS layouts vary by manufacturer. The two dominant standards are CTIA (Apple, most smartphones) and OMTP (older Nokia, some legacy devices). Misalignment causes one-way audio or microphone failure. Check compatibility before fabrication or repair.

CTIA assigns:

• Tip: Left audio
• First ring: Right audio
• Second ring: Ground
• Sleeve: Microphone

OMTP reverses the last two:

• Tip: Left audio
• First ring: Right audio
• Second ring: Microphone
• Sleeve: Ground

Use a multimeter in continuity mode to confirm assignments. Probe each contact while playing test tones–left and right channels should register 1-2VAC, while the microphone may show DC bias (~2.5V). If voltages are absent, inspect for broken traces or oxidized terminals.

Critical Wiring Practices

Twist shielded pairs to minimize crosstalk. For TRRS, use separate cables for audio and mic lines to prevent signal bleed. Solder joints must be smooth and fully insulated–exposed conductors risk shorting. Apply heat-shrink tubing over connections for durability.

Adapter and Compatibility Notes

To convert between CTIA and OMTP, rewire the ground and mic contacts. Avoid passive adapters for high-power applications–voltage mismatches damage amplifiers. For professional setups, consider active adapters with impedance matching to preserve audio fidelity.

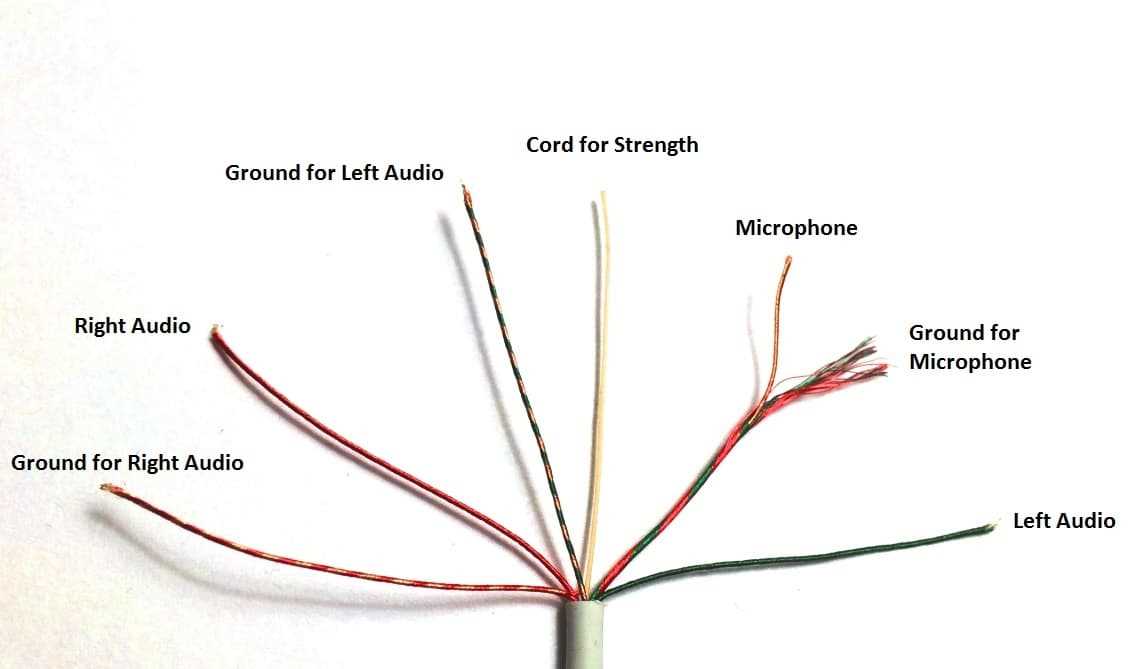

Standard Color Schemes for Audio Port Connections

Begin by identifying the ground wire–typically marked with a copper or bare conductor–to ensure stable shielding in any setup. This lead acts as the reference point for all other signals and must maintain continuous contact.

For stereo earpiece connections, follow this consistent color mapping:

• Left channel: Green or lime-colored insulation
• Right channel: Red or peach-coated strand
• Common return (ground): Copper without coating, black, or sometimes yellow sleeve

Deviation from this pattern often signals proprietary designs or regional manufacturing standards, though exceptions remain rare in consumer products.

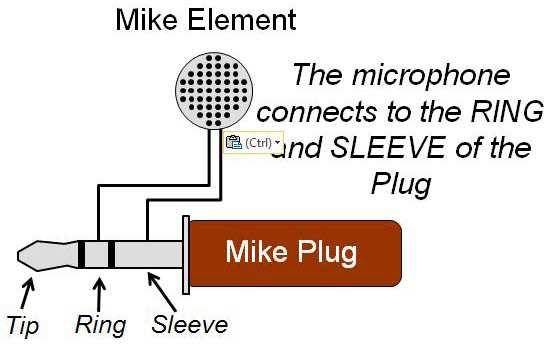

Microphone inputs introduce an additional pair of wires with distinct encoding:

• Audio feed (MIC+): White or pink sheathing
• Return (MIC-): Blue, cyan, or occasionally transparent jacket

Check for voltage between MIC+ and ground: 2–5 volts DC typically powers electret capsules, while dynamic mics may require external phantom supply. Reverse polarity damages capsules–verify markings before applying current.

When soldering or crimping, ensure strands remain untwisted within 6 mm of stripped length; oxidization accelerates signal degradation over time. Use 24–26 AWG copper wire for optimal conductivity–thicker gauges add unnecessary rigidity.

Adapter compatibility hinges on these color norms: TRRS (tip-ring-ring-sleeve) connectors layer phone and MIC signals, with sleeves pairing as:

• Tip: Left audio (green)
• First ring: Right audio (red)
• Second ring: MIC+ (white)
• Sleeve: Ground return (copper/black)

Swapping the second ring and sleeve positions–a frequent error–mutes voice pickup while preserving playback functionality.

Multimeter testing mitigates cross-channel bleed: measure continuity from plug contact to each wire’s termination. Expect resistance below 0.5 ohms on playback paths; microphone circuits should register 500–2000 ohms when powered. Higher readings point to fractured conductors or cold solder joints.

Step-by-Step Guide to Soldering a TRRS Audio Plug

Begin by securing the 3.5mm four-pole connector in a helping hands tool or small vise–exposed terminals should face upward. Strip 2-3mm of insulation from each wire in the cable, then twist and tin the strands with a 20-30W soldering iron and rosin-core solder. Sweep the iron tip along the strands for 1-2 seconds to ensure even wetting without charring the insulation.

Identify and Prepare the Connections

• Tip: Left audio channel – typically a red or white wire wrapped in copper shielding.
• First ring: Right audio channel – often a green or yellow wire with a separate braid.
• Second ring: Ground – bare or silver-coated strands clustered together.
• Sleeve: Microphone input – blue or black wire, sometimes paired with a thin drain wire.

Trim each wire to 8-10mm beyond the stripped section to avoid shorts. Thread the cable through the connector’s plastic housing before soldering–retrofitting later risks damaging joints.

Solder and Insulate

1. Heat the target terminal with the iron for 3 seconds, then apply a 1mm bead of solder to the tip. Hold the tinned wire against the terminal and reflow the solder for 1-1.5 seconds–avoid excessive heat to prevent melting plastic.
2. Repeat for all four poles, maintaining consistent spacing (≈2mm between joints).
3. Wrap each connection with 10mm of polyimide tape or heat-shrink tubing, overlapping layers by 30%. Slide the housing over the assembly and snap into place; test continuity with a multimeter before use.

For mobile devices, confirm CTIA standard (mic on sleeve) or OMTP (ground on sleeve) with the device manufacturer–incorrect pin assignment mutes audio or disables the microphone.
