Complete Ford F150 1991 Starter Solenoid Wiring Schematic Guide
If your pickup’s starting relay fails, check the BAT terminal connection first–it must carry a full 12.6V from the battery. Corrosion here mimics a dead relay, yet the issue often lies in the purple/white lead from the ignition switch. This wire activates the coil inside the relay housing; resistance above 0.2 ohms between the switch and relay coil kills engagement. Test for continuity before replacing components.
The driver-side fender relay box holds the critical S and I terminals. The S terminal receives the trigger signal, while the I terminal feeds 12V during crank. A common mistake is crimping these wires together during a bypass attempt–this overloads the ignition switch. Use a multimeter to verify no more than 0.5V drop across the I terminal to starter cable connection.
Inside the relay’s casing, a copper disk bridges the heavy-gauge contacts. Pitting or carbon buildup here causes intermittent failures. Clean with 400-grit sandpaper, then apply dielectric grease to prevent future arcing. Avoid silicone-based products–they can migrate and foul the contacts.
For wire gauges, the main power cable from battery to relay should be 4 AWG minimum; anything smaller risks voltage sag under load. The trigger wire (purple/white) tolerates 18 AWG but must be protected from engine bay heat–use loom tubing if routing near exhaust manifolds. Always solder and heat-shrink splices–electrical tape degrades over time.
When bench-testing, apply 12V directly to the coil spade terminals. A functional unit will emit a sharp *click*; silence indicates a fried coil. Replace the entire relay assembly if resistance across the coil exceeds 4 ohms–DIY rewinding rarely lasts.
Understanding Your Vehicle’s Ignition Control Connections
Locate the relay box under the hood near the battery–pin S connects to a thin purple wire leading from the ignition switch. Disconnect this first if testing for voltage drop during cranking cycles. A 12-volt multimeter reading across this terminal and ground confirms proper control circuit integrity.
Trace the thick red cable from the battery’s positive terminal directly to the upper solenoid post. This heavy-gauge conductor carries primary current and must remain corrosion-free. Scrub terminals annually with a wire brush; dielectric grease prevents future oxidation.
- Blue/white stripe wire links start position on the switch to the relay coil.
- Black/orange stripe grounds the solenoid body–ensure chassis contact is bare metal.
- Green/yellow stripe connects from relay to starter motor assembly; inspect for fraying.
Dual 10-gauge cables bridge the solenoid’s motor side posts–these carry full cranking amperage. Replace immediately if showing heat damage or discoloration. Torque terminal nuts to 15 ft-lbs with a calibrated wrench.
If the engine turns but fails to catch, probe the purple control wire with a test light while an assistant engages the key. A dim or absent glow indicates an open in the circuit, often found at the switch or neutral safety interlock.
- Disconnect battery negative terminal before servicing.
- Label all wires before removal.
- Apply terminal protectant after reconnecting.
- Use tin-based spray for marine-grade protection.
- Avoid silicone compounds–these trap moisture.
Where to Find the Relay Component in Your Truck

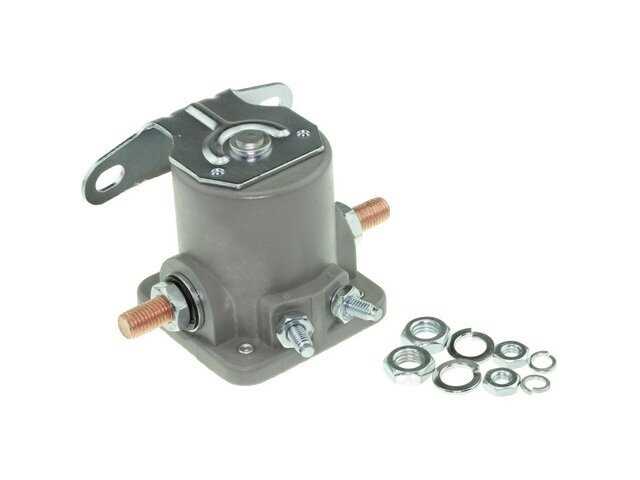

Begin by raising the hood and securing it with the support rod–this model’s switching mechanism sits near the battery, mounted on the inner fender panel on the driver’s side. Look for a cylindrical or rectangular black plastic housing with two heavy-gauge cables attached: one red (positive) and one paired with the motor assembly. The unit measures roughly 3 inches in diameter and has a small control wire harness plugged into its side; if corroded or heat-damaged, replace it immediately to avoid intermittent engagement.
- Disconnect the negative battery terminal before touching any terminals to prevent short-circuits.
- Use a flashlight to inspect the relay’s underside for melted insulation or greenish oxidation.
- Label each wire with masking tape and note the connector positions if removal becomes necessary.
On trucks equipped with automatic transmissions, the neutral safety interlock switch integrates into the same bracket, often positioned directly below the relay. Manual-transmission variants typically omit this switch, simplifying access. If the relay refuses to click during key turns, test the trigger circuit by jumping the small terminal to the battery post with a screwdriver–if the engine cranks, suspect a faulty ignition key switch or damaged control wiring.
Identifying the Electrical Connectors on the Relay Switch
Begin by locating the large studs on the power actuator–these are the main battery terminals. The thicker post, typically labeled “B” or “BAT,” connects directly to the positive battery cable. The second larger stud, marked “M” or “MOT,” links to the motor’s drive engagement circuit. Ensure these are clean and free of corrosion before testing.
Examine the smaller spade connectors–often two–positioned near the control side of the unit. The “S” (or “START”) terminal receives voltage from the ignition switch when cranking the engine. The adjacent terminal, frequently labeled “I” or “IGN,” supplies power to accessories when the key is in the run position. Use a multimeter to verify voltage presence during key rotation.
Trace the thinner wires to their origin if markings are unclear. The “S” wire usually leads to a purple or yellow-striped conductor, while the “I” wire often connects via a red or pink wire. Corroborate these observations against a service manual for your specific vehicle variant, as minor variations exist between model years.
Test the relay’s functionality by bridging the “B” and “S” terminals briefly with a screwdriver–listen for an audible click indicating proper operation. Avoid prolonged bridging to prevent overheating. If no response occurs, inspect the internal contacts for pitting or excessive wear, which may require component replacement.
Pay attention to grounding paths if issues persist. The housing itself should be securely mounted to the engine block, ensuring a solid ground. Check for paint, rust, or debris interfering with this connection, as poor grounding mimics electrical failures. A secondary ground wire may also be present–verify its condition and routing.
Label each terminal with masking tape during disassembly if performing repairs. Note wire colors, connector shapes, and mounting orientation to avoid errors during reassembly. Misrouted or incorrect connections can damage the ignition system or prevent engine cranking entirely.
Step-by-Step Guide to Mapping Electrical Relay Connections
Begin by locating the relay mounted on the vehicle’s power distribution block or near the engine bay’s fuse panel. Identify the two smaller spade terminals–typically marked “S” (signal) and “I” (ignition)–and the larger posts for battery input (“B”) and motor engagement (“M”). Use a multimeter set to continuity mode to confirm which terminal corresponds to the control circuit; the “S” terminal should show voltage only when the ignition key is turned to the “start” position.
Disconnect the battery’s negative cable before proceeding to prevent accidental shorts. Trace the heavy-gauge cable from the battery’s positive terminal to the relay’s “B” post, ensuring the connection is free of corrosion or fraying. Next, follow the output cable from the “M” post to the motor’s input stud–this path must handle high current, so verify the cable is rated for at least 4-gauge wire.
Examine the thin wire leading to the “S” terminal, which originates from the ignition switch or a secondary control module. If voltage is absent at this point during a start attempt, inspect the fuse, neutral safety switch, or clutch pedal interlock (if equipped) for continuity. For the “I” terminal, confirm it receives constant battery voltage when the key is in the “on” position–this powers the relay’s internal coil, allowing the main circuit to close.
Reconnect the battery and test the relay’s operation by bridging the “B” and “S” terminals with a screwdriver momentarily; the motor should engage. If not, replace the relay. Finally, secure all connections with dielectric grease and heat-shrink tubing to prevent moisture ingress–oxidation at these junctions is a common failure point.
Common Electrical Faults and Troubleshooting Steps
Check the ignition relay first–corrosion on pins or a burnt fuse (typically 20A) will prevent voltage from reaching the engagement coil. Use a multimeter to verify 12V at terminal 85 when the key is turned; if missing, inspect the relay socket and adjacent connectors for oxidized contacts. A faulty neutral safety switch can mimic solenoid failure–probe the circuit with the transmission in park/neutral; voltage should drop to 0.3V or less under load. If readings fluctuate, replace the switch immediately to avoid intermittent starting issues.
Key Problem Areas and Diagnostic Values
| Component | Symptom | Test Point | Expected Reading | Failure Indicator |
|---|---|---|---|---|
| Battery cables | Clicking noise only | Positive terminal to engine block | <0.2 ohms | >0.5V drop at 200A load |
| Engagement coil | Single click, no crank | Small terminal S to ground | 12V within 2 seconds of key turn | Voltage present but no magnetic pull |
| Ground strap | Slow cranking | Battery negative to chassis | <0.1V drop at cranking current | >>0.3V under 150A load |
Clean all contact surfaces with a wire brush and dielectric grease before reassembly. If the pull-in test passes but the motor fails to rotate, replace the high-current contacts inside the assembly–pitting from arcing will cause resistance exceeding 0.1 ohms. Always verify the return path through the alternator bracket ground; a loose bolt here can introduce up to 0.8V drop under load.
