Complete Electrical Wiring Diagram Guide for 1992 Ford F150 Models

For owners dealing with ignition faults or accessory malfunctions, tracing the brown/yellow wire from the fuse block to the instrument cluster is the first diagnostic step. This circuit controls the charge indicator and sends a critical reference voltage–check for continuity between pin 30 on the cluster connector and ground; resistance should read below 0.5 ohms. If corroded, strip back insulation 1 inch at both ends, crimp with a copper butt splice, and seal with heat-shrink tubing insulated to 600V. Avoid solder-only repairs–vibration cracks joints over time.

Under-hood connections demand attention to the orange/light blue wire linking the alternator S-terminal to the voltage regulator. Measure voltage at the regulator plug (with key ON, engine OFF) and expect 12.4–12.8V; anything below 12.2V suggests a grounded stator winding. Use a multimeter with a 10A fuse–not the onboard fuse–to probe the circuit, and isolate the harness 6 inches from the alternator bracket to prevent shorts against the exhaust manifold.

Air conditioning relay replacements should match OEM specs: coil resistance 120–150 ohms, contact switching capacity 30A minimum, ISO blade terminals for compatibility with Ford’s 1988–1997 harness layout. Swap the relay by unbolting the power distribution box (located behind the battery tray) and label wires with numbered flags–white/fuscia (low-speed compressor signal) and dark green/orange (high-speed) are prone to misrouting during rebuilds.

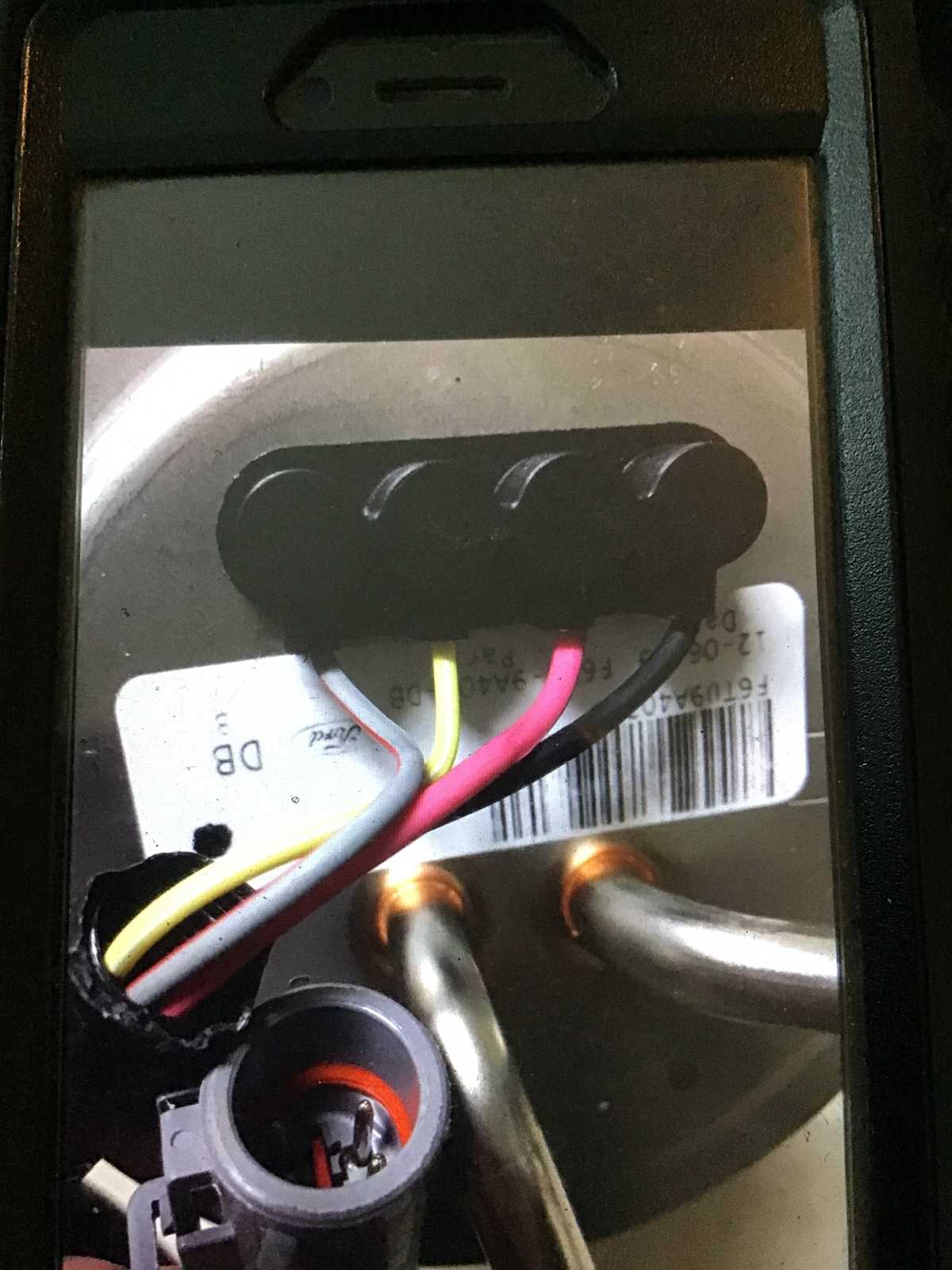

Fuel pump wiring discrepancies often trace to the inertia switch–found beneath the passenger-side kick panel–where impact can sever the circuit. Bypass testing involves a 10-gauge jumper (temporary) from the battery positive terminal to the fuel pump connector’s gray/red wire; if pressure climbs past 35 psi, replace the switch immediately. Store spare 20A fuses in the glovebox–Ford’s 5.0L engines draw 15–18A under cranking, and aftermarket pumps vary by ±3A.

Dashboard illumination problems frequently stem from faulty dimmer switches. Test the dimmer by rigging a 12V test lamp to the instrument dimming wire (light green/red) at the headlight switch. Rotate the knob fully counterclockwise and expect the lamp to brighten smoothly; flickering indicates contact erosion–clean with 600-grit sandpaper or replace the entire switch assembly if resistance exceeds 2 ohms.

Electrical Blueprint Mastery for Your Classic Truck

Locate the main harness connector behind the instrument panel on the driver’s side–it’s bundled with red, black, yellow, and green wires. These correspond to ignition, ground, battery feed, and accessory circuits respectively. Clip the retaining tab to separate the halves and probe each terminal with a multimeter set to 12V DC; readings should match factory specs (±0.5V).

Check the fusible links near the starter relay if circuits fail. The 20-gauge pink wire feeds the ECM, while the 18-gauge orange handles high-draw components like the fuel pump. Replace any melted insulation with heat-resistant tubing rated for 200°C. Avoid soldering splices under 6 inches from connectors–crimp splices maintain conductivity without brittle failure points.

Headlight harnesses corrode at the bulb sockets. Remove the lens assembly, clean contacts with DeoxIT, and coat with dielectric grease. Left and right low-beam circuits share a brown wire with a black stripe, but high beams split into individual light-blue leads. Trace these back to the dual-relay module under the hood–resistance should not exceed 2 ohms per foot.

For turn signals, the flasher unit sits behind the hazard warning switch. Bypass it temporarily with a jumper wire to isolate flickering issues; if the problem persists, inspect the wiring loom near the trailer connector–chafing against the frame is common. Secure loose sections with nylon clamps spaced every 12 inches.

Power window motors often stall due to worn brushes or binding regulators. The driver-side circuit runs through a 10A fuse and a white/violet wire before branching to each door. Test continuity across the window switch terminals in both up and down positions–any drop below 10V indicates internal resistance.

Radio static frequently originates from poor grounding. The antenna lead, a silver wire with a blue stripe, attaches to a chassis stud near the firewall. Scrape paint off the mounting surface and re-secure with a star washer. If interference continues, add a 100nF capacitor between the radio’s power input and ground–this filters voltage spikes from the alternator.

Pinpointing the Right Electrical Schematic for Your Early ’90s Ford Truck Variant

Begin by identifying your vehicle’s exact engine type, transmission, and trim package–these dictate the correct schematic. The 4.9L inline-six, 5.0L V8, and 5.8L V8 each require distinct charts, as do manual versus automatic transmissions. Trim levels like XL, XLT, and Nite Edition introduce further variations, particularly in lighting, power accessories, and instrumentation circuits. Retrieve the build sheet from the glove compartment or door jamb sticker–it lists installed options, narrowing your search to the precise revision.

• Ford Motor Company’s official EVTM (Electrical and Vacuum Troubleshooting Manual) for the model year (part number 137-8402) remains the most authoritative resource, covering every factory-configured harness segment. Acquire a physical copy from reputable suppliers like Helm Incorporated or hunt for digitized versions on forums like Ford-Trucks.com–scans are often indexed by VIN prefix.
• Aftermarket publishers, including Chilton and Haynes, offer simplified schematics, but omit color-coding nuances and splice-point identifiers critical for troubleshooting spliced circuits (e.g., trailer wiring or aftermarket stereo integrations). Cross-reference their diagrams with Ford’s wire-size tables (AWG 10–22) to avoid misidentifying primary versus auxiliary feeds.
• For modified trucks, isolate factory wiring zones from aftermarket additions by tracing harness routes from the fuse block to the bulkhead connector–document each branch with a multimeter reading continuity before consulting a diagram. Common pitfalls include swapped power and ground labels on ignition-switched circuits (e.g., 5.8L engines often route pink/black to PCM instead of ignition coil).
• Online repositories like F150Online’s technical archive or JustAnswer’s verified mechanic uploads sometimes host PDFs of OEM schematics segmented by subsystem–download these in reverse alphabetical order (starting with “Wiring–Zones”) to streamline navigation.

Locating Critical Elements in the Ford Truck Electrical Blueprint

Begin by tracing the main power distribution block, typically positioned near the battery on the passenger-side fender. This junction consolidates feeds from the starter relay, alternator output, and primary fuse links–each cluster is color-coded: red stripes for constant battery supply, yellow stripes for ignition-switched circuits, and orange for lighting circuits. Verify continuity with a multimeter before assuming integrity; corroded connectors here mimic dead shorts.

Locate the instrument panel cluster connector, a 22-pin plug beneath the dash. Pins 1–6 manage illumination (dimmable), 7–12 handle gauge signals (oil pressure, voltage, fuel), while 13–22 bridge to sensors–coolant temp at pin 19, brake warning at pin 21. Probe each pin against chassis ground; expected voltages should align with the legend in Section 14-10 of the factory service manual.

Identify the engine bay fuse panel by its rectangular lid labeled with circuit numbers. Fuse slots 1–5 protect lighting; slots 6–10 safeguard ignition-sensitive relays. Slot 8 often correlates with the fuel pump relay; if the pump primes but cuts immediately, pull the relay and jumper pins 30 and 87–if fuel delivery restores, the relay coil or ECM ground is compromised.

Follow the ground distribution strap bolted to the firewall near the brake booster. This strap consolidates multiple grounds: transmission controller, ECM, and primary chassis return. Wiggle-test the strap during cranking; intermittent ground dropouts manifest as erratic sensor readings–clean mounting surfaces with a wire brush and apply dielectric grease.

Isolate the ignition system feed wire–thick gauge, pink-striped–originating from the ignition switch to the starter solenoid. This lead also branches to the ignition coil and distributor pick-up via a gray-striped pigtail. Clip a test light into the coil side; if the light dims significantly under load, the ignition switch contacts are pitted and require replacement.

Trace the headlight circuit from the multifunction switch to the dual filament bulbs. The high-beam relay rests inside the front driver-side kick panel, coil-activated by a blue-striped wire from the switch. Low beams route directly through a brown-striped harness; if high beams function but low beams don’t, bypass the relay by temporarily jumpering pins 30 and 87–if low beams restore, the relay coil or switch is faulty.

Inspect the rear lighting harness where it exits the cab below the spare tire mount. Here, brittle plastic sheathing commonly fractures, exposing wires to moisture–particularly the reverse light circuit (white base with pink stripe) and trailer feed (yellow base with green stripe). Splice any compromised sections with adhesive-lined heat shrink tubing; ensure shrink wrap overlaps undamaged sheathing by at least one inch.

Examine the transmission range sensor wiring harness, a thin 4-wire bundle adjacent to the shift linkage. Colors are: red (12Vref), green (range signal), brown (chassis ground), white (reverse indicator). Probe with ignition ON, engine OFF; voltage fluctuations above 0.5V between red and brown suggest sensor failure or ECM miscommunication–replace sensor if resistance across terminals deviates from 3–5 kilohms at all gear positions.
