Complete Proximity Sensor Wiring Guide with Schematic and Connections
Begin by identifying the detector’s power requirements–most industrial models operate at 12–24V DC, but check the spec sheet for exact values. Connect the brown wire to the positive terminal and the blue wire to ground. For sinking (NPN) outputs, attach the black wire to your controller’s input. Never assume polarity–reverse connections will damage the device.
Use shielded cable for runs longer than 3 meters to prevent EMI interference. Ground the shield at one end only–typically at the controller side–to avoid ground loops. If the detector lacks an internal pull-up resistor, add a 1–10 kΩ resistor between the output and positive voltage to ensure clean switching.
For 3-wire AC detectors, wire the red (live) and black (neutral) to the supply, and use the white or yellow for the switching output. Test continuity with a multimeter–no signal should appear below the detection threshold. If integrating with a PLC, configure the input as sinking for NPN or sourcing for PNP types.
Crimp connections with ferrule terminals for reliability; soldering near plastic housings risks heat damage. Label wires at both ends to simplify troubleshooting. If the detector fails to trigger, verify air gap isn’t exceeding 80% of nominal range and check for ferromagnetic targets.
Near-Field Detection Device Connection Schematics
Connect the inductive proximity switch’s brown lead to a DC voltage source between 10-30V; exceeding this range risks permanent component damage. The black output wire attaches directly to the PLC input terminal or load, ensuring a pull-down resistor of 1.5kΩ matches the controller’s logic level if operating at 24V. Ground the blue wire to the system’s common return path–omit extra filters unless ambient EMI exceeds 50V/m, verified with an oscilloscope. For NPN configurations, add a freewheeling diode across inductive loads to clamp voltage spikes above 50V. Validate each joint with a multimeter in continuity mode before powering the circuit.
Use 22AWG shielded twisted pair for runs over 3 meters, grounding the shield only at the control panel end to prevent ground loops. Avoid daisy-chaining multiple devices on a single supply trace–allocate individual 47μF bypass capacitors adjacent to each detector if the cable length surpasses 5 meters. Test response time by toggling the target at 1kHz; latencies over 200μs indicate incorrect pull-up resistor values or degraded signal integrity, requiring trace impedance recalculation based on dielectric constant (FR-4: 4.2) and trace width (1.5mm for 0.5oz copper).
Integrating Standard Industrial Detection Devices with PLC Inputs
For inductive proximity switches, wire the brown (positive) lead to a 24V DC supply, the blue (negative) to the PLC’s sourcing input terminal, and the black (output) to the common return. Verify the detection range–typically 1–8 mm for M12 models–and ensure the target material is ferromagnetic to trigger reliably. Avoid mounting near strong magnetic fields or within 50 mm of adjacent devices to prevent false signals.
Capacitive and Optical Interface Methods
Capacitive units require adjustment via the potentiometer to set sensitivity; start at mid-range for general-purpose use. Connect the power (often +10–30V) and output leads similarly to inductive types, but confirm the PLC input’s sinking or sourcing compatibility. For optical retro-reflective variants, align the emitter and receiver within ±3° of the beam path and clean lenses biannually to maintain accuracy.
- Use shielded twisted pair cables for detection devices operating near variable frequency drives or high-voltage lines to reduce EMI-induced errors.
- For sinking PLC inputs, reverse the wire polarity–positive to the output lead, negative to the return–and verify the load resistance remains under 1.5 kΩ.
- Label all leads at both ends with heat-shrink tubing or durable tags to prevent misconnection during maintenance.
Ultrasonic models demand stable voltage (±5% of nominal) to prevent drift; use a dedicated 24V regulator if power fluctuations exceed tolerances. Measure the dead zone–typically 50–150 mm–and position the target outside this range. For high-speed applications over 1 kHz, select detection devices with fast response times (≤1 ms) and confirm the PLC’s scan cycle supports the update rate.
Step-by-Step Connection Guide for NPN and PNP Detection Devices

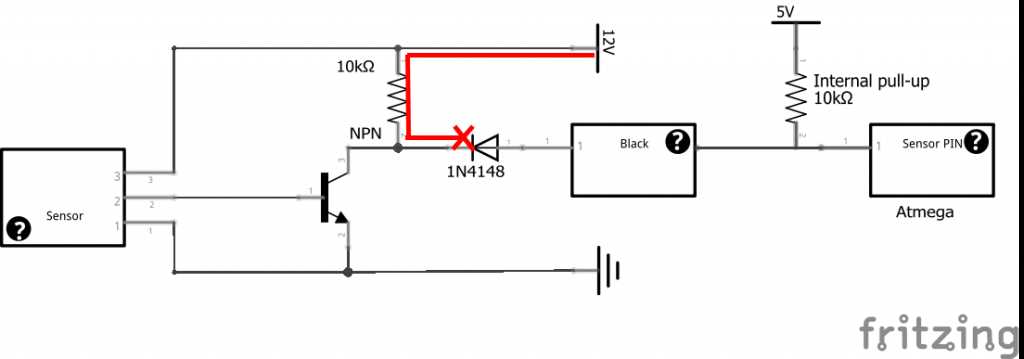

Begin by identifying the load requirements: NPN output types sink current, necessitating a pull-up resistor to the positive supply (typically +12V or +24V DC). For a standard 3-wire configuration, connect the brown conductor to the power input, the blue to ground, and the black to the control input (e.g., PLC or relay). Verify the device’s switching mode–normally open (NO) or normally closed (NC)–and adjust the control logic accordingly. Use a 1kΩ resistor for pull-up when interfacing with a 24V system to prevent false triggers. Measure voltage at the output terminal with a multimeter: an active signal should drop to near 0V for NPN.
| Type | Common Pinout | Load Connection | Voltage at Output (Active) |
|---|---|---|---|
| NPN | Brown (+), Blue (–), Black (output) | Connect load between +V and black wire | ~0V |
| PNP | Brown (+), Blue (–), Black (output) | Connect load between black wire and ground | Supply voltage (~+V) |
For PNP output types, source current, so connect the load between the output terminal (black) and ground. A 1.5kΩ pull-down resistor may be required for 12V systems to stabilize the signal. Confirm the detection range and hysteresis settings before finalizing connections–most devices default to 4mm sensing distance but can be adjusted via potentiometer if present. When wiring to a PLC, match the input module’s logic: sourcing (PNP-compatible) or sinking (NPN-compatible). Test the assembly by placing a target within range and monitoring the voltage swing; PNP outputs should toggle between supply voltage and ~+V, while NPN toggles between 0V and supply level. Isolate power during adjustments to avoid short circuits.
Resolving Stray Currents and Reference Potential Issues in Inductive Detector Installations
Measure floating reference levels at the control module’s input pin with a differential probe while the system is powered. A deviation exceeding ±0.2 V from the expected common-mode range suggests a broken return path. Confirm by disconnecting the detector’s signal return conductor–if the voltage returns to specification, the fault lies in the return line’s continuity.
Inspect supply rails under load. Inductive detectors drawing 20 mA should maintain a supply tolerance of ±5 %. Deviations point to voltage drops across splices or undersized conductors. Use a 4-wire Kelvin connection to measure actual rail voltage at the detector terminals; readings below 10.8 V for a nominal 12 V rail indicate resistive losses exceeding 1 Ω, requiring conductor upsizing or splice retermination.
- Minimum conductor cross-section: 0.5 mm² for runs up to 2 m, 1 mm² for 2–10 m.
- Terminal torque: 0.5 N·m for M3 screws; loose contacts raise resistance by 3–5 mΩ each.
- Shield termination: bond only at the control module end; floating shields at the detector side avoid ground loops.
Verify detector placement tolerance. Ferrous mounting surfaces within 5 mm of the sensing face distort the magnetic field, causing false triggers. Use a non-ferrous spacer (aluminum or brass) with a thickness ≥ sensing range × 0.3 to restore ±1 % repeatability.
Introduce a 1 kΩ precision resistor between the signal output and local reference to sink leakage currents. This stabilizes floating inputs when the detector’s open-collector output is disabled. Measure leakage current across the resistor–values above 50 μA indicate moisture ingress or degraded insulation, requiring potting or retermination.
Isolate supply and signal returns using separate conductors back to the power source. Combined returns create shared-impedance coupling; a 10 mV drop across a 1 Ω common return conductor translates to a 1 % error in a 1 V signal. For 24 V industrial setups, split returns into dedicated 20 AWG conductors and group them by functional block: logic, actuators, and detectors.
- Disconnect all detectors except the suspect unit.
- Power the system from a lab supply with current-limiting set to 30 mA.
- Monitor supply current while toggling the detector’s target.
- Anomalous current spikes (>2 mA during switching) isolate the fault to the detector or its immediate circuit.
Check cable routing against high-current conductors. A 2 mm separation between detector signal pairs and motor leads carrying 10 A induces 30 mV of common-mode noise. Use twisted-pair wiring with a lay length of 12–15 mm per twist and anchor both ends at 0.5 m intervals to maintain separation. Ferrite cores on each cable pair reduce noise amplitude by 8 dB at 1 MHz if physical separation is unachievable.
Selecting Optimal Resistor Values and Pull-Up/Down Arrangements
For 3.3V logic interfaces, use 4.7 kΩ pull-up resistors when connecting to open-drain outputs–this value balances signal integrity while minimizing current draw (max ~0.7 mA per line). For 5V systems, increase to 10 kΩ to maintain reliable voltage thresholds without exceeding 0.5 mA sink current, critical for low-power designs. Avoid values below 2.2 kΩ as they risk violating output driver specifications in CMOS-compatible devices, potentially causing thermal stress or brownout conditions during prolonged high states. When working with high-impedance inputs (1 kΩ–2.2 kΩ pull-down resistors to counteract floating pins, but verify against datasheets–some components require ≤500 Ω for guaranteed low-level thresholds.
For differential or push-pull configurations, omit pull resistors entirely if the signal source guarantees rail-to-rail swing, but include 100 Ω–330 Ω series resistors at the driver end to dampen ringing in high-speed traces (>1 MHz). In noisy environments (e.g., motor drives), pair 1 kΩ pull-ups with 0.1 μF decoupling caps near the termination point to suppress EMI-induced false triggers. When interfacing with legacy 12V/24V systems, use voltage dividers (e.g., 10 kΩ + 2.2 kΩ for 24V→3.3V) instead of pull resistors to avoid exceeding absolute maximum ratings; ensure divider ratios account for a ±10% tolerance in supply voltage to maintain VIH/VIL margins.
