Step-by-Step Guide to Drawing Boolean Circuit Diagrams for Beginners

Begin by selecting symbols that represent fundamental operations: AND, OR, NOT, NAND, NOR, and XOR gates should adhere to IEEE or IEC standards. Use distinct shapes–rectangles for AND/OR, triangles for NOT, and curved edges for NAND/NOR–to avoid ambiguity. Label each symbol with its input-output notation immediately to prevent misinterpretation during later stages.

Arrange components from left to right, placing inputs on the far left and outputs on the right. Prioritize straight horizontal and vertical connections to minimize crossing lines. Where intersections are unavoidable, use small semicircular bridges (hops) to indicate non-contact crossings, ensuring clarity without visual clutter.

Group related operations into modules when complexity grows. For instance, a 4-bit adder can be segmented into four full adders, each handling one bit. Draw bounding boxes around subcircuits with dashed lines and annotate their purpose–this improves readability and eases troubleshooting.

Assign binary values to inputs systematically. Mark constant inputs (e.g., tied high/low) with small circles or text labels. For truth tables or simulation traces, annotate intermediary results directly on wires using concise notation like “A·B” or “¬C” to reflect the logic state at each stage.

Validate the layout by tracing signal paths manually. Check for floating inputs, unintended feedback loops, and redundant gates. Tools like Logisim or digital logic simulators can verify behavior, but manual review remains critical to catch errors in physical representation.

Reinforce connections with consistent line weights–thicker lines for primary signals, thinner for control or auxiliary paths. Avoid diagonal lines; they introduce ambiguity in dense diagrams. If space constraints force diagonal routing, limit angles to 45° increments to maintain precision.

Finalize with descriptive metadata: title, date, revision number, and a legend explaining custom symbols if used. Highlight critical paths or error-prone sections with alternating line styles (dotted, dashed) or color coding, though ensure the diagram remains legible in monochrome for printouts.

Visualizing Logic Gate Schematics

Begin with the input layer by placing switches or binary sources at the leftmost edge of your layout. Label each immediately–”A”, “B”, etc.–using monospace font for consistency. Space inputs at least 1.5cm apart horizontally to prevent crowding during wiring. For AND operations, position two vertical lines meeting at a single semicircle; extend the lower line 0.8cm beyond the junction to form the gate’s output. OR gates follow the same vertical alignment but merge into a concave arc, while XOR requires an additional curved line behind the arc to indicate exclusivity.

Anchor outputs to the right margin, ensuring each pathway avoids overlapping others by tracing at 45-degree angles where necessary. Use solid lines for direct connections, dashed for optional or negated paths (inverters). Maintain uniform line thickness of 0.5mm throughout, with junction dots at intersections measuring 1.2mm in diameter. Color-code power rails: red (#FF3333) for V_CC, blue (#3333FF) for ground. Save files in scalable vector format (SVG) to preserve sharpness at any zoom level.

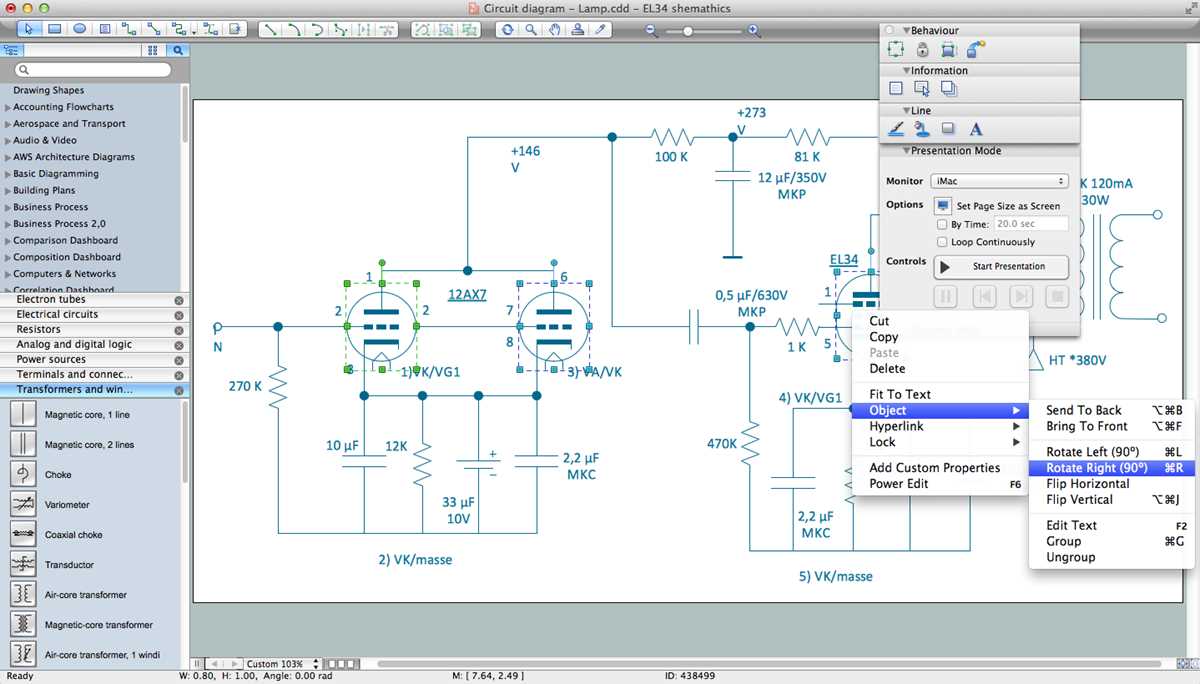

Selecting Optimal Software for Logic Gate Visualizations

For precision and scalability, prioritize tools like Logisim Evolution (open-source, supports subcircuits) or DigitalJS (web-based, integrates with LaTeX). Both handle nested gate structures without clutter. For collaborative projects, draw.io (now Diagrams.net) with its custom shape libraries allows real-time edits–export formats include SVG and PDF, preserving layout fidelity. Avoid generic vector editors (Inkscape, Illustrator) for large-scale schematics; manual alignment wastes hours.

Tool	Best For	Limitations	File Support
Logisim Evolution	EDA simulation/debugging	No native cloud sync	.circ, VHDL
DigitalJS	Teaching/rapid prototyping	Limited offline access	JSON, SVG
draw.io	Cross-team documentation	No simulation features	SVG, PNG, XML
KiCad	Physical PCB integration	Steep learning curve	Gerber, SPICE

Favor tools with built-in gate libraries–manually recreating AND/OR/XOR symbols in Visio delays project timelines by 30%+ per schematic. KiCad excels for hardware linkage but overcomplicates pure logic design. Test export compatibility early: SVG ensures vector sharpness; PNG/JPEG degrade when resized.

Step-by-Step Guide to Sketching Basic Logic Gates

Begin by marking the gate’s entry points with small circles–not dots–to ensure clarity. The standard AND gate requires two inputs on the left and one output on the right. Keep the spacing uniform: 8mm between inputs and 12mm from inputs to output. Use a pencil first; ink only after verifying connections.

For an OR gate, curve the left side outward like a teardrop, widening gradually toward the output. Inputs should sit 6mm apart, with the longest arc extending 20mm before flattening into the output line. Label each line immediately to avoid confusion later.

NOT gates need a single input line entering from the left, ending in a triangle point. The output exits the triangle’s right side, perpendicular to the base. Add a small circle at the tip–this denotes inversion. Maintain 5mm between the input line and the circle’s edge for readability.

XOR gates combine OR’s teardrop with an extra curved line inside. Start by sketching the OR shape, then add a second arc 3mm inside the first, parallel but not touching. The input spacing mirrors OR’s–6mm–but the inner curve must stay distinct to signal exclusivity.

Ensure symmetry in all gates by measuring midpoints before finalizing shapes. A crooked AND gate base or a lopsided OR curve makes the design ambiguous. Use a ruler for straight lines, but trace curves freehand for consistency; templates distort scale.

Number every input and output sequentially: A1, A2, Y1. This prevents routing errors when connecting gates later. Keep labels horizontal, even if the line angles downward. For multi-gate sketches, leave 15mm between adjacent gate bodies to fit intermediary lines.

Once outlines are complete, thicken the perimeter lines to 0.5mm while keeping internal curves at 0.25mm. Dotted lines indicate optional paths or carry signals, but use them sparingly–solid connections should dominate. Erase construction marks before adding final labels.

Check functionality before finalizing: cover inputs with a finger to simulate high/low states and trace the expected output path. If the path leads to an unintended node, redraw immediately–correcting later complicates revisions.

Clear Marker Placement for Logic Gate Schematics

Assign unique identifiers to each signal line immediately after its origin–whether from an external source, logic gate output, or internal fork. Use sequential alphanumeric labels (e.g., *A1*, *B3*, *Σ2*) for consistency, reserving capital letters for primary inputs (e.g., *X*, *Y*) and lowercase for derived values (e.g., *p*, *q*). Place labels directly above horizontal lines or to the right of vertical ones, ensuring a minimum 3mm buffer from components to avoid visual clutter. For multi-bit buses, append index brackets (*D[0]*, *D[1]*) and group related labels in proximity, aligned horizontally or vertically.

• Prepend descriptive prefixes for specialized nodes: clk_ for clock signals, rst_ for resets, err_ for error flags.
• Avoid generic terms–replace temp with sum_partial or carry_in.
• For repeated subcircuits (e.g., full adders), maintain identical labeling across instances using suffixes (sum_a, sum_b).
• Color-code labels by function: red for critical paths, blue for control signals, black for data.
• Validate readability by printing at 50% scale; illegible text requires larger font or repositioning.

Assembling Logic Elements into Functional Combinational Designs

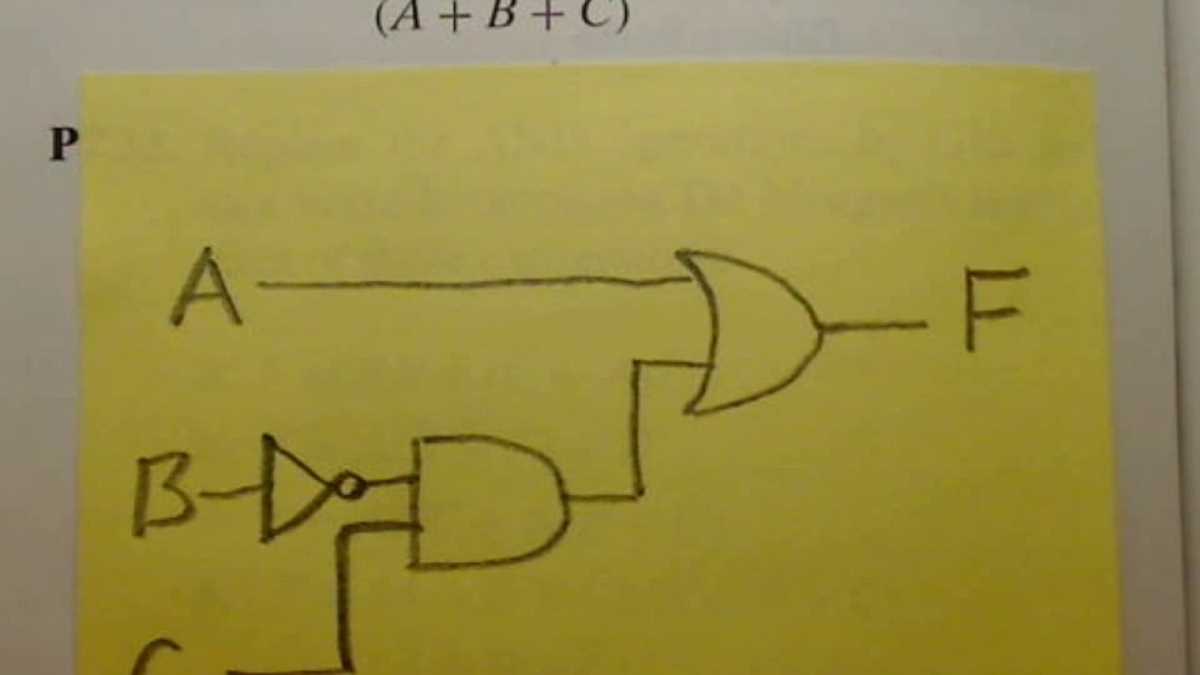

Begin by identifying the core expression you need to implement, breaking it down into its smallest sub-terms. For example, if constructing (A AND B) OR (NOT C), isolate A AND B and NOT C as separate modules. Wire each module’s output to the next stage–AND gates converge first, then their result feeds into an OR element alongside the inverted input. Label every node to track signal flow; use incremental identifiers like X1, X2 for intermediate results. Ensure connections avoid crossing unless absolutely necessary; re-route horizontally or vertically to maintain clarity.

• Use distinct colors for different signal types: red for carries, blue for primary inputs, green for temporary outputs.
• Place inverters directly adjacent to inputs they negate to minimize trace lengths.
• Align gate symbols so inputs enter from the left and outputs exit right; this directional consistency eliminates confusion.
• For nested expressions, stack gates vertically rather than scattering them–depth hierarchy echoes functionality hierarchy.

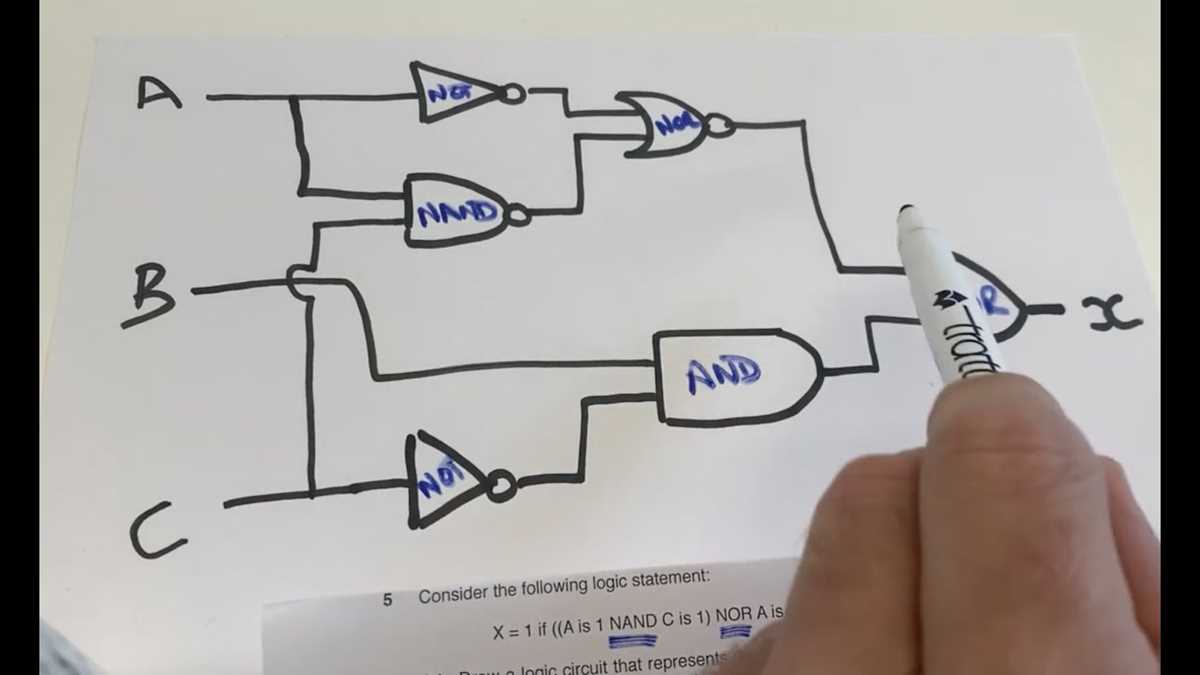

When merging outputs from parallel branches, insert a junction node where signals meet. For (A XOR B) AND (C OR D), draw the XOR and OR gates separately, then connect their outputs to a central AND symbol. Verify each branch independently before linking; simulate inputs A=1, B=0 and confirm the expected XOR 1 emerges. If discrepancies arise, check for missing inverters or incorrect gate type selections–misapplying NAND where AND is required will corrupt results downstream.

1. Test sub-expressions individually before integration.
2. Measure propagation delay if timing constraints exist; slower gates may need buffering.
3. Document final output nodes with clear labels indicating the complete function implemented.
4. Optimize by replacing redundant gates: two consecutive NOT gates cancel out, simplifying the design.

Large designs benefit from modular partitioning: group related gates into sub-blocks, then interconnect those blocks. For ((X AND Y) OR Z) AND (W XOR V), encapsulate the OR and XOR operations into separate clusters. Use buses for high-fanout signals–draw thick lines to distinguish them from single-bit traces. Keep power rails implicit unless explicitly illustrating VDD or GND connections; most schematic tools auto-hide these. Always cross-verify the assembled logic against truth tables; a single miswired input can invalidate the entire combinational network.
