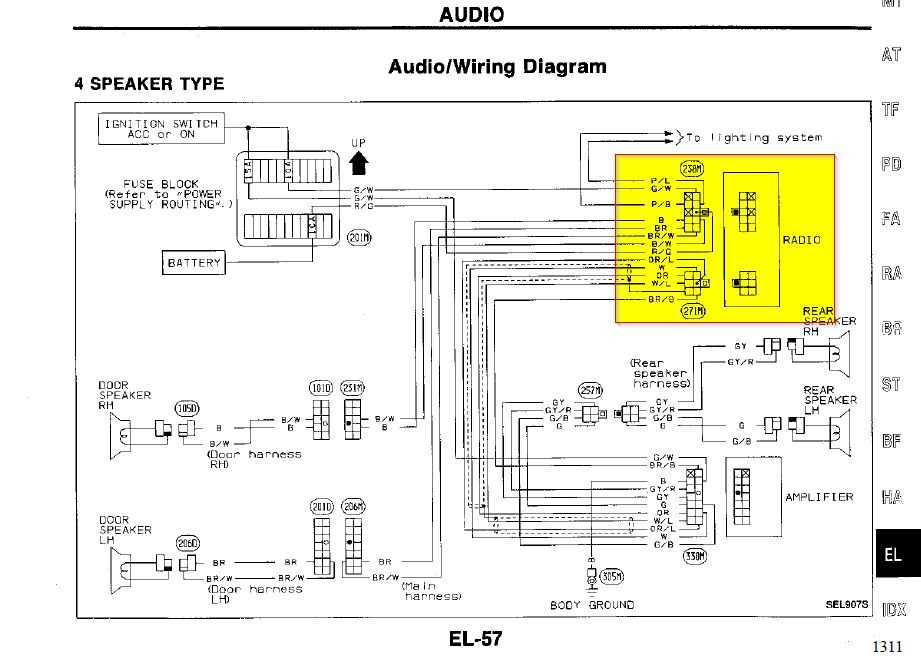

Complete Wiring Guide for 1993 Nissan Hardbody Radio Installation
For a seamless installation, trace the pink wire from the factory harness–it delivers constant 12V power for memory retention. The red wire supplies switched ignition power; splicing it ensures the stereo powers down with the key. Ground connections require direct attachment to bare metal, preferably the chassis near the dash mount; avoid painted surfaces to prevent signal interference.
Locate the blue/white striped wire (typically 22–20 AWG) for amplifier triggers–this activates aftermarket amps without manual overrides. Speaker outputs follow a standard color code: gray (+) and gray/black (-) front right, white (+) and white/black (-) front left, with rear channels in purple (+)/purple/black (-) and green (+)/green/black (-). Cross-referencing with a multimeter prevents phasing issues.
Bypass the factory antenna motor by connecting the black/white striped wire directly to the antenna lead; this eliminates erratic retraction on older models. For dimmer-controlled displays, the orange wire adjusts illumination–verify compatibility with modern head units before splicing. Insulate all connections with heat-shrink tubing; electrical tape degrades over time, risking shorts.
If integrating Bluetooth or USB, allocate the brown wire (parking brake trigger) and light green wire (rear defrost) for auxiliary circuits–these remain unused in most basic installations. Static or popping noises often trace back to loose grounds; sand the contact point to bare metal for optimal conductivity.
Factory Audio System Color Codes for D21 Pickup Models
Locate the aftermarket harness adapter matching the OEM connector: Sony units use a 10-pin connector (white housing), while Clarion models use a 14-pin (black). Pin assignments are etched on the housing–account for two ground wires (black/white and plain black), a constant 12V (yellow), switched power (red), illumination (orange), and antenna trigger (blue). Speakers follow this pattern: front left positive (gray), front left negative (gray/black), front right positive (white), front right negative (white/black), rear left positive (green), rear left negative (green/black), rear right positive (purple), rear right negative (purple/black).
Bypass factory amplification by connecting directly to speaker wires behind the dash. Amplifier wires are usually thicker and may require soldering for a secure connection. Test each wire with a 1.5V battery–positive leads produce a click in the corresponding speaker. If the audio system includes a CD changer port (8-pin rectangular plug near the glovebox), retain the violet (data), pink (clock), and white (latch) wires for compatibility with aftermarket changers.
Troubleshooting Common Issues
For no power, verify the fusible link (10A) under the dash labeled “IGN.” If illumination doesn’t work, check the orange wire continuity to the dimmer switch. Static or weak sound indicates corroded speaker wires–strip and crimp fresh ends. If the antenna motor doesn’t extend, the blue wire may need a direct 12V pulse (tap the yellow wire momentarily).
Use heat-shrink tubing instead of electrical tape for connections–especially in the engine bay where moisture accelerates corrosion. For vehicles with manual climate controls, the harness may share a ground with the A/C blower; relocate it to a clean chassis point if whining persists when the fan is on. Keep the original harness intact if removing the OEM head unit–a bypass harness (Metra 70-1761) simplifies reinstallation of the factory system later.

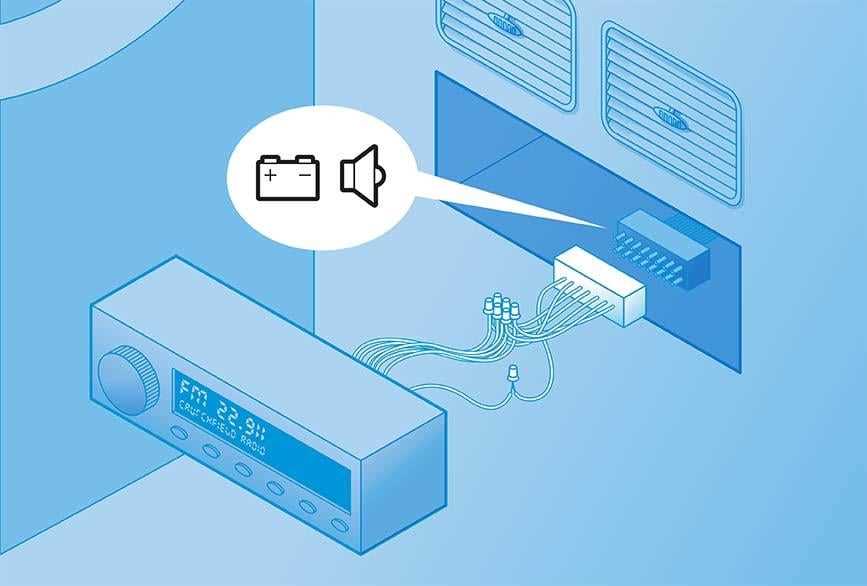

Finding the Audio System Plug-In Point in Your Early ’90s Pickup
Begin by removing the center console trim panel. Slide a flathead screwdriver under the edge near the gear shifter, then gently pry upward to release the clips. This panel covers the main harness access–three 6-pin connectors sit directly behind it, stacked vertically. The middle one handles speaker signals; the others manage power and ground.
The most direct route to the plug-in point lies behind the climate control housing. Two Torx T-20 screws hold it in place–remove them, then wiggle the unit free. A 12-pin female connector will be visible once the housing slides forward. Pin assignments follow a consistent pattern: constant 12V on the red wire, switched 12V on yellow, ground on black, and speaker outputs in pairs (front/rear, left/right).
If the connectors aren’t immediately visible, trace the bundle of wires emerging from the instrument cluster. The bundle splits near the firewall grommet–follow the branch that leads downward toward the dash support beam. A 4-inch section of corrugated sheath protects the harness; cut it open carefully to expose the plug-in point without damaging adjacent circuits.
- The lower dash cover (knee bolster) screws off using a 10mm socket–remove the two bolts near the steering column and two at the far edges.
- Behind it, a white plastic clip secures the harness to the chassis; squeeze its tabs to release.
- The primary plug-in point should now be accessible, labeled with yellow tape near the lock tab.
For trucks equipped with a cassette deck, an additional 8-pin connector sits behind the head unit. Disconnect the antenna lead first, then depress the two side tabs to slide the unit forward. The rear of the deck reveals two harnesses–one for power, one for audio channels–both keyed to prevent misconnection. The left-side connector carries the ignition-switched voltage.
Alternative Access Without Full Dash Disassembly
Reach from underneath the glove box by removing the single Phillips screw holding the support bracket. A rectangular cutout in the dashboard backing allows direct access to the harness. Two cables–one thick (power), one thin (speakers)–emerge from here; feel along their length until locating the rectangular connector body. Squeeze the release tab and pull firmly–resistance indicates a secured latch, not a faulty connection.
- Measure 8 inches from the firewall along the main harness–this marks the approximate location of the inline splice for amplifier-trigger wires.
- Identify the blue stripe wire (remote turn-on); it spurs off just before the plug-in point and is critical for aftermarket installations.
- Check for corrosion at the chassis ground stud (under the driver’s side kick panel); clean it with a wire brush if replacing components.
Step-by-Step Wire Color Code Identification for Audio System Upgrades
Locate the harness connector behind the factory head unit–typically a 14-pin rectangular plug with distinct chromatic wiring. Use a multimeter set to 12V DC to probe each strand while the ignition is in the “ACC” position; this confirms live feeds without relying solely on schematic depictions. Begin with the constant power source, which should register a steady voltage regardless of key position–this line is often clad in solid yellow or orange with a thin stripe. Ground connections will show zero resistance when tested against the chassis; these are usually solid black, brown, or green with a stripe. For speaker outputs, expect pairs like light green/purple for front left, gray/black for front right, white/black for rear left, and violet/blue for rear right–each set should produce 4-8 ohms when bridged with the meter’s resistance mode.
Verifying Connections with a Pinout Reference
| Function | Primary Color | Stripe/Secondary | Expected Voltage (Key ON) |
|---|---|---|---|
| Battery (Constant) | Yellow | None/Thin Red | 12V |
| Accessory (Switched) | Red | None/Thin Yellow | 12V |
| Ground | Black | None | 0V |
| Left Front (+) | Light Green | None | Fluctuating (0.5-4V) |
| Left Front (-) | Purple | None | Fluctuating (0.5-4V) |
Cross-reference the meter readings with the above matrix before splicing–the switched 12V line (red or red/yellow) must only activate with the ignition on, while dimmer-controlled illumination wires (blue/white or gray) may vary from 0-12V depending on dash light settings. For aftermarket integration, bypass the original amp by tracing the blue/white remote turn-on lead, which should trigger the external amplifier when the head unit powers up. If static or no sound occurs, recheck the speaker wires for polarity; reversing the pairs at the connector is a common error that degrades audio fidelity.
Connecting Aftermarket Audio System Power Leads to Factory Harness in D21 Models
Identify the constant 12V wire in the vehicle’s original harness–typically a thick yellow or orange cable–and splice it directly to the aftermarket head unit’s battery (B+) lead. Use a crimp connector or solder joint with heat-shrink tubing for durability. Avoid twisting wires alone, as vibrations can loosen connections over time.
Locate the ignition-switched power wire, usually a thinner red or pink line in the stock loom. This must link to the aftermarket device’s accessory (ACC) terminal to ensure power cuts when the key is removed, preventing battery drain. Test continuity with a multimeter to confirm the correct line before making connections.
The ground lead–typically black in factory setups–should attach securely to an existing chassis point or a bare metal surface with a star washer. Scrape away paint or corrosion to ensure a clean, low-resistance bond. Poor grounding causes issues like static, turn-on pops, or even unit failure.
For illumination control, trace the dimmer wire (often gray or light green) from the original harness. Connect this to the aftermarket unit’s illumination (ILL) input to sync dashboard brightness adjustments. Verify function by toggling the headlights–display backlighting should adjust accordingly.
If retaining factory antenna operation, splice the blue remote (ANT) wire from the new system into the existing motorized antenna lead. This triggers the antenna extension when the device powers on. Use a relay if the aftermarket unit lacks sufficient current to drive the motor directly.
Speaker wires in the stock harness match standard aftermarket polarity: solid color for positive, striped for negative. Maintain these conventions when splicing to avoid phase cancellation, which weakens bass output. Double-check each pair with a 9V battery test–speakers should push outward on positive contact.
Once all connections are secured, wrap the harness in electrical tape or split loom tubing to prevent short circuits. Reconnect the vehicle battery last, then power on the unit to confirm all functions operate without error codes or intermittent failures. If the display flashes or shuts off, revisit ground connections first.
