Complete Wiring Guide for 220 Volt Stove Plug Installation
Use a 6-gauge copper wire for the circuit–this thickness ensures safety with high-current devices. Standard installations require four conductors: two hot wires (red and black), one neutral (white), and one ground (green or bare). Check local codes–some regions mandate a separate ground wire even if the conduit serves as grounding.
Split-phase systems dominate residential setups. Each hot wire carries 120 volts relative to neutral, but 240 volts between them. Always verify polarity–reversing hot and neutral wires can damage connected hardware. Label wires at both the outlet and the breaker panel to prevent future misconnections.
Connect the red and black wires to the double-pole breaker terminals at the panel. Secure the neutral wire to the bus bar, not the breaker. The ground wire must attach to the ground bus. Use wire nuts rated for 600 volts when joining conductors–cheap alternatives risk overheating or loose connections.
For European or NEMA 14-50 outlets, the hot wires go to the outer screws (often brass), neutral to the silver screw, and ground to the green screw. Torque all terminal screws to the manufacturer’s specified value–loose connections cause arcing. Test continuity with a multimeter before energizing the circuit; resistance should read near zero ohms.
Electrical Connection Guide for High-Power Appliances
Begin by shutting off the circuit breaker supplying power to the outlet–this prevents accidental contact with live wires. Verify the absence of voltage using a non-contact voltage tester on all conductors before proceeding. For a 4-wire configuration, connect the red and black wires to the two hot terminals (L1 and L2), the white wire to the neutral terminal, and the green or bare wire to the grounding terminal. Ensure each connection is tight, with no exposed copper visible beyond the terminal clamp.
Refer to the appliance’s nameplate for exact current requirements; most high-amperage units demand a circuit rated for 30, 40, or 50 amps. Use wire gauges matching the circuit breaker’s capacity: 10 AWG for 30 amps, 8 AWG for 40 amps, and 6 AWG for 50 amps. Incorrect gauge selection risks overheating and potential fire hazards. Install a dual-pole breaker in the electrical panel to accommodate the two hot wires, ensuring it matches the circuit’s amperage rating.
| Breaker Rating (Amps) | Wire Gauge (Copper) | Terminal Colors |
|---|---|---|
| 30 | 10 AWG | Red (L1), Black (L2), White (N), Green (G) |
| 40 | 8 AWG | Red (L1), Black (L2), White (N), Green (G) |
| 50 | 6 AWG | Red (L1), Black (L2), White (N), Green (G) |
After securing the connections, wrap each terminal with electrical tape to prevent short circuits, then screw the outlet cover plate back into place. Restore power at the breaker and test the installation with a multimeter: measure between the two hot terminals (240V), each hot and neutral (120V), and hot to ground (120V). Deviations from these readings indicate incorrect wiring or a faulty breaker–recheck all connections if discrepancies arise.
Troubleshooting Common Issues
If the appliance fails to power on, first confirm the breaker hasn’t tripped. Next, inspect the outlet for burned or discolored contacts, which signal overheating–replace the outlet immediately if damaged. For intermittent power loss, ensure all terminal screws are tightened to manufacturer specifications (typically 12–15 inch-pounds of torque). Loose connections can cause arcing, leading to pitting on the contact surfaces. Always use copper conductors; aluminum wiring requires specialized connectors and antioxidant compounds to prevent corrosion.
Identifying the Correct Wire Colors for a High-Voltage Appliance Outlet

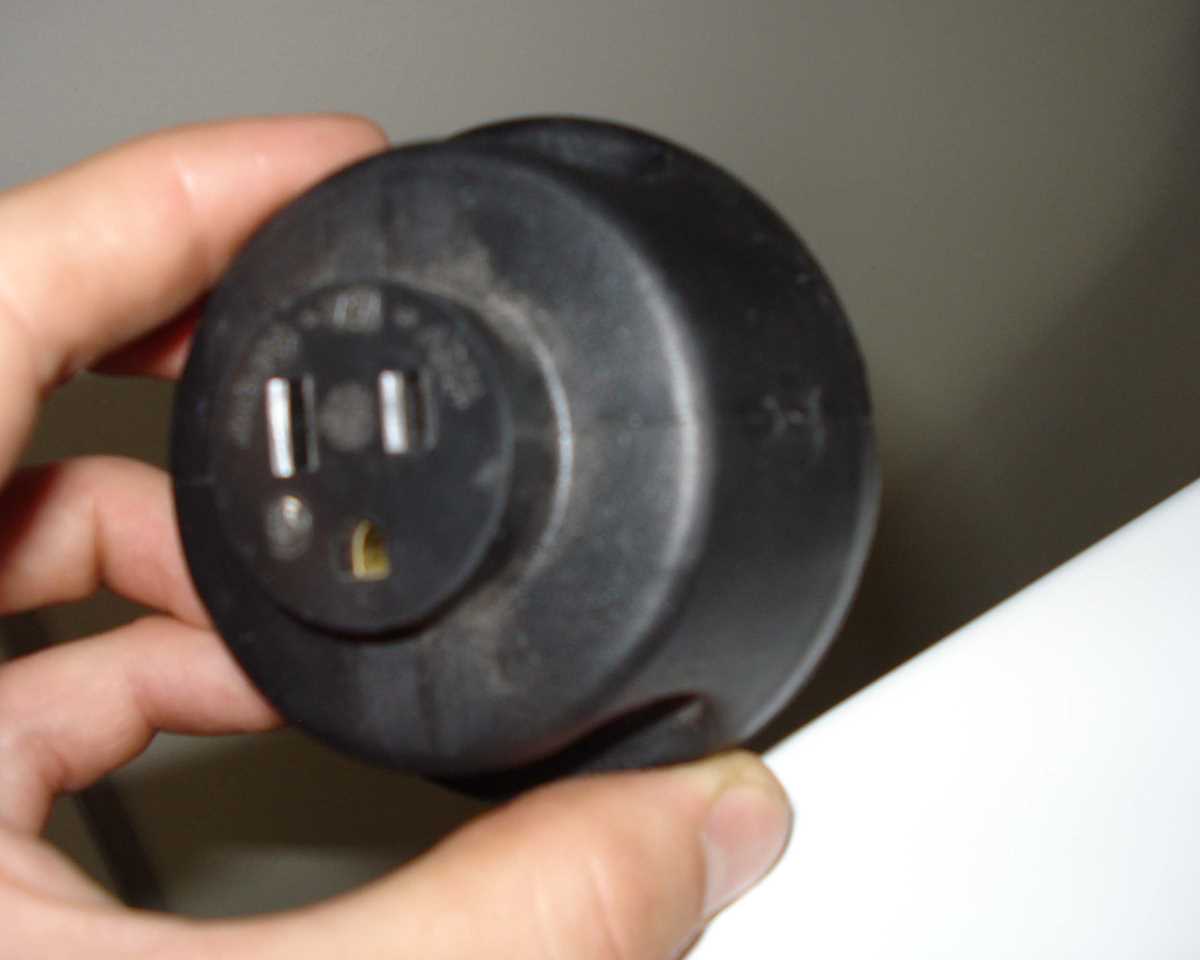

For a 240-volt cooking appliance receptacle, the standard configuration in North America uses three or four conductors. The red and black wires carry the live phases, each supplying 120 volts relative to ground. The white wire serves as the neutral conductor, while the bare copper or green wire acts as the safety ground. In older installations, a two-conductor setup may lack a neutral, but modern codes require all four wires for proper functionality and compliance.

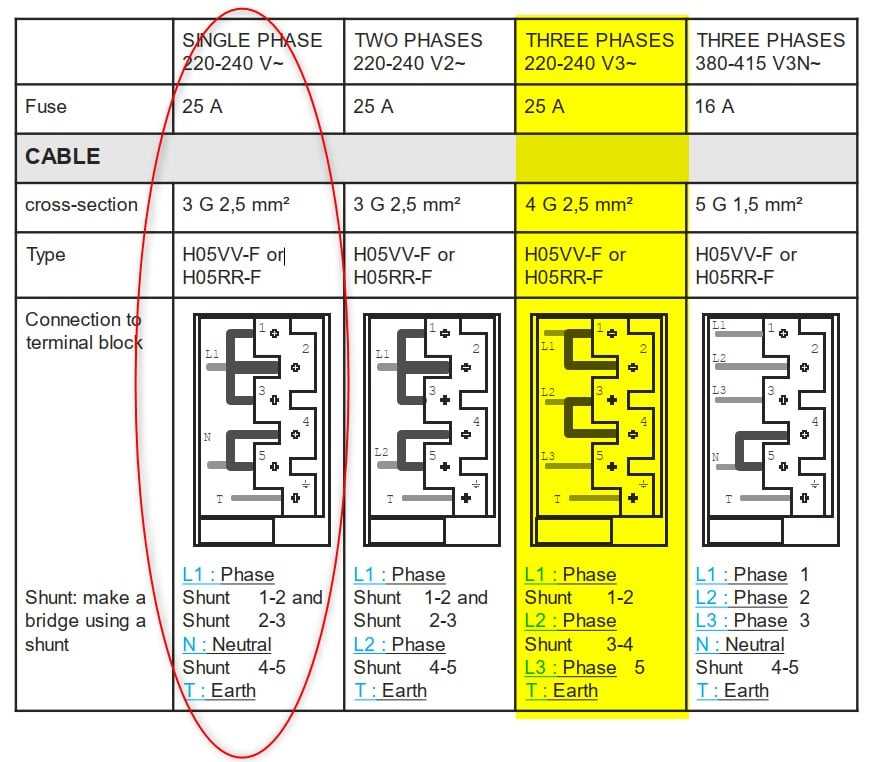

Verify wire colors against the manufacturer’s specifications before connecting the terminal block. European and international setups often use brown (live), blue (neutral), and green/yellow (ground), but U.S. regulations mandate the red-black-white-green scheme. Miswiring risks damage to the appliance or fire hazards–cross-check each conductor against the terminal screws labeled “L1,” “L2,” “N,” and “GND.” Use a multimeter to confirm 240V between red and black, and 120V between either live wire and neutral or ground.
Some high-amperage outlets (e.g., NEMA 14-50) also include a dedicated neutral for features like digital displays. If the appliance lacks a neutral requirement, cap the white wire with a wire nut and tuck it back into the junction box–never remove or splice it into a live conductor. For split-phase systems, ensure the circuit breaker matches the outlet’s amperage (typically 40–50A) and that all connections are torqued to the manufacturer’s specifications.
If retrofitting an older circuit, replace frayed or deteriorated cables–aluminum wiring, common in pre-1970s homes, demands specialized connectors like COPALUM or AlumiConn. Copper-clad aluminum requires similar precautions. Label all wires at both the outlet and panel ends for future maintenance, and always de-energize the circuit before handling conductors.
Step-by-Step Guide to Connecting a NEMA 10-30 Outlet for High-Power Appliances
Before handling any electrical components, shut off power at the circuit breaker panel. Use a non-contact voltage tester to confirm the absence of current in the cables you’ll work with. Failure to verify this step risks severe injury or fatal shock.
For a NEMA 10-30 configuration, you’ll need 10-gauge copper wire: two hot conductors (black and red or both black), one neutral (white), and a separate grounding wire (bare or green). Older installations may lack a ground–if so, consult local electrical codes before proceeding, as some jurisdictions permit this setup only for legacy systems.
Strip approximately 3/4 inch of insulation from each wire end using strippers calibrated for 10 AWG. Insert the conductors into the corresponding terminals on the outlet: brass screws for hot wires, silver for neutral, and green for grounding. Tighten each screw with a torque screwdriver set to 12 inch-pounds–over-tightening can strip threads or damage conductors.
Fold excess wire neatly into the electrical box, ensuring no insulation is pinched or cut by box edges. Secure the outlet to the box with mounting screws, then attach the cover plate. Restore power at the breaker and use a multimeter to verify 120V between each hot and neutral, and 240V across the two hot terminals.
If the appliance has a 4-prong cord (common for newer models), connect the ground wire to the metal chassis of the unit in addition to the outlet’s grounding terminal. For 3-prong cords (older designs), the neutral conductor serves as both neutral and ground–cross-check the appliance manual to confirm compatibility with your outlet type.
Test the installation by powering the appliance through a full heating cycle. Monitor for unusual odors, buzzing, or tripped breakers–these indicate loose connections, undersized wire, or internal faults. If issues arise, recheck all terminals, wire gauges, and breaker amperage (typically 30A for NEMA 10-30).
Connecting a Heavy-Duty 240V Cord to Your Appliance: Step-by-Step Safety
Shut off the circuit breaker powering the high-voltage outlet before touching any terminals. Verify absence of current using a non-contact voltage tester–hold the device near each conductor and the ground connection; a silent response confirms safe conditions. For a four-conductor setup, identify the terminals by their standard color coding: red and black for hot wires (L1 and L2, 120V each), white for the neutral (current return), and green or bare copper for grounding. Strip only ¾ inch of insulation from each conductor to prevent exposed wire from causing short circuits. Secure connections by tightening terminal screws to 15–20 in-lbs of torque–use a calibrated screwdriver to avoid overtightening, which can strip threads or damage wire strands.
Avoiding Critical Mistakes
Never connect the neutral and ground wires together–this violates electrical codes (NEC 250.140) and creates a fire hazard. If replacing an older three-conductor setup, remove the neutral-ground bonding jumper inside the appliance’s junction box to separate these paths. After securing all wires, fold them neatly into the outlet box and attach the strain relief clamp to prevent tension from loosening connections. Re-energize the circuit only after double-checking each terminal with a multimeter set to AC voltage: probe hot wires against neutral (should read ~240V) and hot-to-ground (~120V each). If readings deviate, re-inspect connections before operating the appliance.
Resolving High-Voltage Appliance Connector Failures
Check terminal torque specifications immediately. Loose connections at the outlet or terminal block generate resistance, causing overheating and intermittent power loss. Use a calibrated torque screwdriver: brass terminals require 20-25 in-lbs, steel terminals 30-35 in-lbs. Verify tightness annually, especially in high-vibration environments. Corrosion or oxidation at contact points increases resistance exponentially–clean with a wire brush and apply dielectric grease before retightening.
- Discolored or melted wire insulation signals excessive heat–replace conductors showing any degradation.
- Test continuity between each prong and corresponding circuit breaker terminal using a multimeter set to ohms (Ω). Readings above 0.5Ω indicate faulty connections.
- Inspect the neutral wire for damage or improper termination–high-voltage circuits often fail due to neutral issues rather than hot conductors.
Arc faults occur when conductive debris accumulates inside the outlet housing. Remove covers and vacuum interior spaces annually, focusing on the contact area where prongs meet terminals. Replace any receptacle showing signs of carbon tracking or pitting. For split-phase connectors, ensure each hot leg delivers 110-120VAC relative to neutral–significant voltage drops indicate wiring faults upstream.
Ground integrity disruptions create safety hazards. Measure voltage between each hot terminal and ground: readings should match the phase voltage (220-240VAC). Any deviation signals a faulty ground–to resolve, trace the ground conductor back to the service panel, verifying the grounding electrode connection. Replace corroded clamps or rods. In older installations, retrofit a supplemental ground rod if resistance exceeds 25Ω to earth.
- Label all conductors before disassembly–reversing hot and neutral wires damages appliances and violates code.
- Use heat-shrink tubing on splices rather than electrical tape for permanent repairs.
- Avoid backstabs for high-current devices–use pigtail connections with wire nuts rated for 90°C.
- For stranded conductors, terminate with crimped ring terminals, not twisted ends, to prevent loosening.
