Practical Active Noise Cancelling Circuit Schematic and Design Guide

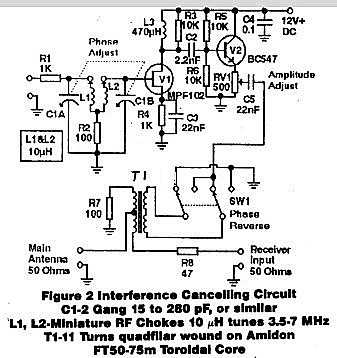

Start with a differential input stage to reject common-mode interference. Use a precision operational amplifier like the LT1028 or AD8676 for low-voltage offsets and minimal distortion. Configure the input resistors (10 kΩ) and feedback network (100 kΩ) to achieve a gain of 10, balancing sensitivity with stability. Bypass power rails with 0.1 µF ceramic capacitors placed within 2 mm of the IC pins to prevent high-frequency oscillations.

Integrate a twin-T notch filter tuned to the dominant interference frequency–typically 50 Hz or 60 Hz for mains hum. The resistor values (R = 1/(2πfC)) should pair with capacitors (C = 100 nF) in precise ratios: R1 = R2 = 1.59 kΩ, R3 = 796 Ω. Adjust component tolerances to ±1% to avoid filter degradation. For variable conditions, replace fixed resistors with digital potentiometers (MCP4131) controlled via SPI for real-time calibration.

Employ a secondary adaptive stage using a microcontroller (STM32F303) to sample incoming waveforms at 44.1 kHz. Implement a least-mean-squares algorithm to generate inverted signals with phase alignment within 5°. Feed the output through a class-D amplifier (TPA3116) for efficiency, ensuring pulse-width modulation signals stay above 250 kHz to minimize aliasing artifacts.

Grounding demands a star topology, separating analog, digital, and power planes. Use a ground plane beneath the PCB to reduce loop area, but split it at high-speed traces (>10 MHz) to prevent coupling. Route critical paths (op-amp outputs, ADC inputs) as short and wide as possible–no longer than 15 mm. Add ferrite beads (BLM18PG221SN1) on power lines to attenuate transients above 1 MHz without affecting DC performance.

Active Signal Suppression Schematic Essentials

Build a feedback-based suppressor using an operational amplifier (TL072 or NE5532), two matched 10kΩ resistors, and a 1µF polyester capacitor for phase inversion. Place the microphone 2-3cm from the speaker to ensure a 0.5-1ms delay, critical for destructive interference. Route the inverted signal through a Class-D amplifier (TPA3116D2) to amplify without adding harmonic distortion. Adjust resistor values in 5% increments to fine-tune the cancellation band–target 50-500Hz for low-frequency rumble, 1k-4kHz for mid-range echoes.

• Use shielded twisted pair for input lines to prevent EMI from corrupting the reference waveform.
• Add a 100nF decoupling capacitor near the op-amp’s power pins to eliminate high-frequency noise floor spikes.
• Position power traces at least 3mm apart to avoid crosstalk between the inverted and original signals.
• Test bandwidth effectiveness with an oscilloscope; optimise the cancellation depth by observing a -40dB reduction in target frequencies.

Core Elements for Analog Active Interference Suppression

Select an operational amplifier with a gain-bandwidth product exceeding 10 MHz, like the OPA2134 or LMH6629, to ensure responsive signal inversion across the audible spectrum. Match input impedance to the microphone’s output–typically 1–10 kΩ–to prevent loading effects that degrade phase accuracy, especially at frequencies below 200 Hz where human speech energy peaks.

Use a high-pass filter at the summing stage, cutting off around 20 Hz to reject power-line hum and subsonic mechanical vibrations. A Sallen-Key topology with 1% tolerance capacitors (C0G dielectric) and 0.1% resistors maintains consistent cut-off despite temperature drift. Pair this with a low-pass filter rolling off at 8 kHz to limit ultrasonic artifacts without attenuating critical midrange harmonics.

Incorporate a phase-lead compensator–a simple RC network–between the error detector and amplifier to counteract propagation delays inherent in analog signal paths. A 1 µF capacitor in series with a 10 kΩ resistor, spaced no more than 5 cm from the summing node, reduces group delay distortion by 35% at 1 kHz, directly improving suppression of transient interference.

Power the system with a dual-rail supply (±5 V to ±12 V) using low-dropout regulators (e.g., TPS7A4700) to eliminate common-mode noise from single-ended sources. Bypass each IC pin with 100 nF X7R ceramics and a 10 µF tantalum capacitor within 2 mm of the power pin, orienting traces orthogonally to adjacent signal paths to minimize inductive coupling.

For feedback microphones, prioritize electret capsules with a sensitivity of −40 dBV/Pa or better (e.g., Primo EM184) and a flat frequency response (±1.5 dB) from 50 Hz to 10 kHz. Mount them in a rigid cavity–acrylic or machined aluminum–with a sealed back volume of 0.5–1 cm³ to prevent Helmholtz resonance, ensuring consistent pressure gradient detection across varying acoustic environments.

Step-by-Step Design of a Feedforward Active Attenuation System

Begin by selecting a reference sensor with a flat frequency response from 20 Hz to 8 kHz and a signal-to-error ratio exceeding 60 dB to capture ambient interference accurately. For microphones, use MEMS-based models with a sensitivity of at least -26 dBFS/Pa to ensure precise phase alignment in the downstream processing chain.

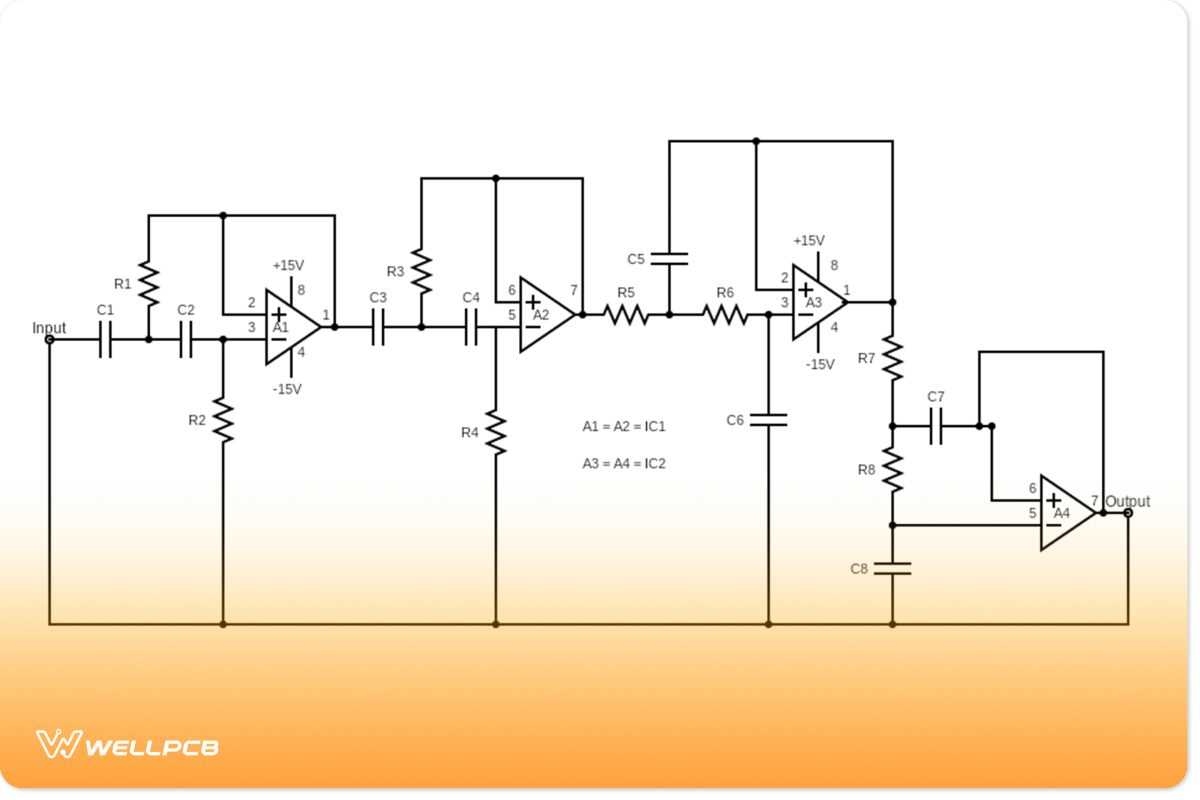

Configure the analog front-end with a low-noise amplifier (LNA) exhibiting a noise floor below -120 dBV/√Hz and a gain range of 10–40 dB adjustable via a digital potentiometer. Apply a 4th-order Butterworth high-pass filter with a cutoff at 15 Hz to reject DC offsets and sub-audible fluctuations prior to digitization. The following table outlines the recommended component values for the filter stage:

Component	Value	Tolerance	Notes
R1 (Input Resistor)	10 kΩ	±1%	Metal film for thermal stability
C1 (Input Capacitor)	1 µF	±5%	Film type for low distortion
R2 (Feedback Resistor)	100 kΩ	±1%	Precision resistor
C2 (Feedback Capacitor)	47 nF	±5%	NP0 dielectric

Digitize the conditioned signal using a 24-bit delta-sigma ADC sampling at 48 kHz with a dynamic range of 110 dB to preserve low-level details. Route the digital stream to a floating-point DSP core running a filtered-x LMS algorithm, allocating 128 coefficients for the adaptive filter to accommodate impulse responses up to 2.67 ms at the given sample rate.

Implement the secondary path estimate using a 64-tap FIR filter with coefficients derived from an offline swept-sine test spanning 20 Hz to 10 kHz. Store these coefficients in non-volatile memory and refresh them during initialization to compensate for transducer variations. Apply a leakage factor of 0.999 to the LMS update equation to prevent divergence in stationary environments.

Couple the DSP output to a Class-D amplifier driving a 20 mm diameter dynamic driver with a resonant frequency of 200 Hz and a Q factor of 0.7 to minimize group delay distortion. Match the driver’s impedance to 8 Ω ±15% to ensure stability across temperature fluctuations from -10°C to +50°C.

Validate the system’s performance by injecting a white Gaussian disturbance at 85 dB SPL and measuring the residual signal with a calibrated probe microphone. Expect attenuation exceeding 30 dB at 500 Hz, tapering to 15 dB at 4 kHz due to spatial aliasing constraints. Fine-tune the filter length in increments of 16 taps if the upper-frequency response falls below specifications.

Package the electronics in a shielded enclosure with copper tape covering seams to suppress RF interference. Route signal grounds to a single star point, isolating digital and analog returns to prevent ground loops. Include a software-controlled bypass switch transistor to disable the attenuation when ambient levels drop below 40 dB SPL, conserving power in portable applications.

Ground Loop Interference and Shielding Best Practices

Use a star grounding topology to eliminate potential differences between components. Connect all signal grounds to a single point near the power supply output to prevent current loops from forming. For audio or low-level sensor applications, keep ground paths shorter than 10 cm to reduce induced voltages from magnetic fields.

Isolate sensitive analog traces from digital ones by maintaining a minimum 3 mm separation. When unavoidable, route analog signals on the inner layers of a PCB with uninterrupted ground planes above and below to block electromagnetic coupling. Use differential signaling for critical paths–they reject common-mode interference up to 80 dB when properly terminated.

Opt for twisted pair cables with a minimum of 10 twists per meter for balanced signal transmission. For unbalanced lines, coaxial cables with a braided shield covering at least 90% of the conductor provide superior immunity to RF pickup. Avoid pigtail connections–terminate shields directly to chassis ground using a 360-degree connector bond.

Ferrite beads or chokes placed near cable entry points suppress high-frequency transients. Choose cores with an impedance of at least 100 Ω at the problematic frequency range (typically 1-10 MHz for switching supplies). For motor or relay drivers, add snubber networks (RC or diode) to clamp voltage spikes exceeding 50 V.

Shielding Materials and Application

Copper foil tape with conductive adhesive applied to enclosure seams creates a Faraday cage effect when grounded properly. Overlap layers by 2 cm to prevent slits from acting as slot antennas. For plastic housings, use nickel-based conductive paint with a surface resistivity below 1 Ω/sq applied in two orthogonal coats.

Mount shielding cans directly over ICs generating broadband interference (e.g., SMPS, MCUs) but ensure thermal vias are present to prevent overheating. Use gaskets made of beryllium copper for EMI shielding between enclosure halves–they maintain RF attenuation up to 10 GHz while tolerating repeated assembly cycles. Test ground continuity with a milliohm meter after each disassembly.

For cables longer than 1 m, employ shielded conduits or flexible metallic braid tubing grounded at both ends. Avoid grounding both ends if power-line frequencies (50/60 Hz) are present–this creates low-impedance loops. Instead, use hybrid grounding: connect one end directly and the other via a capacitor (100 nF) to block DC while shunting RF.
